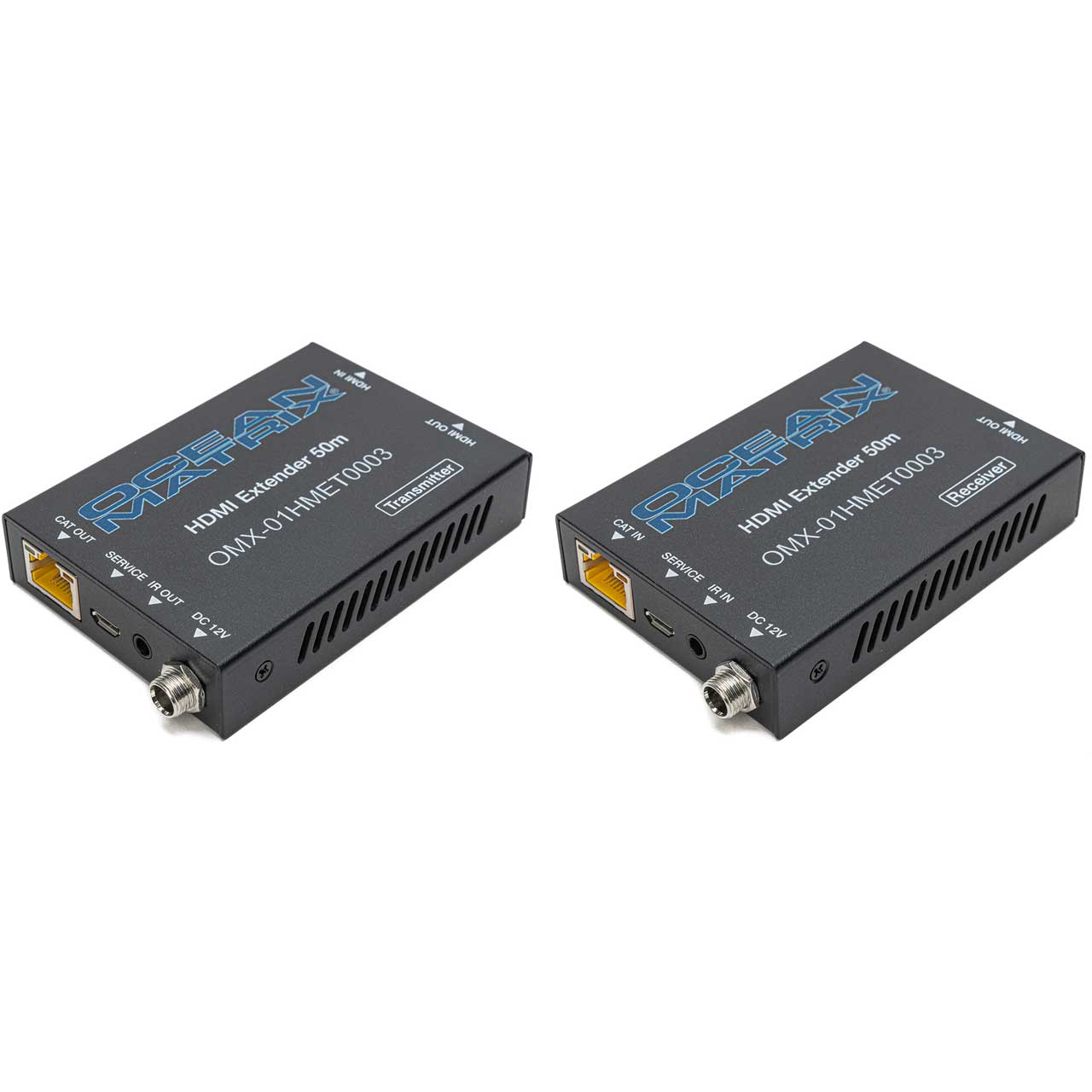

Ocean Matrix OMX-01HMET0003 Extender Set- 4K HDMI 2.0 Over Single CAT6/6a/7 with EDID / PoC / IR - 197 Feet

ITEM #: OMX-01HMET0003 MFG #: OMX-01HMET0003

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$199.95

Our Price:

$179.95

Availability: In Stock
iAvailability Description Popup


    OMX-01HMET0003 - Overview

    Ocean Matrix, the worldwide leader in HDMI extender technology, delivers its latest addition to the lineup with the 01HMET0003 18Gb 4K extender and an ability to reach up to 197 feet of coverage for all your digital signage and extension needs.

    The system sends 4K2K@60Hz 4:4:4 HDMI signals up to 197 feet over Cat6/6a/7 cable and up to 164 feet over Cat5e. The Ocean Matrix It is fully compatible with HDCP 2.2 and offers one way IR control for source devices. It also has an HDMI Looping output on the transmitter and EDID at the receiver to ensure display compatibility. The package includes both a transmitter and receiver.

    • Features:

      • HDMI 2.0 Audio/Video over a Single CAT6 Cable
      • HDMI Loop Out on Transmitter
      • Transmission Distance: 4K60Hz Cat 6/6a/7 up to 197 feet (60m), Cat 5e 164 feet (50m) / 4K30Hz/1080p Cat 6/6a/7 230 feet (70m), CAT5e up to 164 feet (50m)
      • Bi-Directional Power over Cable (PoC)
      • One Way IR Pass Through
      • Supports EDID from Receiver Display
      • Rugged Black Metal Enclosure
      • CE, RoHS Certified

    • Specifications:

      • Compliance: HDMI 2.0, HDCP 2.2/1.4, DVI 1.0
      • Video Bandwidth: 18 Gbps
      • Video Resolutions: up to 4K2k60 Hz 4:4:4
      • HDR Support
      • Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 /4:2:0, YUV 4:4:4
      • Color Depth: 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0), 8-bit (4K60Hz 4:4:4)
      • HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS-ES, DTS HD Master, DTS HD-HRA, DTS:X
      • Power Consumption: 3.84W
      • Dimensions WxDxH (TX / RX): 2.36 x 3.50 x 0.71 in/ 61 x 88 x18mm
      • Weight: TX 5.64oz, RX 5.47oz / TX 160g, RX 150g

    • Item Includes:

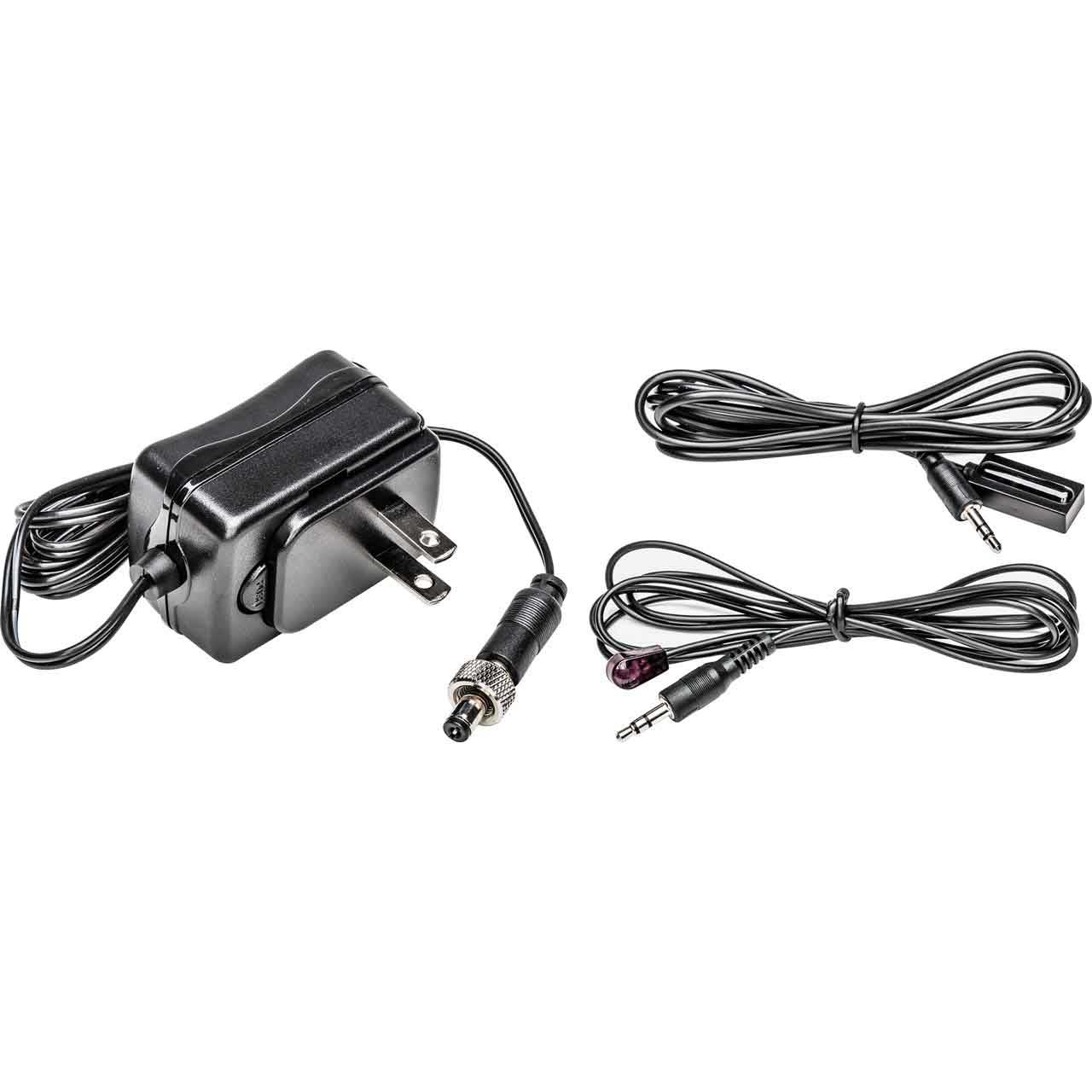

      • 12V/1A Locking Power Adapter, 1- IR Blaster Cable, 1-IR Receiver Cable

    • Warranty:

      • 1 Year Warranty


    OMX-01HMET0003 - Required Accessories
