Hall Technologies ULTRA-V-4S 4K UHD HDMI Splitter/Extender Over 1 CAT6 to 100m/328 Foot

ITEM #: HRT-ULTRA-V-4S MFG #: ULTRA-V-4S

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,040.60

Our Price:

$988.57

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ULTRA-V-4S - Overview

    The Hall Technologies ULTRA-V-4S ULTRA-V series are a family of extenders used to extend HDMI video to one or more remote locations up to 100m (328ft) over a single CAT6 cable. The extenders support various resolutions including 1080p @ 60Hz and 4K UHD @ 30Hz.

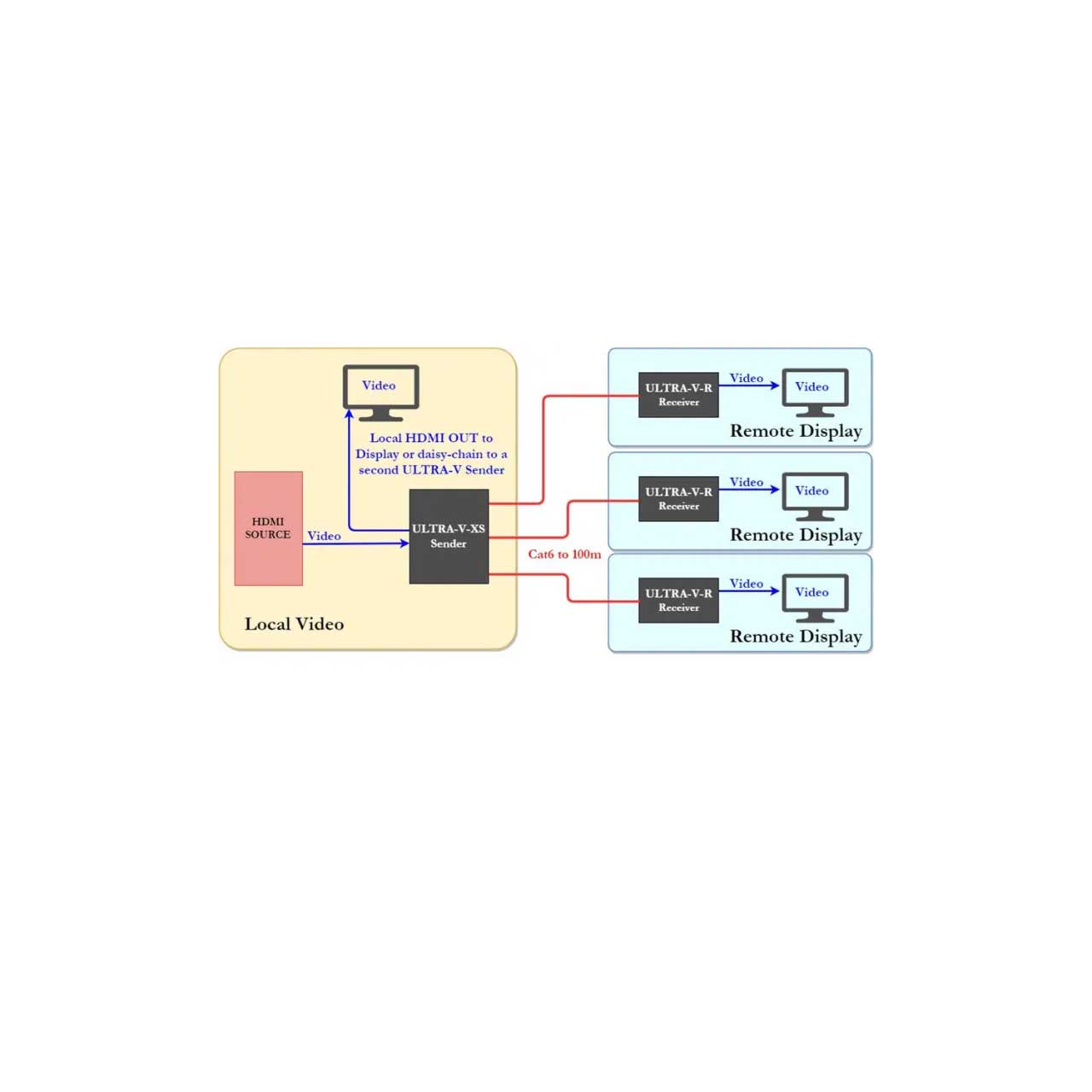

    All Senders feature an HDMI input and a local HDMI "loop" output. This allows for connection of a local display, or daisy-chaining the HDMI to another Sender to increase the number of remote displays.

    The Receivers have a single remote input, and one HDMI output for connection to a remote display.

    • Features:

      • Supports high resolution HDMI video including FHD (1920x1080), WQHD (2560x1440), and 4K UHD (3840x2160)
      • Local HDMI outputs at all Senders to connect to a local display, or to daisy-chain a second ULTRA-V Sender
      • 1,4, or 8 outputs to distribute video to multiple locations
      • ULTRA-V Receivers are compatible with ULTRA-4K Sender

    • Specifications:

      • Video Standards DVI (single link)
      • HDMI 1.4 video specifications including 12 bit color depth, 3D video
      • HDCP 1.4

        Connectors
      • (1) HDMI Input
      • (1) HDMI Output
      • (4) RJ45 Outputs
      • (1) Mini-USB Service Port
      • (1) 2.0MM Locking DC Power Input

        Resolutions
      • DVI Signal: VGA (640x480) thru WUXGA (1920x1200)
      • HDTV Signal: 480p through 4K60 4:2:0 (Interlaced resolutions are not supported)

        Refresh Rates
      • 60 Hz for resolutions up to and including HD (1920x1080) and WUXGA (1920x1200)
      • 30 Hz for resolutions above and including QHD (2560x1440)

        Power Supply
      • 100 VAC to 240 VAC, 47-63 Hz, External; 5 VDC

        Temp/humidity
      • Storage: -40 to +158 °F / 10% to 90%, non-condensing
      • Operating: +32 to +122 °F / 10% to 90%, non-condensing

        Power
      • 5V DC, 4.0 A Power Supply

        Cooling
      • Convection

        Enclosure type
      • Metal (Steel)

        Physical
      • Dimensions: 6.90" L x 7.12" W x 1.45" H
      • Shipping DImensions: 7.55" L x 10.15" W x 2.65" H
      • Weight: 1.83 lbs
      • Shipping Weight: 3.5 lbs

        Safety
      • CE

        EMI/EMC
      • CE, FCC Class A

        MTBF
      • 90,000 hours (estimate)

    • Item Includes:

      • 1x ULTRA-V-4S
      • 1x Power Supply (Hall P/N 511-IEC5V4AP5L, Mfg P/N 3A-186DB05)
      • 1x User's manual card

    • Warranty:

      • 3 years parts and labor
