    500772-TX - Overview

    The KVM HDMI over IP PoE Extender, UHD-4K allows HDMI & USB equipment to be connected up to 330ft (100m) over an Ethernet LAN, supports HDMI up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0) via Cat5e/6 cable in multiple point-to-point and point-to-multipoint configurations. The Transmitter (500772-TX) and Receiver (500772-RX) support PoE (PD) if used with a PoE (PSE) Ethernet Switch.

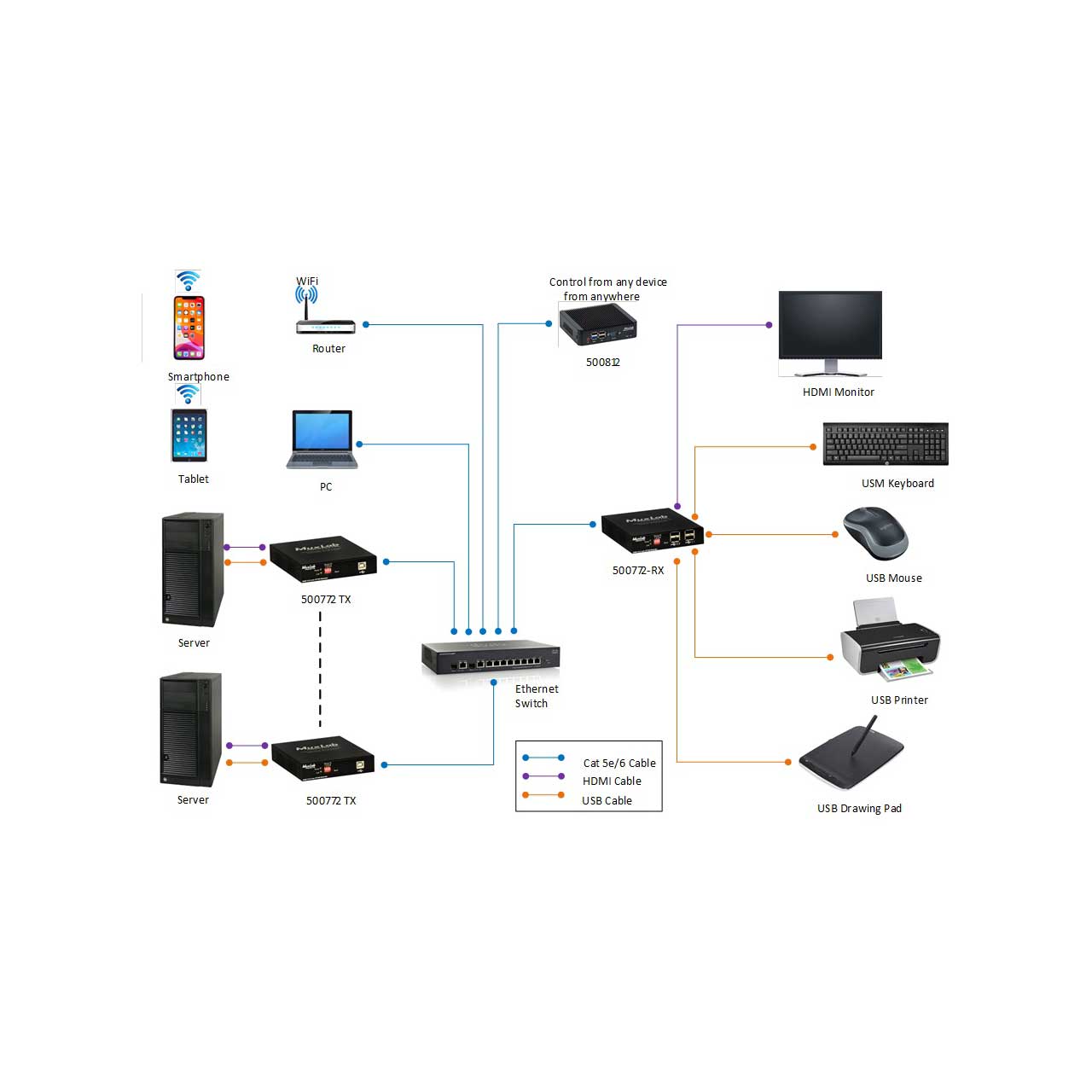

    The Transmitter terminates to a computer server/workstation via an HDMI & USB port, The Receiver terminates to an HDMI display and up to 4 USB devices such as a keyboard, mouse, printer, drawing pad, storage device, camera, etc., via a 4 port USB hub. A single Receiver can be switched via hotkey sequences to any Transmitter on the network, allowing a single operator to manage numerous servers/workstations, in a distributed KVM application.

    Management of multi-server systems supporting HDMI displays in IT departments within corporations, educational institutions, CAD Design, Graphic Design, Media Servers, and Data Centers.

    • Features:

      • One operator can manage multiple servers/workstations
      • Supports HDMI up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
      • Receiver side includes a 4-port USB hub, for KVM applications
      • Up to 330ft (100m) over Cat5e/6
      • Supports 100's of Transmitters & Receivers depending on network bandwidth
      • Supports multiple point-to-point, and point-to-multipoint applications
      • Supports HDR
      • PoE powered
      • Supports audio insert & audio output (TX), and audio extract & mic-in (RX)
    • Specifications:

      • Environment: HDMI 1.4
      • Devices: Computers and servers with HDMI monitor ports.
      • Transmission: Transparent to the user
      • Bandwidth (HDMI): 300MHz
      • Signals: HDMI 1.4 protocol, HDCP 1.4, HDCP 2.2

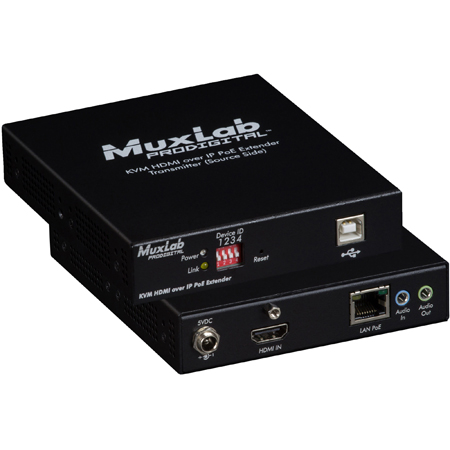

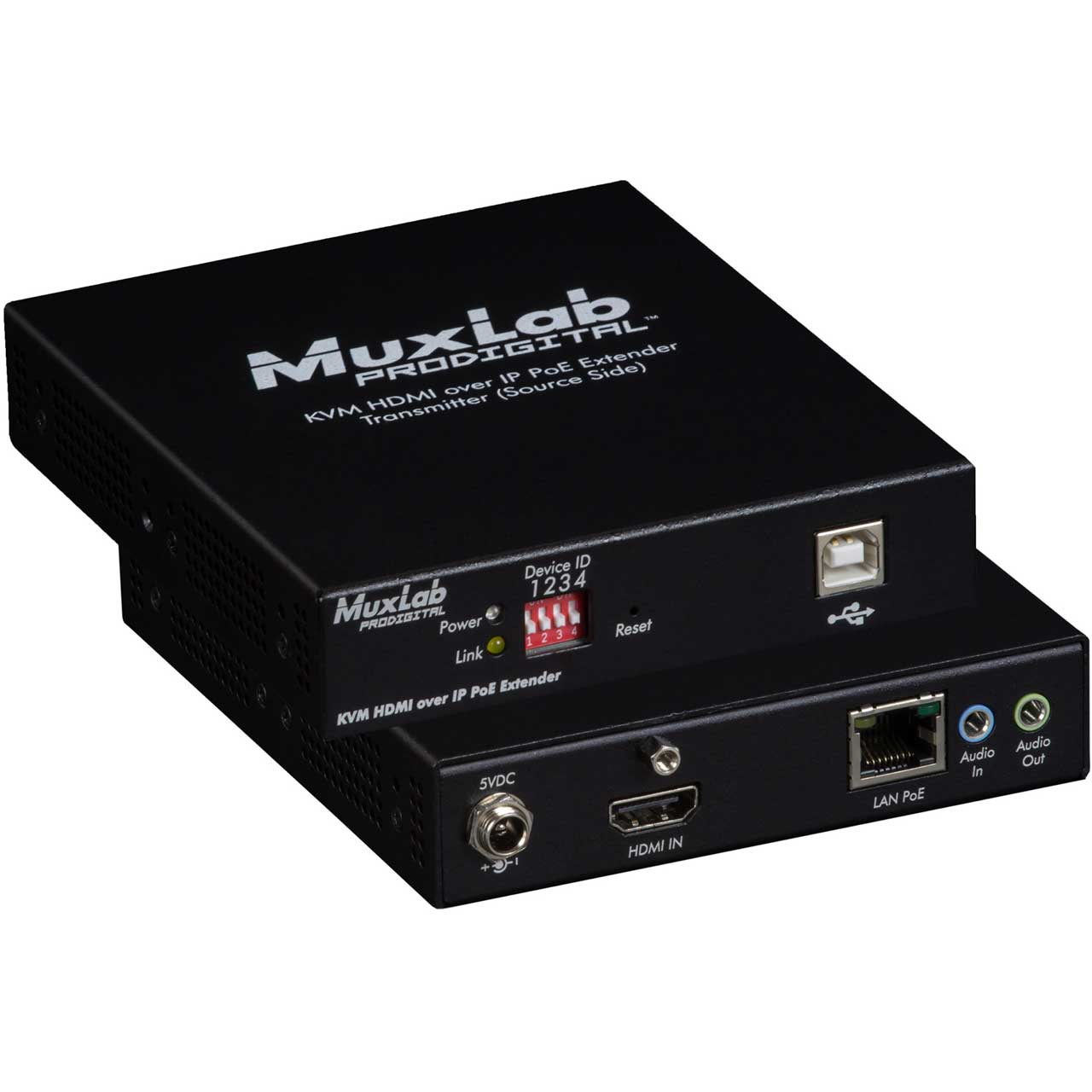

        Connectors - Note: Cables not included.
      • One (1) HDMI receptacle.
      • One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
      • Two (2) 3.5mm jacks for audio-in and audio-out (on TX)/audio-out and Mic-In (on RX).
      • One (1) 2.1mm locking barrel jack for power
      • One (1) or Four (4) USB Connector(s) for Host (on TX)/Client (on RX)
      • Four (4) DIP Switches for device ID addressing.

        Maximum Distance - Based on a maximum length of 6.6ft (2m) of HDMI cable per end.
      • Cat5e/6: 330ft (100m) up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
        Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.

      • Latency: Typical one (1) Frame (16ms), maximum 2 frames (33ms)
      • Compression: JPEG 2000
      • Bandwidth: Up to 500Mbps
      • Network Requirement: 1000BaseT with PoE
      • Cable: One (1) Cat 5e/6 or better twisted pair cables required
      • Power Source: This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.
      • PoE Standard: IEEE 802.3af
      • Power Consumption: Transmitter: 6Watt Receiver: 6Watt
      • Temperature: Operating: 0° to 40°C Storage: -20° to 85°C, Humidity: Up to 95% non-condensing
      • Dimensions: 4.40" x 5.08" x 1.00" (112mm x 129mm x 25mm)
      • Weight: 1.5lbs (0.68kg)
      • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
    • Item Includes:

      • 1x Muxlab 500772 UHD-4K KVM HDMI over IP PoE Extender - Transmitter
    • Warranty:

      • 3 years
    • GTIN:
