500800-TX-WP-WH - Overview

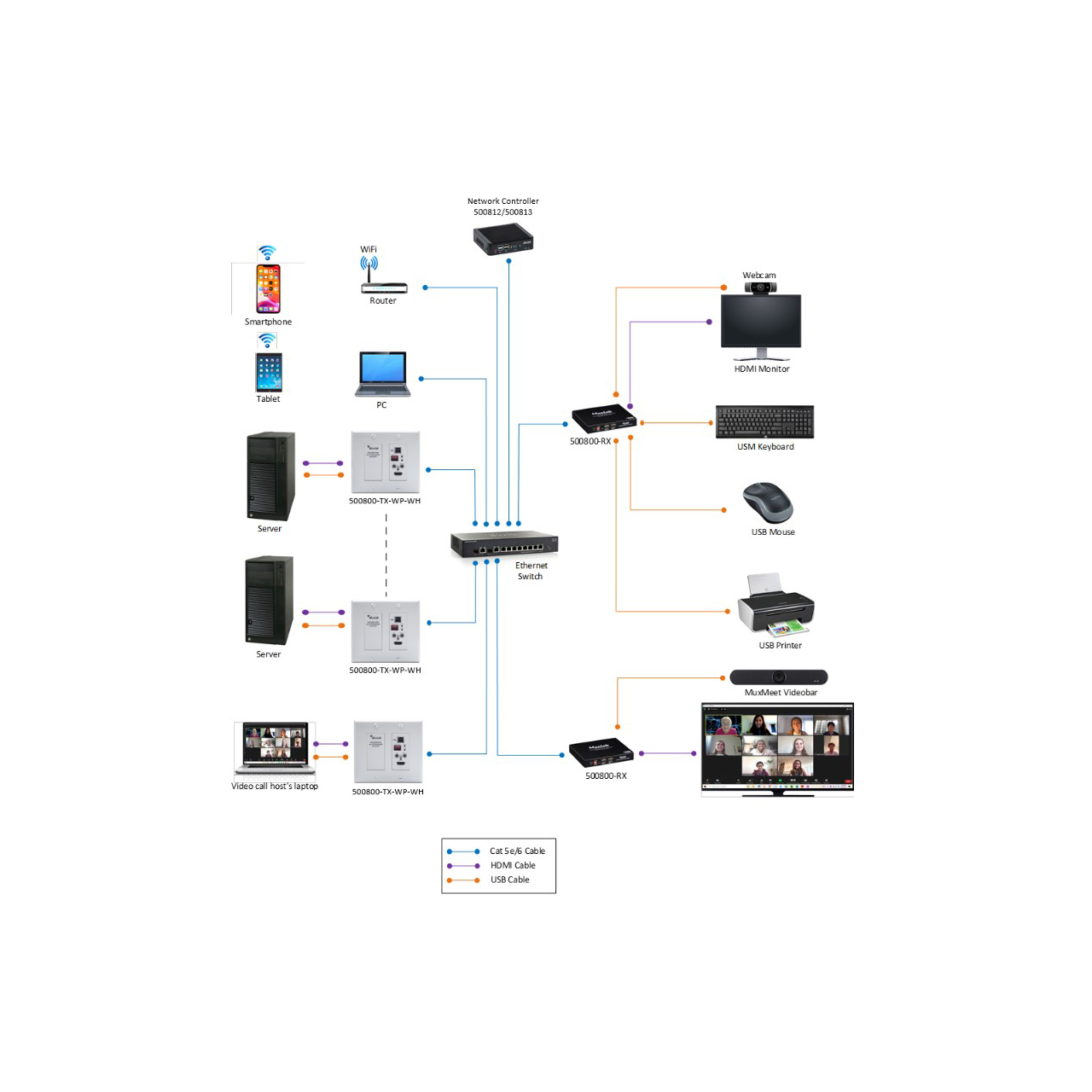

The MuxLab 500800-TX-WP-WH KVM HDMI over IP PoE Transmitter Wall-Plate, 4K/60 allows HDMI and USB equipment to be connected up to 330ft (100m) over an Ethernet LAN. It also supports HDMI up to 4K /60Hz (4:4:4) via Cat5e/6 cable and is compatible with the MuxLab 500800-RX Receiver to support point-to-point, point-to-multipoint and multipoint-to-multipoint configurations. Additionally it also allows creating a Video Wall of user configurable size (X by Y) supporting100's of screens, depending on network bandwidth, utilizing one Receiver for each display in the array.

The Transmitter terminates to a computer server/workstation via an HDMI & USB port. The Receiver terminates to an HDMI display and up to 4 USB devices such as a keyboard, mouse, printer, drawing pad, storage device, camera, etc., via a 4 port USB hub. A single Receiver can be switched via hotkey sequences to any Transmitter on the network, allowing a single operator to manage numerous servers/workstations, in a distributed KVM application.

Typical Applications

  • Audio/Video Streaming over LAN Commercial and residential AV systems
  • Classroom projector systems
  • Multi-server systems
  • IT departments
  • Educational institutions
  • Data Centers
  • Media Servers

  • Features:

    • One operator can manage multiple servers/workstations
    • Supports HDMI up to 4K/60Hz (4:4:4)
    • Supports USB 2.0
    • Up to 330ft (100m) over Cat5e/6 cable
    • Supports multiple point-to-point, and point-to-multipoint Applications
    • Directional IR for remote control of end devices Supports audio insert
    • Supports PoE powered, via PoE (PSE) Ethernet Switch
    • Managed via Pro Digital Network Controller (500812), and Muximus Network Controller (500813)

  • Specifications:

    • Environment: HDMI 2.0
    • Bandwidth (HDMI): 597MHz
    • Signals: HDMI 2.0 protocol, HDCP 1.4, HDCP 2.2
    • HDR Color: HDR10 Dolby Vision

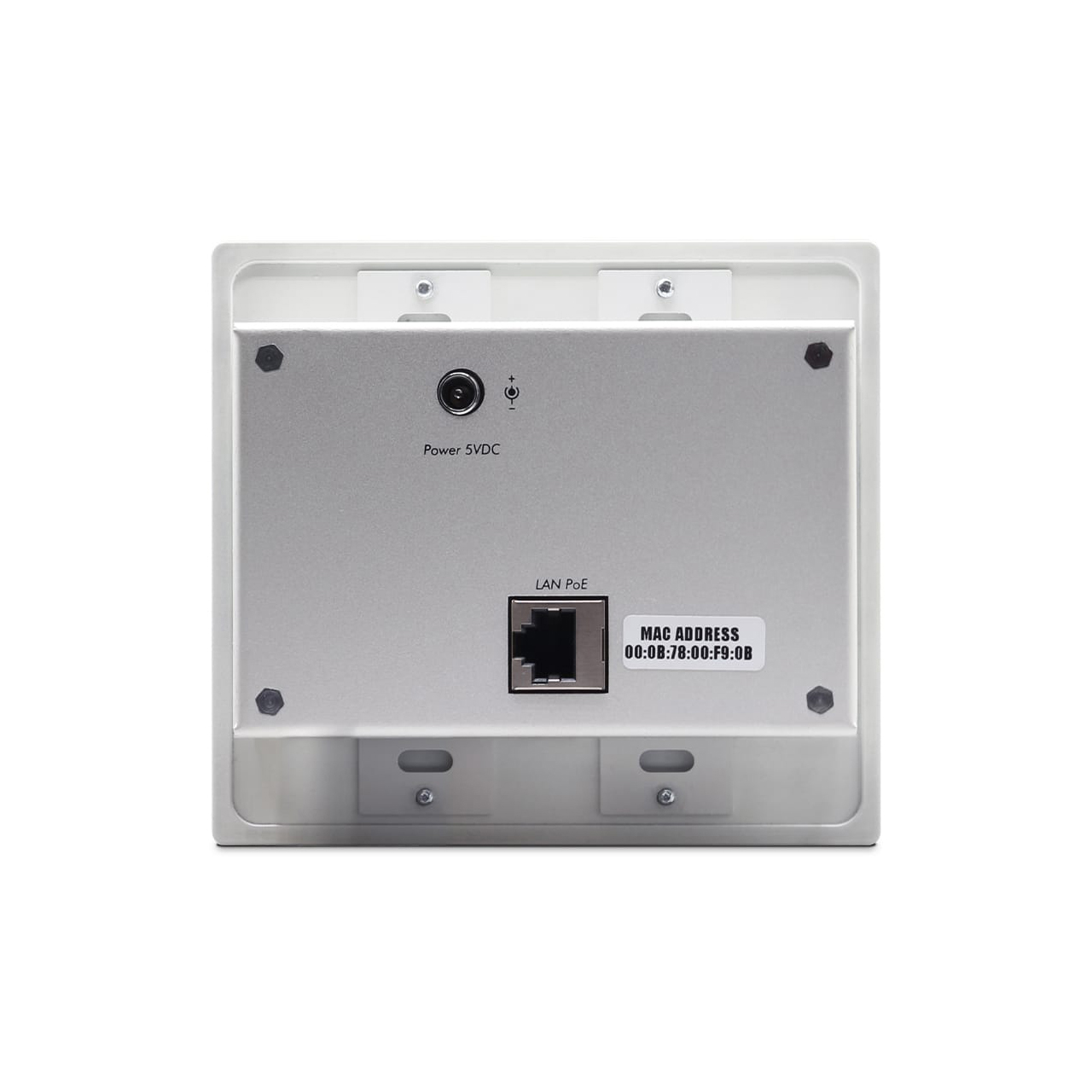

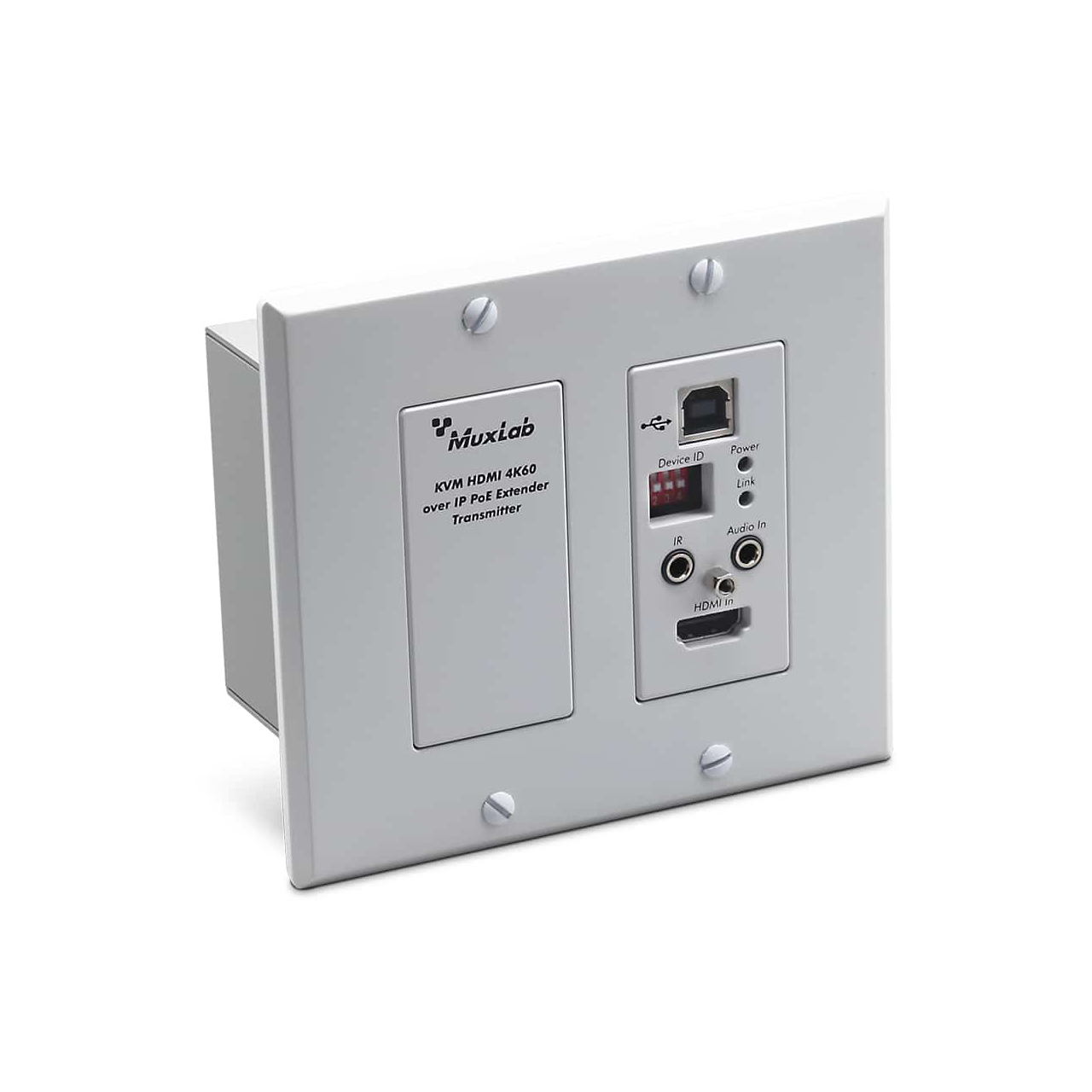

    • Connectors:
      - 1x HDMI IN connector for AV input.
      - 1x RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
      - 1x 3.5mm jacks for audio-in
      - 1x 3.5mm jack for directional Infrared port.
      - 1x USB Type B Connector for Host device
      - 1x 2.1mm power connector
    • Maximum Distance:
      - Cat5e/6: 330' (100m) from Ethernet Switch
      - Unlimited over Internet
    • Latency: Typical one frame (16ms), maximum two frames (33ms)
    • Compression: JPEG 2000
    • Bandwidth: Up to 850 Mbps
    • Network Requirement: 1000BaseT
    • RJ45 Pin Configuration:
      - Pin 1 (R) Pin 2 (T)
      - Pin 3 (R) Pin 6 (T)
      - Pin 4 (R) Pin 5 (T)
      - Pin 7 (R) Pin 8 (T)
    • Cable: One Cat 5e/6 or better twisted pair cables required
    • Power Source: Supports PoE, external power supply not included
    • PoE Standard: IEEE 802.3af
    • Power Consumption: 6W
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 185°F (-20°C - 85°C)
    • Humidity: Up to 95% non-condensing
    • Dimensions: 4.33" x 2.17" x 4.13" (110mm x 55mm x 105mm)
    • Weight: 0.63lbs (1.38kg)

  • Item Includes:

    • 1x 500800-TX-WP-WH Wall-Plate transmitter
    • Please note: One (1) Cat 5e/6 or better twisted pair cable required - sold separately

  • Warranty:

    • 2 Years

  • GTIN:

    0627699928004
