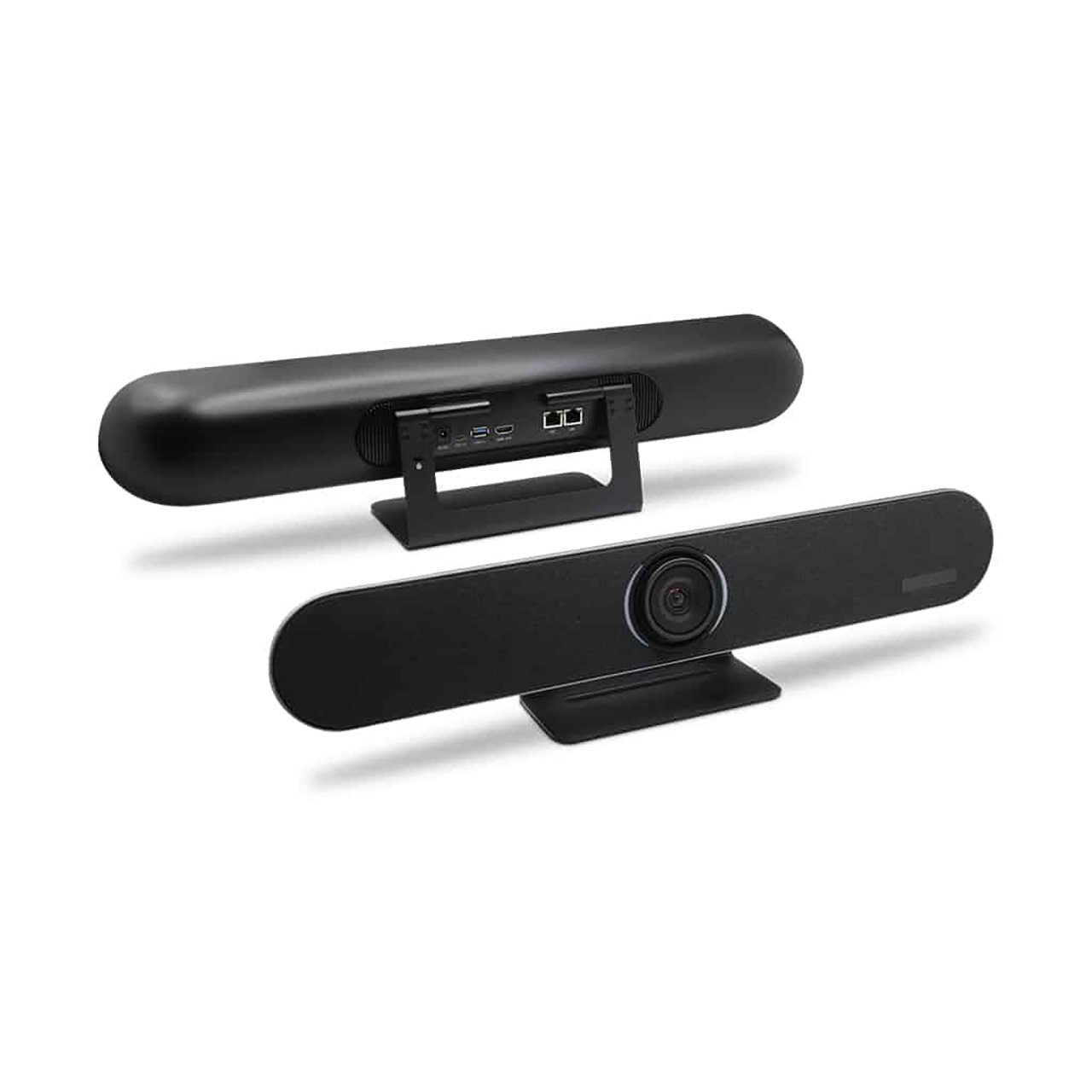

MuxLab 500822 MuxMeet Videobar with IP Control - All-In-One Video Conference Soundbar for Small and Medium Meeting Space

ITEM #: MUX-500822 MFG #: 500822

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,463.00

Our Price:

$1,170.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


500822 - Overview

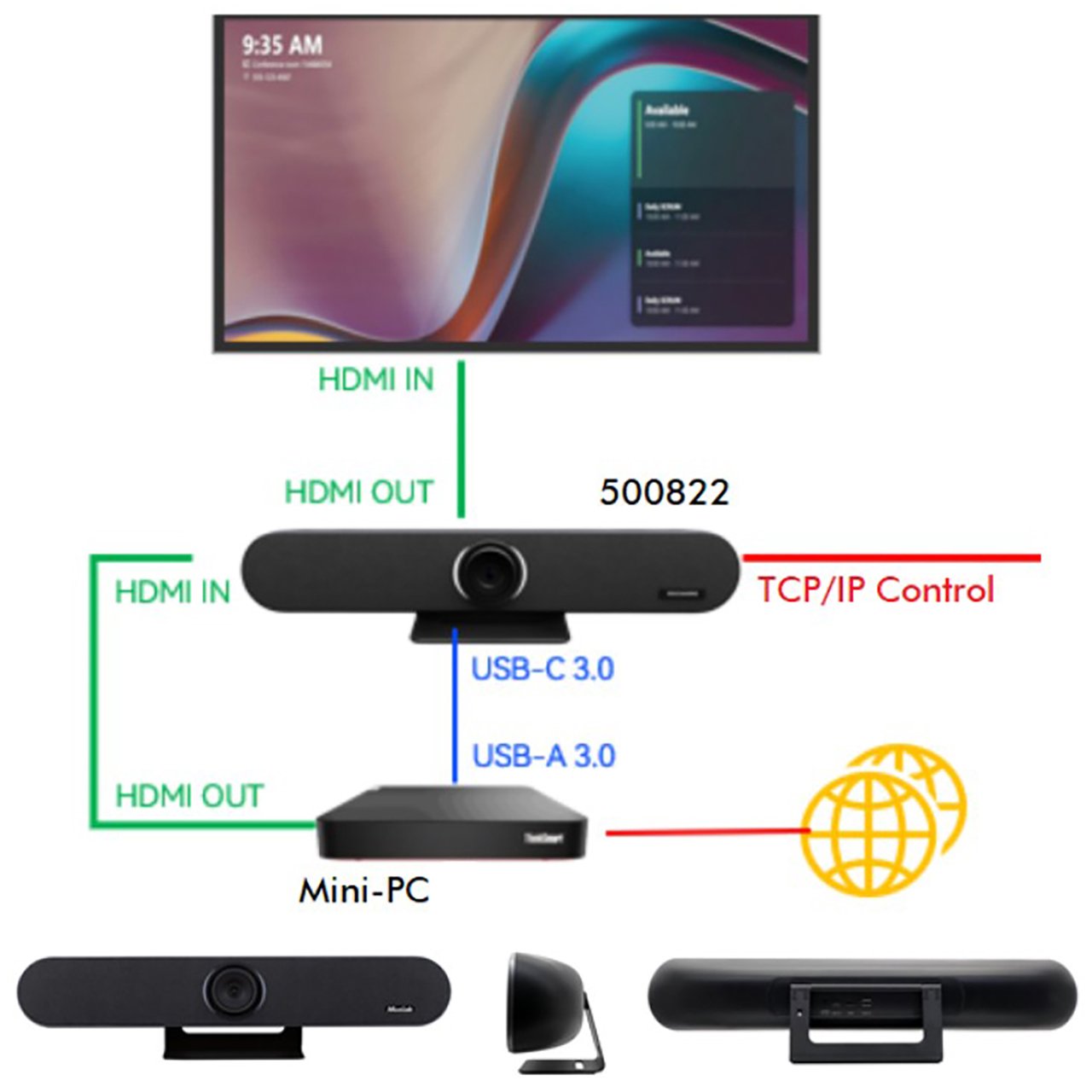

The MuxLab 500822 is an all-in-one video conference soundbar specially designed to help enterprises realize the full potential when using small and medium meeting spaces. The three-in-one design of 4K ultra-HD camera, beamforming microphone and full-frequency range loudspeaker reduces wiring clutter and simplifies video and audio communications. Featuring an 20MP camera with 120° wide field of view, 4 microphones with a pickup distance of 6 meters, intelligent DSP technology for Acoustic Echo Cancellation and a powerful 8W speaker designed for users to clearly hear every word spoken.

AI tracking enables to track group or speaker using heads, faces and human shapes. IP Control enable the user to change configuration parameters on the fly for a seamless integration. The MuxMeet Videobar works well with the most popular video conferencing platforms, such as Microsoft Teams, Zoom, BlueJeans, GoToMeeting among others.

Applications:
- Conference Rooms
- Classroom Projector Systems
- Collaborative PC Systems
- Digital Signage
- Educational Institutions
- Boardroom Systems

  • Features:

    • True plug and play all-in-one 4K-UHD Camera, beamforming microphone and full-frequency rangeloudspeaker
    • 20MP camera with 120° wide angle view and 5x digital zoom
    • Pan/Tilt support ±15°
    • Built-in microphone with 6-meter pick-up distance
    • High quality noise reduction system with echo cancellation
    • Auto Tracking and Auto Framing
    • Bluetooth 5.0 connectivity
    • Local HDMI Input and output
    • May be table-top or wall-mounted
    • Supports IP Control
    • Supports extended microphones

  • Specifications:

      Camera
    • Video System:
      - 4K@30fps
      - 1080P@60fps
      - 1080P@30fps
      - 720P@60fps
      - 720P@30fps
    • Sensor: 1/1.8", CMOS, 20M pixel
    • Lens: 114° (DFOV), 105° (HFOV), 5x Digital Zoom, Pan/Tilt ±15°
    • PTZ: Mechanical PTZ (MPT) + Electronic PTZ (EPTZ)
    • Digital Noise Reduction: 2D & 3D Digital Noise Reduction
    • Digital Output: 12-Bit
    • Color Depth: 8-Bit
    • Video S/N: =55dB

    • Loudspeaker
    • Full Frequency Speakers: 96dB SPL at 0.5 meter
    • Number of Output Channel: Mono
    • RMS Power (W): 8W UVC 1.1
    • Frequency Range (Hz): 100Hz - 16KHz
    • Sensitivity (dB): 82 ±3dB
    • SNR (dB): 69dB
    • Speaker Impedance: 8Ω

      Microphones
    • Microphone Array: Beamforming microphone
    • Frequncy Range: 100Hz - 10kHz
    • Sensitivity: -38dB
    • SNR: 65dB
    • THD: 1% Max @ 1kHz, 100dB SPL
    • Impedance: 400Ω @ 1kHz
    • Pickup Pattern: Omni directional
    • Sample Bitrate: 512Kbps
    • Sample Frequency: 32kHz
    • Pickup Distance: 6 meters

      USB
    • Connection Type: USB 3.0, downward compatible with USB 2.0
    • Color System/Compression: MJPEG and YUV2
    • USB Audio: 32K sampling rate, support UAC 1.0
    • USB Protocol: UVC 1.1
    • UVC PTZ Control: Supported (ePTZ)

      Input/Output Interface
    • HDMI Input: 1x HDMI version 1.4b
    • HDMI Output: 1x HDMI version 1.4b
    • USB Interface:
      - 1x USB 3.0, Type C
      - 1x USB 2.0, Type A
    • Ethernet Interface 1: 1x RJ45 10/100Mb
    • Ethernet Interface 2: 1x RJ45 for expansion microphone support PoE
    • Power: 1x Barrel Jack 12V DC, 5A (Max)

      General
    • Dimensions (DxWxH): 4.55" x 23.62" x 5.31" (117mm x 600mm x 135mm)
    • Weight 5.5lbs (2.5kg)
    • Control Method: 2.4G Remote Control, TCP/IP and UDP Command
    • Installation Method: Table-top or Wall-mountable

  • Item Includes:

    • 1x MuxMeet Videobar with IP Control

  • Warranty:

    • 2 Year Limited Warranty
