MuxLab 500827 MuxMeet Share H1 HDMI Dongle Wireless Video Transmitter

ITEM #: MUX-500827 MFG #: 500827

Primary Image
MuxLab Inc
Free Shipping with $49 Minimum Order

List Price:

$353.00

Our Price:

$282.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    500827 - Overview

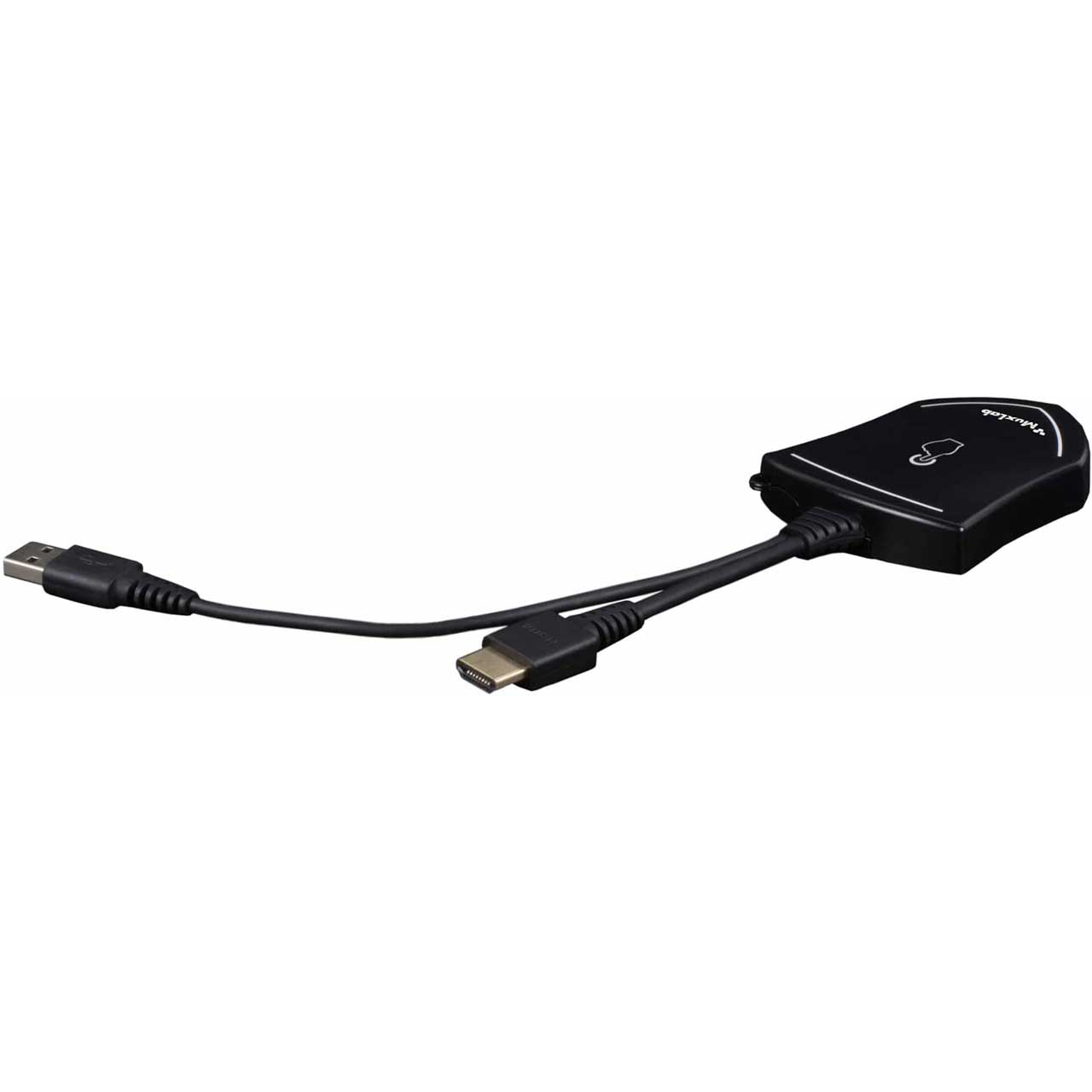

    The MuxMeet Share Dongle-H1 500827 is an HDMI Dongle that enables meeting participants using Windows or MAC based laptops to wirelessly share content with the push of a button, making connecting and sharing desktop screens in a meeting a simple and enjoyable experience.

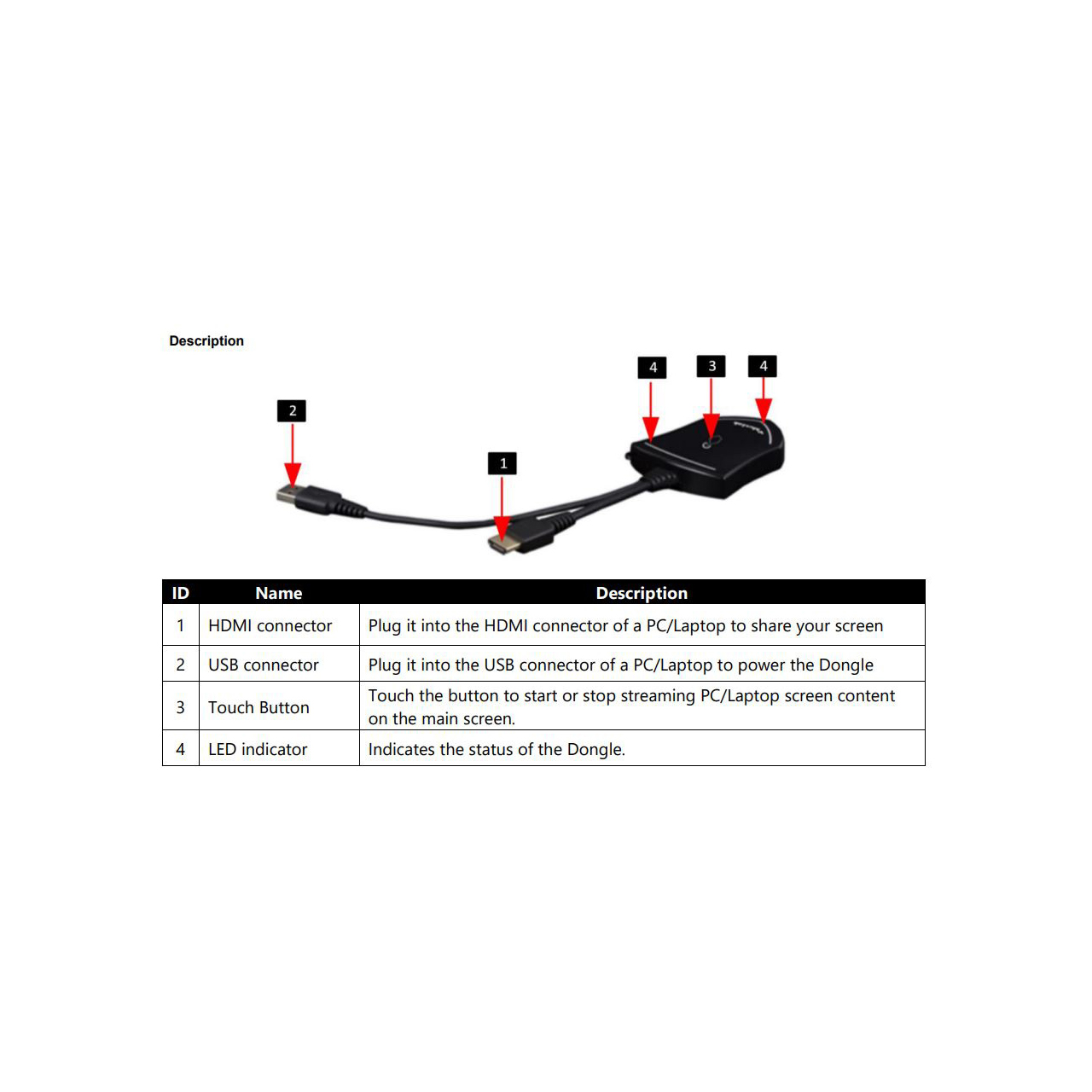

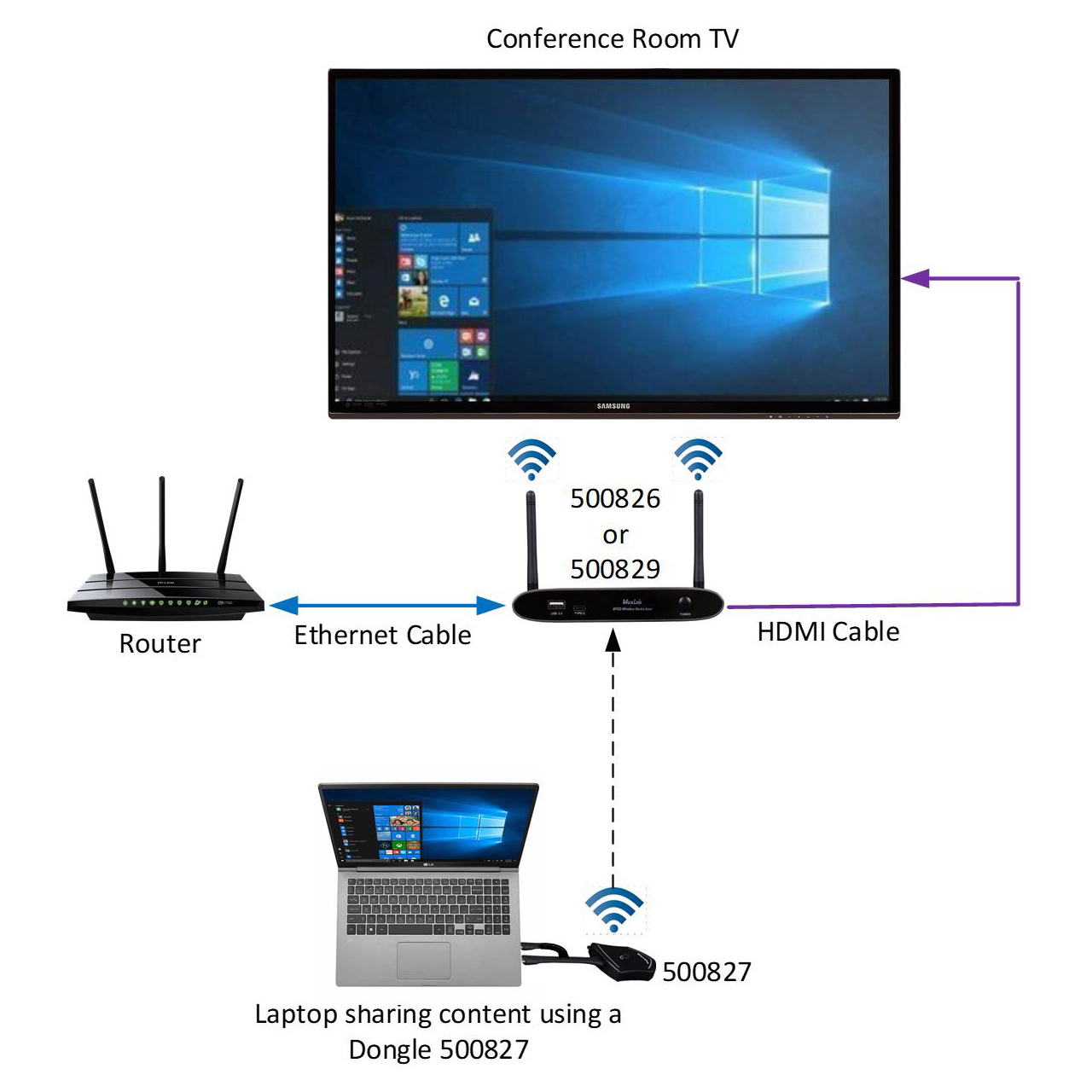

    The MuxMeet Share Dongle-H1 is easy to connect and easy to use. Thanks to its plug-and-play connectivity, there is no need to install drivers. Sharing your desktop screen is as easy as pushing a button on the attached MuxMeet Share Dongle-H1, and an LED indicates the unit status. This device works in conjunction with MuxMeet Share Base-1 or with MuxMeet Share Base-2. (MuxMeet Share Base-1 and MuxMeet Share Base-2 are sold separately.

    • Features:

      • Can be connected to a Windows or Mac based laptop
      • Can wireless transmit your computer desktop to MuxMeet Share Base-1 or MuxMeet Share Base-2
      • Supports transmit the computer desktop in mirror or extend mode
      • Supports VESA PC resolution, auto-detecting
      • No driver installation required
      • With the push of a button, it is possible to start or stop a transmission


    • Specifications:

      • Video Input Connectors: 1xHDMI Type A 19P Male Connector
      • Video Input Resolution: 2540x1440@60Hz, 1920x1080@60Hz, 1280x720@60Hz
      • Format Compliance: HDMI 1.4
      • HDCP: HDCP 1.4
      • USB Interface: USB 2.0 x 1
      • Audio Input: HDMI PCM 2CH
      • Control Connector: USB HID (Touch back)
      • Video Playback Frame Rate: 20-60 FPS
      • Latency: < 100ms
      • Wireless Transmission Protocol: WIFI IEEE 802.11 a/g/n/ac
      • Frequency Band: 2.4 GHz & 5 GHz
      • WIFI Antenna: MIMO 2x2
      • Data Rate in Wireless: Up to 1200Mbps
      • Operating Temperature: -20° to 60°C (-4° to 140°F)
      • Humidity (Storage/Operating): 20 to 85% (non-condensing)
      • DC Power: USB Internal 5V
      • Power Consumption: 2.5W (MAX)
      • Weight: 0.77Lbs (0.350kg)
      • Dimensions: 3.50 x 1.49 x 0.46" (8.90 x 3.78 x 1.18cm)


    • Warranty:

      • 2 Year


    • GTIN:

      0627699008270
