500860 - Overview

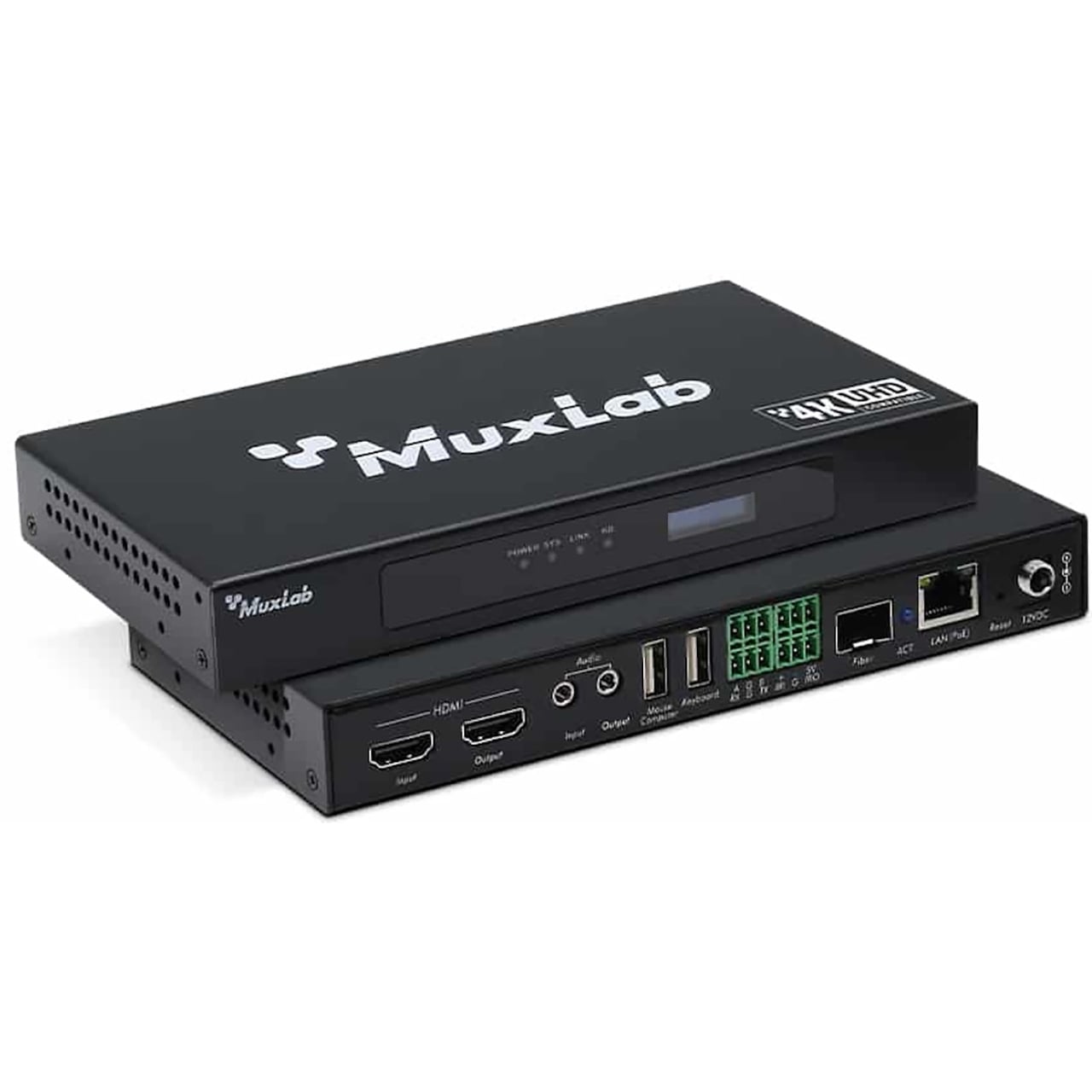

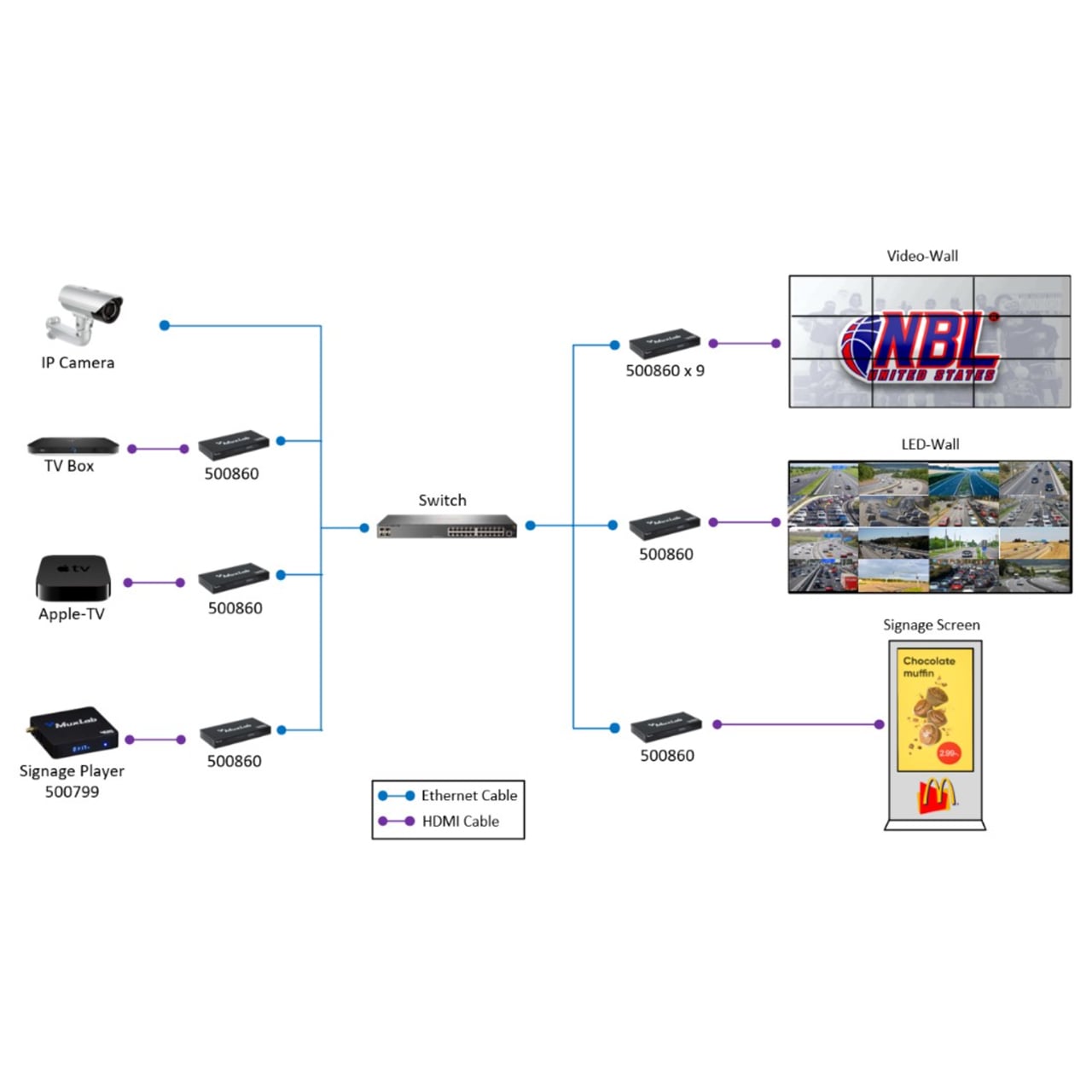

The MuxLab 500860 is a HDMI over IP PoE Seamless Transceiver, 4K/30 allows HDMI source equipment to be extended locally up to 330ft (100m) at up to 4K @ 30Hz resolution via Cat5e/6 cable and is compatible with the MuxLab 500861 Transceivers to support point-to-point, point-to-multipoint and multipoint-to-multipoint configurations, Video Wall and Multiview capabilities in a low bandwidth expandable and cost effective manner, without the need to install dedicated cabling systems. The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread throughout the globe. The Transceiver accepts a 4K video @ 30Hz and streams the content to an H.264/H.265 Receiver to be displayed on a 4K monitor. The device supports PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch.

Applications:
Audio/Video Streaming over LAN, Wifi and Internet
Commercial and residential AV systems
Classroom projector systems
Digital signage
Boardroom systems
Medical information systems

Features:
- Supports up to 4K @ 30Hz video streams
- H.264/265 video codec, excellent for LAN and Internet transmission
- High image quality and ~80ms latency
- Supports seamless switching
- This unit is a Transceiver and can be used as a Transmitter, as a Receiver, or as both simultaneously
- Supports Video Wall
- Supports Multiview with up to 16-windows per screen
- Supports image rotation, scrolling text, banner, etc. RS232, RS485, USB, Relay and I/O for remote control of end devices
- PoE powered, via PoE (PSE) Ethernet Switch
Specifications:
- Environment: HDMI 1.4
- Devices: Blu-Ray, Set Top Boxes, projectors, monitors, TVs, PCs, supporting HDMI
- Signal Protocol/Standard: HDMI 1.4 and HDCP 1.4
- Video Resolution: Up to 4K/30 in and out
- Audio: 3.5mm Line in/out, or HDMI audio
- Latency: 80 ~ 120ms
- Network Bandwidth: Up to 12Mbps
- Protocols: Supports Multicast, RTSP, RTMP
- Compression: Supports H.264/265

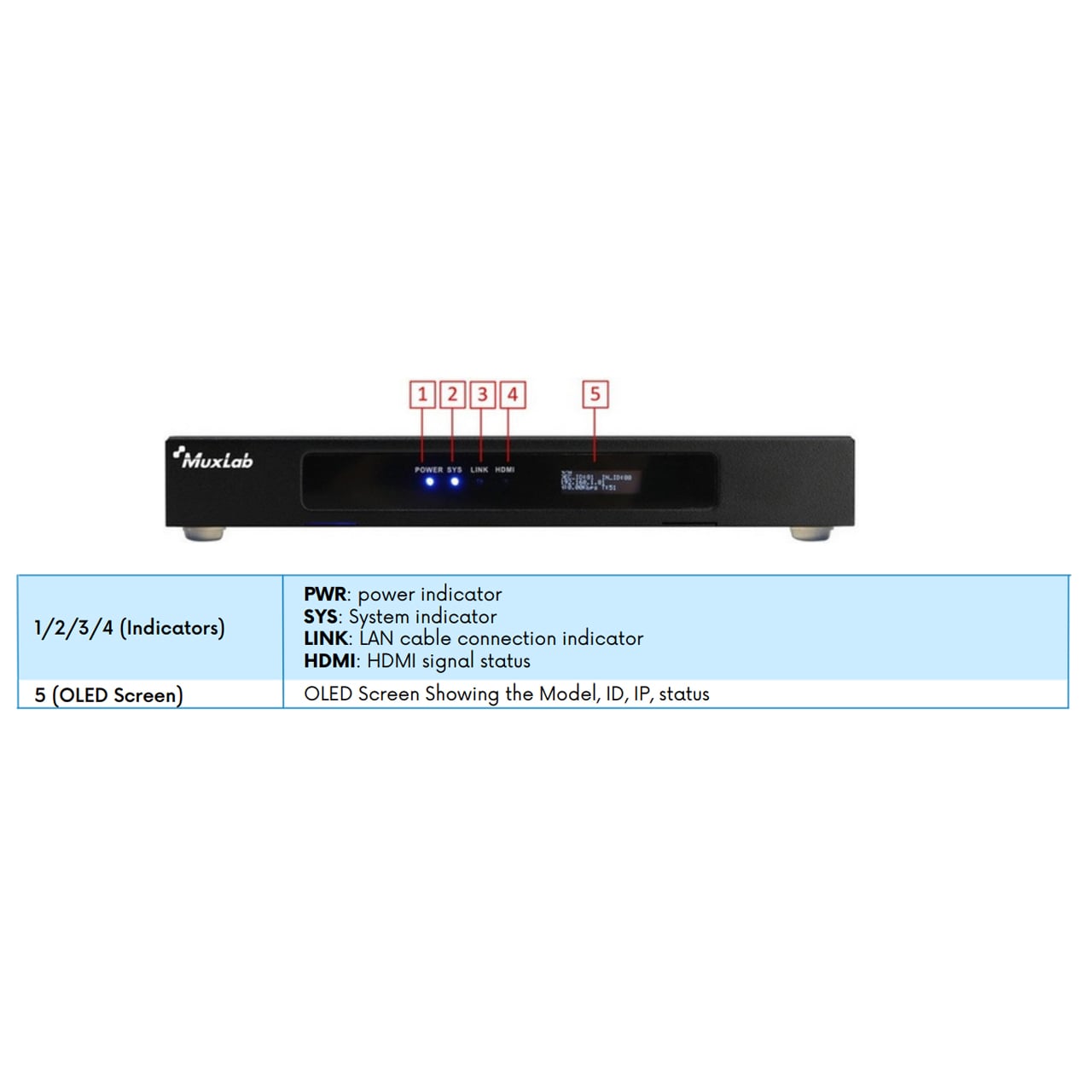

  Front Panel
- Indicators:
  - Power: Power indicator Sys
  - System Indicator Link: LAN cable connection indicator HD: HDMI signal status
- OLED Screen: Showing the Model, ID, IP, status

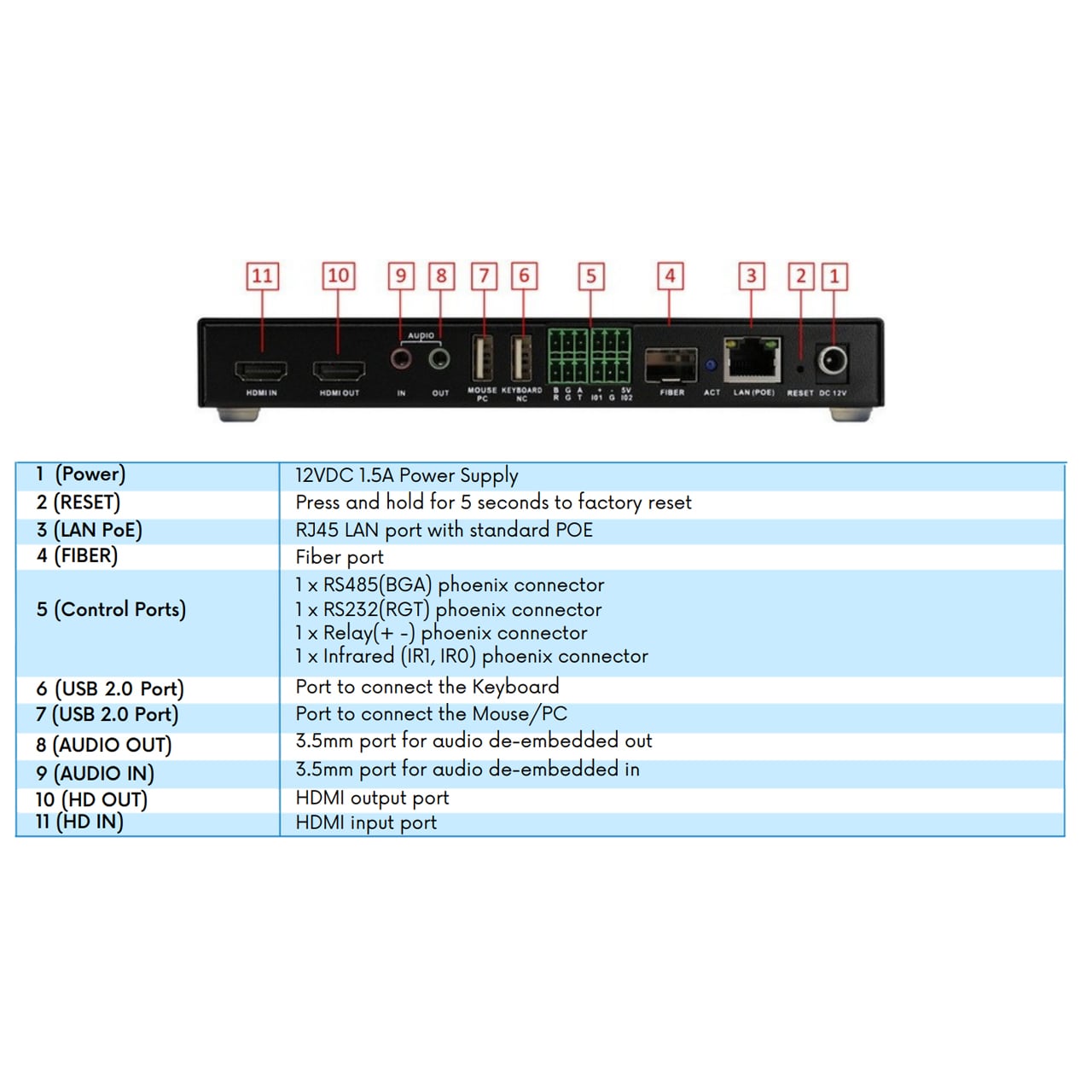

  Rear Panel
- Video: 2x HDMI Type-A
- Control Ports:
  - 1x RS485 phoenix connector
  - 1x Relay phoenix connector
  - 1x I/O phoenix connector (Programmable as IR input/output or voltage sensor)
- Audio:
  - 1x 3.5mm In
  - 1x 3.5mm Out
- LAN:
  - 1x RJ45 (PoE)
  - 1x SFP Cage
- USB: 2x USB-B ports for Keyboard & Mouse or PC host
- Power: 12VDC 1A

  General
- Control: Windows PC software (MuxLab AV Management Tool), Android/iOS APP
- Power Source: This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500988) may be purchased separately.
- Power Consumption: <10W
- Dimensions: 7.5" x 3.9" x 1" (191mm x 100mm x 25mm)
- Weight: 1.3lbs (0.54kg)
Item Includes:
- 1x 4K30 HDMI over IP PoE Seamless Transceiver
Warranty:
- 1-Year Limited Warranty
