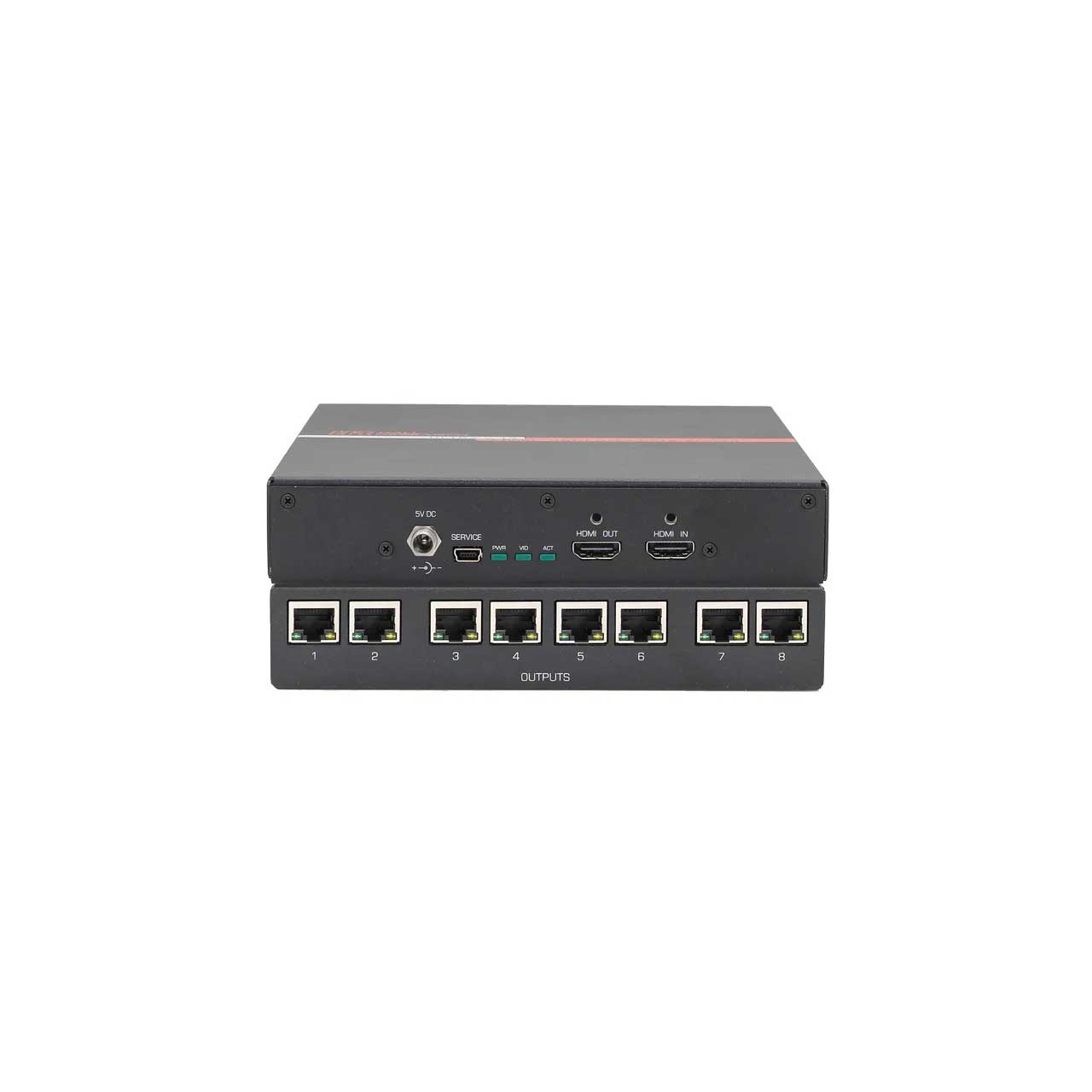

Hall Technologies ULTRA-V-8S 4K UHD HDMI Splitter/Extender over 1 CAT6 to 328ft / 100m

ITEM #: HRT-ULTRA-V-8S MFG #: ULTRA-V-8S

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Hall Technologies
Free Shipping with $49 Minimum Order

List Price:

$1,282.60

Our Price:

$1,218.47

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    ULTRA-V-8S - Overview

    The ULTRA-V series are a family of extenders used to extend HDMI video to one or more remote locations up to 100m (328ft) over a single CAT6 cable. The extenders support various resolutions including 1080p @ 60Hz and 4K UHD @ 30Hz. The Hall Technologies ULTRA-V-8S has eight remote outputs.

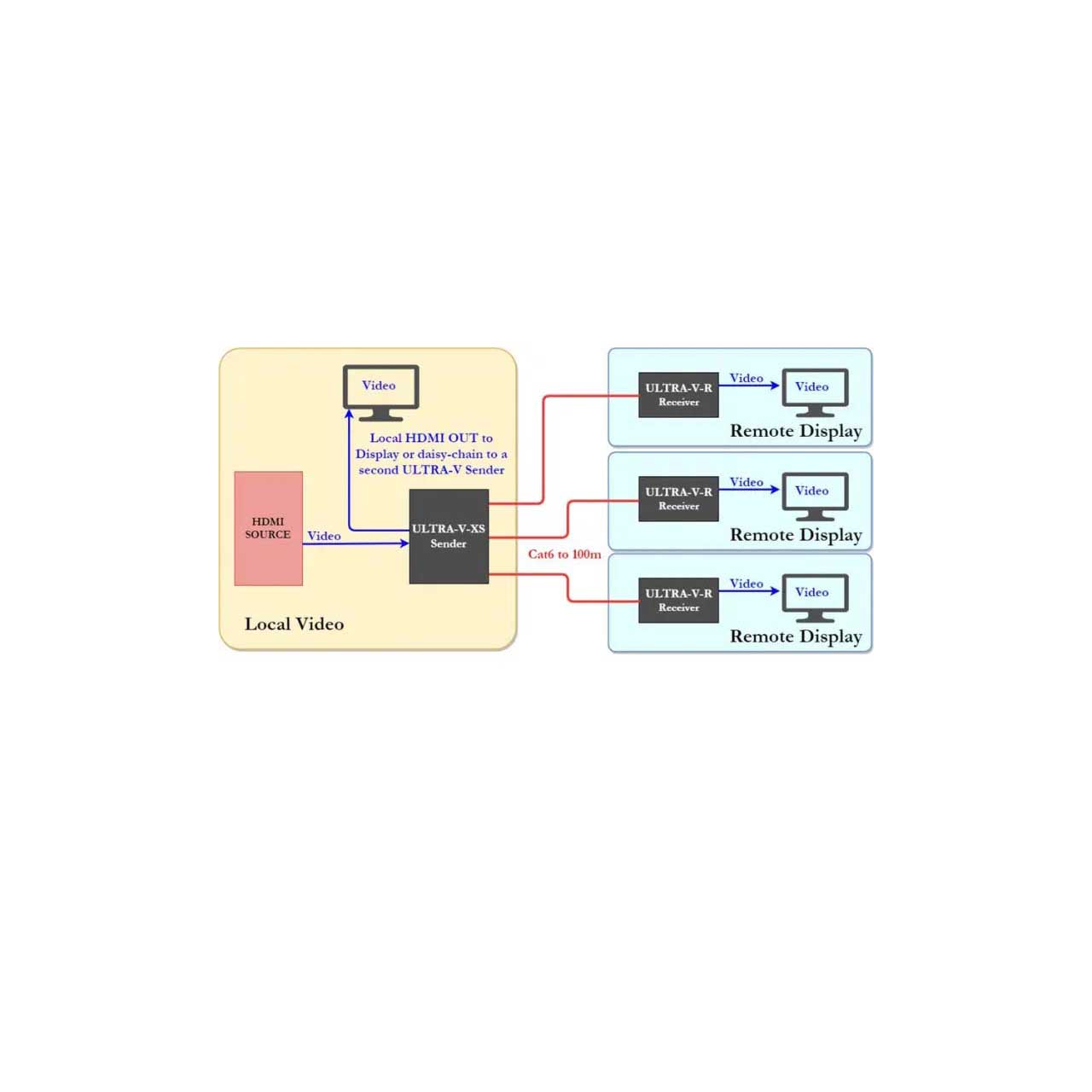

    All Senders feature an HDMI input and a local HDMI "loop" output. This allows for connection of a local display, or daisy-chaining the HDMI to another Sender to increase the number of remote displays.

    • Features:

      • Supports high resolution HDMI video including FHD (1920x1080), WQHD (2560x1440), and 4K UHD (3840x2160)
      • Local HDMI outputs at all Senders to connect to a local display, or to daisy-chain a second ULTRA-V Sender
      • 8 outputs to distribute video to multiple locations
      • ULTRA-V Receivers are compatible with ULTRA-4K Sender


    • Specifications:

      • Video Standards: DVI (single link), HDMI 1.4 video specifications including 12 bit color depth, 3D video, HDCP 1.4

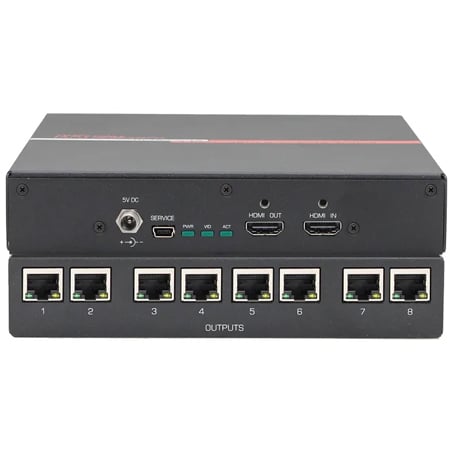

      • Connectors: (1) HDMI Input, (1) HDMI Output, (8) RJ45 Outputs, (1) Mini-USB Service Port, (1) 2.0MM Locking DC Power Input
      • Resolutions DVI Signal: VGA (640x480) thru WUXGA (1920x1200), HDTV Signal: 480p through 4K60 4:2:0 (Interlaced resolutions are not supported)
      • Refresh Rates: 60 Hz for resolutions up to and including HD (1920x1080) and WUXGA (1920x1200), 30 Hz for resolutions above and including QHD (2560x1440)
      • Power Supply: 100 VAC to 240 VAC, 47-63 Hz, External; 5 VDC
      • Temp/humidity: Storage: -40 to +158 °F / 10% to 90%, non-condensing
      • Operating: +32 to +122 °F / 10% to 90%, non-condensing
      • Power: 5V DC, 4.0 A Power Supply
      • Cooling: Convection
      • Enclosure type: Metal (Steel)
      • Dimensions: 6.90" L x 7.12" W x 1.45" H / Shipping - 7.55" L x 10.15" W x 2.65" H
      • Product weight: 1.92 lbs / Shipping - 4.0 lbs
      • Safety: CE
      • EMI/EMC: CE, FCC Class A
      • MTBF: 90,000 hours (estimate)


    • Item Includes:

      • 1x Hall Technologies ULTRA-V-8S
      • 1x Power supply
      • 1x Users manual card


    • Warranty:

      • 3 years parts and labor
