Ocean Matrix OMX-HDMI-2-IP HDMI Over IP Extender Kit with HDMI & CAT6 Cables

ITEM #: MTK-HDMI-2IP-KIT MFG #: MTK-HDMI-2IP-KIT

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$129.95

Our Price:

$99.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    MTK-HDMI-2IP-KIT - Overview

    Configure up to 8 transmitter & receiver pairs on the same network!

    Stream HDMI over your entire network with this kit featuring the Ocean Matrix OMX-HDMI-2-IP HDMI Over IP Converter/Extender. No longer is distance a limitation when sending HDMI. Converts HDMI to standard TCP/IP and transmits the signal over your local area network.

    The great advantage of converting HDMI to TCP/IP is that you can now send HDMI over your entire network freeing you of the typical limitations found in send/receive point-to-point systems. The Ocean Matrix OMX-HDMI-2-IP delivers unparalleled performance in PRO-AV projection networks, digital signage systems and educational streaming applications. Now your network is your HDMI network!

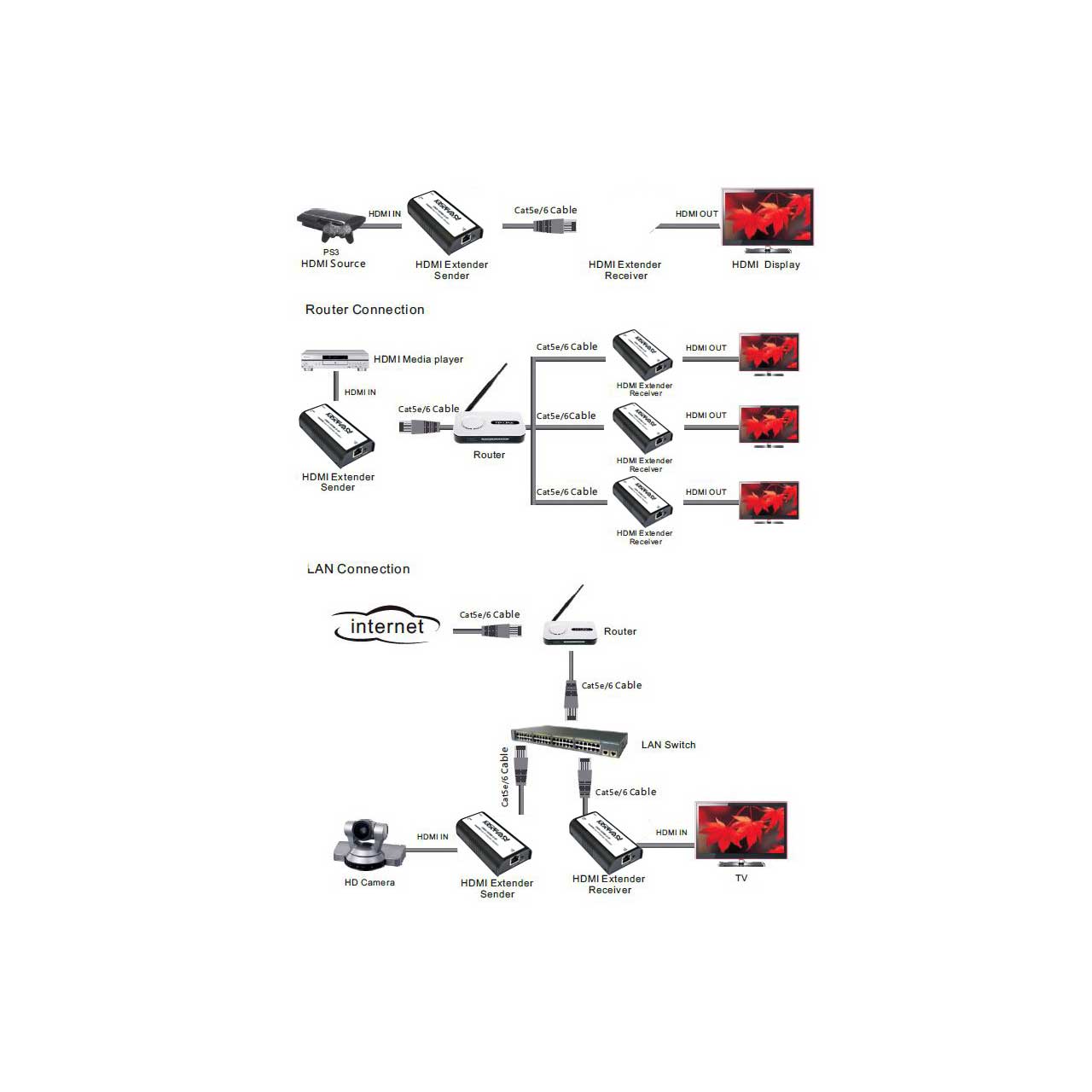

    The transmitter has a static IP address and can pair with multiple receivers (up to 8). Multiple transmitters and multiple receivers can be paired on the same network. To operate multiple units with separate IP addresses on the same LAN network, a VLAN switch is required.

    • Features:

      • Supports Multiple Receivers (up to 8) from a Single HDMI Extender / Transmitter
      • 36 Bit Deep Color Support
      • May Also be Used as a Standard Point-to-Point (up to 120 meters) Transmit & Receive for On-Location Monitoring & Content Delivery
      • Supports DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD Audio Formats
      • Transmission Rate Supported:10.2Gbps
      • Robust Aluminum Housing

    • Specifications:

      • HDCP Support: HDCP1.2
      • Input HDMI resolution: 480i@60Hz; 480p@60Hz; 576i@50Hz; 576p@50Hz; 720p@50/60Hz; 1080i@50/60Hz; 1080p@50/60Hz;
      • Output HDMI resolution: 480p@60Hz; 576p@50Hz; 720p@50/60Hz; 1080p@50/60Hz
      • Supported Video Color Formats: 24 Bit/Deep color; 30 Bit/Deep color; 36 Bit Deep Color
      • Support audio format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
      • Max transmission rate: 10.2Gbps
      • Network Bandwidth Utalized: 80Mbs
      • Audio signal transmission format: L/R stereo audio
      • TMDS signal: 0.5-1.5Vp-p (TMDS)
      • DDC signal: 5Vp-p(TTL)
      • Input cable length: 5m (AWG26 HDMI1.3 standard cable)
      • Output cable length: 5m (AWG26 HDMI1.3 standard cable)
      • Transmission medium

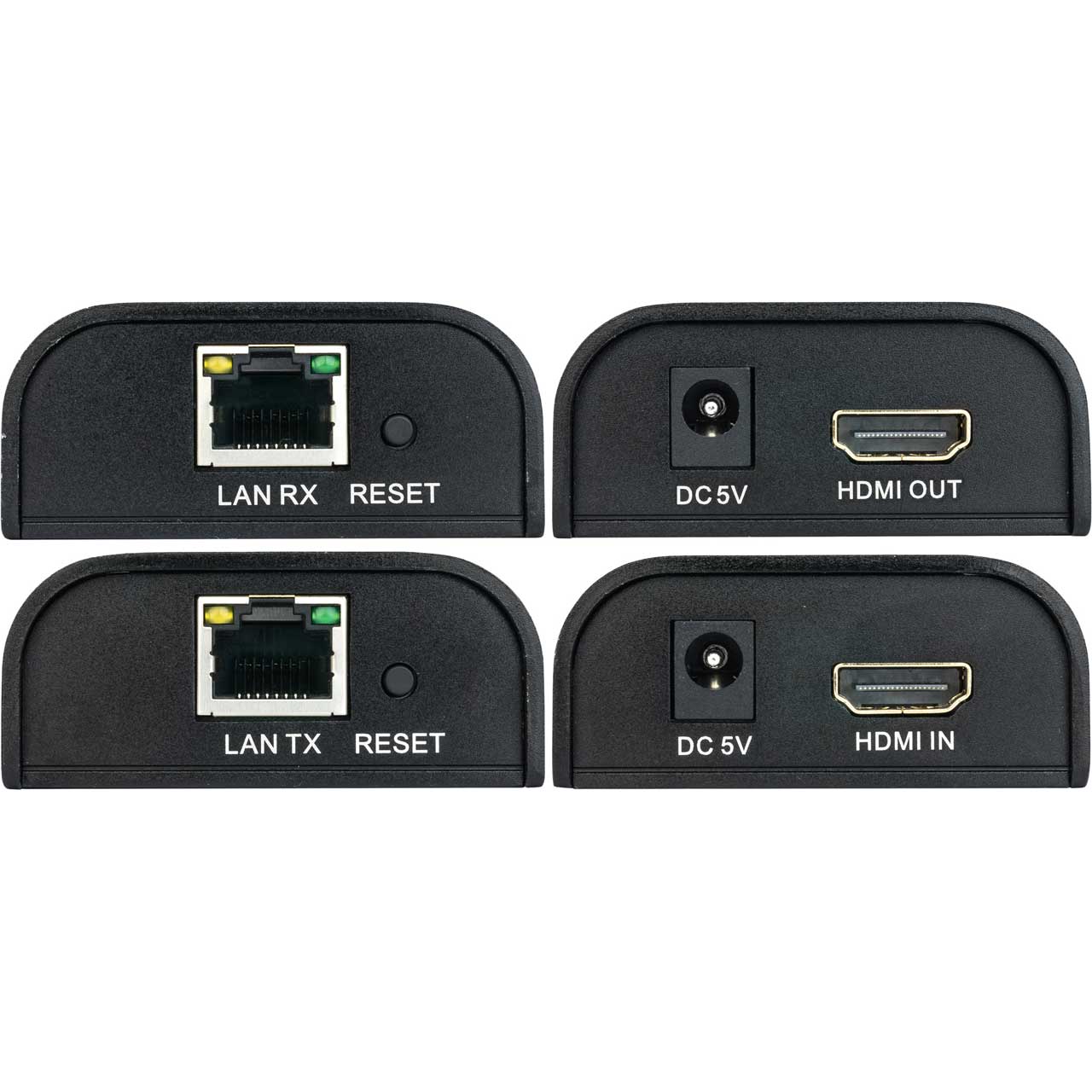

      • Connector Type: RJ45
      • Twisted Pair Interface: Cat5e/6
      • Transmission distance: Cat6 up to 120m (Cat5e up to 100m)
      • Cabling standards: TIA/EIA568 B
      • Power Supply Voltage range: DC5V
      • Power comsumption: <3.6W
      • Dimensions (Tx or Rx Unit): 4.25"L x 2.25"W x 1.0"H
      • Weight: Tx/Rx Unit Each: 0.3 Lbs

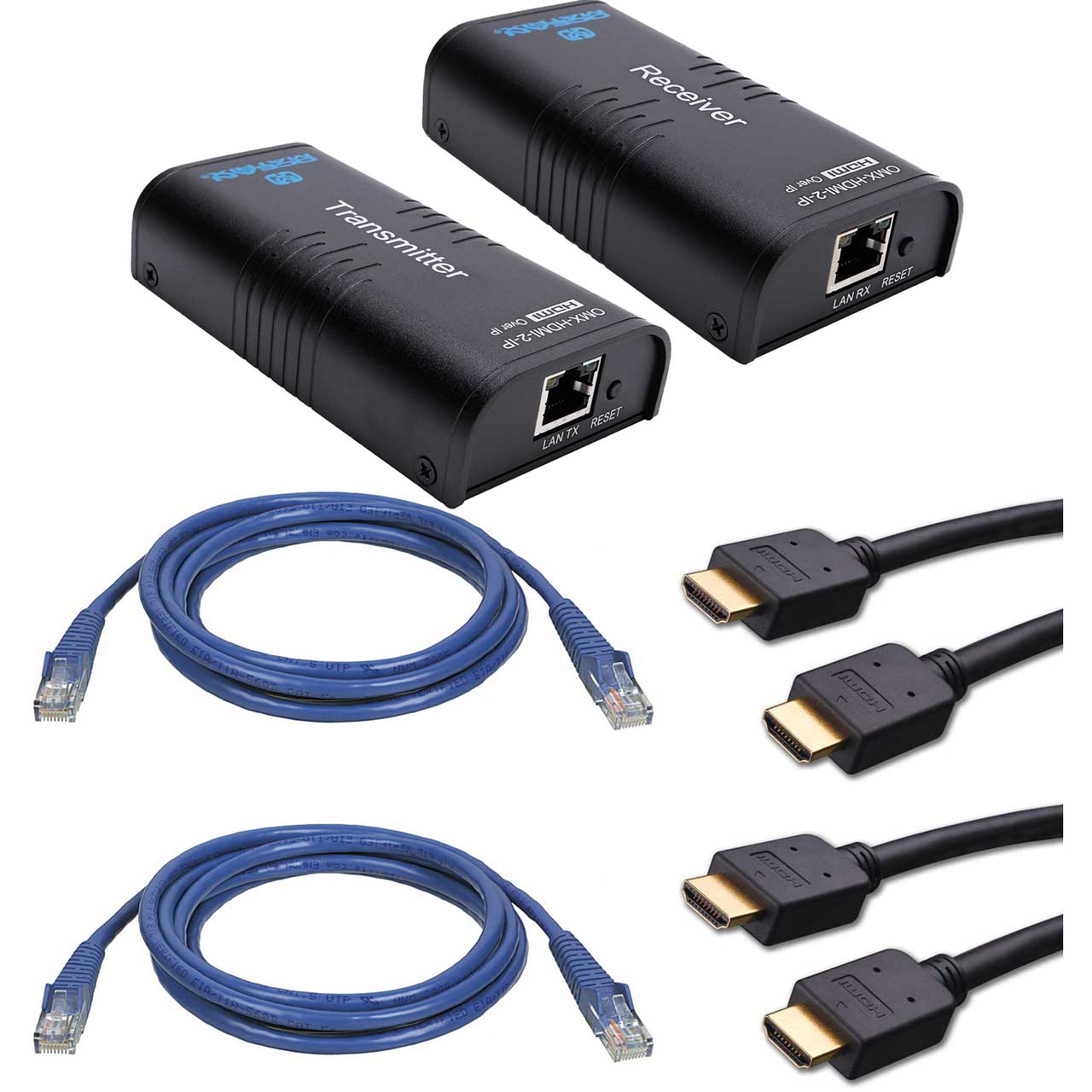

    • Item Includes:

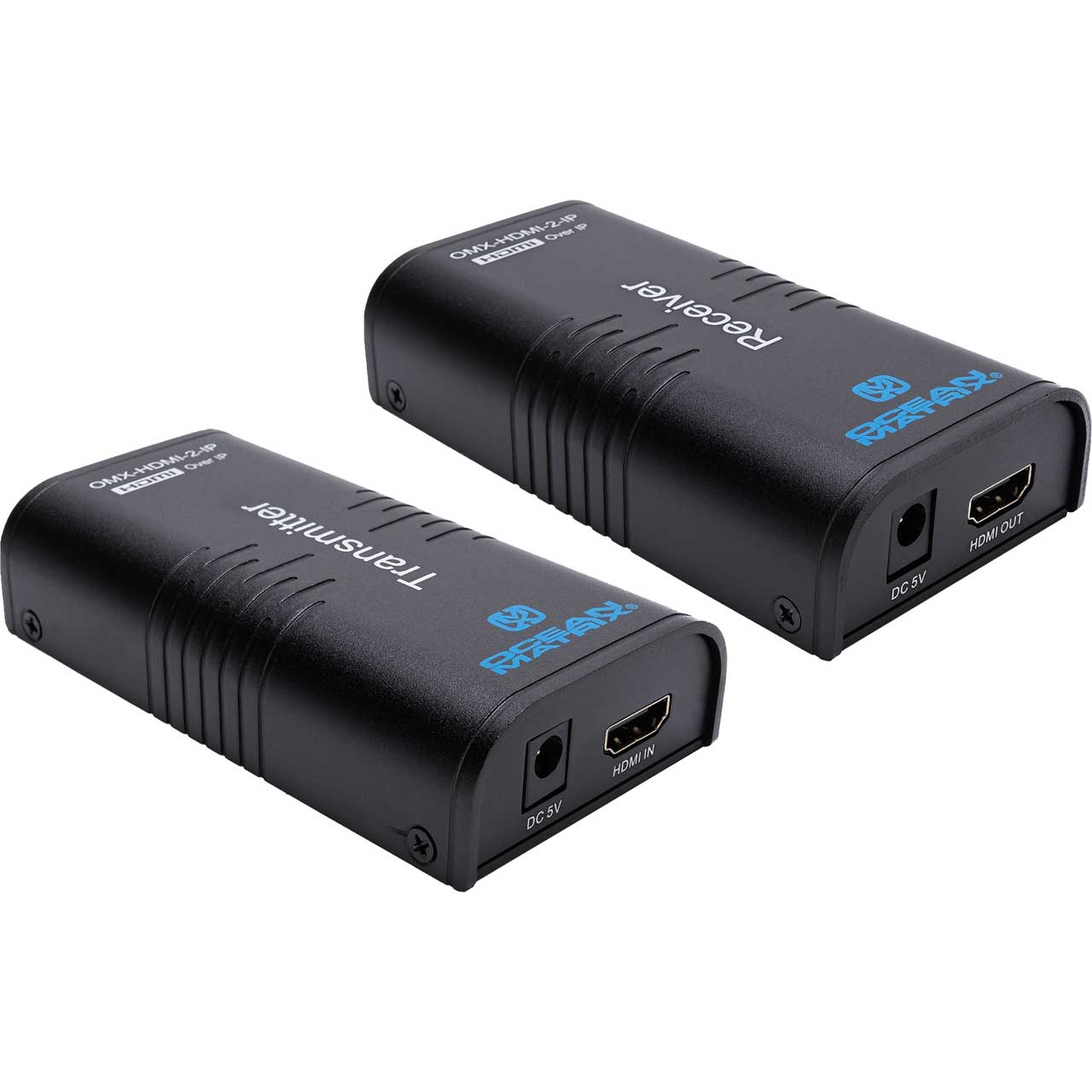

      • HDMI Over IP Sender
      • HDMI Over IP Receiver
      • Two 5.0V AC/DC Switching Power Supply
      • User Manual
      • (2) HDMI-14-6 TecNec 4K/2K HDMI Cable v1.4 Ethernet Type-A Male to Male - 6 Foot
      • (2) CAT6-7 BK 350MHz UTP Category 6 Patch Cables 7 Foot Black
