Shure MX184 Supercardioid Condenser Microflex Lavalier Microphone

ITEM #: MX184 MFG #: MX184

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$344.00

Our Price:

$246.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    MX184 - Overview

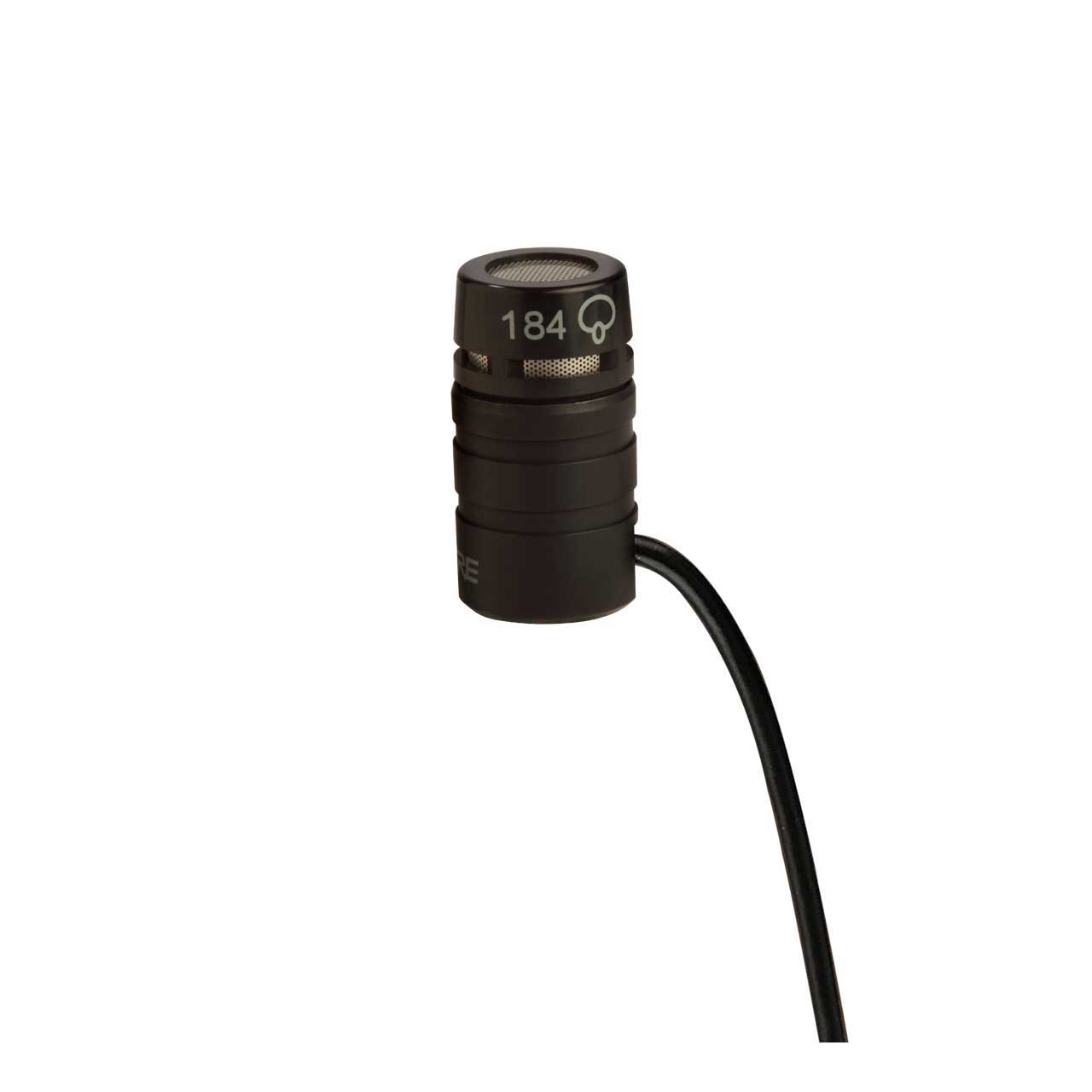

    Supercardioid Microflex Lavalier Microphone

    The Shure MX184 supercardioid miniature lavalier condenser microphone wass designed for use in speech applications such as broadcast presenting, speeches, lectures and for use in houses of worship.

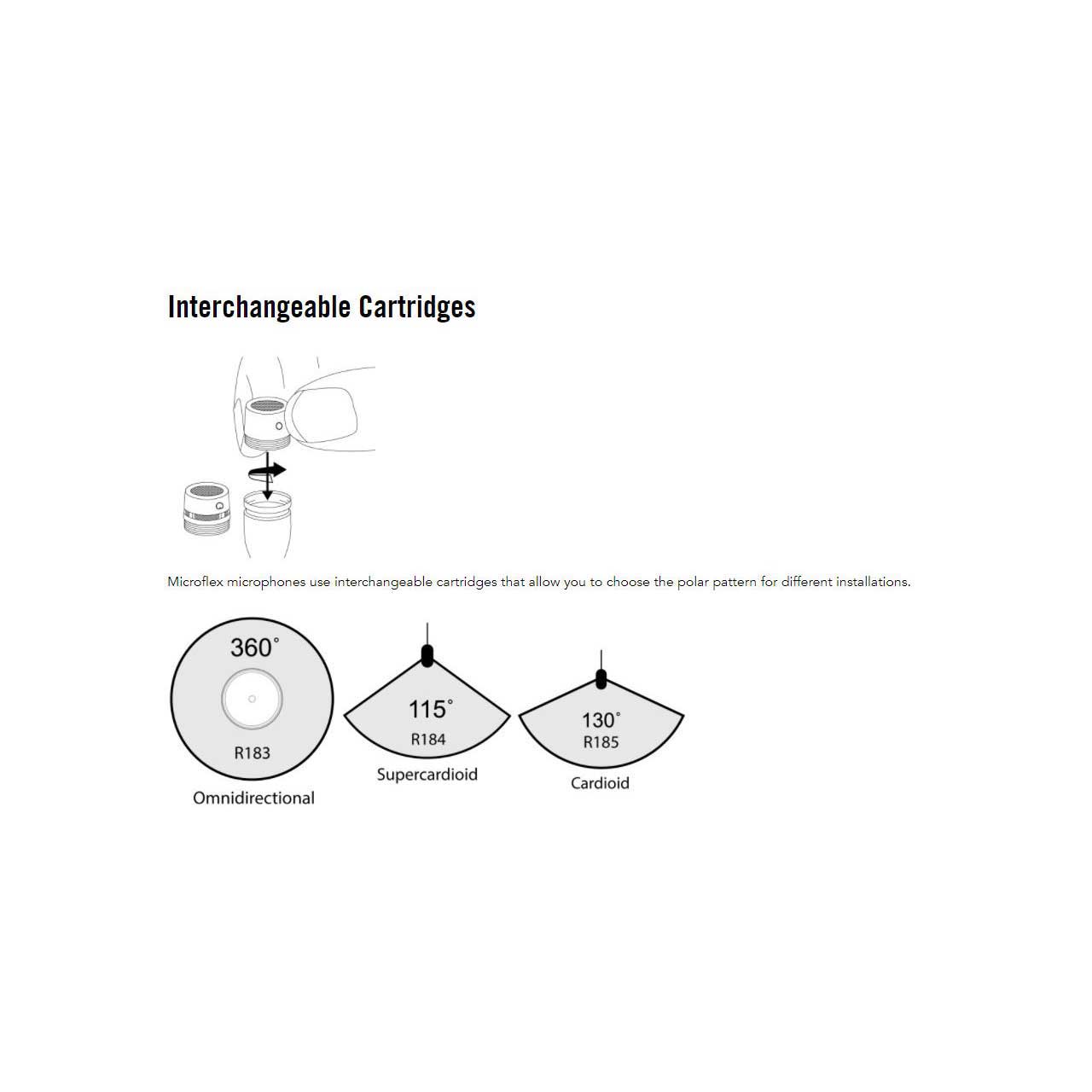

    All the Microflex series of microphones use interchangeable cartridges (sold separately) which means you can swap between cardioid, supercardioid and omnidirectional condenser cartridges simply by screwing them on to the top of the lavalier mic.The MX184 is designed for wired use and includes an in-line preamplifier and a 1.2m (4 foot) cable with TA4F connector. If you wish to go wireless,simply disconnect the mic from the preamp and connect it directly into any Shure wireless bodypack.

    This mic excels in a variety of environments such as: Broadcast Studios, Hotel & Convention Centers, Corporate Presentation, Auditoriums, Lecture Halls, Houses of worship. It's a staple in the Broadcast/ENG, Education & House of Worship Industries.

    • Features:

      • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
      • Interchangeable cartridges that provide an optimal choice for each application
      • Rotatable tie-clip that pivots in 90 degree increments for placement flexibility
      • Supplied snap-fit foam windscreen that controls breath noise and stays on securely
      • Balanced, transformerless output for increased immunity to noise over long cable runs
      • Supplied dual tie clip holds two microphones for dual miking applications

    • Specifications:

      • Type: Condenser (electret bias)
      • Frequency Response: 50 to 17,000 Hz
      • Polar Pattern: Supercardioid
      • Output Impedance: EIA rated at 150 Ω (180 Ω actual)
      • Open Circuit Sensitivity (at 1 kHz, ref. 1V/Pascal*): -33.5 dB (21.1 mV)
      • Max SPL (1kHz at 1%THD, 1 kΩ load): 122.7 dB
      • Equivalent Output Noise (A-weighted): 26.5 dB
      • Signal to Noise Ratio (referenced at 94 dB SPL): 67.5 dB
      • Dynamic Range at 1 kΩ load: 96.2 dB
      • Power Requirements: 11 to 52 Vdc phantom, 2.0 mA
      • Common Mode Rejection: 45.0 dB minimum
      • Polarity: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
      • Operating Temperature Range: 0 to 135 F
      • Storage Temperature Range: -20 to 165 F
      • Cable: Shielded 1.2 meter (4 ft.) cable terminated with a 4-Pin, Female Mini Connector (TA4F)

    • Item Includes:

      • Dual Mic tie clip

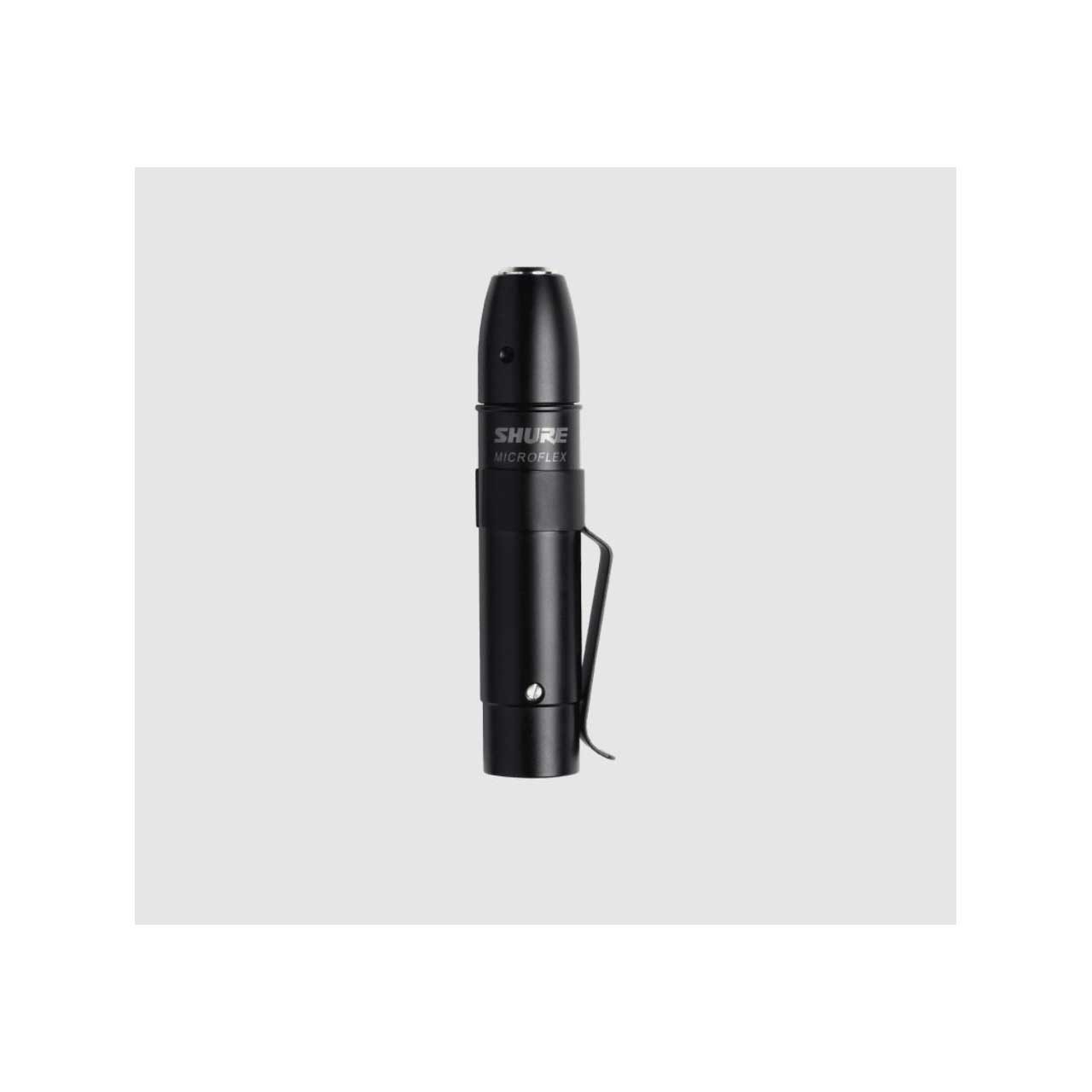

      • RK100PK In-line preamplifier
      • R184 Cardioid Cartridge

    • GTIN:

      0042406051668
