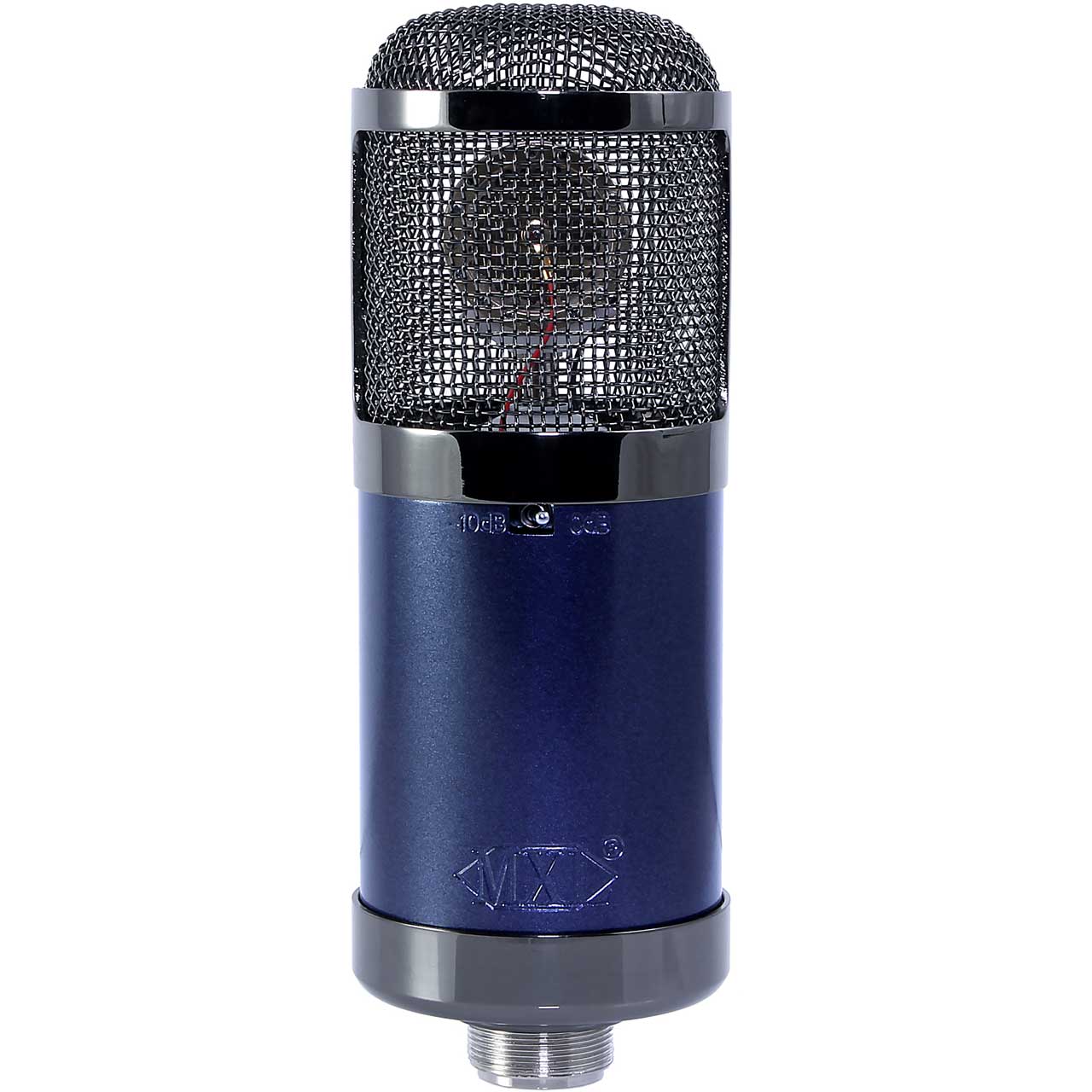

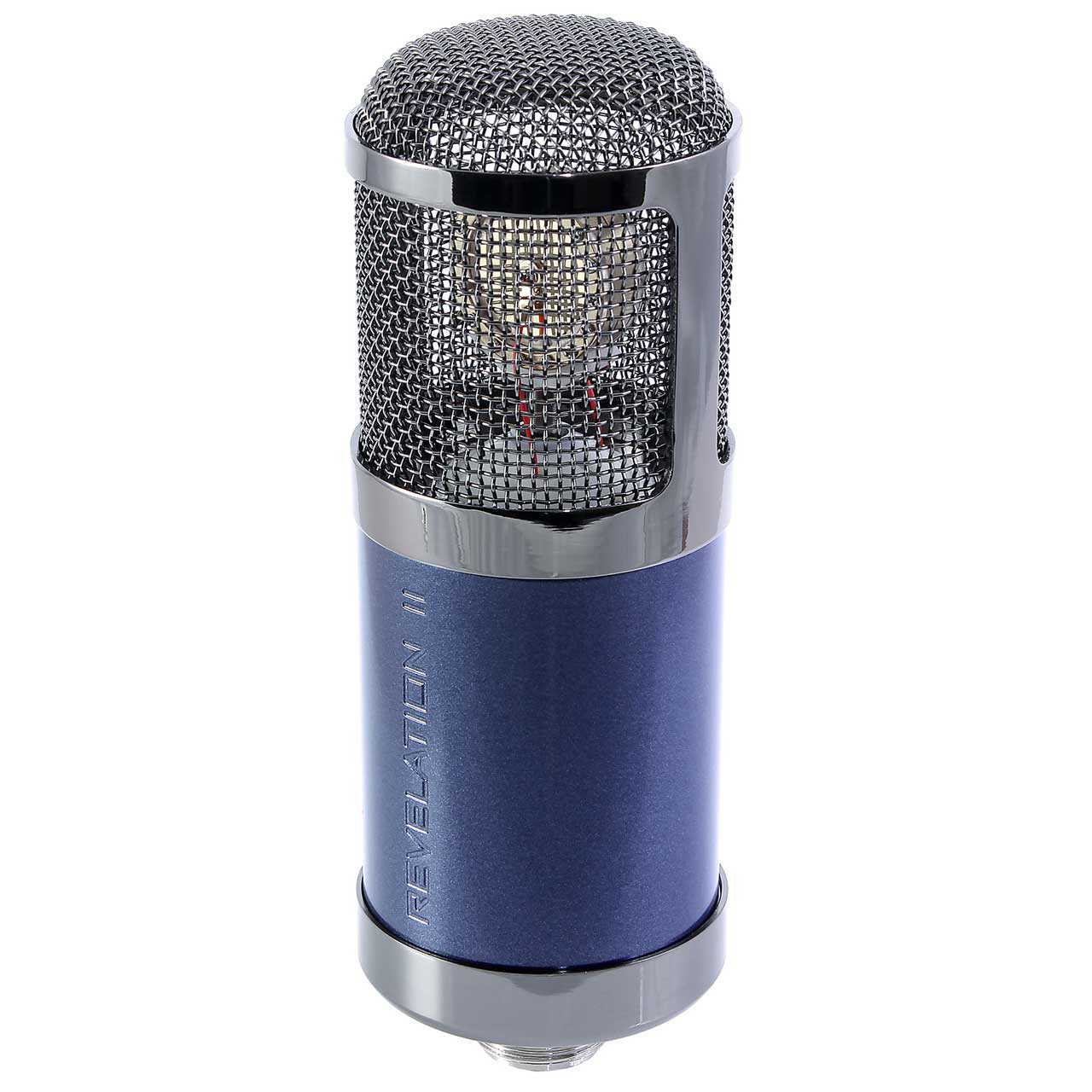

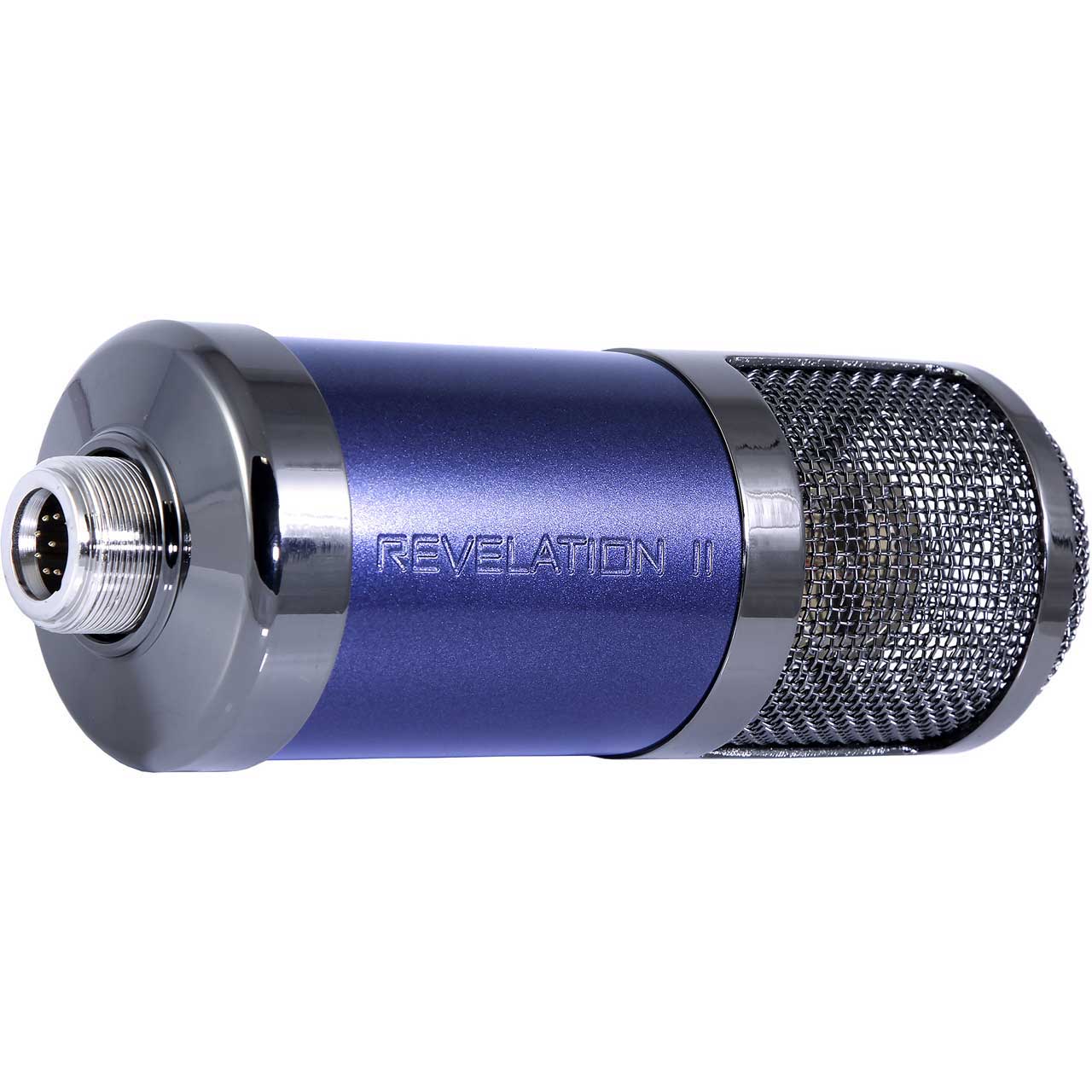

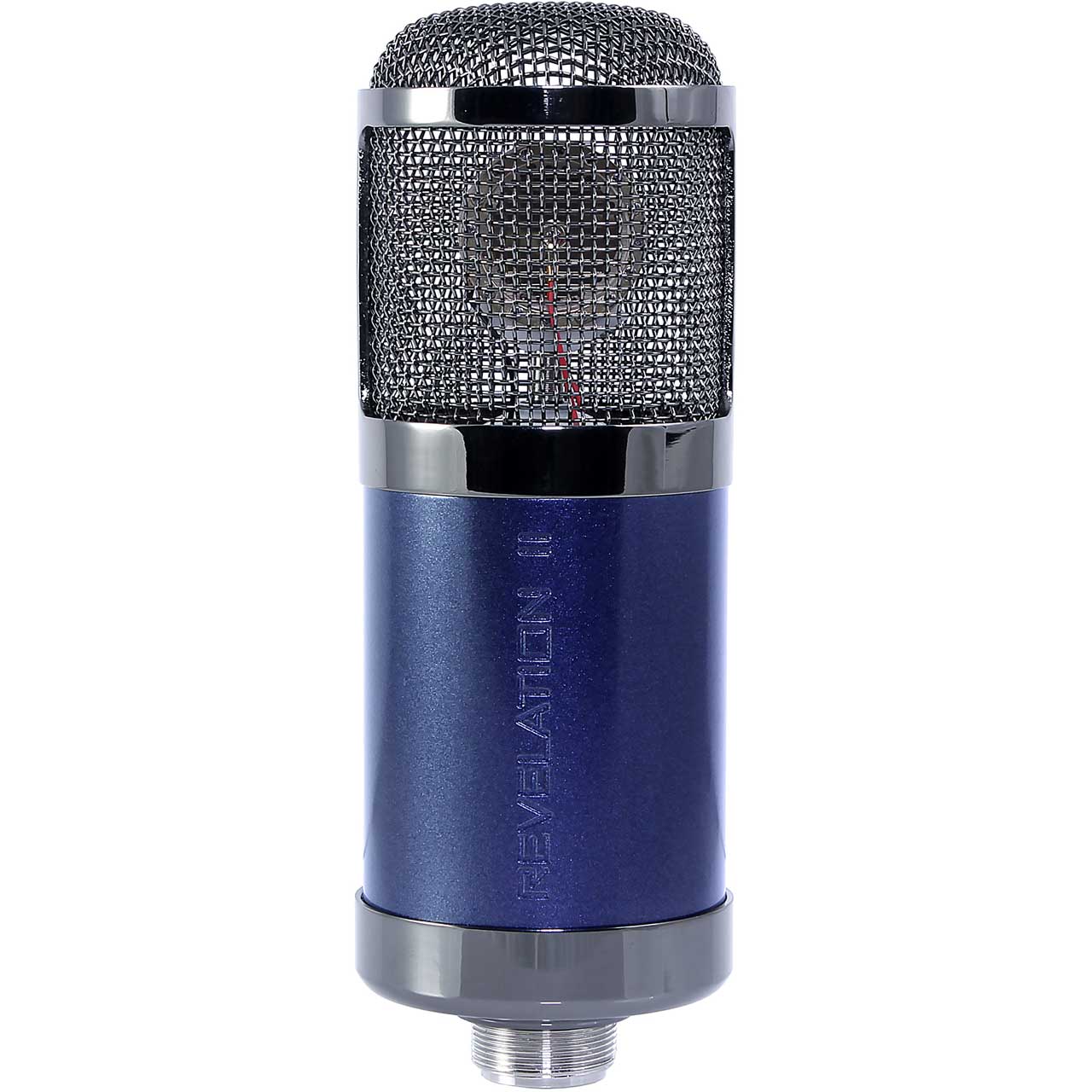

MXL REVELATION II Variable-Pattern Tube Condenser Microphone
  • MXL REVELATION II Variable-Pattern Tube Condenser Microphone
  • MXL REVELATION II Variable-Pattern Tube Condenser Microphone
  • MXL REVELATION II Variable-Pattern Tube Condenser Microphone
  • MXL REVELATION II Variable-Pattern Tube Condenser Microphone
  • MXL REVELATION II Variable-Pattern Tube Condenser Microphone

Questions? Ask a Markertek Expert:
800-522-2025 Email

MXL REVELATION II Variable-Pattern Tube Condenser Microphone

Manufacturer: MXL Microphones

Item #: MXL-REVELATIONII   •   MFG #: REVELATION II




Our Price:$499.95

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Variable Pattern Tube Condenser Microphone
    The MXL Revelation II is a studio microphone that delivers the warmth and intimacy of a classic tube microphone with a lush mid-range providing a unique color and sound to any microphone locker. A dual gold-sputtered, 6-micron diaphragm and hand-selected EF86 pentode tube provide warmth and character giving the Revelation II an iconic sound. The Revelation II's variable selection knob allows for limitless transitions between cardioid, omnidirectional, and figure-8 polar patterns. Whether you record vocals, instruments, percussion or simply use it as a room mic, the MXL Revelation II brings a classic sound in any recording application.

    The MXL Relevation II uses an EF86 tube that requires a dedicated power supply unit (included with your microphone). Even if your mixer has phantom power, it is recommended that you turn off the phantom power as a precautionary measure when it is not needed to power other mics that you might also be using.


    • Features

      • Flagship tube microphone
      • Variable polar pattern selection
      • EF86 Pentode tube
      • Natural frequency response attributes to classic sound
      • Mogami cable and wiring for exceptional audio fidelity

    • Specifications

      • Type: Variable Pattern Tube Condenser Microphone
      • Diaphragm: Dual gold-sputtered, 6 micron diaphragm
      • Tube Type: EF86
      • Frequency Response: 20 Hz - 20 kHz
      • Polar Pattern: Continuously variable
      • Sensitivity: -40 dB re 1 V/Pa
      • Output Impedance: 140 ohms
      • Attenuation Switch: 0 dB, -10 dB
      • High Pass Filter: 12 dB/octave @ 125Hz
      • Equivalent Noise: -18 dB (A-weighted IEC 651)
      • S/N Ratio: 76 dB
      • Max SPL for .5% THD: 138 dB SPL
      • Power Requirements: Revelation® Power Supply Unit 110/220 VAC, 50/60Hz
      • Size: 7 1/2" X 2 1/2"/190mm x 63.5mm (mic only)
      • Weight: 2 lbs / 907g (mic only)
      • Metal Finish: Dark Violet and Black Chrome

    • Item Includes

      • REVELATION II Variable Pattern Tube Condenser Microphone
      • 7-pin Mogami Cable
      • Aluminum Flight Case
      • MXL Microfiber Cleaning Cloth
      • Revelation II Power Supply
      • Revelation II Shockmount
      • XLR Mogami Mic Cable

    • GTIN:

      0801813226287
