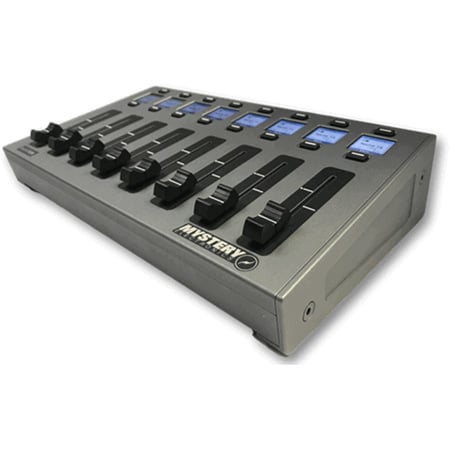

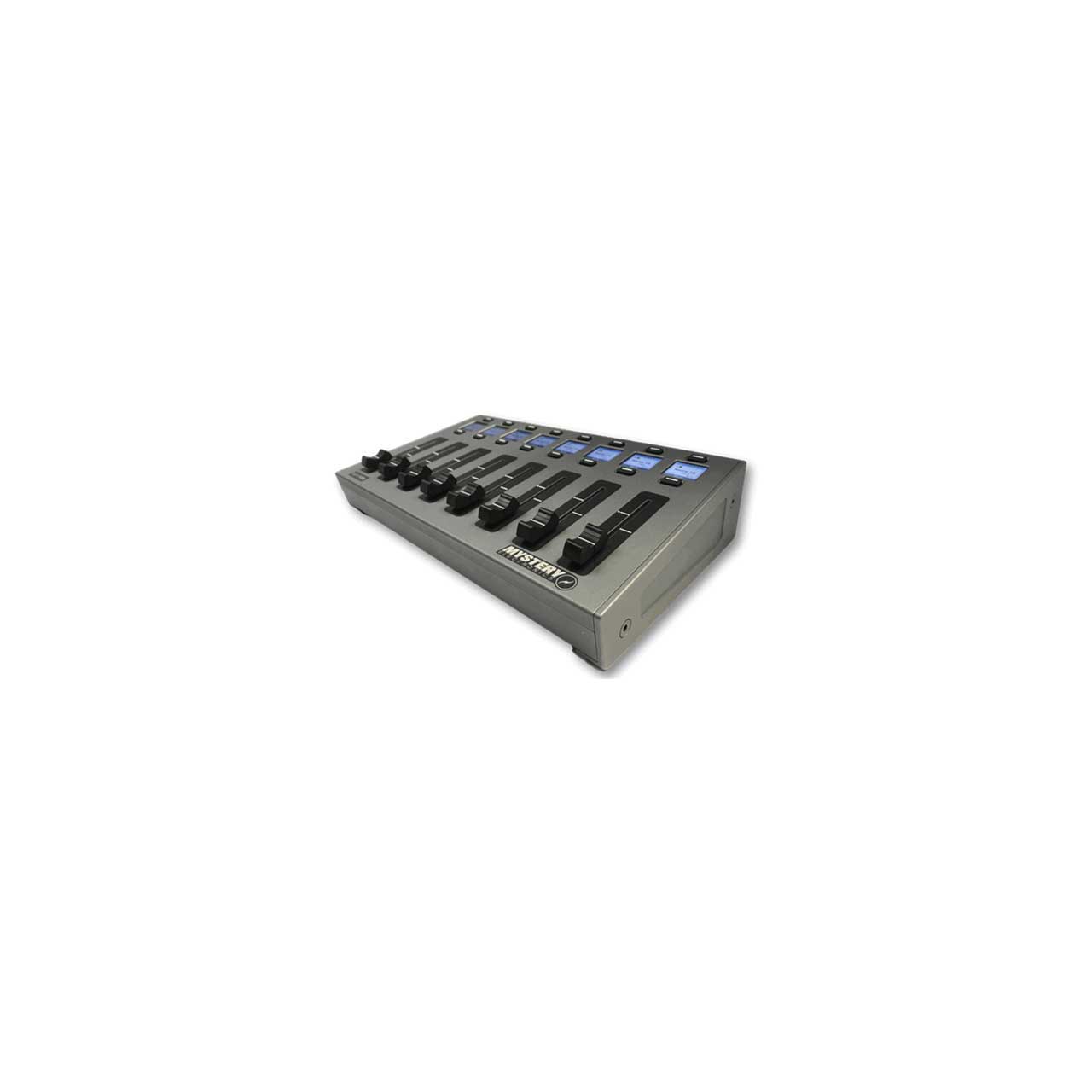

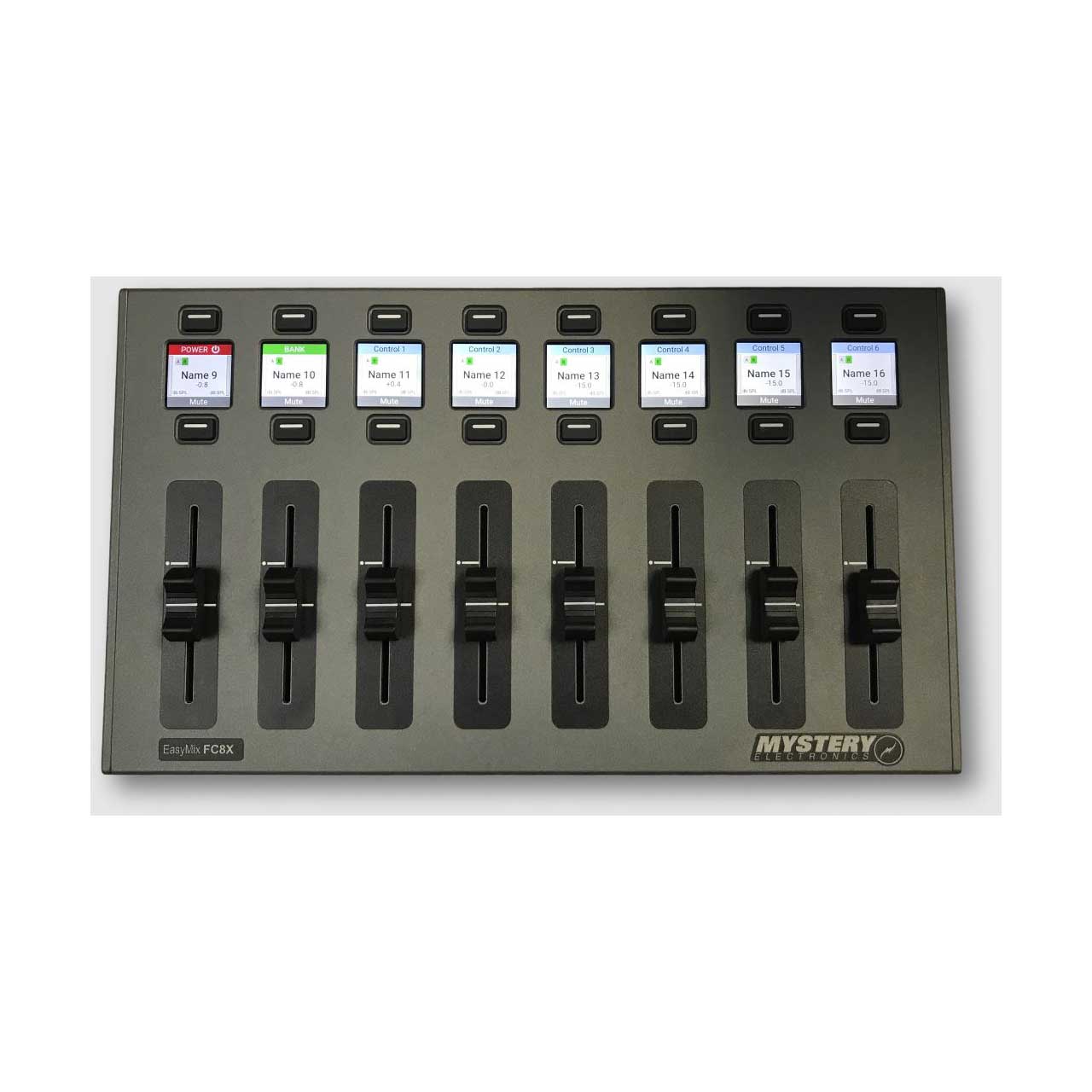

Mystery FC8X EasyMix Desktop DSP Motorized 8-Fader Control Surface with up to 16 Channels

FC8X - Overview

• Features:

  • Simplified control of Volume, EQ and DSP functions via Ethernet
  • Link control values and have your EasyMix up and running in minutes!
  • Compatible DSPs: Biamp Tesira, Symetrix SymNet®, QSC Q-SYS®
  • Custom program Displays, Faders, & Buttons to your DSP functions
  • 8 Motorized Touch-Sensitive Faders
  • 8 Full-Color HD Displays
  • Controls up to 16 channels (8/bank)
  • Customizable fader scaling

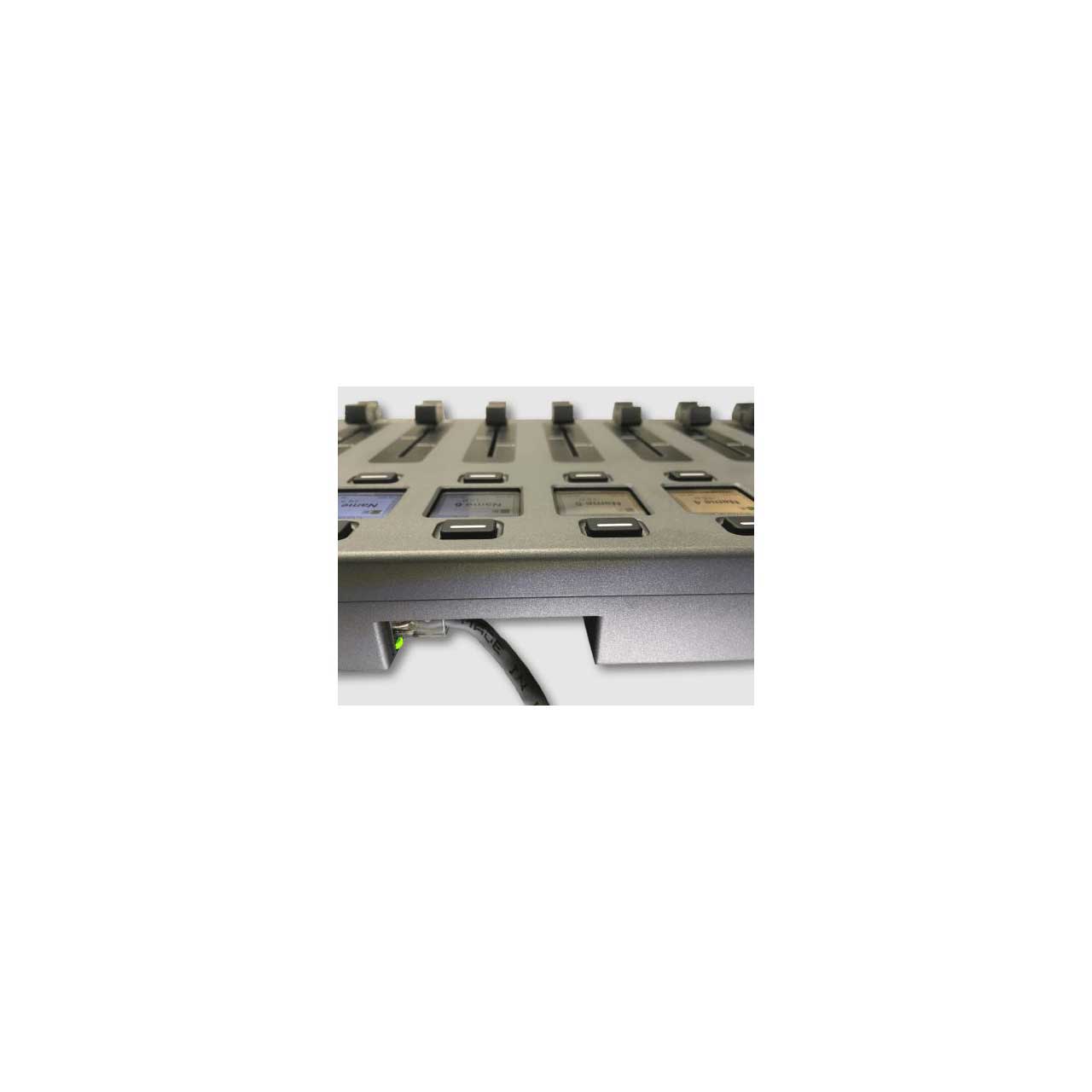

  • Powered via Ethernet port (PoE+)
  • Desktop version w/ optional rack mounting hardware available
  • Controls up to 16 channels (2 banks)
  • Up to 8 soft keys to control 16 DSP presets or logic functions.
  • Customizable fader scaling (incl. lighting)
  • Faders programmable to function as EQ controls
  • Channel buttons are programmable to controls in your DSP (e.g. auto mixer on/off, auto gain control bypass, channel on/off control, etc).
  • Programmable to indicate status of auto mixer highest gain, signal presence, or other meter indicators.
  • Compact machined aluminum form factor
  • Rack mountable (w/ available hardware)
  • Compatible with VESA 100x100 mount


• Specifications:

  • DSP Compatibility: Biamp Tesira®, Symetrix SymNet®, and QSC Q-SYS®
  • Software: Built-in web server accessible with web browser
  • Faders: 60 mm motorized touch sensitive
  • Connection: Ethernet RJ45
  • Power Source: IEEE 802.3at compliant powered device (PoE+ powered via Ethernet port)
  • Dimensions (nominal): 12W x 7H (4RU) x 2.75D in.
  • Regulatory: CE Listed, FCC Part 15 compliant


• Item Includes:

  • 1x Mystery FC8X EasyMix Desktop DSP Motorized 8-Fader Control Surface with up to 16 Channels
