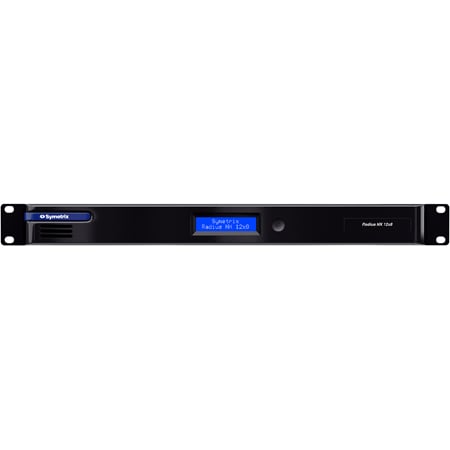

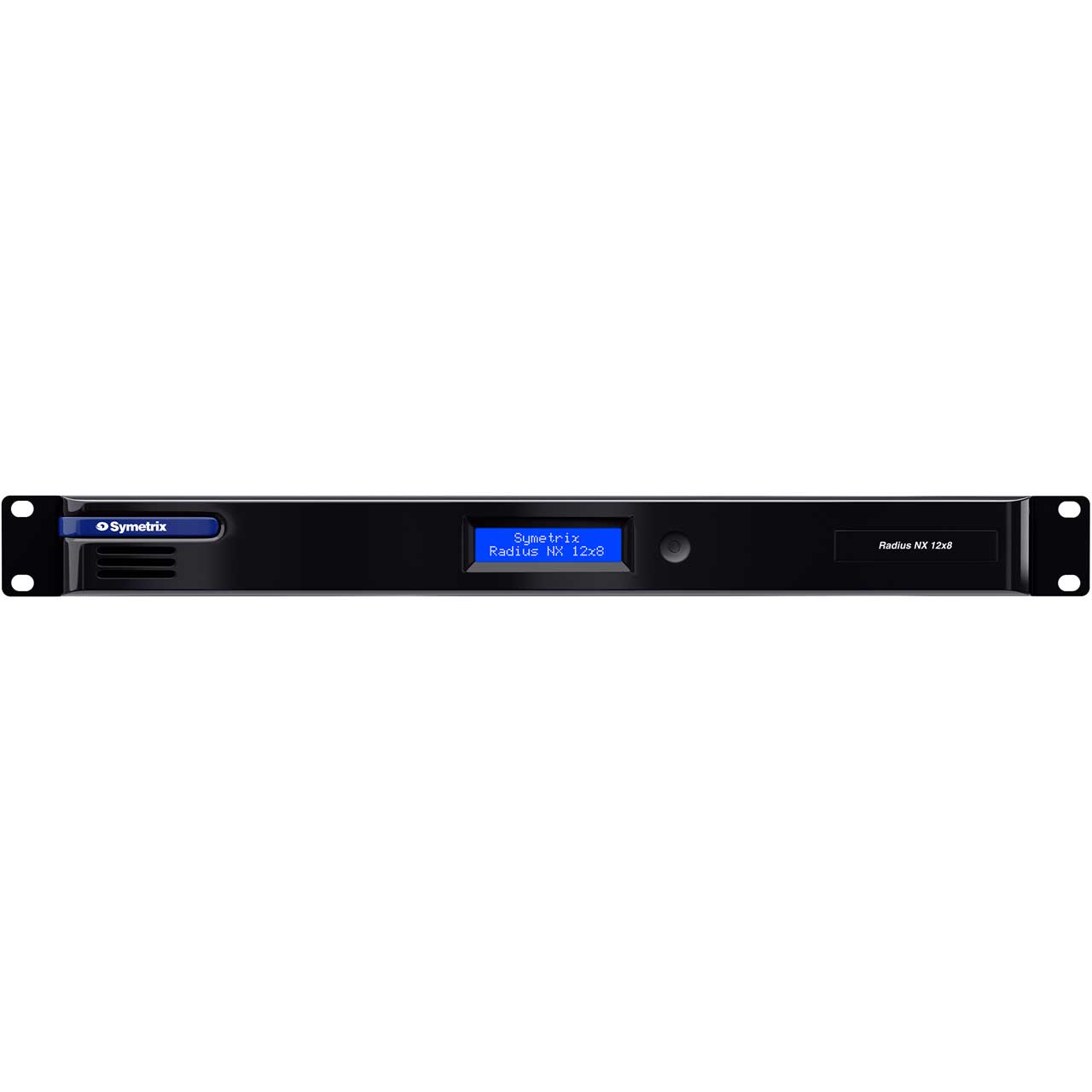

Symetrix RADIUS NX 12x8 DANTE + USB-B 12x8 Programmable DSP - USB Audio - 1 I/O Card Slot - 64x64 Redundant Dante - ARC

ITEM #: SYX-80-0134 MFG #: 80-0134

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    80-0134 - Overview

    The Symetrix Radius NX 12x8 (12 analog inputs, 8 analog outputs) is a powerful general purpose DSP and features optional 128 channel (64x64) redundant Dante and identical DSP resources. USB audio port enables soft-codecs + record/playback.Dedicated routing resources for a 128x128 Super Matrix.4-port Gigabit Switch serves Dante + control networks.Ultra-low noise preamps with 3 dB gain steps. Support for Radius and Edge Expansion Cards.Microsoft Teams Compatible.Up to 8x8 channels of USB audio. 1 I/O Expansion card slot.Internal universal input supply. Accepts Radius NX AEC Coprocessor Module.

    • Features:

      • Two Models: Radius NX 4x4 and Radius NX 12x8
      • Optional 64x64 Dante module
      • Optional AEC coprocessor module - up to 16 channels
      • USB audio port enables soft-codecs + record/playback
      • Dedicated roting resources for a 128x128 super matrix
      • 4-port gigabit switch serves Dante + control networks
      • Ultra-low noise preamps with 3dB gain steps
      • Support for Radius and Edge Expansion cards
      • Microsoft Teams Compatible

    • Specifications:

      • General Specifications:
      • Processor 1 x Analog Devices Griffin ADSP-SC587 dual- core DSP @ 500 MHz
      • Raw processing capacity 500 MIPS, 6 GFLOPS, 2 GMACS
      • Sampling rate 48 kHz, ± 100 ppm.
      • Frequency response (A/D/A) 20 Hz - 20 kHz, ± 0.5 dB.
      • Dynamic range (A/D/A) > 114 dB, A-weighted.
      • Channel separation (A/D/A) > 110 dB @ 1 kHz, +24 dBu
      • Latency (A/D/A) 1.04 ms, inputs routed to outputs
      • Delay memory 174 mono seconds.
      • Analog control inputs 0-3.3 VDC.
      • Recommended external control potentiometer 10k Ohm, linear.
      • Logic outputs Low (0V) when active, pulled high (5V) when inactive.
      • Logic output maximum external power supply voltage / current sinking 24 VDC / 50 mA.
      • Logic output maximum output current 10 mA.
      • THD + Noise < -95 dB (22.4 kHz BW, unweighted); 1 kHz @ +15 dBu with 0 dB gain
      • RS-232 accessory serial I/O 57.6 kbaud (default), 8 data bits, 1 stop bit, no parity, no flow control wired straight-through, only pins 2, 3, and 5 required
      • RS-485 serial I/O 38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port
      • Ethernet Cable Standard CAT5/6, maximum device to device length = 328 feet / 100 meters
      • Dante Cable Standard CAT6, maximum device to device length = 328 feet / 100 meters
      • ARC Cable Standard CAT5/6, distance dependent upon load and number of devices
      • Maximum stored presets 1000
      • Models Radius NX 12x8 USB-B, Radius NX 12x8 Dante + USB-B

        Analog Inputs
      • Connectors 3.81 mm terminal blocks.
      • Number of inputs Twelve (12) switchable balanced mic or line level
      • Nominal input level +4 dBu
      • Maximum input level +24 dBu
      • Mic Pre-amp Gain 0 to 51 dB in 3 dB steps with ± 24 dB digital trim
      • Mic Pre-amp EIN < -125 dB with 150 Ohm source impedance, 22.4 kHz BW
      • CMRR > 50 dB @ 1 kHz, unity gain
      • Input impedance 2k Ohms balanced, 1k Ohms unbalanced
      • Phantom Power (Per Input) +48 VDC @ 10 mA maximum.
      • Dynamic range > 115 dB, A-weighted.
      • THD + Noise < -100 dB (22.4 kHz BW, unweighted); 1 kHz @ +15 dBu with 0 dB gain.
      • Latency 0.31 mS

        Analog Outputs:
      • Connectors 3.81 mm terminal blocks.
      • Number of outputs Eight (8) balanced line level.
      • Nominal output level +4 dBu with 20 dB of headroom.
      • Maximum output level +24 dBu (+22.8 dBu into a 2 k Ohm minimum load).
      • Output impedance 300 Ohms balanced, 150 Ohms unbalanced.
      • Dynamic range > 117 dB, A-weighted.
      • THD + Noise < -97 dB (22.4 kHz BW, unweighted); 1 kHz, 0 dB gain +8 dBu output
      • Latency 0.65 mS

        USB Audio I/O:
      • Connector One (1) high-retention Type B
      • Interface 2.0 with Audio class 1.0 legacy modes
      • Capacity 1x1 (echo cancelling speakerphone and non-echo cancelling speakerphone modes) - driverless, 2x2 line I/O mode - driverless, and 8x8 line I/O mode - driver included
      • Sample Rate 48 kHz
      • Bit Depth 16-bit, speakerphone modes; 16 or 24-bit, line modes

      • Mechanical Data:
      • Space Required 1U (WDH: 18.91 in. x 9.5 in. x 1.72 in. / 48.02 cm x 24.13 cm x 4.37 cm). Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
      • Electrical 100-240 VAC, 50/60 Hz, 60 Watts maximum, universal input.
      • Ventilation Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in. minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
      • Shipping Weight 8.5 lbs. (3.85 kg)
      • Certifications or Compliance Safety: UL 60065, cUL 60065, IEC 60065 EMC: EN 55103-1, EN 55103-2, EN55032, EN 61000-3-2, EN 61000-3-3, ICES-003, FCC Part 15 (all Class A) Environmental: RoHS
