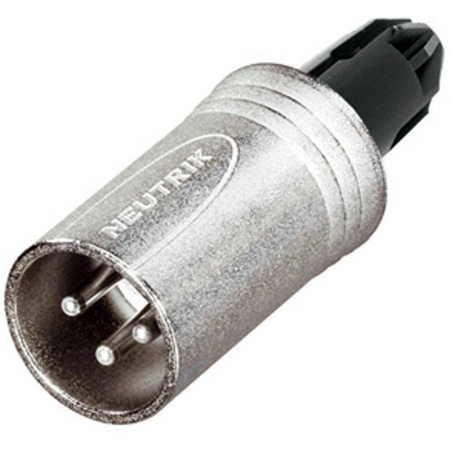

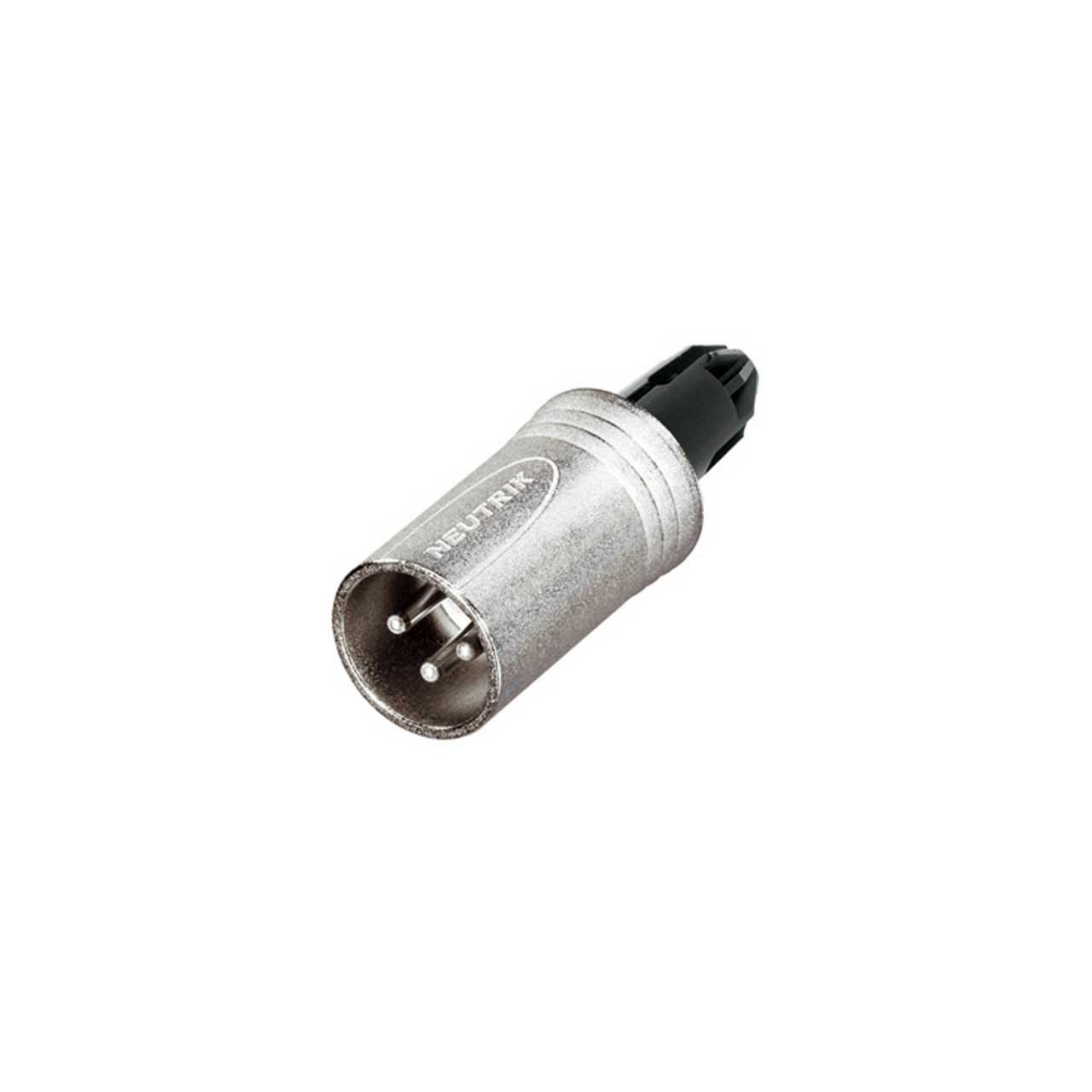

Neutrik NC3MXX-WOB 3 Pole Male Cable Connector - No Boot - with Strain Relief - Nickel/Silver

ITEM #: NC3MXX-WOB MFG #: NC3MXX-WOB

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$2.78

Our Price:

$2.39

Availability: In Stock
iAvailability Description Popup


    NC3MXX-WOB - Overview

    The NC3MXX-WOB is a 3 pole male cable connector, Nickel housing and silver contacts, without boot. Boot must be ordered separatly.

    The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

    • Features:

      • Male connector with improved locking recess without "window- more stringent housing increases durability
      • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
      • Boot with polyurethane gland gives high protection to cable bending stresses
      • Colored rings and boots available for coding or identification
      • Sleek and ergonomic design - valuable and handy
      • Rugged zinc diecast shell, longlasting and dependable
      • Internal thread on shell is well protected against any damage

    • Specifications:

      • Electrical
      • Capacitance between contacts: ≤ 4 pF
      • Contact resistance: &le 3 mΩ
      • Dielectric strength: 1,5 kVdc
      • Insulation resistance: > 10 GΩ (initial)
      • Rated current per contact: 16 A
      • Rated voltage: < 50 V

        Mechanical
      • Cable O.D.: 3.5 - 8.0 mm
      • Insertion force: ≤ 20 N
      • Withdrawal force: ≤ 20 N
      • Lifetime: > 1000 mating cycles
      • Wiresize: max. 2.5 mm²
      • Wiresize: max. 14 AWG
      • Wiring: Solder contacts
      • Locking device: Latch lock

        Material
      • Boot: Polyurethan
      • Contact plating: 2 µm Ag
      • Contacts: Brass (CuZn39Pb3)
      • Insert: Polyamide (PA 6.6 30 % GR)
      • Locking element: Zinc diecast (ZnAl4Cu1)
      • Shell: Zinc diecast (ZnAl4Cu1)
      • Shell plating: Nickel
      • Strain relief: Polyacetal (POM)

        Environmental
      • Flammability: UL 94 HB
      • Standard compliance: IEC 61076-2-103
      • Protection class: IP 40
      • Solderability: Complies with IEC 68-2-20
      • Temperature range: -30 °C to +80 °C
