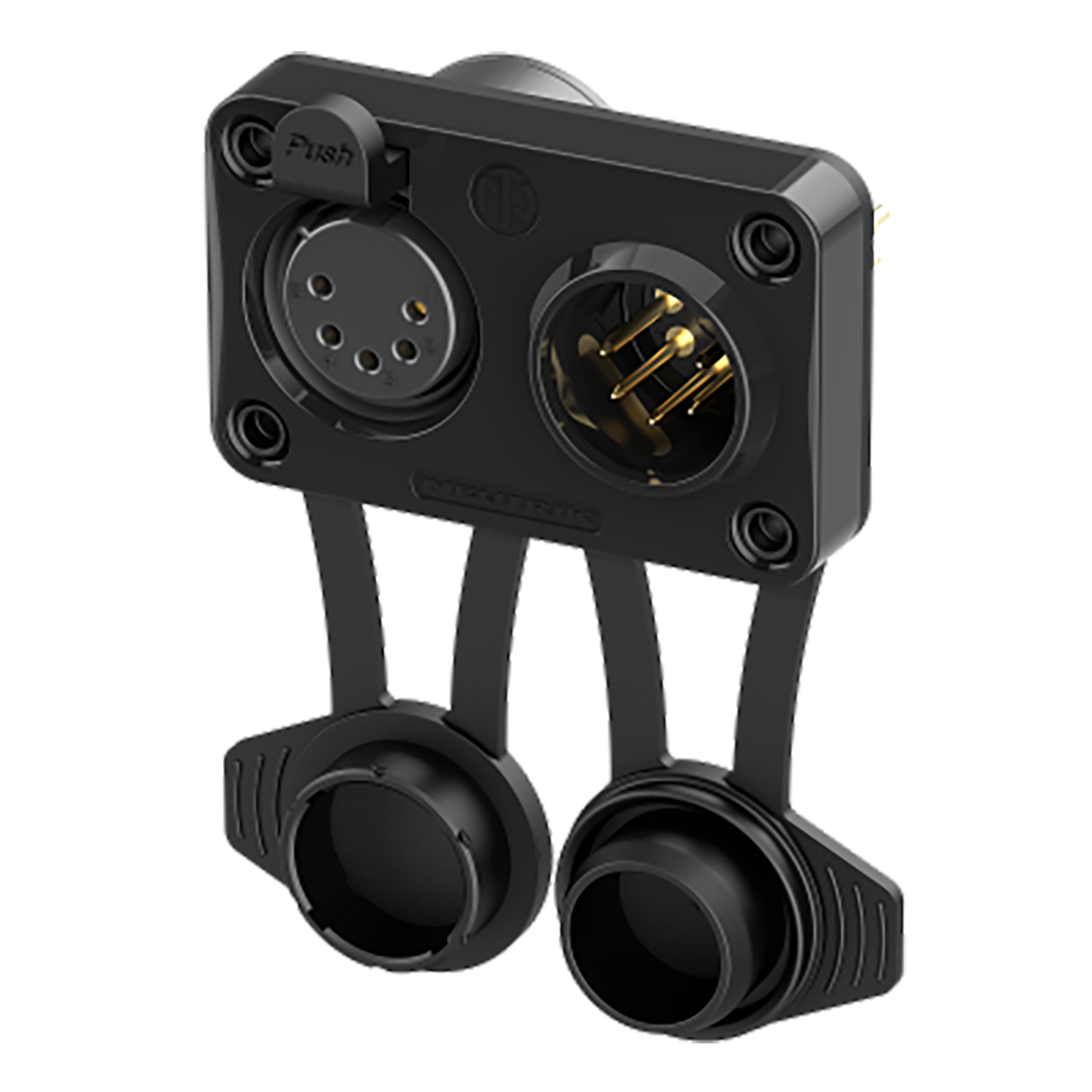

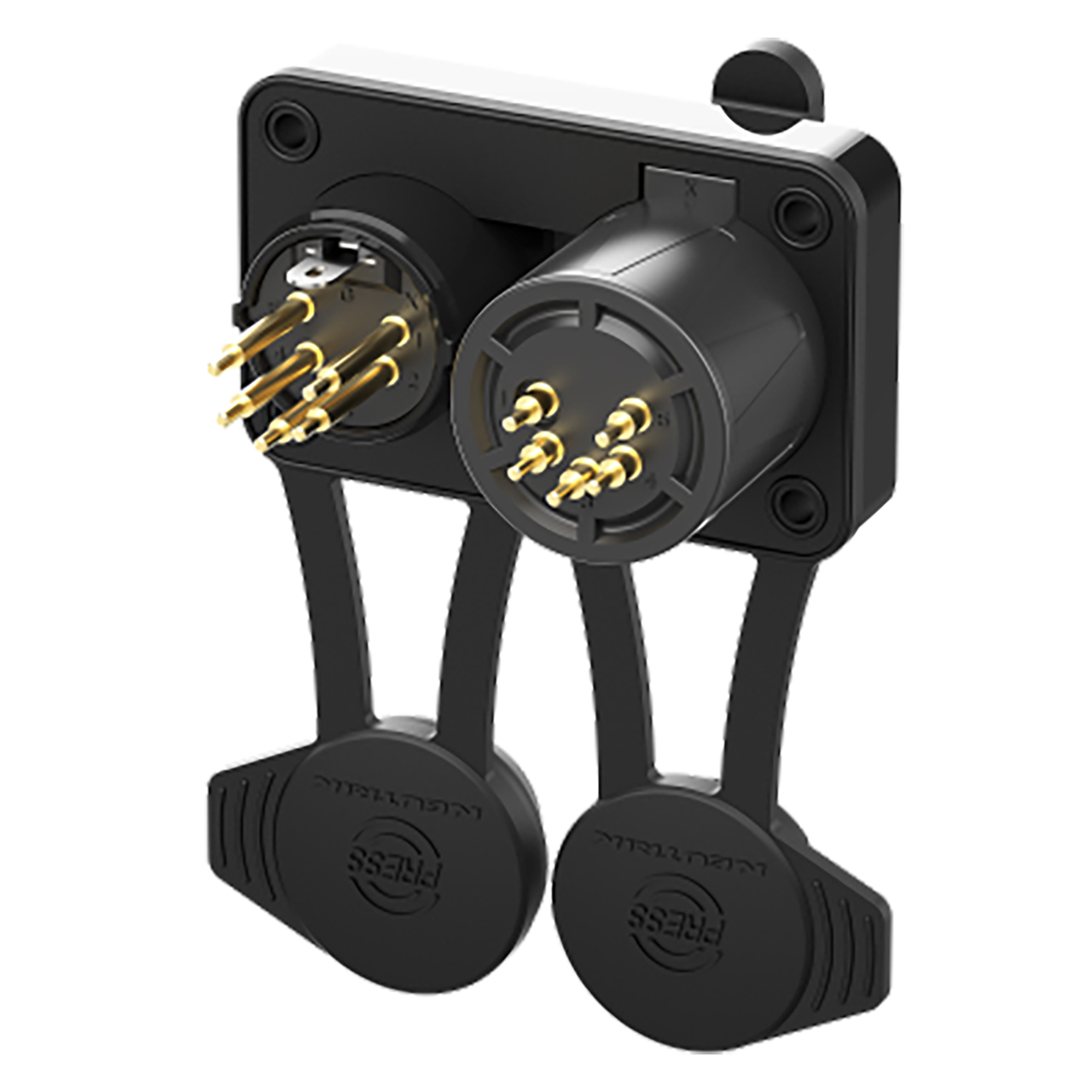

NEUTRIK NC5FM-TOP XLR Top Airtight Male / Female DUO Chassis Connector - IP65 and IP67 Rated

ITEM #: NC5FM-TOP MFG #: NC5FM-TOP

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$12.92

Our Price:

$9.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


NC5FM-TOP - Overview

The Neutrik NC5FM-TOP "XLR TOP airtight" chassis connector is the perfect solution for demanding outdoor applications and the harshest conditions. This innovative product is part of the XLR product group and belongs to our signal line. With an impressive array of features and a particular focus on protection and performance, the "XLR TOP airtight" is the choice for professionals who require absolute reliability.

With the XLR TOP airtight, you can count on a secure connection, even in the most extreme outdoor conditions. Rely on its protective features and high performance to ensure signal connections that meet the most stringent requirements. Trust in TRUE OUTDOOR PROTECTION with this outstanding chassis connector from NEUTRIK - your link to the future.

  • Features:

    • Airtightness for production line tests to ensure TRUE OUTDOOR PROTECTION on devices
    • IP65 & IP67 rating to protect from water and dust ingress (even in unmated and open sealing cap condition)
    • XLR system engineered for harsh and demanding environments
    • Flame retardant (V0)
    • Durable die-cast shell with sleek black plating
    • Easy maintenance due to front-mount design

  • Specifications:

      General
    • Connection Type: Chassis connector
    • Gender: Male/Female (Duo)

      Electrical
    • Contact Resistance: ≤5mΩ
    • Dielectric Strength: 1.5kVDC
    • Insulation Resistance: >5GΩ (initial)
    • Rated Current Per Contact: 7.5A
    • Rated Voltage Acc. to UL1977: 50VAC

      Mechanical
    • Insertion Force: ≤40 N
    • Withdrawal Force: ≤40 N
    • Lifetime: Min. 1000 mating cycles
    • Locking Device: Latch lock
    • Wiring: Vertical PCB mount
    • Mounting Direction: Front mount

      Material
    • Contact: Brass
    • Contact Plating: Gold
    • Insert: PA
    • Locking Element: Steel
    • Locking Element Plating: Nickel
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell Plating: Black KTL

      Environmental
    • Flammability: UL 94 V0
    • Solderability: Complies with IEC 60068-2-20
    • Temperature Range: -22°F - 176°F (-30°C - 80°C)
    • Ingress Protection Class: IP65 & IP67
