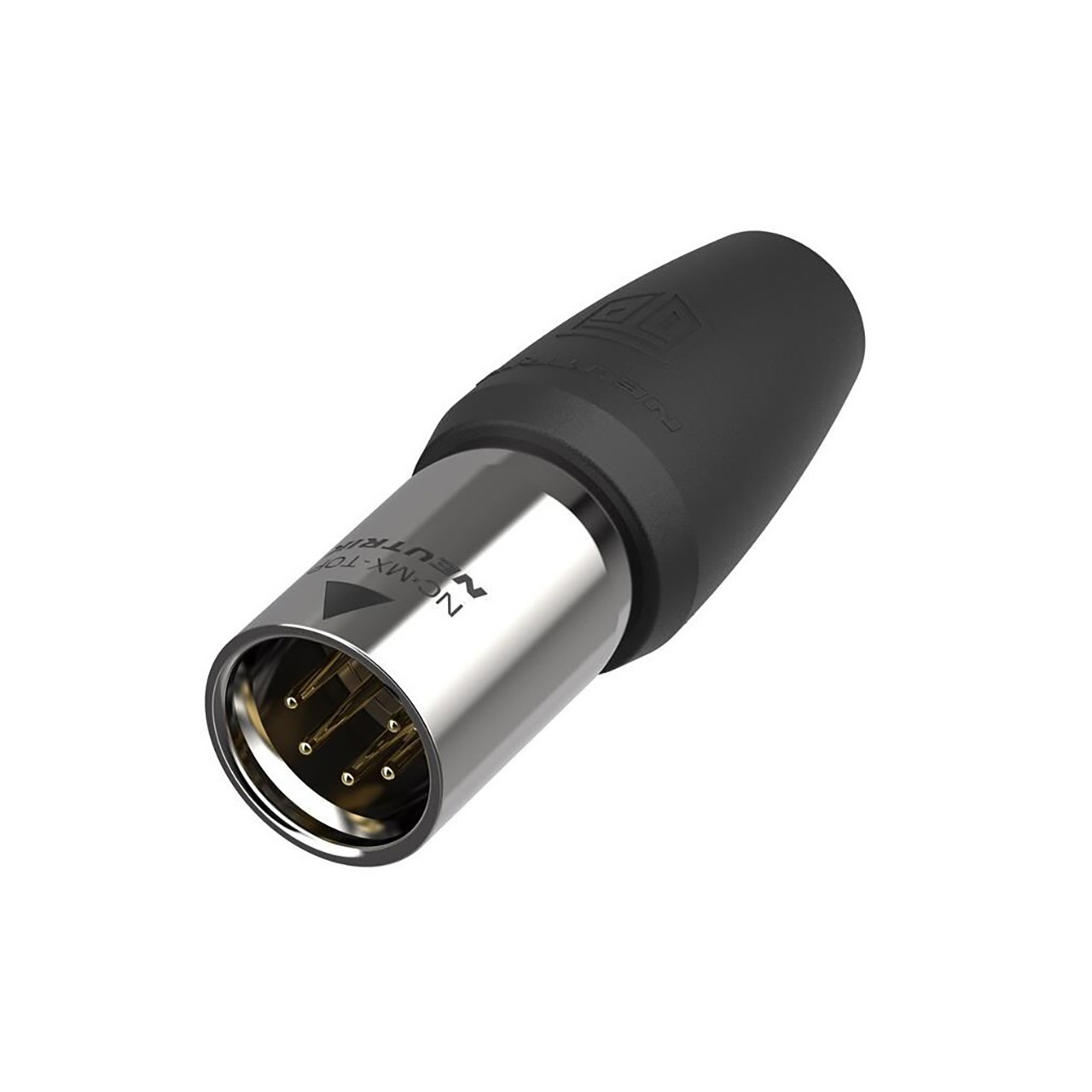

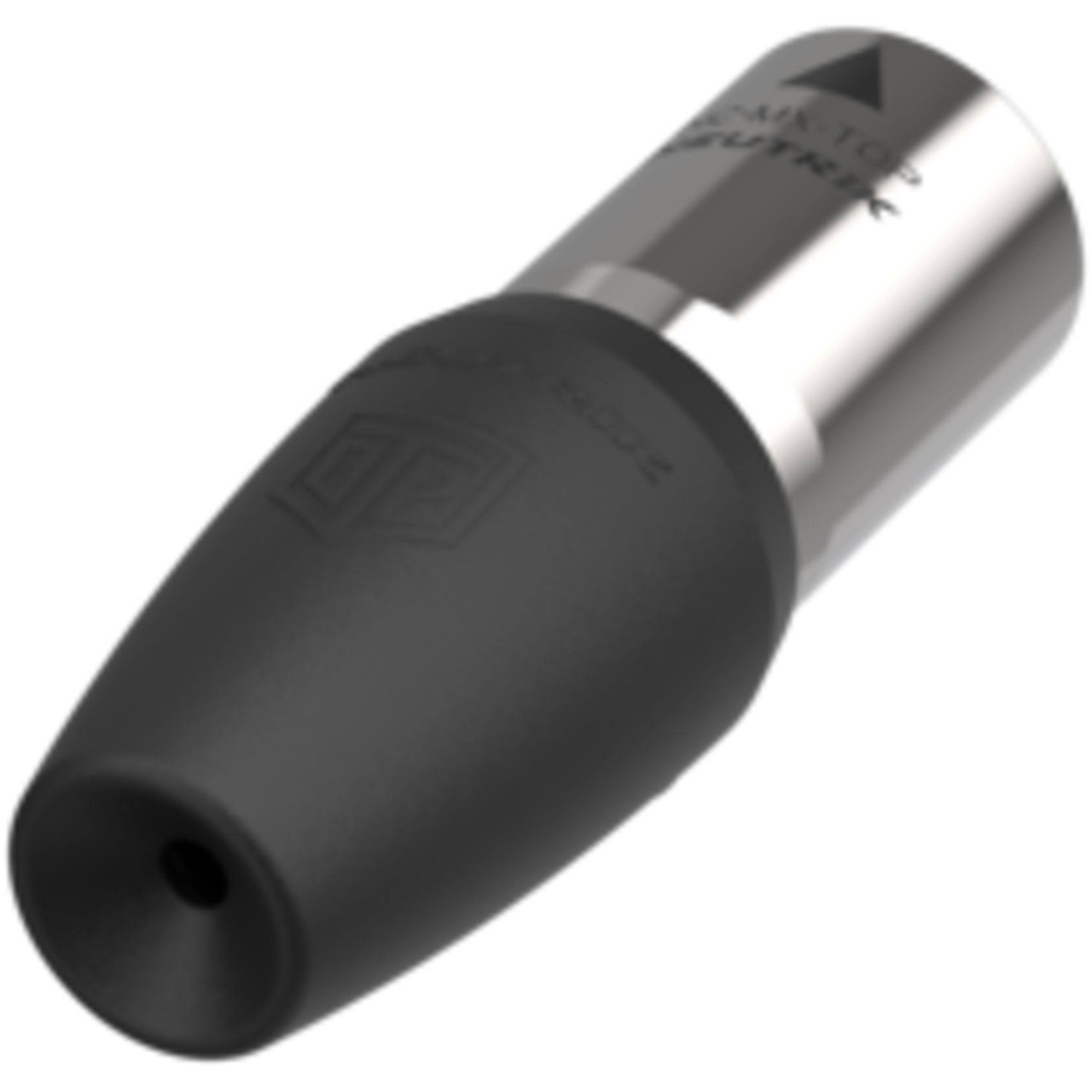

NEUTRIK NC5MX1-TOP 5-Pole Male XLR Cable Connector with True Outdoor Protection and Gold Contacts

ITEM #: NC5MX1-TOP MFG #: NC5MX1-TOP

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$17.14

Our Price:

$12.24

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


NC5MX1-TOP - Overview

The NEUTRIK NC5MX1-TOP 5 pole male "heavy-duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable/chassis connector of the XLR TOP range (IP65). Gold contacts are standard.

  • Features:

    • Heavy-duty sealed XLR connector range for harsh and demanding environment
    • Outdoor protection according to IP65
    • Uses high impact UV resistant materials
    • TOP-Approved in consideration of UL5

  • Specifications:

      General
    • Connection Type: XLR
    • Gender: Male

      Electrical
    • Capacitance Between Contacts: ≤ 4pF
    • Contact Resistance: ≤ 3mΩ
    • Dielectric Strength: 1,5kV DC
    • Insulation Resistance: > 10GΩ (initial)
    • Rated Current Per Contact: 16A
    • Rated Voltage: < 50V

      Mechanical
    • Cable O.D.: 5.0mm - 8.0mm
    • Insertion Force: ≤ 20N
    • Withdrawal Force: ≤ 20N
    • Lifetime: > 1000 mating cycles
    • Wiresize: Max. 1.0mm²
    • Wiresize: Max. 18 AWG
    • Wiring: Solder Contacts
    • Locking Device: Latch Lock

      Material
    • Bushing: UV-Resistant Rubber
    • Contact Plating: Gold (Au) over Nickel (Ni)
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Locking Element: St3K32 (Latch)/Ck 67 (Spring)
    • Shell: Zinc Diecast (ZnAI4Cu1)
    • Shell Plating: Nickel
    • Strain Relief: Polyacetal
    • Sealing Jacket: UV-resistant Rubber

      Environmental
    • Approvals: UL
    • Flammability: UL 94 HB
    • Standard Compliance: IEC 61076-2-103
    • Protection Class: IP65, UL50E enclosure type 4 (mated)
    • Solderability: Complies with IEC 68-2-20
    • Temperature Range: -22°F - 176°F (-30°C - 80°C)

  • Item Includes:

    • 1x NC5MX1-TOP 5-Pole Male XLR Cable Connector

  • Warranty:

    • 1 Year Limited Warranty
