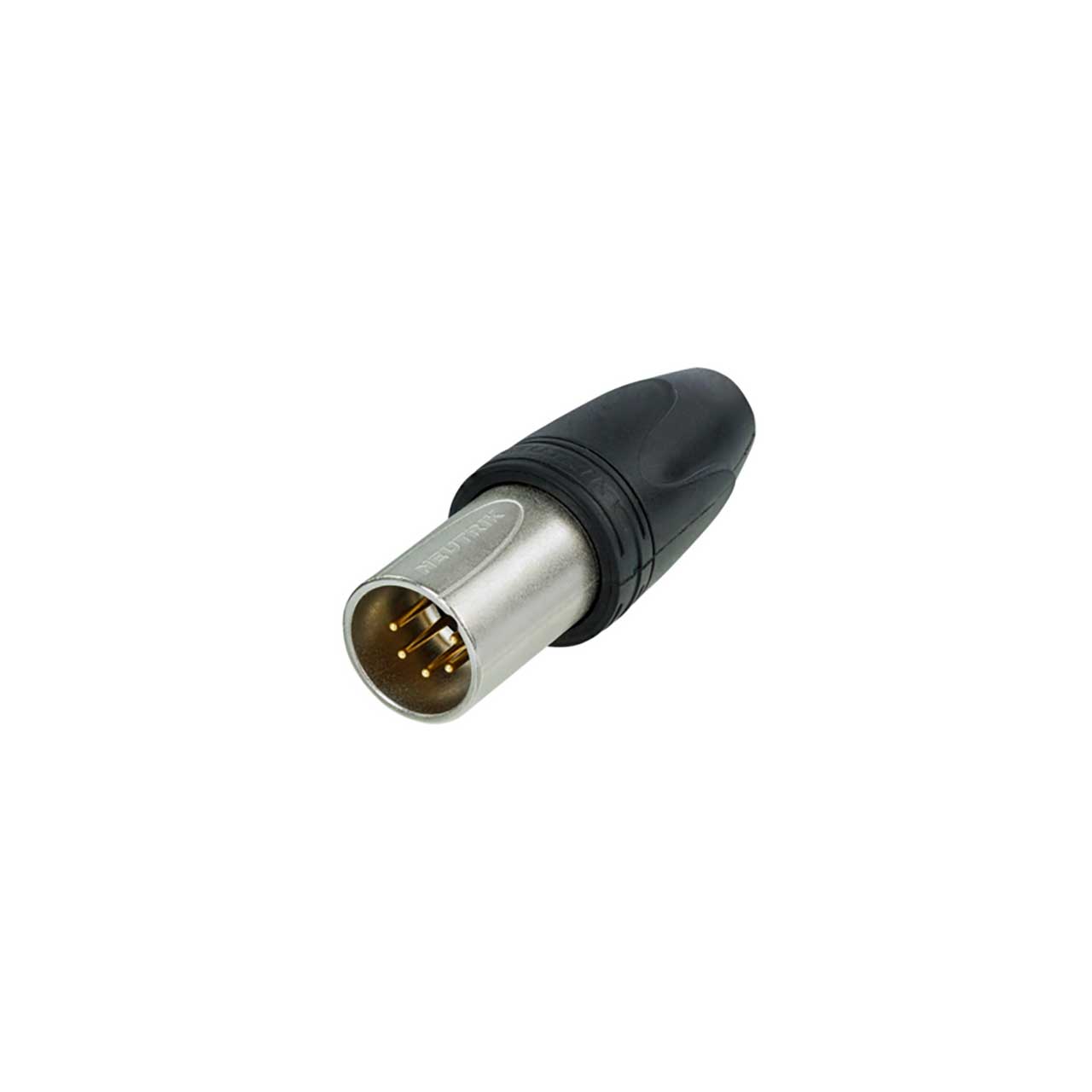

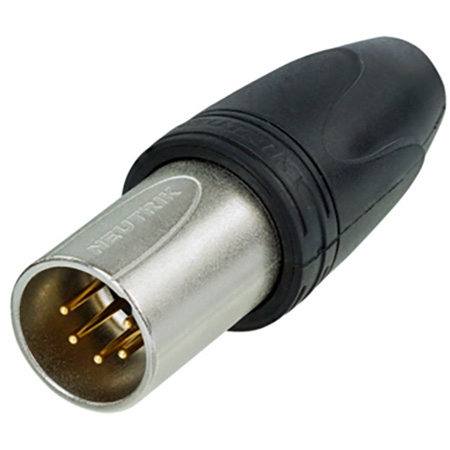

NEUTRIK NC5MXX-HD Heavy Duty Male 5 Pole XLR Cable Connector for Outdoor Use - Each

NC5MXX-HD - Overview

• Features:

  • Rubber sealing jacket protects against water ingress and mechanical shock
  • Gold contacts
  • Dust and water ingress sealing according to IP67 in combination with HD cable connector NC5FXX-HD


• Specifications:

  Electrical
  • Capacitance Between Contacts: ≤ 7 pF
  • Contact Resistance: ≤ 3 mΩ
  • Dielectric Strength: 1.5 kVdc
  • Insulation Resistance: > 10 GΩ (initial), > 1 GΩ(after damp heat test)
  • Number of Electronical Contacts: 5
  • Rated Current Per Contact: 7.5 A
  • Rated Voltage: < 50 V ac

    Mechanical
  • Cable O.D.: 6.0 - 8.0 mm
  • Insertion Force ≤ 20 N
  • Withdrawal Force: ≤ 20 N
  • Lifetime: 1000 mating cycles
  • Wiresize: Max. 1.0 mm²
  • Wiresize: Max. 18 AWG
  • Wiring: Solder contacts
  • Locking Device: Latch lock

    Material
  • Boot: PA/PU
  • Contact Plating: 0.2μm Au hard alloy over 2 μm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 66)
  • Locking Element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Nickel
  • Strain Relief: Polyacetal (POM)
  • Sealing Jacket: EPDM
