Neutrik NE8FAV-Y110 etherCON Vert PCB Pan Mt w/IDC 110 Punch Terminals

ITEM #: NE8FAV-Y110 MFG #: NE8FAV-Y110

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    NE8FAV-Y110 - Overview

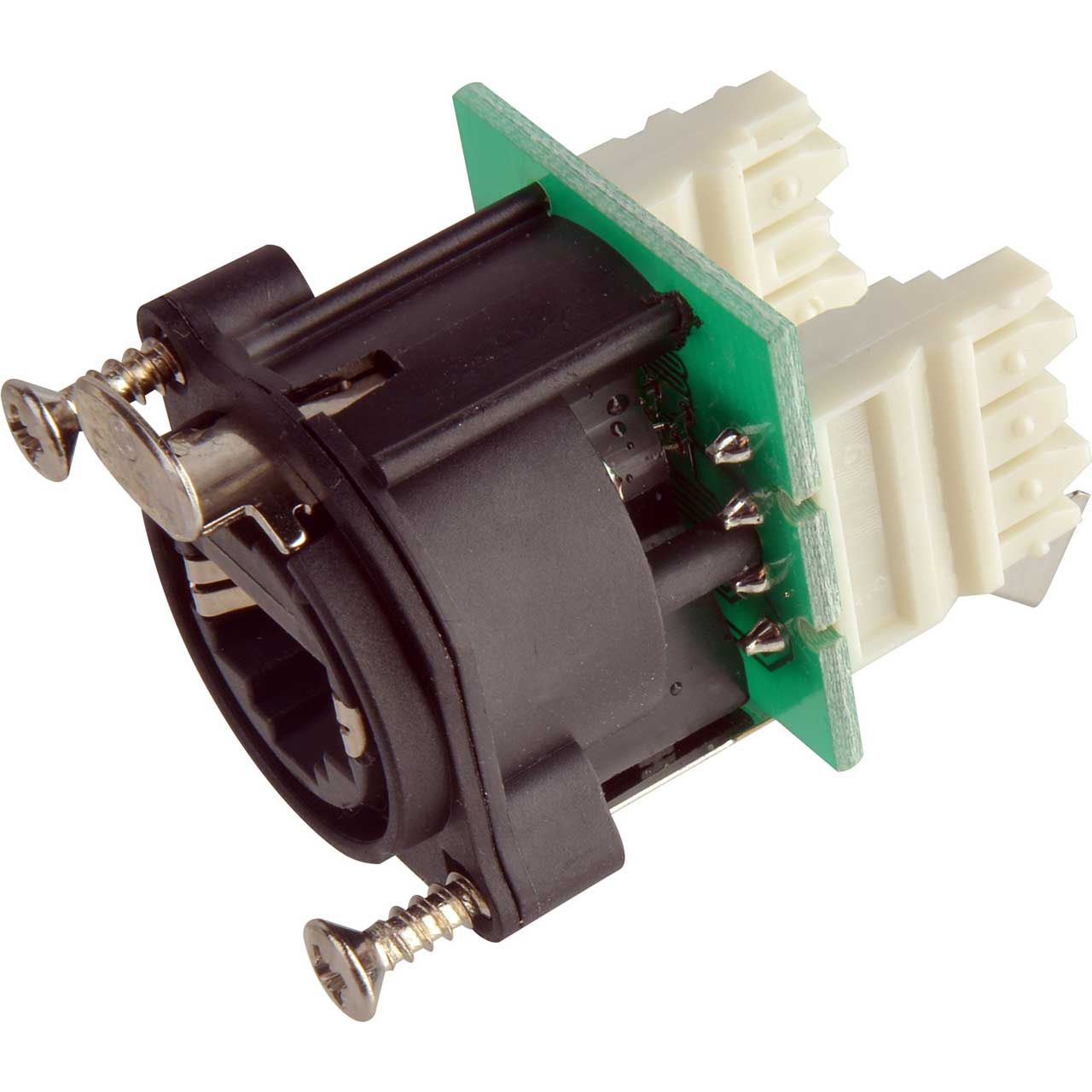

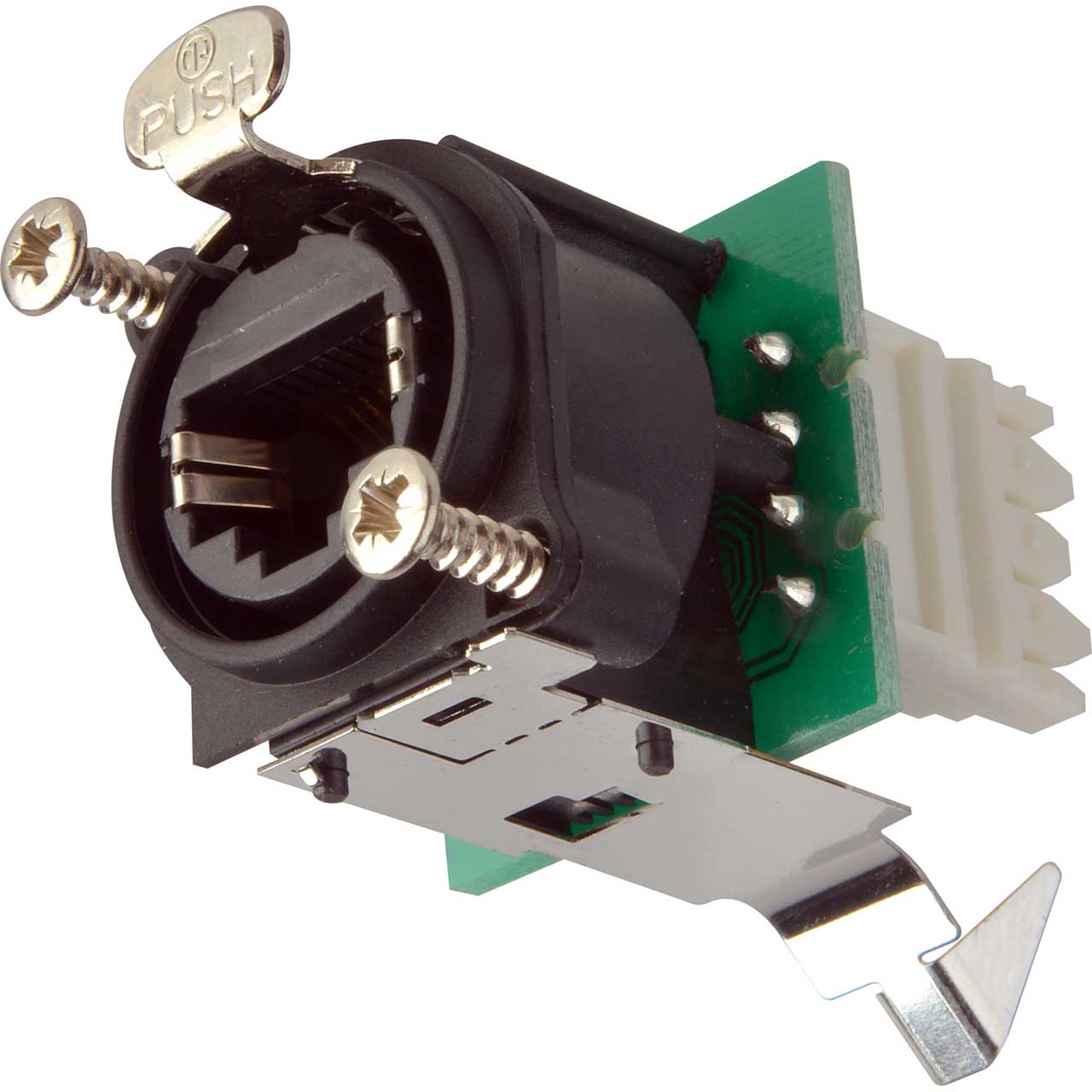

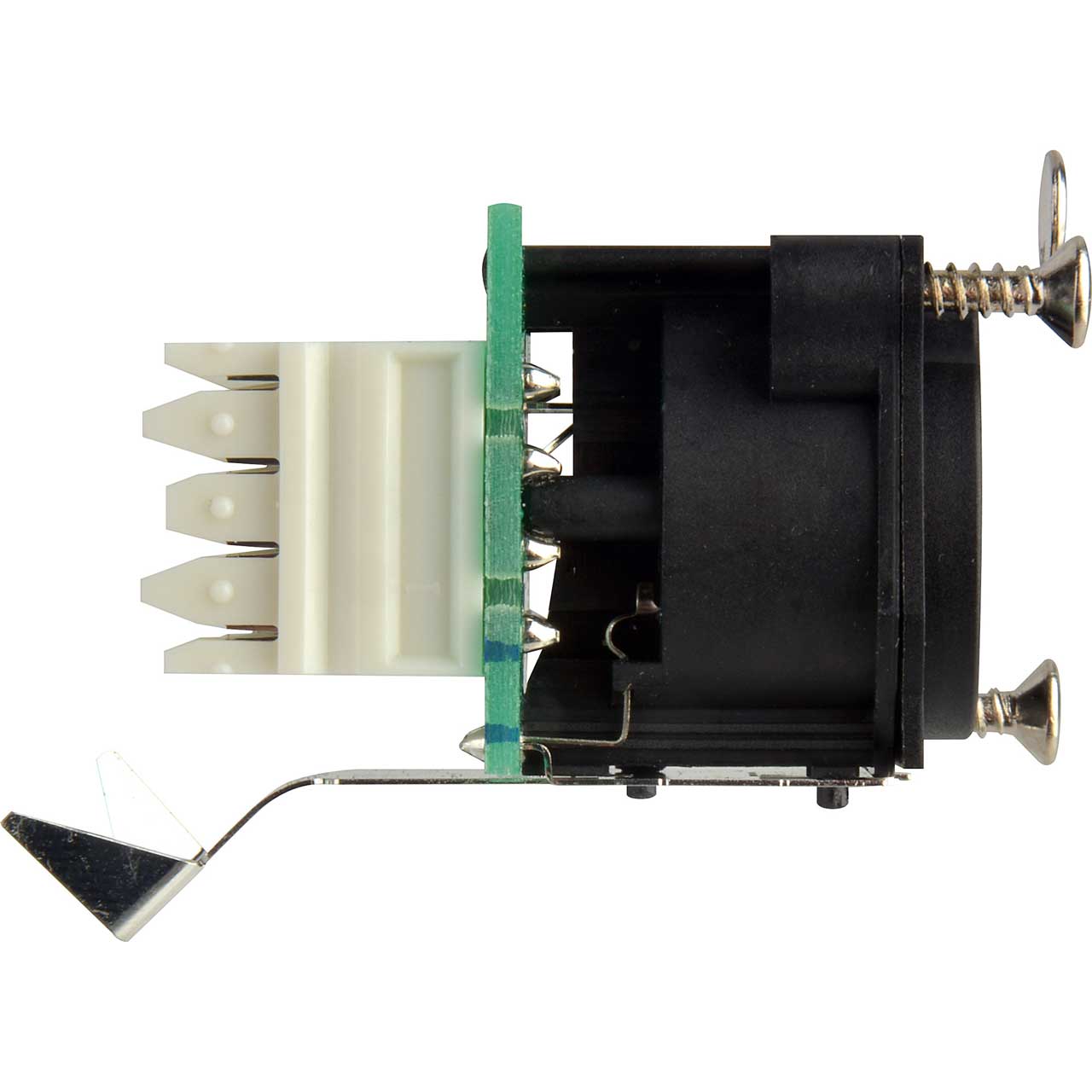

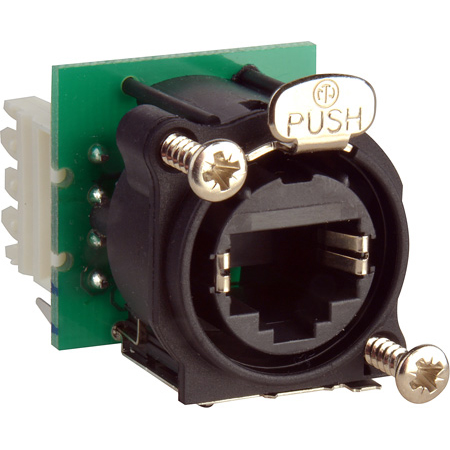

    Panel mount RJ45 receptacle, IDC 110 punch down terminals, A-Series cutout with latch lock system, max. panel thickness 3 mm. Mounting screws included.

    A new generation of ruggedized RJ45 connectors. EtherCon Series is available shielded or unshielded and is compatible for use with 10 Base-T systems. The EtherCon series is especially developed for, but not limited to, audio and stage applications including DMX systems. Nevertheless the operational area of EtherCon is not limited to the entertainment industry. The EtherCon male cable connector carrier is a robust diecast shell with a unique metal chuck-type strain relief for optimal cable and plug protection. The female chassis connector is based on the proven Neutrik A/B and D series connectors with the secure latching system.

    The all plastic A-Series offers the most space saving and cost effective design

    • Features:

      • Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
      • Approved latch lock system
      • Most space saving and cost effective design
      • Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
      • Selectable ground - panel connection

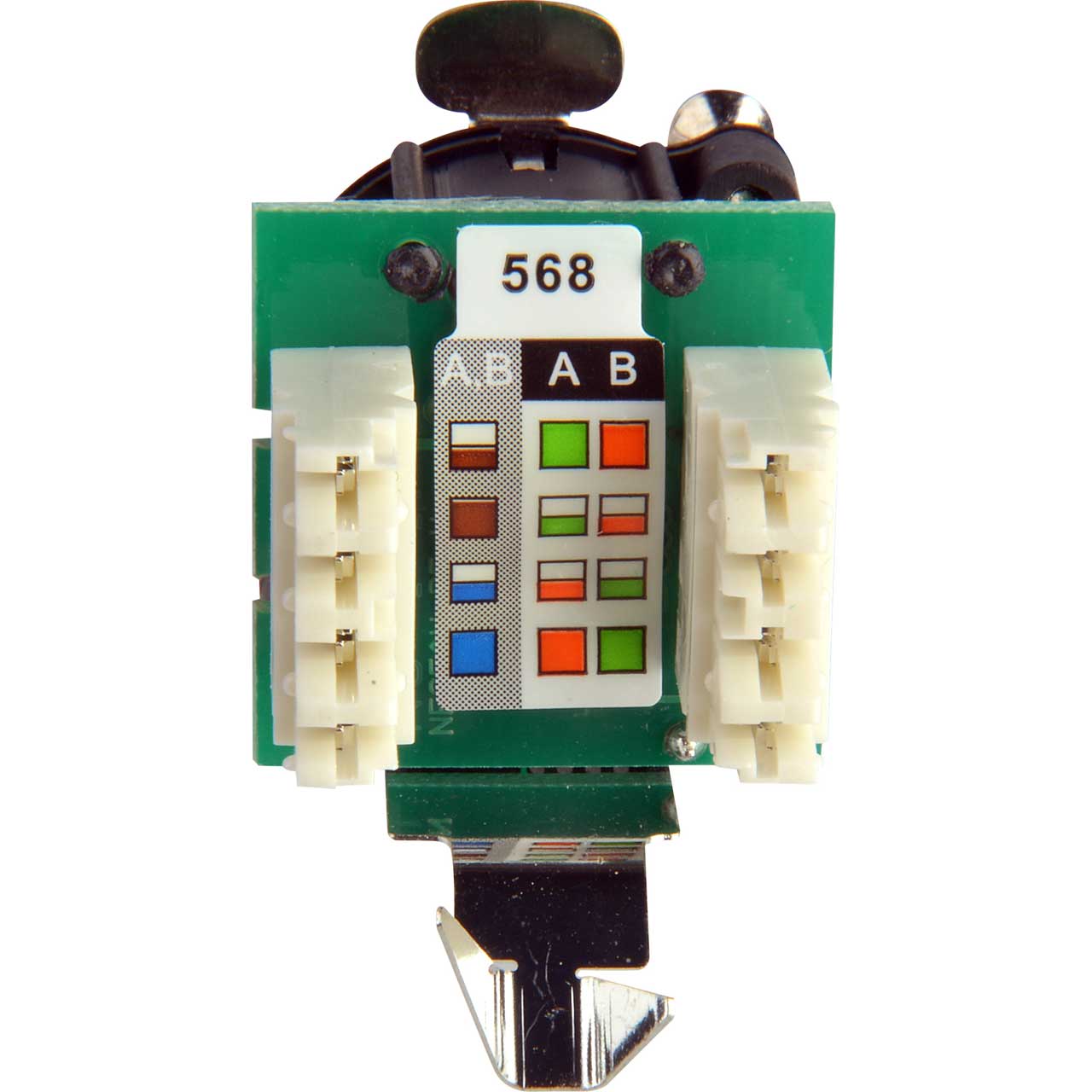

      • Easy and quick mounting using 110 type punch down terminals
    • GTIN:


    NE8FAV-Y110 - Required Accessories
