NTI splitmux-c5hdr-4lc Low-Cost HDMI Quad Screen Splitter/Multiviewer/Extender

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

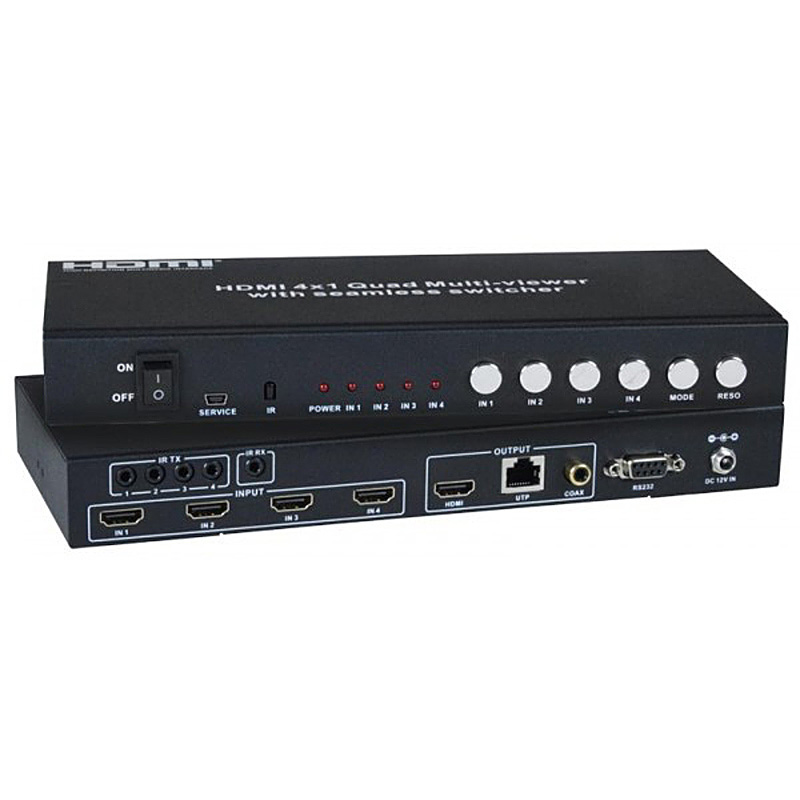

    NTI splitmux-c5hdr-4lc Low-Cost HDMI Quad Screen Splitter/Multiviewer/Extender

    Item #: NETT-SPLITMUXC5H   •   MFG #: SPLITMUX-C5HDR-4LC




    Our Price:$810.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The SPLITMUX® Low-Cost HDMI Quad Screen Multiviewer allows you to simultaneously display real-time HDMI/DVI video from four different sources on a single monitor. It is capable of displaying the video sources in quad, PiP, or full screen mode. The audio/video output can be extended up to 250 feet away via a single CAT6/6a/7 cable.

      Note: This device does not support HDCP.


      • Features

        • Quad, Picture in Picture, and Full Screen display modes.
        • Independent video in to video out resolution.
        • Supported resolutions:
        • Input: HTDV resolutions to 1080p and computer resolutions to 1920x1200.
        • Output: 1080p, 1080i, 720p, 1024x768, 1360x768.
        • HDMI features supported:
        • Inputs: 24-, 30-, and 36-bit xvYCC, sRGB, and YCbCr.
        • Outputs: 24- and 30-bit sRGB.
        • Four-channel non-mixing stereo with 16-, 20-, or 24-bit uncompressed PCM audio.
        • Bandwidth up to 165 MHz.
        • Inputs: 2.25 Gbps
        • Output: 2.0625 Gbps
        • Fluid, real-time video performance with 60 frames per second (fps) in all four quadrants.
        • Switch audio independently of video from connected HDMI sources in Quad mode.
        • Any DVI source or display can be connected by using the DVI-HD-xx-MM cable (not included).
        • Use DVIA-HD-CNVTR-LC or DVI-HD-CNVTR DVI + Audio to HDMI Converters to pass and independently switch audio signals to the multiviewer.
        • Control the multiviewer through front panel buttons, IR remote, or Graphical User Interface (GUI) via RS232.
        • Bi-directional IR control from multiviewer and remote unit locations.
        • Cascade multiviewers to display video from any number of video sources on one screen.
        • Each unit in the cascade must be configured and controlled individually.
        • Cascaded outputs can be extended using the remote unit as long as the combined total CAT6/6a/7 cable length between all levels of the cascade does not exceed 250 feet.
        • Compatible with SPLITMUX-HD-4RT for cascade configurations.
        • Adjust output video brightness, contrast, color, and sharpness.
        • Supports simultaneous local and remote HDMI output.
        • Features coax SPDIF audio outputs at the multiviewer and receiver.
        • Built-in default EDID table.
        • Supported output resolutions can be selected.
        • ARC (Audio Return Channel) support at the receiver unit via coax SPDIF output for speakers.
        • Turn ARC on to play audio from an HDTV with ARC support to the connected speakers.
        • Turn ARC off to play audio from the multiviewer source to the connected speakers.

      • Specifications

        • Inputs
        • Four female HDMI connectors.
        • One 3.5mm port for IR receiver.
        • One RS232 port for Graphical User Interface (GUI) control.
        • Supports digital HDMI devices, such as DVD/Blu-ray players, satellite receivers, and HDTV tuners.
        • A DVI source can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the multiviewer.
        • Use a video + audio to HDMI video converter to pass embedded HDMI audio into the multiviewer (see Compatible NTI Products below).
          Outputs
        • One female HDMI connector for local display.
        • One RJ45 connector for CATx cable to remote unit.
        • One coax connector for local SPDIF audio.
        • Four 3.5mm ports for IR emitters.
        • Output resolutions: 1080p, 1080i, 720p, 1024x768, 1360x768.
        • A DVI display can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the display.
        • Use a video + audio to HDMI video converter to pass embedded HDMI audio into the multiviewer (see Compatible NTI Products below).
          Power
        • 100 to 240 VAC at 50 or 60 Hz via AC adapter.
        • Power consumption: 10W.
          Dimensions
        • WxDxH (in): 9.84x4.65x1.26 (250x118x32 mm)
          Environmental
        • Operating temperature: 32 to 104°F (0 to 40°C).
        • Storage temperature: -4 to 140°F (-20 to 60°C).
        • Operating and storage relative humidity: 20 to 90% non-condensing RH.
        • Regulatory Approvals
        • CE, FCC, RoHS
          Compatible NTI Products
        • Combine NTI's multiviewers and video converters for cost-effective display configurations.
        • DVI-D to HDMI Single Link Interface Cable (DVI-HD-xx-MM).
        • The cable does not pass audio to the multiviewer.
        • HDMI Quad Screen Multiviewer (SPLITMUX-HD-4RT)
        • DVI + Stereo Audio to HDMI Converter
        • (DVIA-HD-CNVTR-LC)
        • DVI + Digital Audio to HDMI Converter
        • (DVI-HD-CNVTR)
        • Composite Video + Audio to HDMI Converter
        • (CVA-HD-LC)
        • VGA + Audio to HDMI Converter Cable
        • (VGAA-HD-ULC)
        • VGA/Component Video/HDMI Scaler/Converter
        • (PCHD-HDMI-SCALER)
          Inputs
        • One RJ45 connector for CATx cable to multiviewer.
        • One 3.5mm port for IR receiver.
          Outputs
        • One female HDMI connector for remote display.
        • One coax connector for remote SPDIF audio.
        • Supports ARC (Audio Return Channel)
        • One 3.5mm port for IR emitter.
        • Supports crisp and clear HDTV resolutions to 1080p and computer resolutions to 1920x1200.
        • A DVI display can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the display.
        • Use a video + audio to HDMI video converter to pass embedded HDMI audio into the multiviewer (see Compatible NTI Products below).
          Power
        • 100 to 240 VAC at 50 or 60 Hz via AC adapter.
          Dimensions
        • WxDxH (in): 4.02x2.60x1.02 (102x66x26 mm)
          Environmental
        • Operating temperature: 32 to 104°F (0 to 40°C).
        • Storage temperature: -4 to 140°F (-20 to 60°C).
        • Operating and storage relative humidity: 20 to 90% non-condensing RH.
          Regulatory Approvals
        • CE, FCC, RoHS

      • Item Includes

        • One HDMI Multiviewer
        • One remote unit
        • One 12V, 2.5A power supply
        • One 5V, 1A power supply
        • One IR remote
        • Five IR emitters
        • Two IR receivers
        • One 4.6 ft (1.4 m) RS232 cable
        • Wall mount brackets with screws
        • User manual
