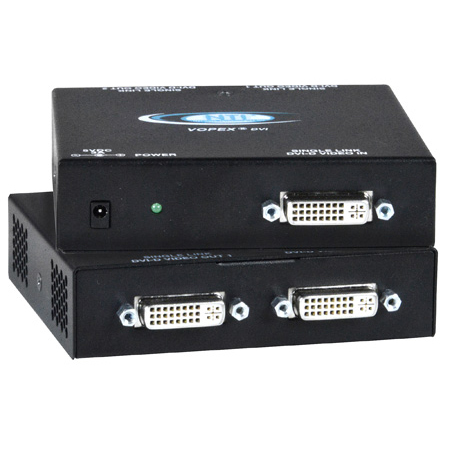

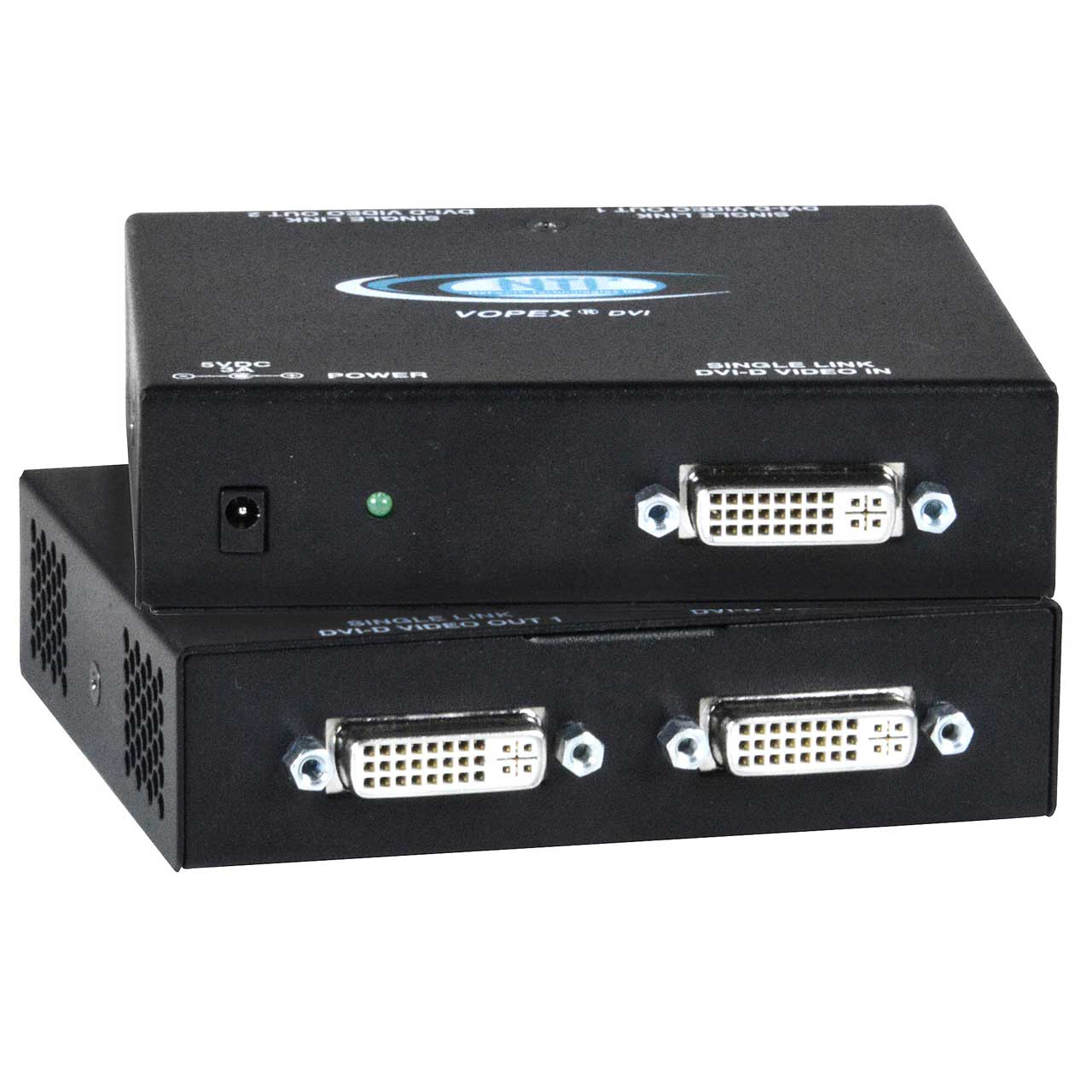

NTI VOPEX-DVI4K-2 4K DVI/HDMI Video Splitter - 2-Port

VOPEX-DVI4K-2 - Overview

• Features:

  • Supports DVI interface for crisp and clear video quality on flat panel displays
  • Passes HDMI audio and video signal through DVI-I port
  • Transmit audio and video over a single cable with the DVI-HD-xx-MM male DVI-D to male HDMI cable
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (24Hz and 30Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200
  • Compliant with DVI 1.0, HDMI 1.4a and HDCP 1.3 standards
  • Supports the DDC2B protocol
  • Cascade multiple units to increase the number of displays connected
  • EDID learning for the support of any DVI display device
  • Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple monitors is needed


• Specifications:

  • Video Input
  • Compatible with a computer or HDTV video source (satellite receiver, DVD player, etc) with DVI or HDMI output (use DVI-HD-xx-MM to connect an HDMI source).
  • Multiplatform support: Windows XP/Vista/7/8.1, Windows Server 2003/2008/2012, Solaris, Linux, FreeBSD, and Mac OS 9/10.
  • Female DVI-I connector.
  • Signal type: single link digital DVI or HDMI.
  • HDCP compliant.


  • Video Output
  • Female DVI-I connectors.
  • Signal type: single link digital DVI or HDMI.
  • Supported video output resolutions:
  • Ultra-HD4Kx2K resolutions (3840x2160 @ 24/30Hz).
  • 2K Cinema (2048x1080 @ 60Hz).
  • HDTV resolutions to 1080p.
  • Computer resolutions to 1920x1200.
  • HDCP compliant.


  • Power
  • 110 to 220 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included)


  • Dimensions WxDxH (in): 4.25 x 3.87 x 1.09.


  • Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
  • Regulatory Approvals: CE, RoHS, TAA compliant.


  • Cables
  • One 3-foot single link DVI-D male-to-male cable included.
  • Use DVI-HD-xx-MM to connect an HDMI source or display (not included).


• Item Includes:

  • 1x VOPEX-DVI4K-2 video splitter
  • 1x country-specific power cord
  • 1x 3-ft DVI-I single link male to male cable
  • 1x User manual


• Warranty:

  • 2 years
