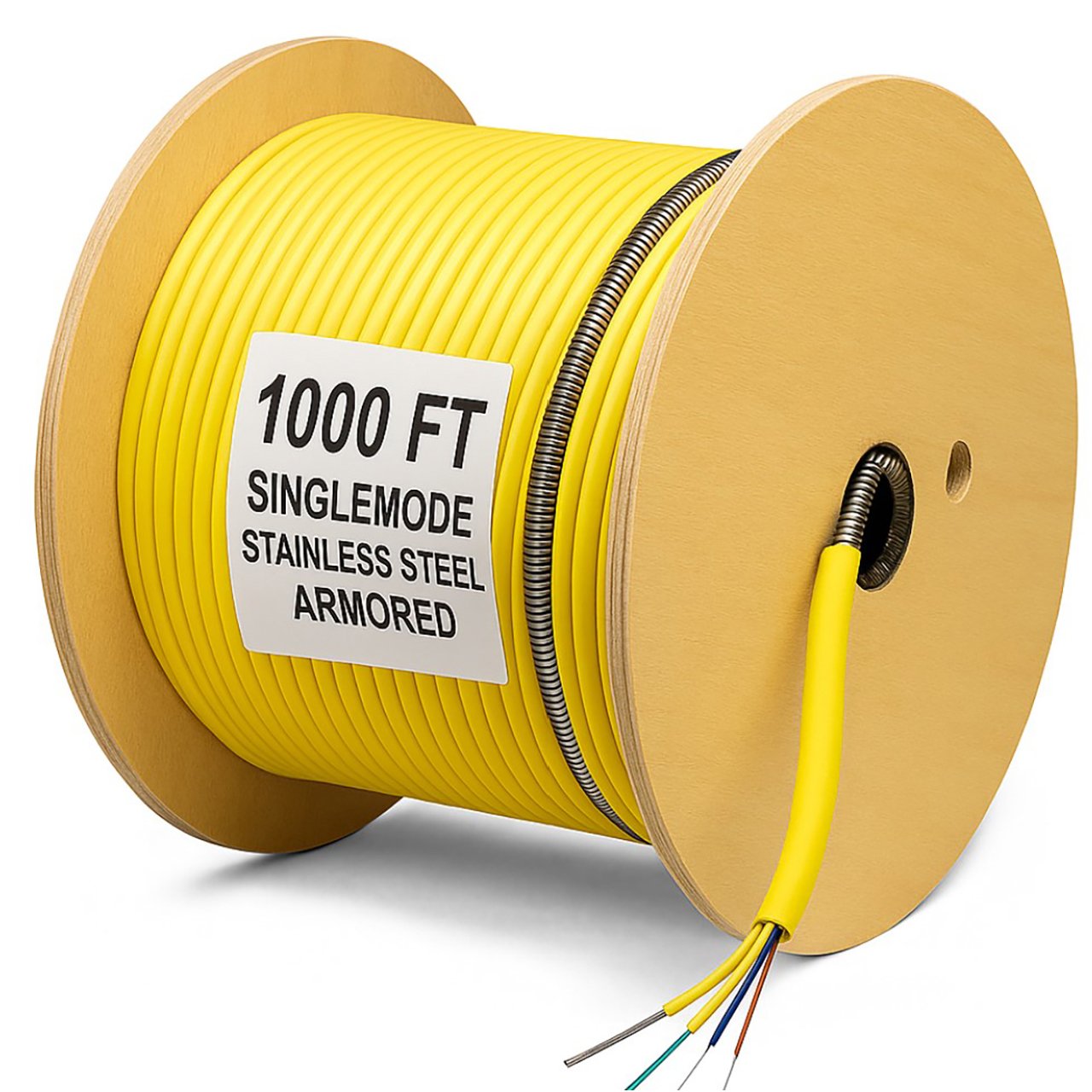

nanoFIBER 12-Strand Stainless Steel Armored Tight Buffer 900u Indoor/Outdoor Plenum SM Fiber Cable - Yellow - 1000 Foot

ITEM #: NF-SM12A2PY-1000 MFG #: SM12T-A2-IOPY-1000

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$3,499.00

Our Price:

$2,459.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SM12T-A2-IOPY-1000 - Overview

Upgrade your fiber network with nanoFIBER's SM12T-A2-IOPY 12 Strand Singlemode Fiber Optic Cable, built for maximum protection, bend performance, and durability in harsh environments.

This cable features G657A2 bend-insensitive fiber, passivated metallic cladding stainless steel armor, and a bright yellow UV-resistant plenum-rated jacket for versatile indoor/outdoor use.

The cable's ultra-compact 6.0 ±0.2mm diameter is the smallest armored profile available, increasing pathway capacity by up to 500% while reducing congestion and weight by 65% compared to aluminum armor.

Each fiber is tight buffered to 900µm, allowing easy termination without fan-out kits and enabling fast, direct connectorization in patching, splicing, or emergency repairs. The passivated stainless armor offers superior rodent resistance, crush strength, and corrosion defense, making it ideal for mission-critical installations in data centers, towers, industrial plants, and utility networks. Water-blocking yarn and UV protection ensure long-term reliability in buried, aerial, or exposed outdoor environments.

nanoFIBER's armored cable is engineered for performance, safety, and code compliance, rated OFCP plenum, indoor/outdoor, and riser applications. It meets TIA/EIA-568, ANSI, ICEA, and RoHS standards, operates from -20°F - 140°F (-20°C - 60°C), and is backed by a 25-year warranty-making it the installer's top choice for compact, rugged, and future-proof fiber builds.

Key Advantages vs. Competitors:
- Stainless steel armored cable outperforms other flexible jackets for crush/pest protection
- nanoFIBER indoor/outdoor dual ratings
- Compact OD reduces bend radius challenges in riser or conduit installs
- Ships via UPS unlike heavier alternatives which require freight
- Longer warranties and superior deployment flexibility across segments

Applications:
- Outside Plant (OSP)
- Data Centers
- Broadcast
- Pro AV
- Utility
- Campus Fiber
- Broadband

  • Features:

    • Singlemode
    • 12 Strand
    • Stainless Steel Armor
    • Tight Buffer
    • Bend Insensitive G657A2
    • Indoor/Outdoor Plenum Rated
    • UV-Resistant
    • 6.0mm outer diameter
    • Smallest outer diameter armored cable
    • 500% increase in pathway capacity and major reduction in cable congestion versus AIA armor.
    • 25 Year Warranty

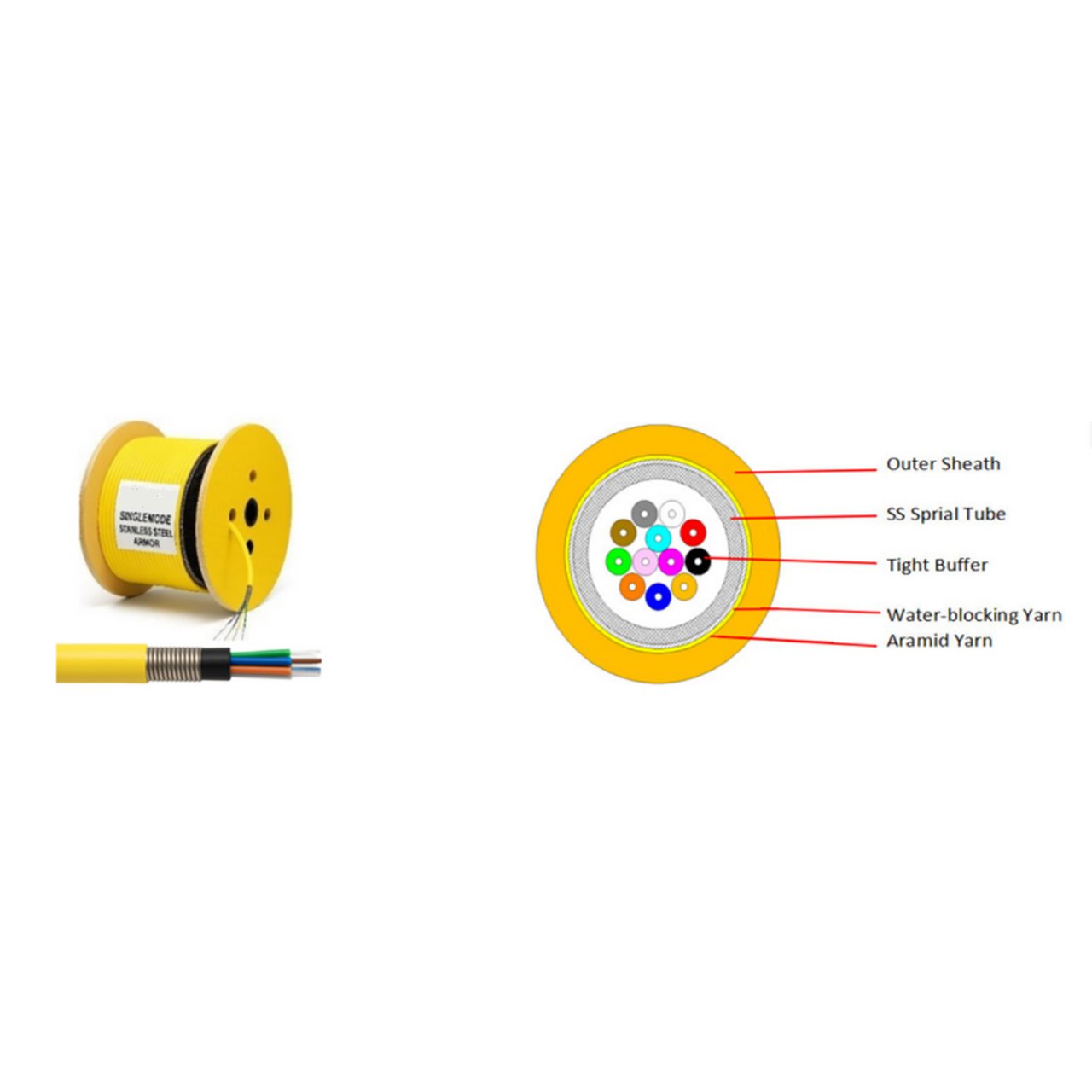

  • Specifications:

    • Fiber Count: 12 fibers
    • Fiber Type: G657.A2 Bend-Insensitive Singlemode
    • Material: PVC, UV
    • Armor Type: Passivated Metallic Cladding (rodent/crush resistant)
    • Diameter: 6.0±0.2mm
    • Construction: Tight Buffered 900µm
    • Jacket Type: UV-Resistant Indoor/Outdoor Plenum (OFCP-rated)
    • Jacket Color: High-visibility Yellow
    • Flame Rating: Plenum, OFCP (UL Listed)
    • Application Rating: Indoor/Outdoor, Riser, Plenum
    • Operating Temperature: -20°F - 140°F (-20°C - 60°C)
    • Minimum Bend Radius: 10x cable diameter (installation), 20x (operation)
    • Water Blocking: Yes, water-blocking yarn
    • UV Resistance: Yes, jacket is stabilized for outdoor exposure
    • Compliance: TIA/EIA-568, ANSI, ICEA, and RoHS

  • Item Includes:

    • 1x nanoFIBER 12-Strand Stainless Steel Armored Tight Buffer 900u Indoor/Outdoor Plenum SM Fiber Cable - Yellow - 1000 Foot

  • Warranty:

    • 25 Year Warranty
