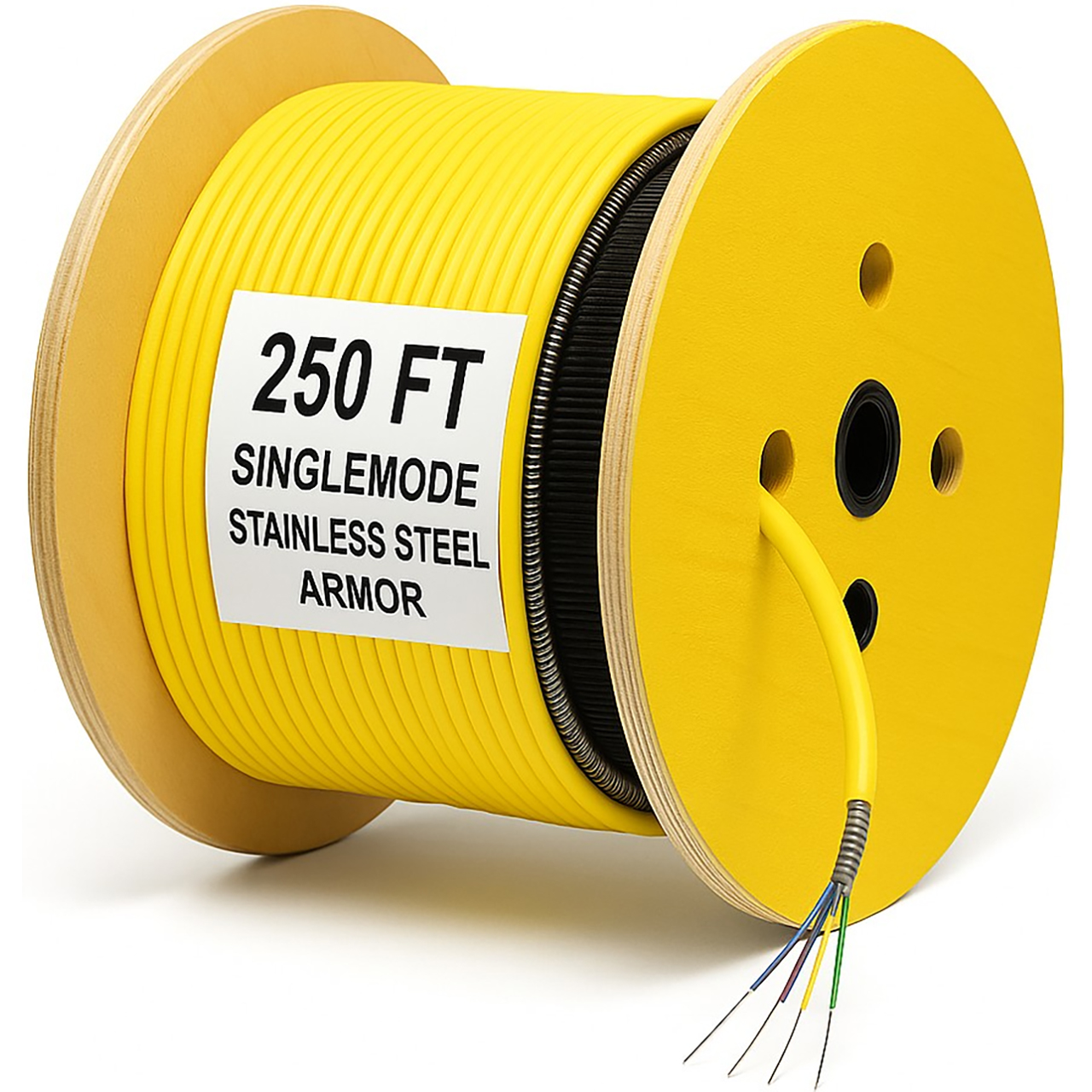

nanoFIBER 24-Strand 3.0mm OD Stainless Steel Armored Plenum Singlemode Tight Buffer 900u Cable - Yellow - 250 Foot

ITEM #: NF-SM24TA2P-250 MFG #: SM24T-A2-PL-250

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,299.99

Our Price:

$859.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SM24T-A2-PL-250 - Overview

When performance, protection, and space efficiency matter most, this nanoFIBER 24-Strand G657.A2 Singlemode Fiber Optic Cable delivers unmatched value in mission-critical installations. Engineered with a compact 3.0mm outer diameter and fortified with passivated SUS202 stainless steel spiral armor, this cable is purpose-built for the harshest indoor and outdoor environments-all while being fully plenum-rated for fire safety.

From crowded cable trays to high-traffic industrial conduits, this cable's slim 3.0mm form factor gives you the routing flexibility you need-without compromising on protection. The tight-buffered design enables direct connectorization, eliminating the need for breakout kits and reducing termination time.

Its SUS202 passivated stainless steel spiral armor provides robust mechanical protection against crushing forces, rodents, and sharp bends, making it ideal for challenging environments like utility tunnels, ceiling plenums, or military shelters.

This cable goes beyond basic connectivity - it's a smart investment in long-term reliability, installation efficiency, and total operational readiness.

  • Features:

    • Singlemode
    • 24 Strand
    • Small OD 3.0mm
    • SUS202 Stainless Steel Armor
    • Tight Buffer
    • Bend Insensitive G657A2
    • Plenum Rated
    • 3.0mm outer diameter
    • Smallest outer diameter armored cable
    • 500% increase in pathway capacity and major reduction in cable congestion versus AIA armor

  • Specifications:

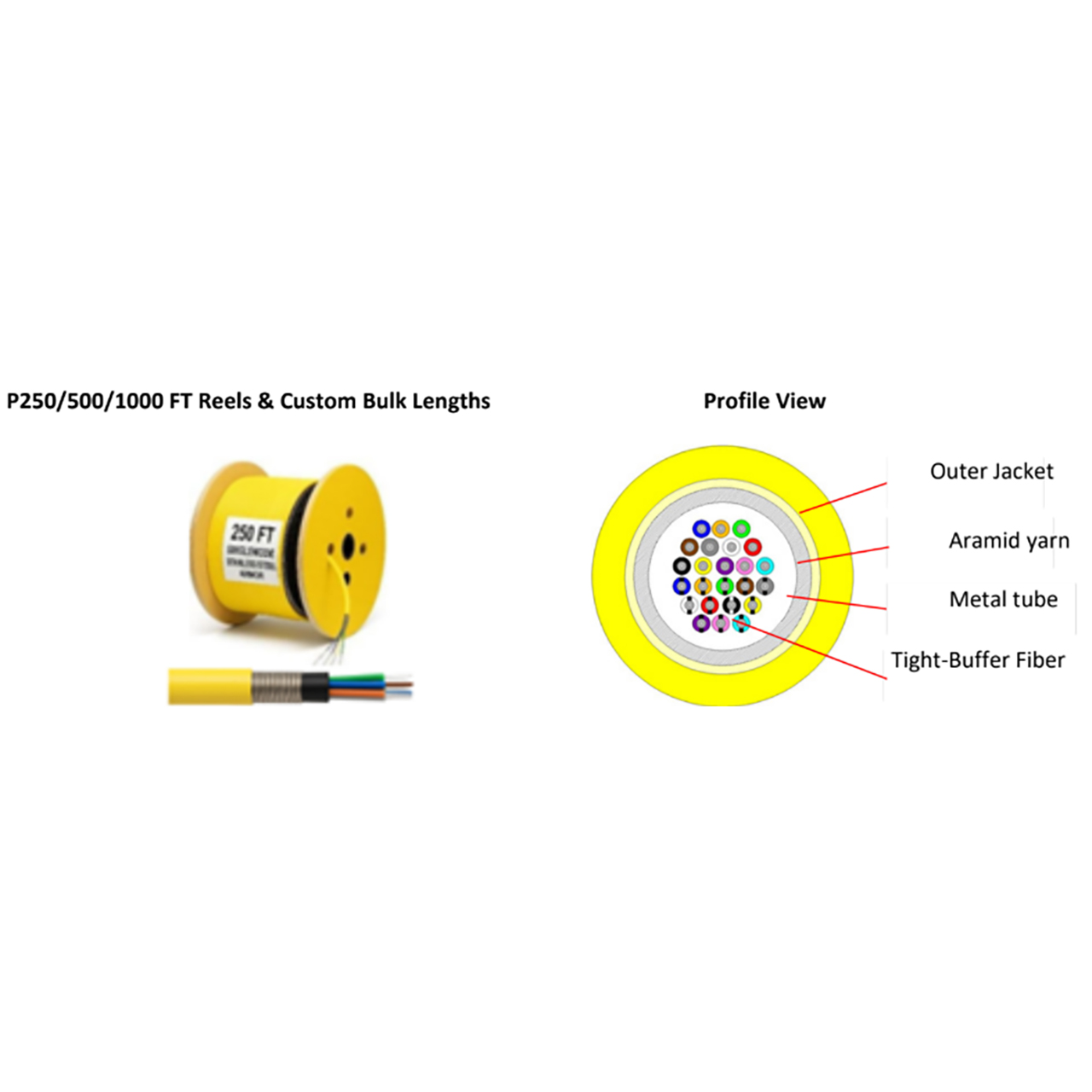

    • Fiber Count: 24 strands (12 standard colors + 12 with stripes) Small OD 3.0mm
    • Fiber Type: G657.A2 Bend-Insensitive Singlemode (850µm ±50µm)
    • Armor: SUS202 Passivated Stainless Steel Spiral Tube
    • Tight Buffer Construction: Supports direct termination, no breakout kits required
    • Strength Members: 8 x 1000D Aramid Yarn for high tensile reliability
    • Jacket: Flame-retardant OFNP plenum-rated yellow PVC
    • Compact OD: Just 3.0mm outer diameter - easy to route and manage
    • Corrosion & UV Resistant: Built for longevity in exposed or rugged environments
    • Plenum Rated: Compliant with indoor flame and smoke regulations

  • Item Includes:

    • 1x nanoFIBER 24-Strand 3.0mm OD Stainless Steel Armored Plenum Singlemode Tight Buffer 900u Cable - Yellow - 250 Foot

  • Warranty:

    • 25 Year Warranty
