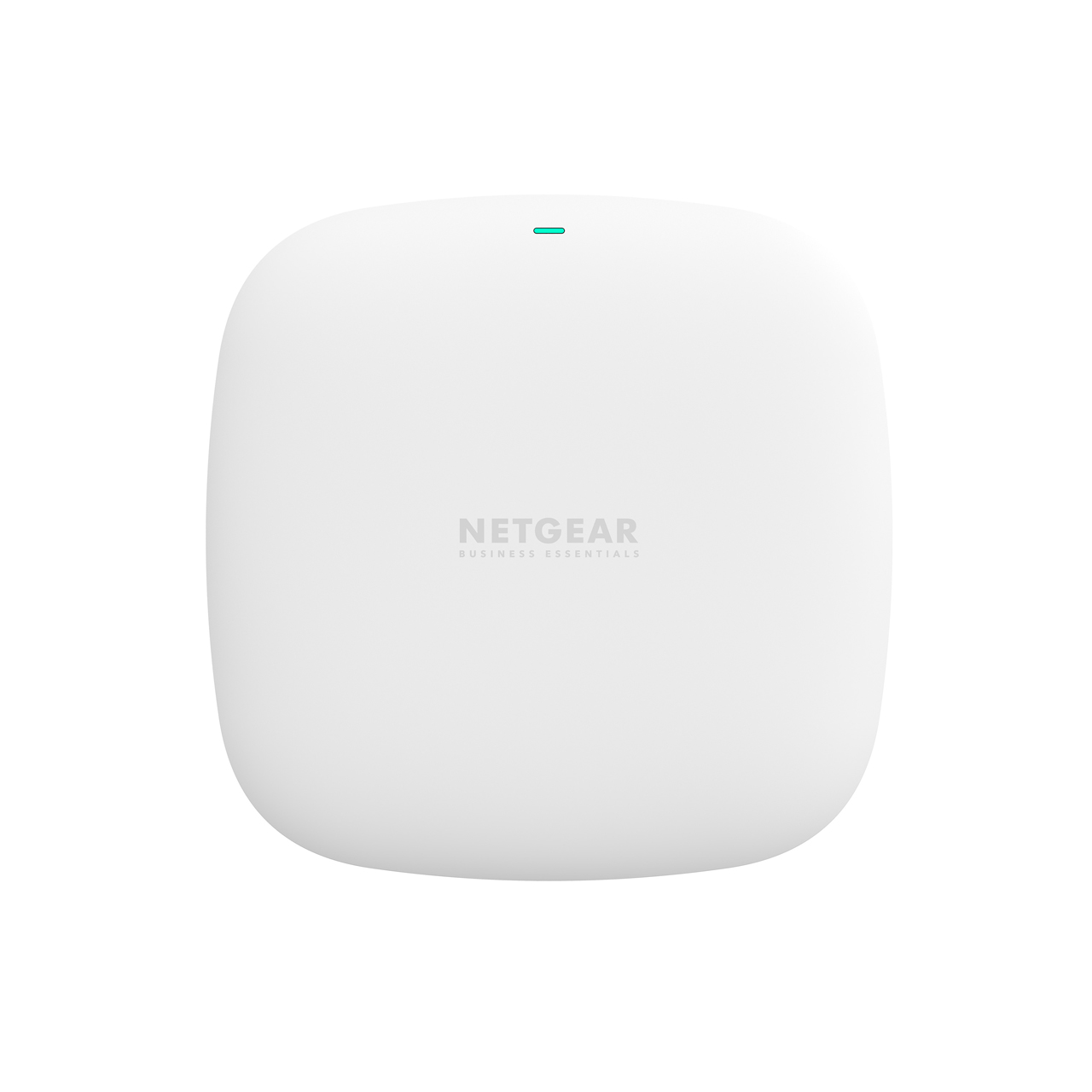

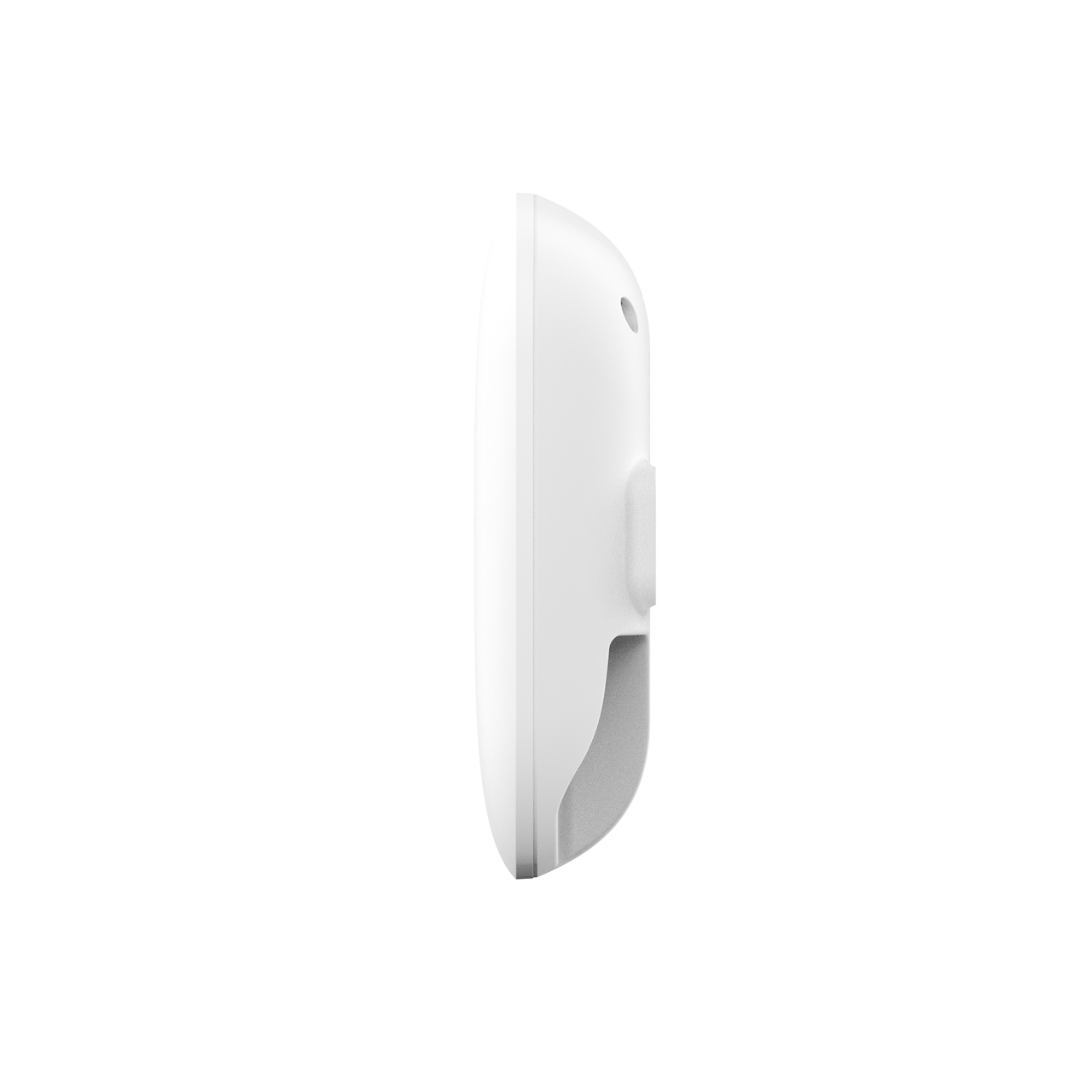

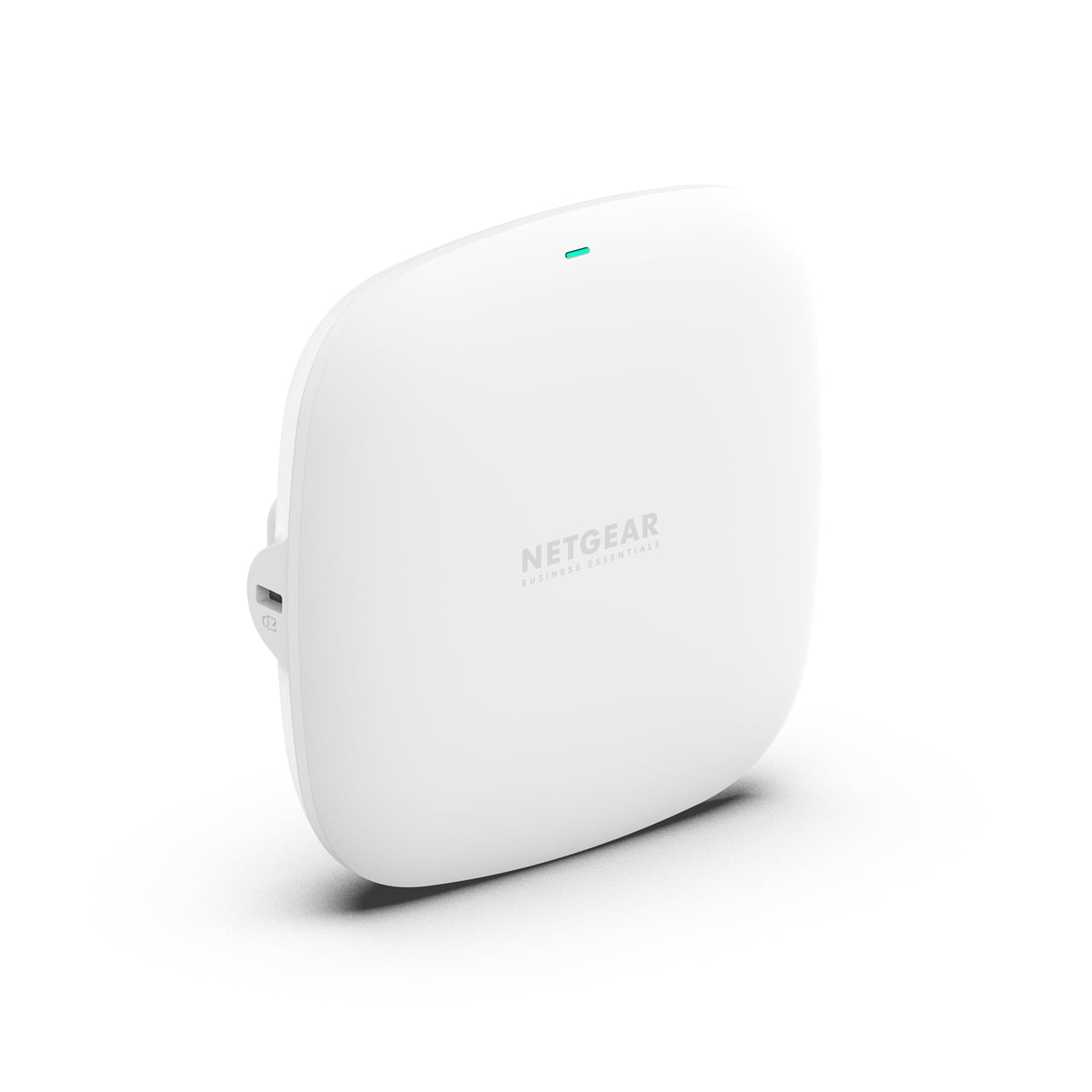

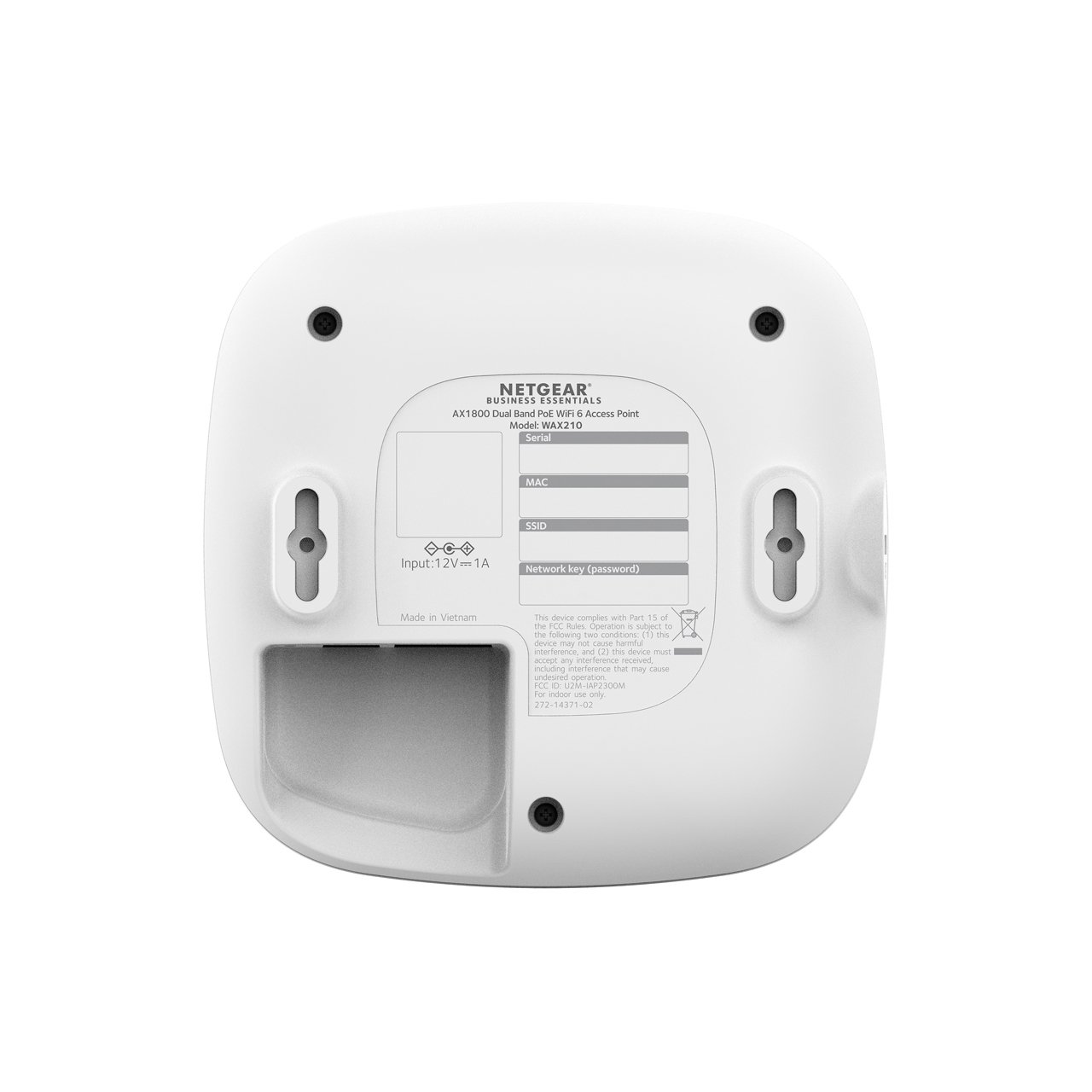

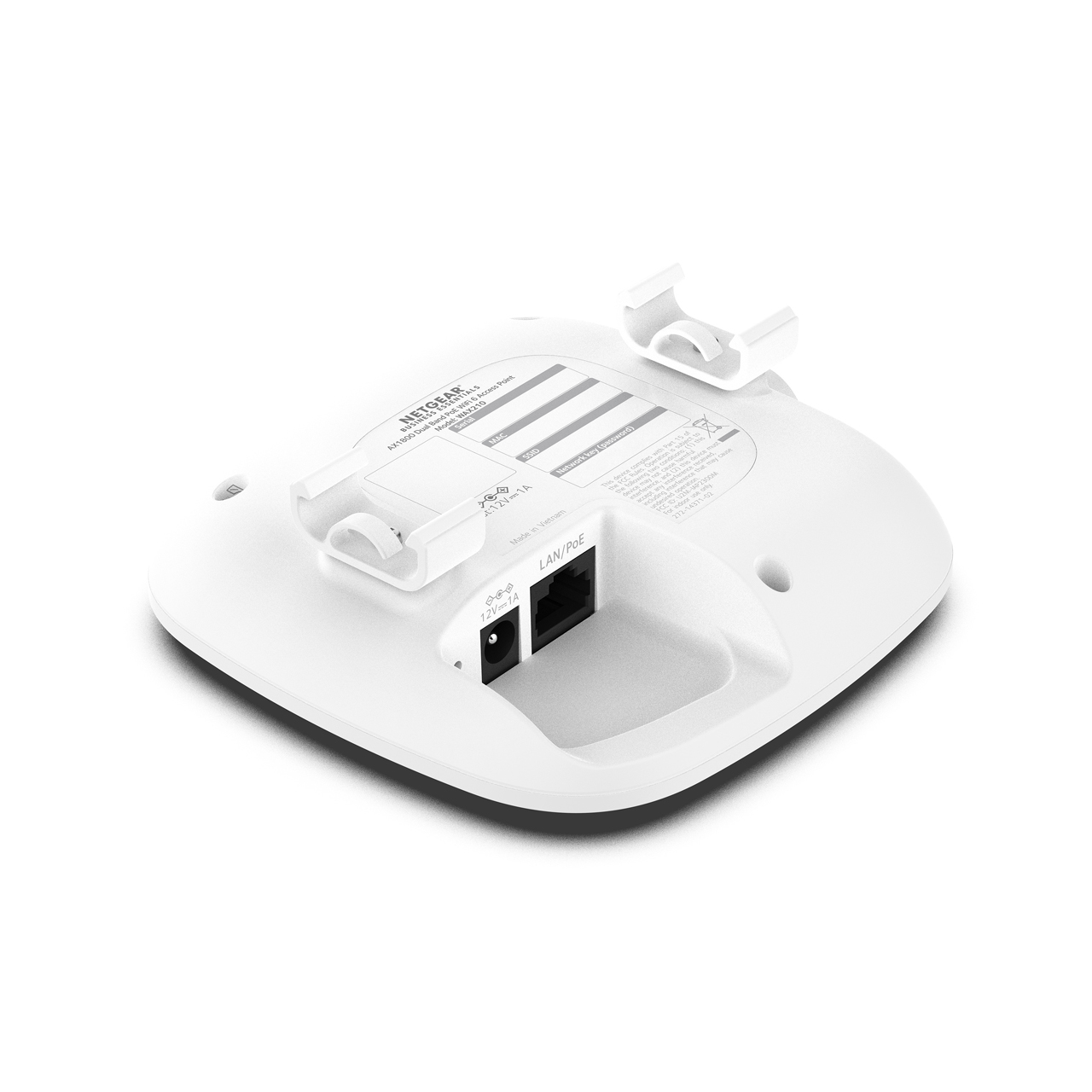

Netgear WAX210-100NAS WiFi 6 AX1800 Dual-band Access Point with Gigabit PoE

ITEM #: NG-WAX210 MFG #: WAX210100NAS

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$124.78

Our Price:

$89.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


WAX210100NAS - Overview

The NETGEAR WAX210 is an ultra-compact WiFi 6 Standalone access aoint for high-efficiency wireless solutions. The WAX210 delivers 802.11ax high performance wireless Office (SOHO) deployments and supports dual band concurrent WiFi 6 operations at 2.4GHz and 5GHz with a combined throughput of 1.8Gbps (600Mbps at 2.4GHz and 1800Mbps at 5GHz). The WAX210 WiFi 6 Access Point provides a reliable, WiFi 6 802.11ax high performance, and cost effective wireless solution.The WAX210PA (U.S. only) is powered by Power-over-Ethernet or a DC power adapter.

  • Features:

    • Easy to Configure
      - Simple setup in minutes with intuitive Graphical User Interface (GUI)
      - Comprehensive monitoring and management through a local web portal user interface
    • 802.11ax High Performance and Superior Coverage
      - WiFi 6 802.11ax technology
      - Dual band 2 x 2 (transmit x receive) concurrent operation between 2.4GHz and 5GHz frequency ranges
      - Maximize coverage for optimal deployment for SOHO
    • Comprehensive Security
      - Supports wireless security features (WPA, WPA2 and WPA3)
      - MAC based Access Control List to protect against intruders
    • Convenient Deployment
      - Hardware harness included for easy ceiling and wallmount installation
      - Flexible options for power source, either by a DC power adapter (included in the WAX210PA model only) or by a PoE Ethernet switch
    • Interoperate with both New and Legacy Clients
      - Support latest WiFi 6 802.11ax wireless clients to achieve maximum speed
      - Backward compatible to allow legacy devices to connect at their fastest speed

  • Specifications:

      Physical
    • Dimensions (WxDxH): 4.5" x 4.5" x 1.2" (115mm x 115mm x 30.5mm)
    • Weight: 0.48lbs (0.219kg)
    • Mounting Options: Ceiling or Wall mount
    • Power Supply: PoE Switch
    • Power Consumption: 15.2W

      Network Interfaces
    • Ethernet Ports: 1x 100/1000Mbps Ethernet (RJ-45) PoE port with Auto Uplink (Auto MDI-X)

      Buttons
    • Hardware Buttons: Default Reset
    • LEDs: Single multi color LED

      Environmental
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature -40°F - 158°F (-40°C - 70°C)
    • Operating Relative Humidity: 5% - 95%
    • Storage Humidity: 5% - 95%
    • MTBF:
      - @ 77°F (25°C) > 1,896,453 hours
      - @ 113°F (45°C) > 431,098 hours

      RF Characteristics
    • Standards:
      - IEEE 802.11ax
      - IEEE 802.11ac specification
      - IEEE 802.11n 2.0 specification
      - IEEE 802.11g
      - IEEE 802.11b
      - IEEE 802.11a
    • Frequency Band: 2.4GHz and 5GHz concurrent operation
    • Maximum Theoretical Throughput:
      - 600Mbps (2.4GHz)
      - 1200Mbps (5.0GHz)
    • Maximum Number of Clients: 128 (2.4GHz 64, 5GHz 64)
    • Maximum Number of Concurrent Devices: 30
    • Coverage Area per Unit: 1, 500 sq. ft. (130 sq. m)

      Network Management
    • Deployment Options: Standalone Web UI
    • Access Point: Antenna: 4.1dBi (2.4GHz), 4.6dBi (5GHz)
    • Security:
      - WiFi Protected Access (WPA2/WPA3)
      - MAC Address filtering
      - 4 SSID
    • MAC ACL: Yes
    • VPN Pass-Through: No
    • 802.11e WMM: Wireless multimedia mode for QoS
    • Simultaneous Bridge/Client Association: No

  • Item Includes:

    • 1x WiFi 6 AX1800 Dual-band Access Point with Gigabit PoE (WAX210)
    • 1x Wall/ceiling mount kit
    • 1x Installation guide
    • 1x Warranty/support information card

  • Warranty:

    • 3 Year Limited Warranty
