Ubiquiti UniFi 6 802.11ax 2.93 Gbit/s Wireless Access Point - 2.40 GHz/5 GHz - MIMO Technology - Wall/Ceiling Mountable

U6-LR-US - Overview

• Features:

  • 2000 Square Foot Coverage
  • 350+ Connected Devices
  • WiFi6 (4x4 MIMO)
  • Powered using PoE+


• Specifications:

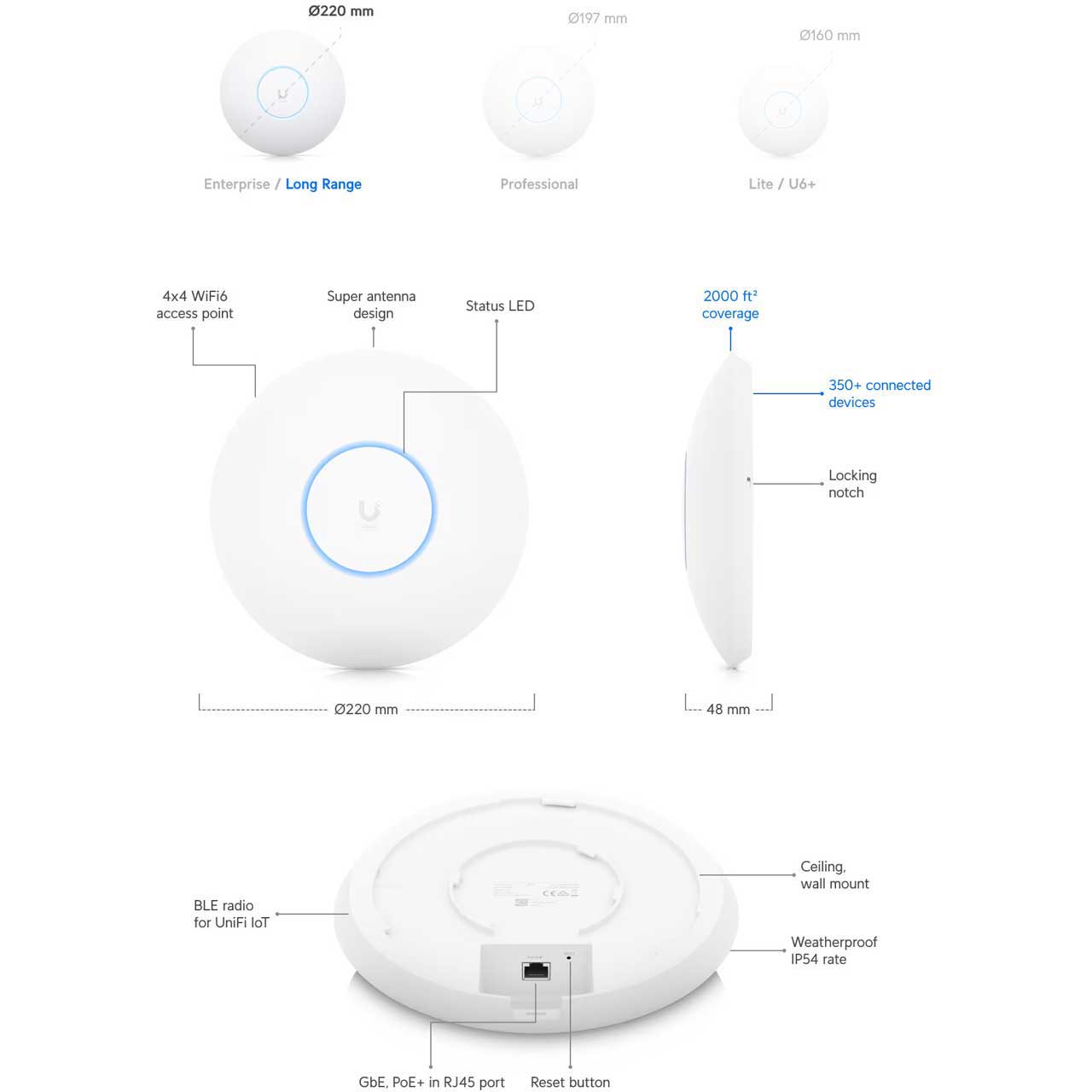

  • Diameter: 220 x 48 mm (8.66 x 1.89")
  • Weight:
    - Without mount: 800 g (1.76 lb)
    - With mount: 930 g (2.05 lb)
  • Enclosure material: Polycarbonate
  • Mount material: Stainless steel (SUS304)
  • Weatherproofing: IP54
  • Networking interface: (1) GbE RJ45 port
  • Management interface:
    - Ethernet
    - Bluetooth

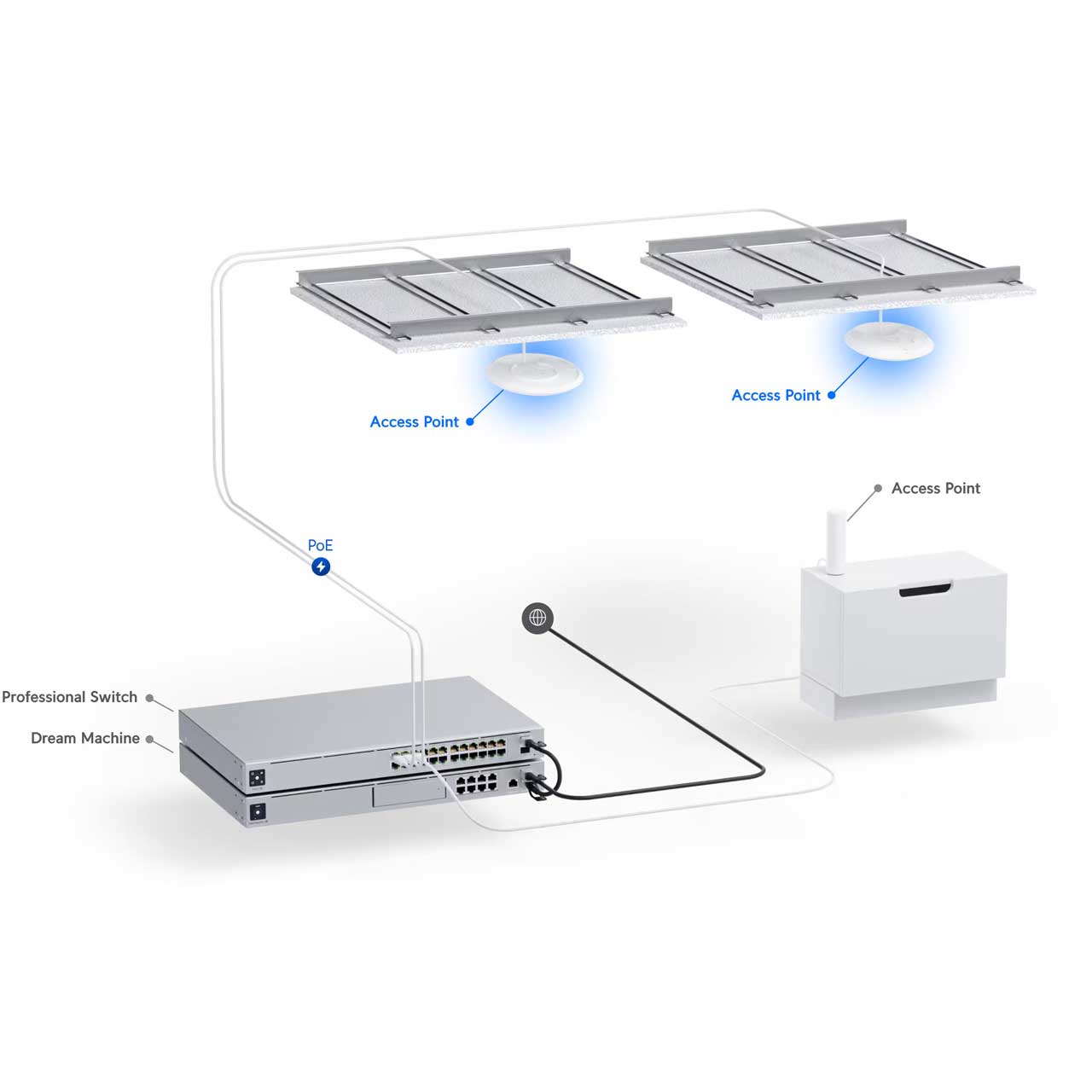

  • Power method: PoE+, passive PoE (48V)
  • Power supply:
    - UniFi PoE switch
    - 48V, 0.5A PoE adapter (Not included)
  • Supported voltage range: 44-57V DC
  • Max. power consumption: 18.5W
  • Max. TX power:
    - 2.4 GHz: 26 dBm
    - 5 GHz: 26 dBm
  • MIMO
    - 2.4 GHz: 4 x 4
    - 5 GHz: 4 x 4
  • Throughput rate:
    - 2.4 GHz: 600 Mbps
    - 5 GHz: 2400 Mbps
  • Antenna gain:
    - 2.4 GHz: 4 dBi
    - 5 GHz: 5.5 dBi
  • LEDs: White/blue
  • Button: Factory reset

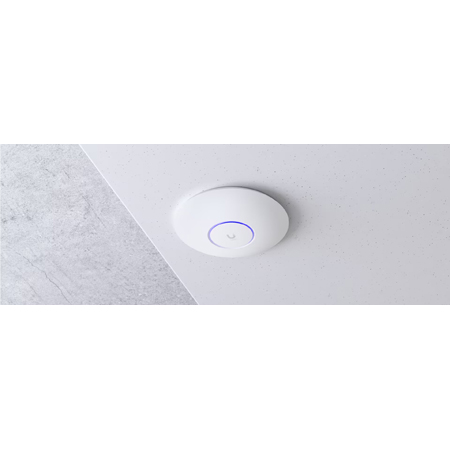

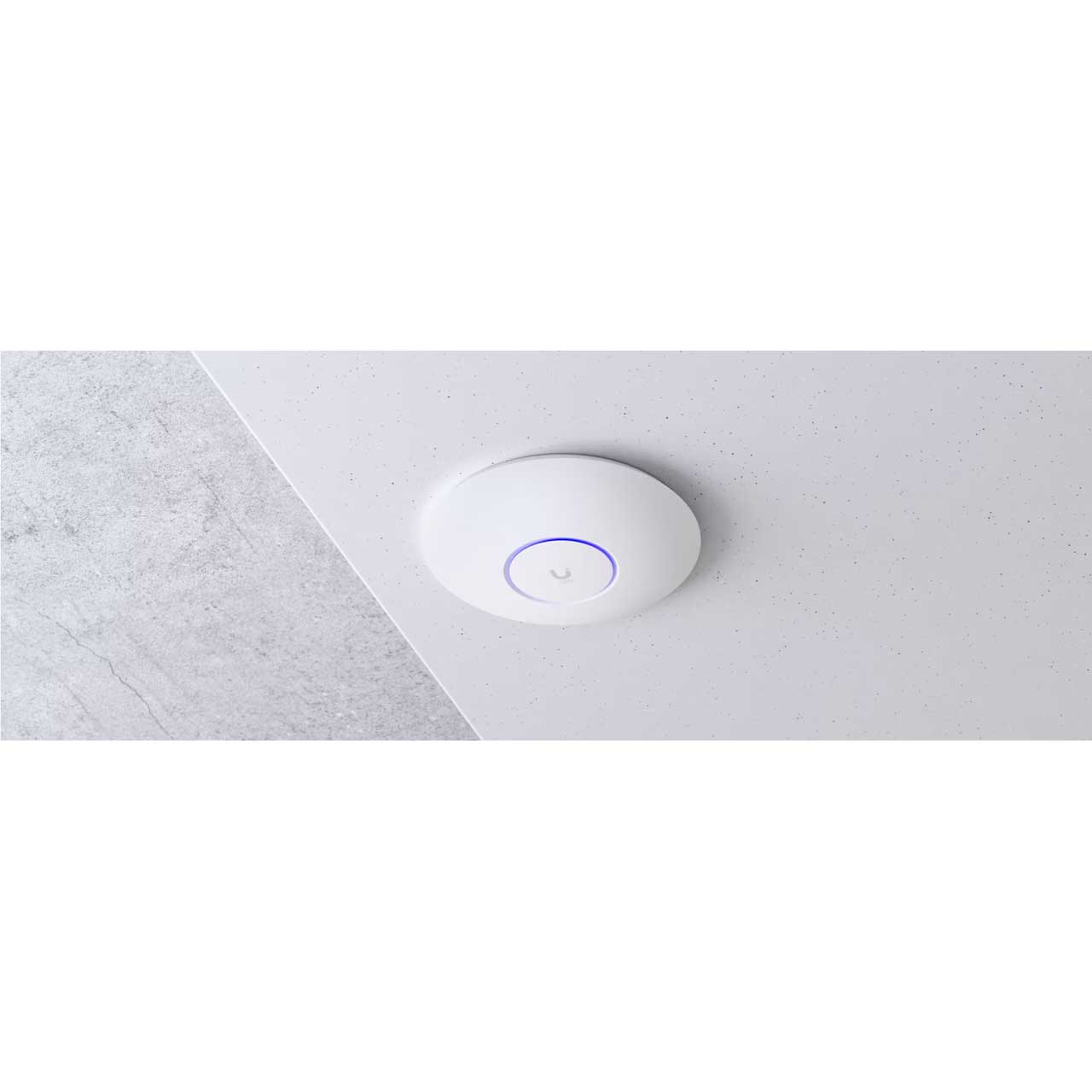

  • Mounting: Wall/ceiling (Included)
  • Operating temperature: -30 to 60° C (-22 to 140° F)
  • Operating humidity: 5 to 95% noncondensing
  • Certifications: CE, FCC, IC
  • WiFi standards:
    - 802.11a/b/g
    - WiFi 4/WiFi 5/WiFi 6
  • Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3
  • BSSID: 8 per radio
  • VLAN: 802.1Q
  • Advanced QoS: Per-user rate limiting
  • Guest traffic isolation: Supported
  • Concurrent clients: 350+
  • Supported Data Rates:
    - 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    - 802.11b: 1, 2, 5.5, 11 Mbps
    - 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    - 802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
    - 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
    - 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)


• Warranty:

  • 2 Year Warranty
