Netgear WAX620 Dual Band PoE Mult-Gig WiFi 6 Wireless Access Point - White

ITEM #: NG-WAX620 MFG #: WAX620-100NAS

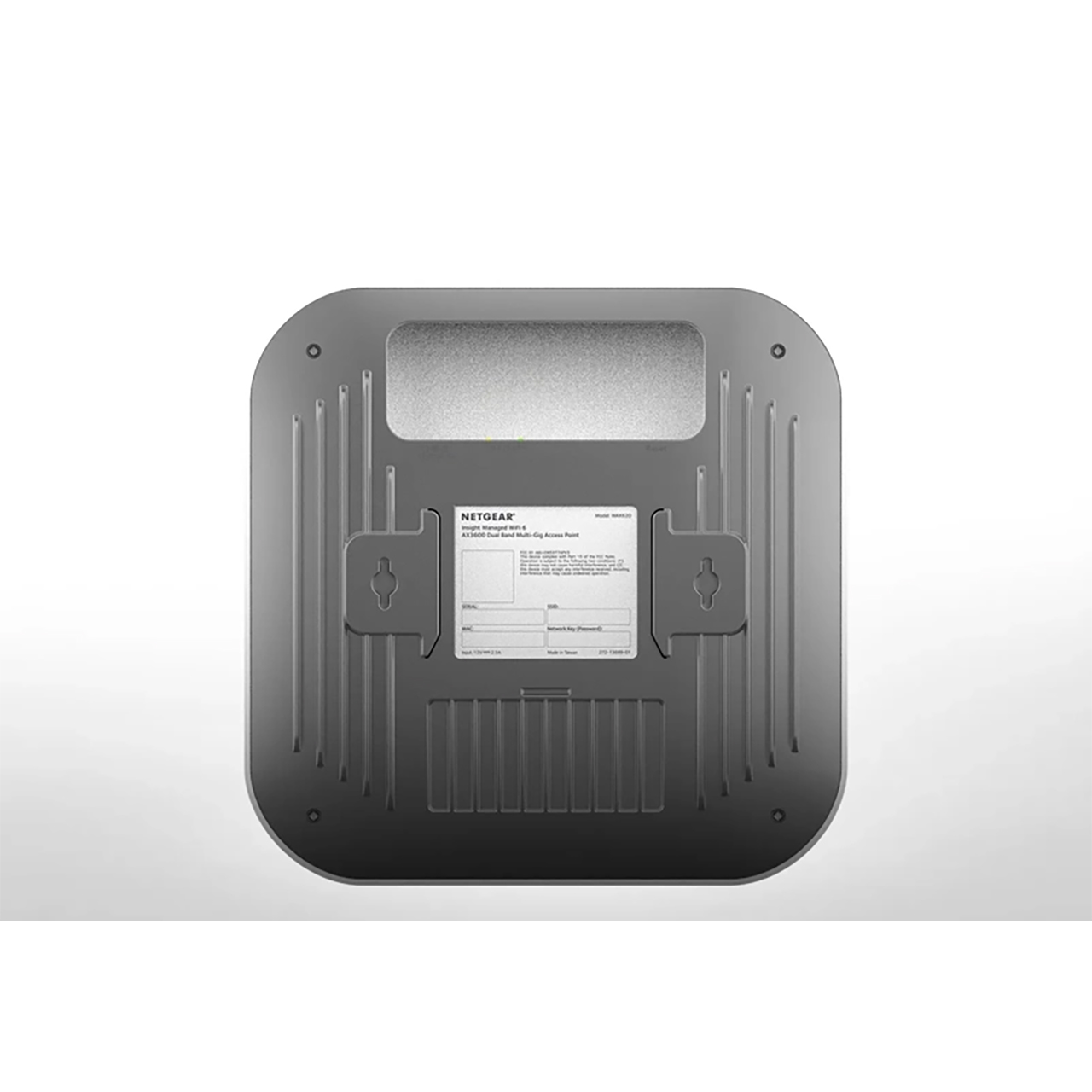

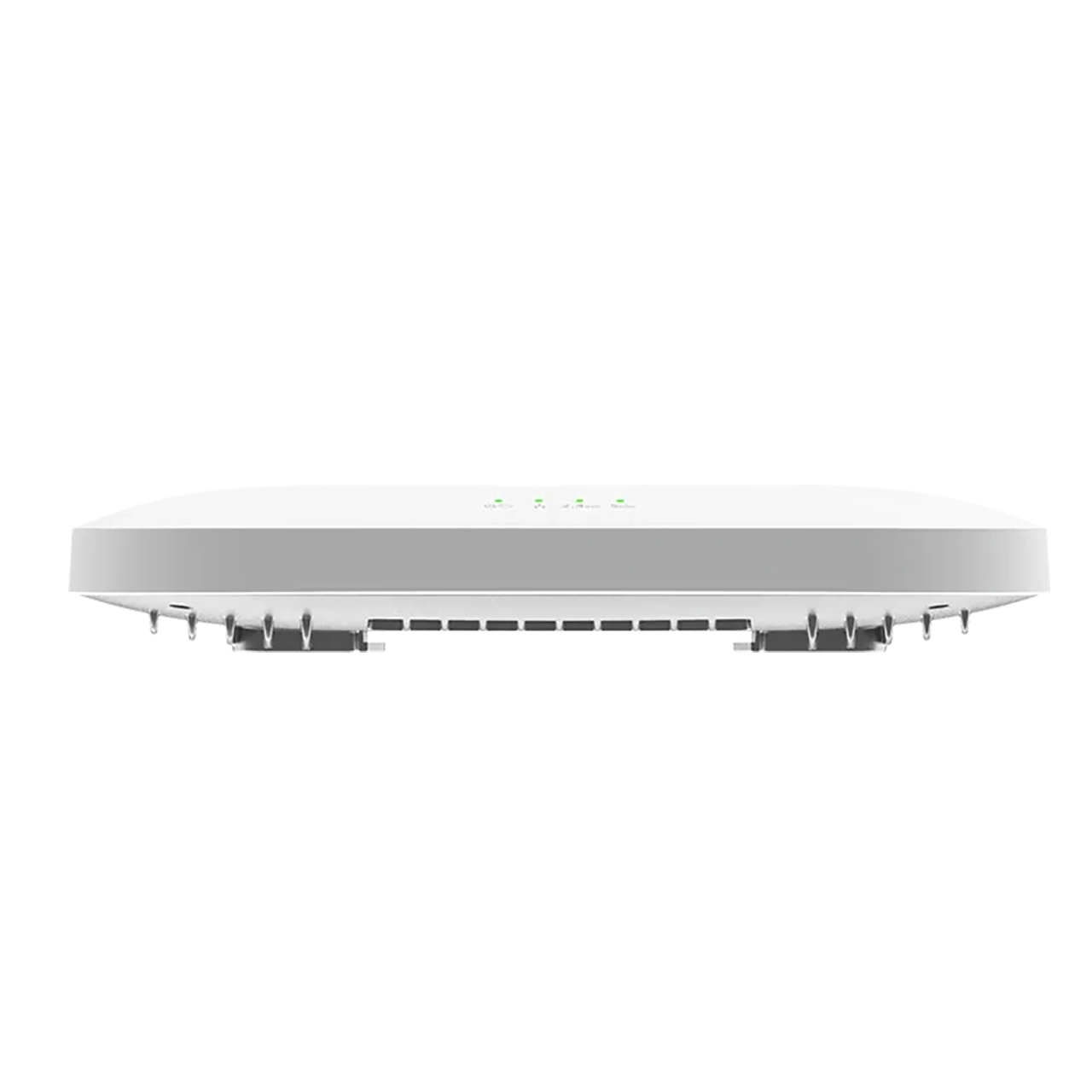

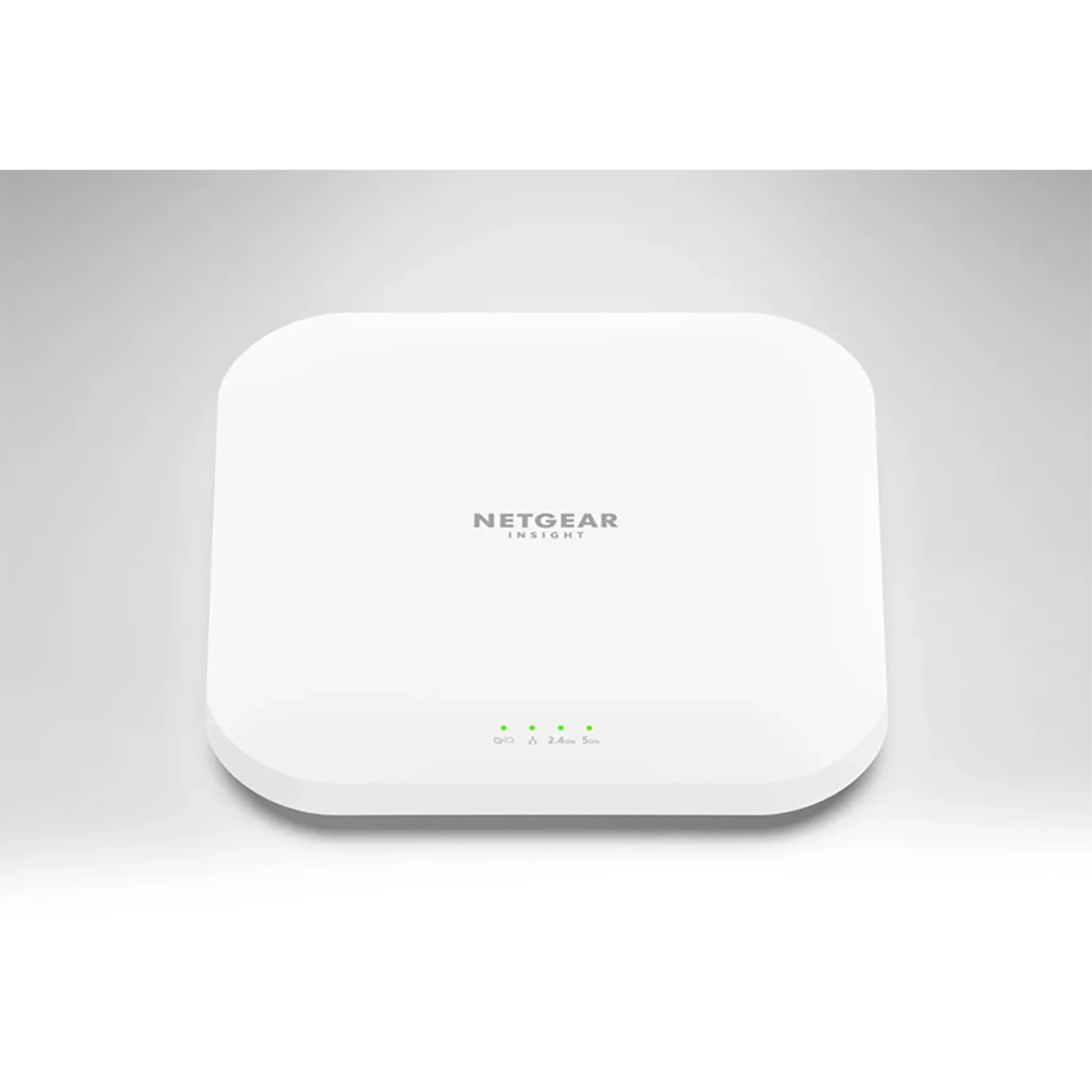

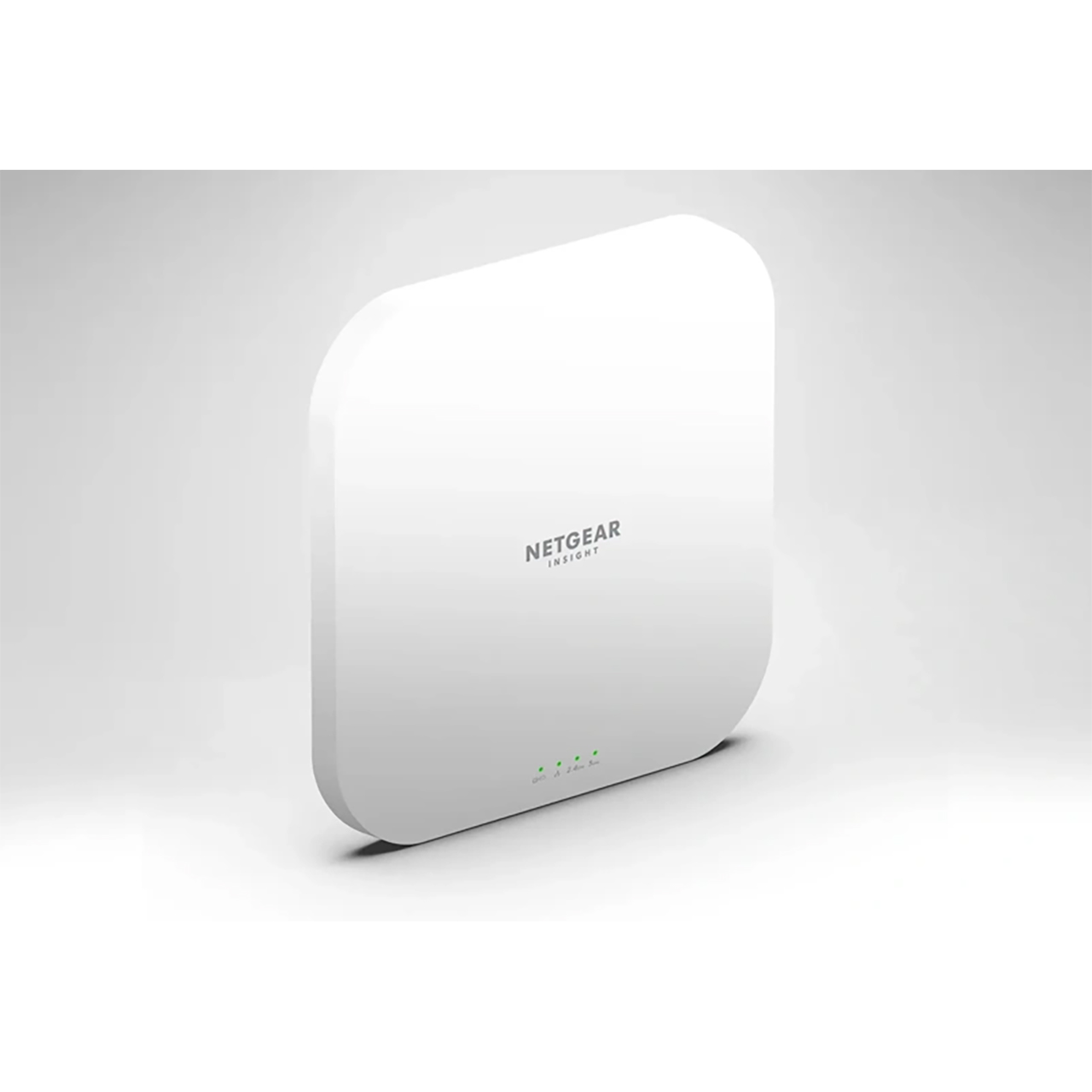

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$326.57

Our Price:

$244.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


WAX620-100NAS - Overview

High Performance WiFi 6 Access Points for the Small and Medium Size Businesses

The Netgear WAX620 is a high performance WiFi 6 access point, ideal for small and medium sized businesses. The access point is a dual band 4x4 design delivering up to 3.6Gbps total WiFi throughput, supported by a 2.5Gbps Power-over-Ethernet port, an industry leader of performance and cost effectiveness in its product class.

The WAX620 supports the next generation notebook computers, delivering up to 40% more throughput to each individual device in the 5GHz band and 100% more throughput in the 2.4GHz band, compared to the previous generation equivalent model; provides 4x the client device connection, allowing businesses to serve more customers with better speed and less congestion.

The WAX620 is ideal in high density client device environments such as schools, hotels, restaurants and conference centers, and provides enterprise grade WiFi network security. With Insight management, WAX620 works seamlessly with your current NETGEAR Insight managed switches, WiFi access points and network storage, and is compatible with previous generation WiFi devices (WiFi 5 802.11ac for example) and WiFi access points.

In the past several years, the WiFi industry has made progress in increasing speeds by leaps and bounds. However, capacity continues to be a challenge, namely, supporting a large number of concurrent users. This requirement is particularly acute for businesses, where very high may not be the paramount requirement. Rather, it is providing network connectivity to a large number of client devices, with good throughput, stable connection, and robust responses to environmental changes that is most important.

With the updated WiFi 6 (802.11ax) technology such as OFDMA, upstream and downstream MU-MIMO, and increased speeds, coverage, and capacity, you can feel confident that you're getting the highest performance WiFi that's set for years to come! Plus the assurance that you can now add more connected devices on your business WiFi network without any slowdowns or blind spots.

The WAX620, a WiFi 6 business access point, combined with Insight, helps small and medium businesses with an easy way to manage their network without an IT expert, providing great WiFi connection leaving each of their customers satisfied as a network user. NETGEAR empowers businesses with an all new WiFi 6 Business Access Point for high performance and high coverage for the years to come.

The WAX620 is compatible with WAC510, WAC564, WAX610, WAX610Y Insight managed access points to form a scalable wireless network.

  • Features:

    • Business class WiFi based on next generation 802.11ax WiFi 6 technology on both 5.0GHz and 2.4GHz bands. (Backward compatible to 802.11b/g/n/a/ac)
    • Dual band 4x4 (2.4GHz and 5.0GHz) 8 streams of data for an aggregate throughput of up to 3.6Gbps
    • Instant WiFi Mesh forming wireless backhaul with other WAX620, WiFi mesh network
    • 40% more throughput in 4-stream 5.0GHz band and 100% more throughput in 4-stream 2.4GHz band compared to previous generation
    • 4 times more client device supported
    • Enterprise security and Enhanced Open security, such as WAP3, WPA Enterprise, 8x SSID and VLAN1
    • Basic Service Set Coloring (BSS Coloring) enabling significant improvement in radio frequency channel effeciency and reduction of interference
    • Orthogonal Frequency Division Multiple Access (OFDMA) allowing simultaneous services to multiple devices in the same channel thus improving bandwidth efficiency and reducing latency
    • 2.5GbE port, backward compatible with 100/1000Mbps Ethernet, supported by NETGEAR GSM4210P, MS510TXPP and other multi-gig Ethernet switches
    • Target Wake Time (TWT) allows more efficient power usage resulting in devices
    • Beamforming+; Advanced 6th generation WiFi technology such as up and downstream MU-MIMO
    • One 802.3at 2.5Gbps PoE port.Remote management and monitoring from NETGEAR Insight app or Cloud portal for unrivaled management experience of your wireless network.
    • App managed. Faster installation through NETGEAR Insight app or Cloud portal. No additional hardware needed.
    • Limited Lifetime warranty. See terms and conditions for details.

  • Specifications:

      Physical Specifications
    • Dimensions (WxDxH): 8.09" (205.7mm) x 8.09" (205.7mm) x 1.35" (34.3mm)
    • Weight: 1.72lbs (783g)

      Environmental Specifications
    • Operating temperature: 0° to 40°C(32° to 104°F)

      Physical Interfaces
    • Interface: One 100/1000/2.5GBASE-T Gigabit Ethernet (RJ-45) ports with Auto Uplink (Auto MDI-X) supporting IEEE 802.3af or 802.3at Power over Ethernet (PoE)
    • LED: 4x: Power and Cloud connection; LAN speed; 2.4GHz status; 5.0GHz status

      Security
    • WiFi Protected Access (WPA, WPA2, WPA3): Yes
    • WPA2 and WPA3 Enterprise: Yes
    • Wireless access control to identify authorized wireless network devices: Yes
    • MAC address authentication: Yes

      Network Management
    • NETGEAR Insight App: App management for setup, monitoring and management

      Advanced Wireless
    • Wireless Distribution System (WDS):
      - Bridge mode: Point-to-point wireless
      - Bridge mode: Point-to-multipoint wireless
      - Repeater mode
      - Adjustable Transmit Power Control (TPC)
      - Device detection
      - Identify type of wireless clients in the network

  • Item Includes:

    • 1x WAX620 Insight managed
    • 1x wireless access point
    • 1x Wall/ceiling mount kit
    • 1x Installation guide

  • Warranty:

    • 3 Year Limited Warranty
