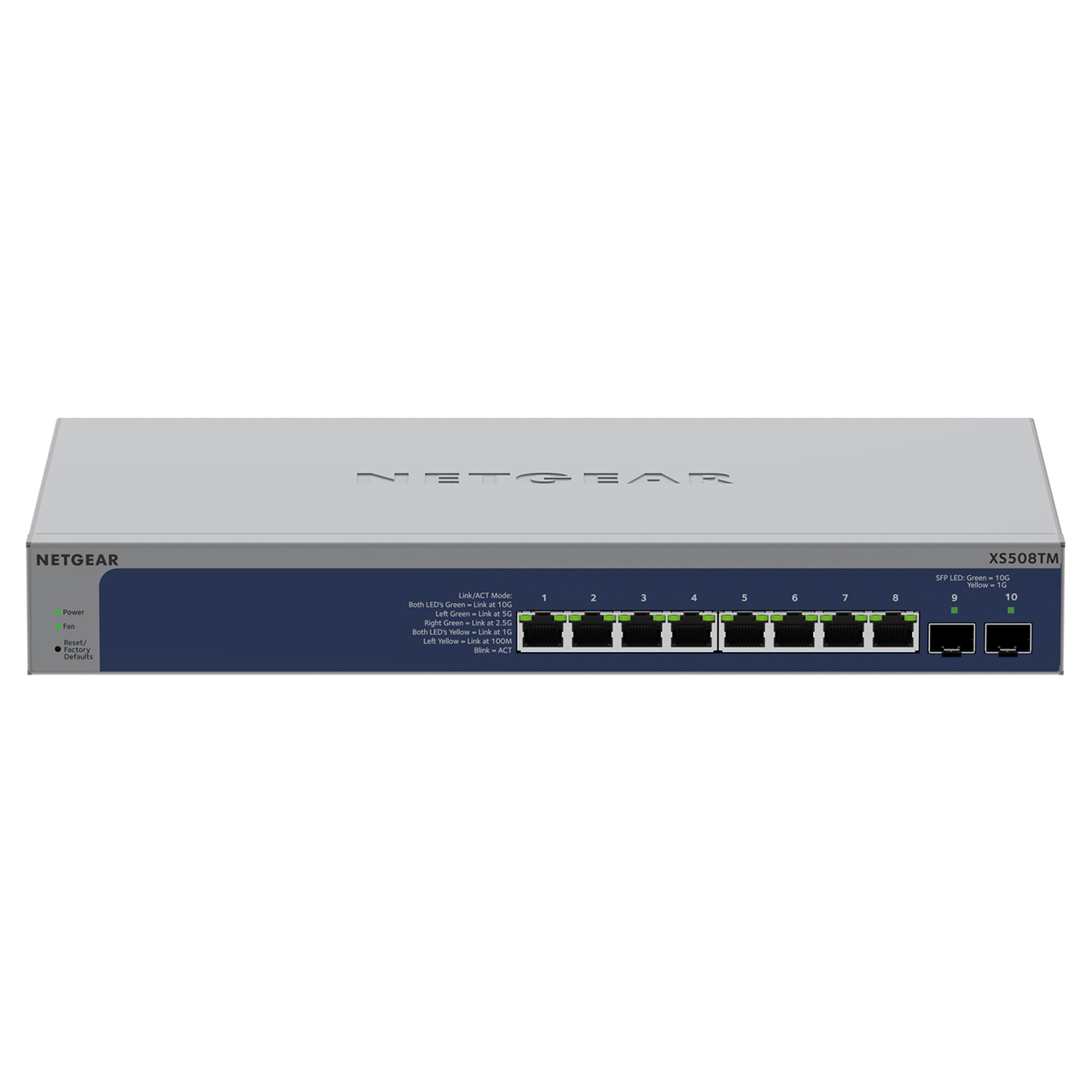

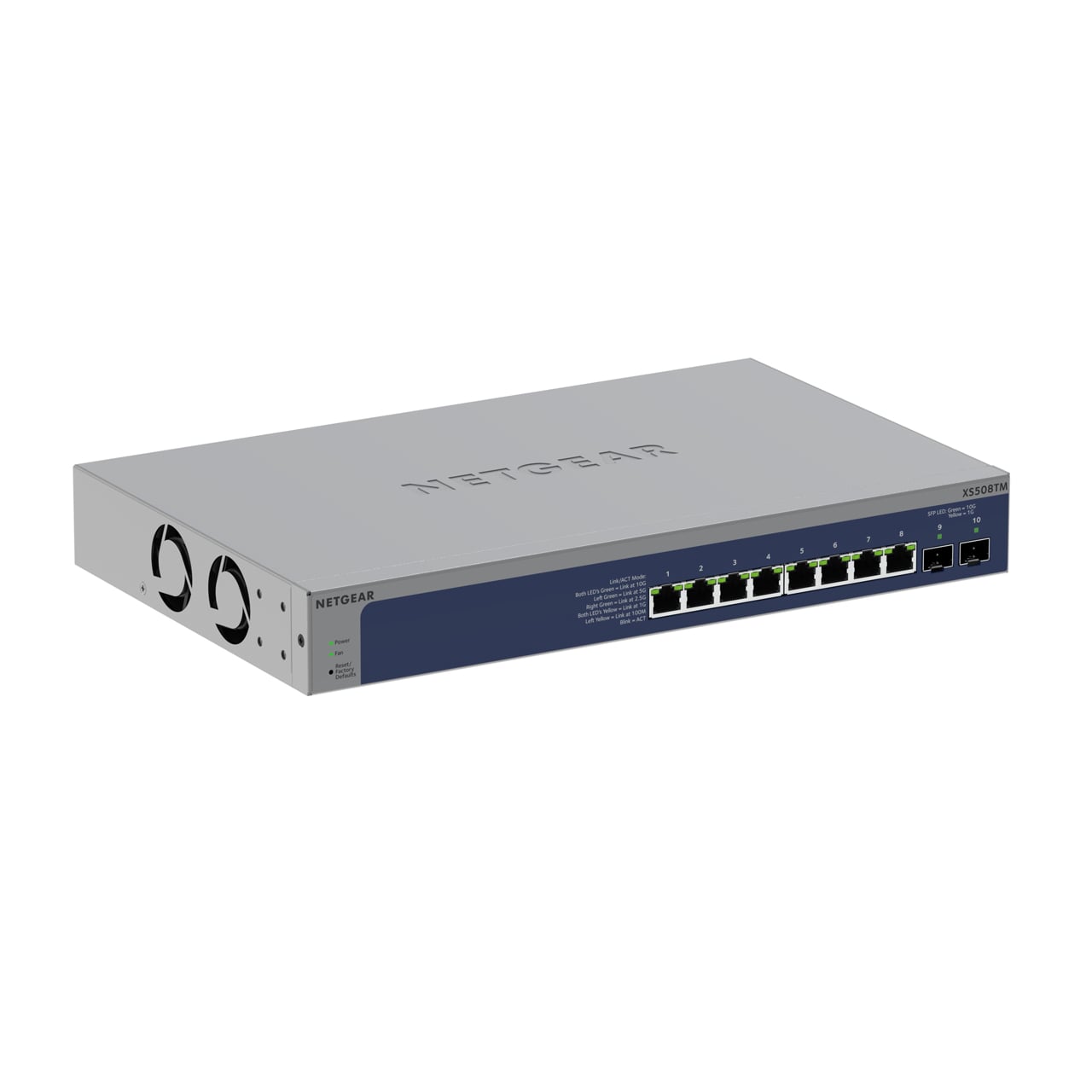

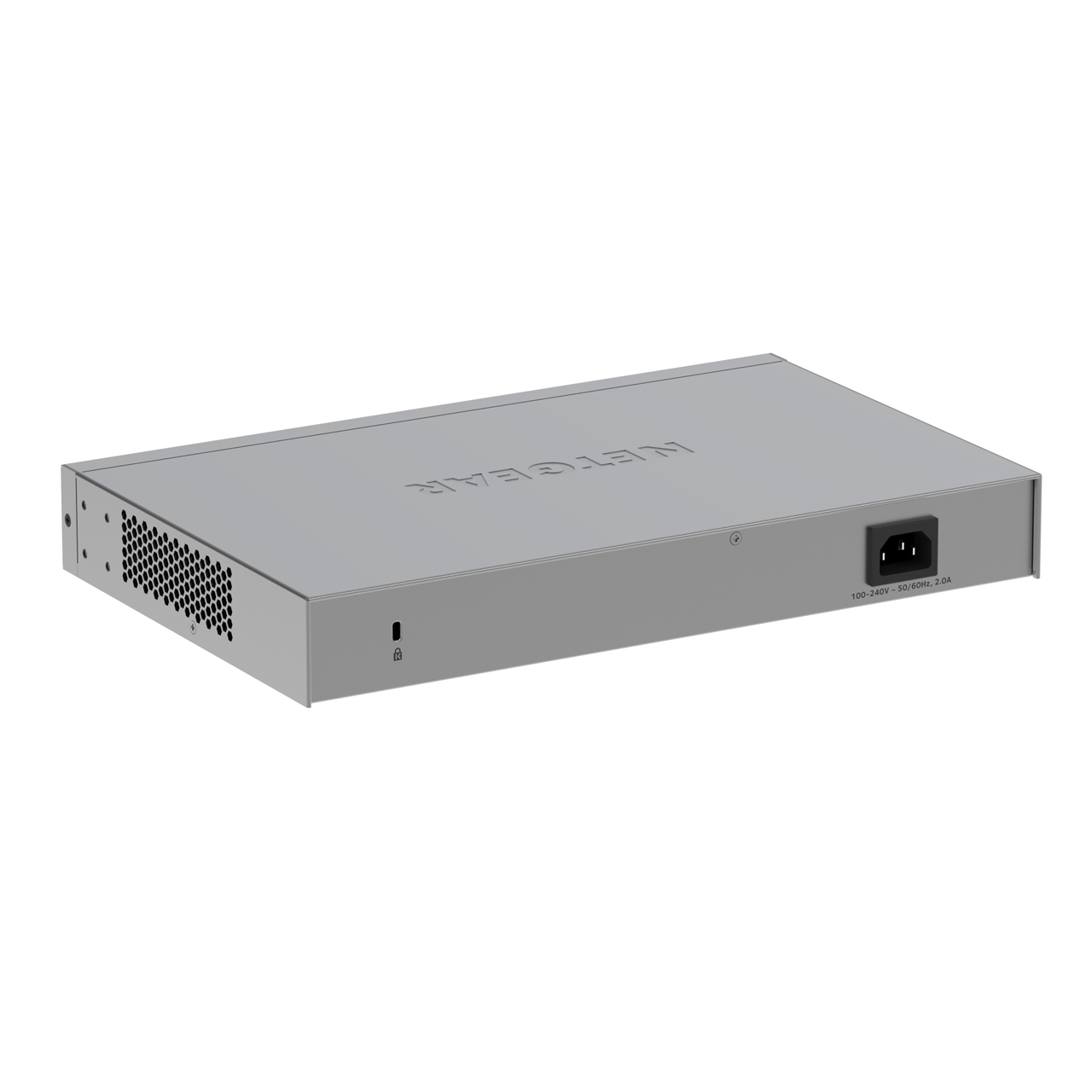

Netgear XS508TM-100NAS 1RU 8-Port 10G Multi-Gigabit Smart Ethernet Switch - Enterprise

XS508TM-100NAS - Overview

• Features:

  • Powerful Connectivity and Security
    - Advanced VLAN support for better network segmentation
    - L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
    - Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
    - Auto DoS (Denial of Service) prevention
    - IGMP Snooping and Querier for multicast optimization
    - Egress Rate limiting and priority queuing for better bandwidth allocation
    - Port mirroring for network monitoring
    - Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
    - IPv6 management: IPv6 QoS, IPv6 ACL, IPv6 Multicast, and static and dynamic IPv6 address assignment
    - Cable test to troubleshoot connection issues
    - Easy-to-use Web browser-based management GUI available in English, German and Japanese
    - SNMP v1, v2c, v3 and RMON remote monitoring
    - Advanced L3 features including IPv4/IPv6 static routing, VLAN routing, DHCP client/snooping/server/relay.
  • Fully-integrated Cloud-manageable Device
    - Optional NETGEAR Insight Remote/Cloud management. Easily activated through the local device GUI.
  • Smart IT, not Big IT
    - Scripting and management via direct text command using Lite Command Line Interface (CLI).
    - NETGEAR Device Tool (NDT) to discover, register and access the local browser interface to configure the switches
  • NETGEAR Quality and Reliability
    - Limited Lifetime warranty. See terms and conditions for details.
    - Optional support tiers to match your operational needs.


• Specifications:

  Technical
  • 10G/Multi-Gigabit Ethernet RJ45 Copper Ports (10G/5G/2.5G/1G) - 1000BASE-T: 8
  • 10G SFP+ (fiber) Ports (1G/10G) - 1000BASE-X: 2 (dedicated)

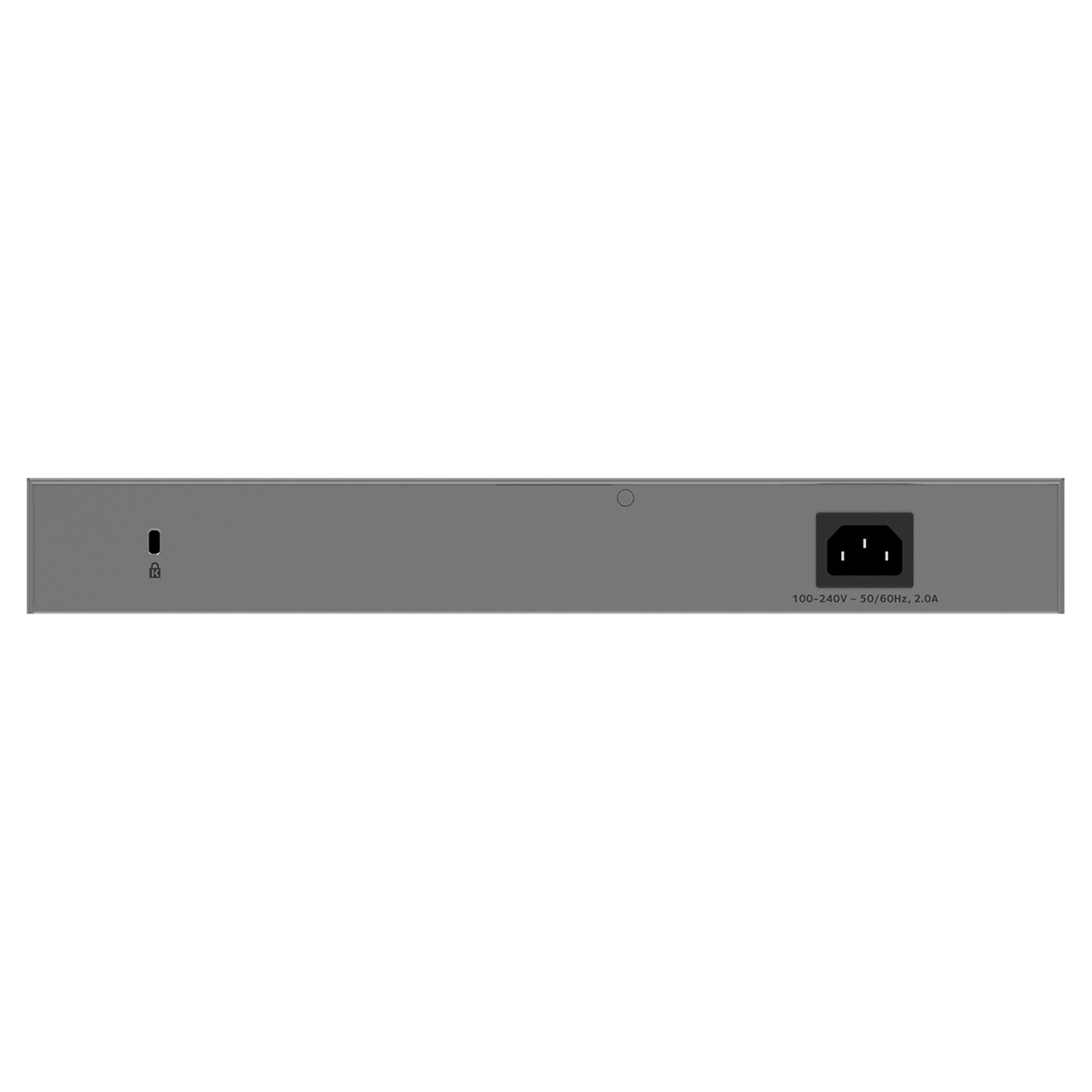

  • Power Supply: Internal Power Supply

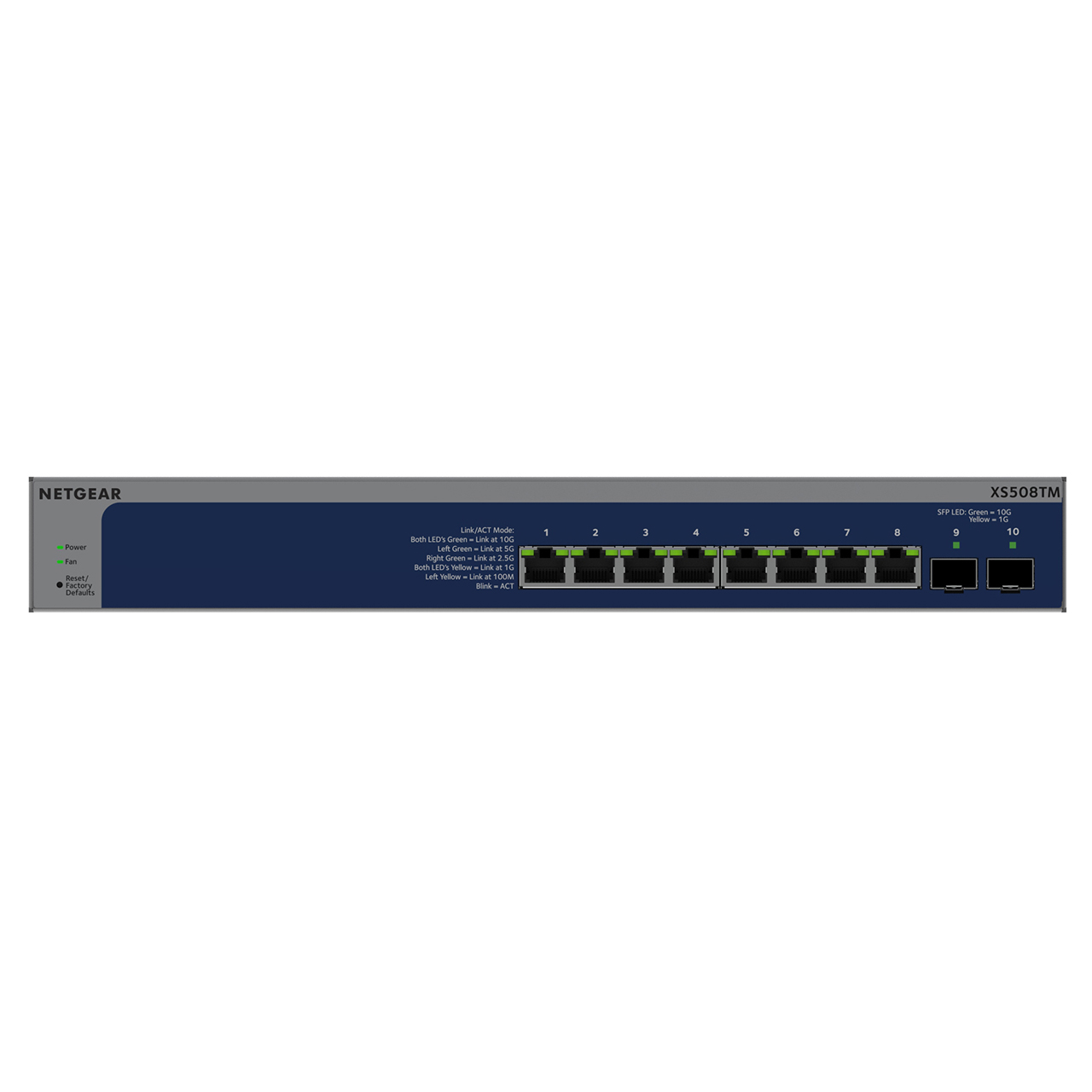

    LEDs
  • Front (per device): Power (with Cloud Mode Indicator), Fan
  • Front (per port): Speed/Link/Activity

    Unified Network Management
  • Discovery, Setup, Monitoring and Management: NETGEAR Insight mobile app on phone or tablet; Insight Cloud portal from PC, Mac, or tablet web browser
  • Remote/Cloud Management: Anywhere, anytime, from the palm of your hand using Insight mobile app or from any PC, Mac, or tablet web browser using the Insight Cloud portal
  • Centralized Network Configuration (policies): Centralized network configuration (policies) across Insight managed switches, and wireless access points for VLANs, ACLs, QoS, and LAGs
  • Device Auto-Join and Configure (zero-touch provisioning): Additional Insight managed devices added to the network automatically inherit the network configuration
  • Multi-Site, Multi-Network Single Pane-of-Glass View: Manage multiple sites, locations, and networks in a single view using the Insight mobile app or Insight Cloud portal
  • Multi-Switch, Multi-Port Concurrent Configuration for ACLs, VLANs, QoS, etc.: Apply settings and policies on multiple ports across multiple switches all at the same time using the Port Config Wizard

    Performance
  • CPU:
    - 600MHz Single Core
    - 1GB RAM
    - 256MB SPI FLASH
  • Packet Buffer Memory (Dynamically shared across only used ports): 2MB
  • Forwarding Modes: Store-and-forward
  • Bandwidth (non-blocking, full duplex): 200Gbps
  • Priority Queues: 8
  • Priority Queuing: Weighted Round Robin (WRR) and Strict Priority
  • MAC Address Database Size (48-bit MAC addresses): 16K
  • Multicast Groups: 512
  • Number of VLANs: 512
  • Number of DHCP Snooping Bindings: 8k
  • Access Control Lists (ACLs): 100 shared for MAC, IP and IPv6 ACLs (ingress)

    Power Consumption
  • Max Power (worst case, all ports used, line-rate traffic): 32.7W
  • Min Power (link-down standby): 12.7W
  • Heat Dissipation (BTU/hr):
    - Max: 111.69 BTU/hr
    - Min: 43.358 BTU/hr
  • Energy Efficient Ethernet (EEE) IEEE 802.3az: Yes (deactivated by default)
  • Auto Power Down: Yes
  • Fan(s) (temperature- and load-based speed control): 2

    Physical
  • Dimensions (WxDxH): 13" x 8.12" x 1.7" (330mm x 206mm x 43.2mm)
  • Weight: 4.85lbs (2.2kg)
  • Mounting Options:
    - Desktop
    - Wall mount
    - Rack mount


• Item Includes:

  • 1x XS508TM-100NAS
  • 1x Power cord


• Warranty:

  • 5 Year Limited Warranty
