NEUTRIK NL4MDXX-V-2 Receptacle speakON XX Series 4 Pole - PCBV - Opposite Corner Screw Holes - Rear Mount / A-SCREW-1-8

ITEM #: NL4MDXX-V-2 MFG #: NL4MDXX-V-2

Primary Image
NEUTRIK Group

We are an authorized dealer for this series; however, applicable tariffs and final pricing must be confirmed before order acceptance. Please contact a sales engineer at 1-800-522-2025 for further assistance.

Availability: Sold Out
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NL4MDXX-V-2 - Overview

The NEUTRIK NL4MDXX-V-2 connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

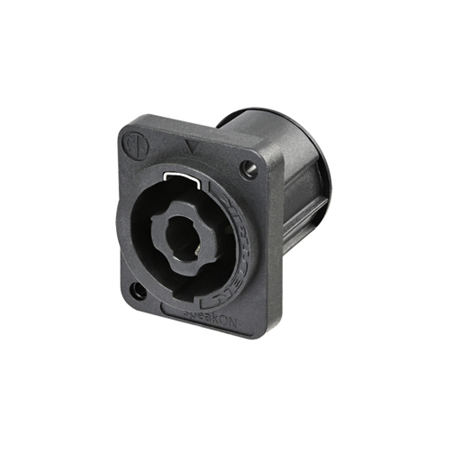

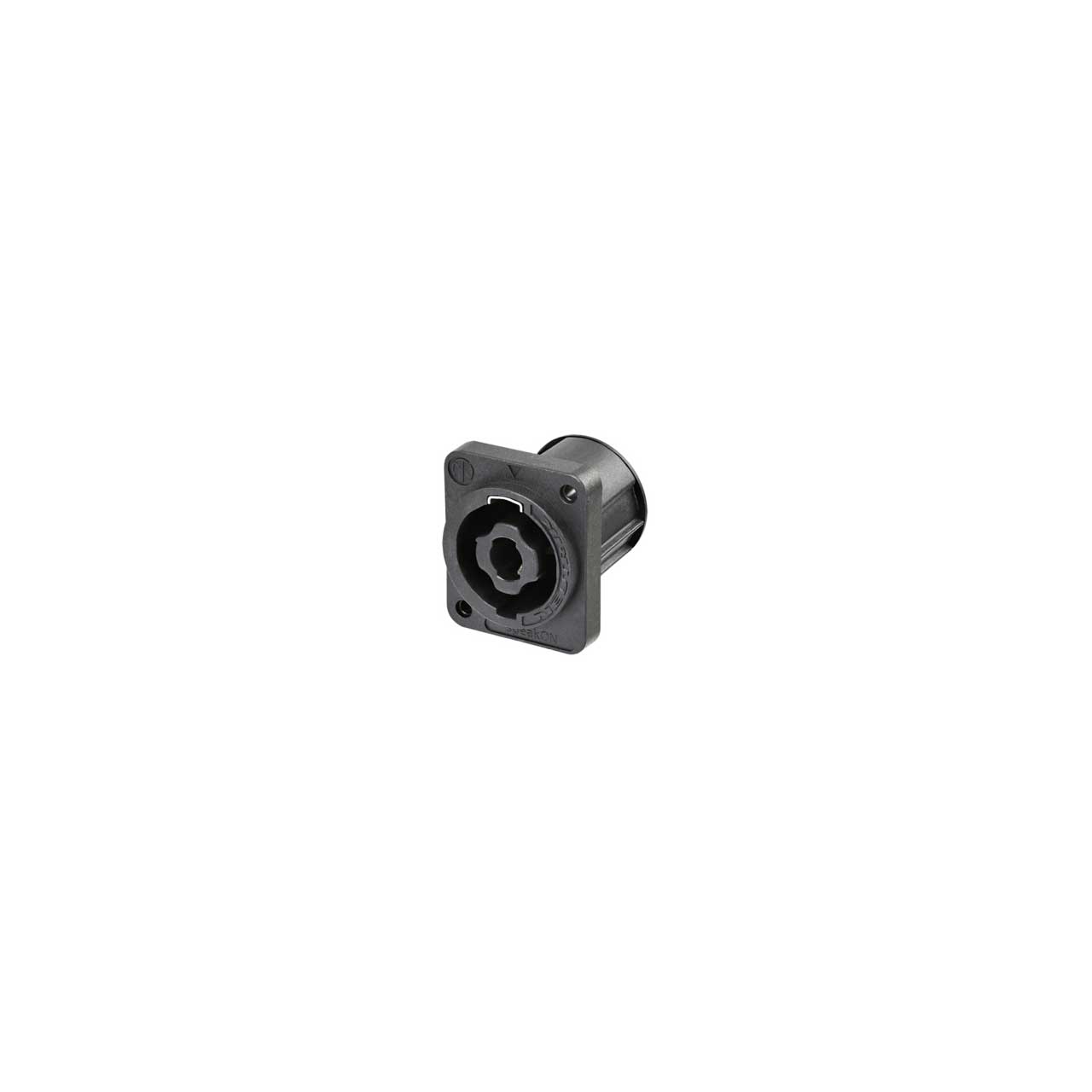

4 pole chassis connector, black D-size flange, mirrored self tapping screw holes (A-screw), vertical PCB mount.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Attention: speakON is NOT to be used as an AC mains or power supply connector!

Please Note: NEUTRIK A-SCREW-1-8 Black Self Tapping Plastite Screws are required for mounting. Sold separately.

  • Features:

    • IEC 61984 certified > IEC 62368-1 compliant
    • Glass reinforced V-0 materials make it extremely robust and dependable
    • Precise keyway for secure mating
    • Accurate twist lock latching system
    • Metal insert in locking areaAirtight design - optimized for speaker applications


  • Specifications:

    • Gender: Male
    • Contact Resistance: ≤2mΩ
    • Dielectric Strength: 2.8kVac
    • Insulation Resistance: >0.1GΩ (after dampheat)
    • Rated Current per Contact: 25A rms continuous (audio rating significantly higher, depending on signal)
    • Rated Voltage: 250VAC
    • Lifetime: > 5000 mating cycles
    • Wiring: Vertical PCB mount
    • Locking Device: Quick Lock
    • Mounting Direction: Rear mounting
    • Chassis Shape: D
    • Layout: Mirrored hole position, self tapping screw holes (A-Screw)
    • Contact Plating: Ag
    • Locking Element: Stainless Steel
    • Shell: Polyamide (PA 6.6)
    • Contacts: Copper Alloy
    • Flammability: UL 94 V-0
    • Temperature Range: -22°F - 176°F (-30°C - 80°C)


  • Item Includes:

    • 1x NEUTRIK NL4MDXX-V-2 Receptacle speakON XX Series 4 Pole - PCBV - Opposite Corner Screw Holes - Rear Mount
      **A-SCREW-1-8 mounting screws are sold separately
