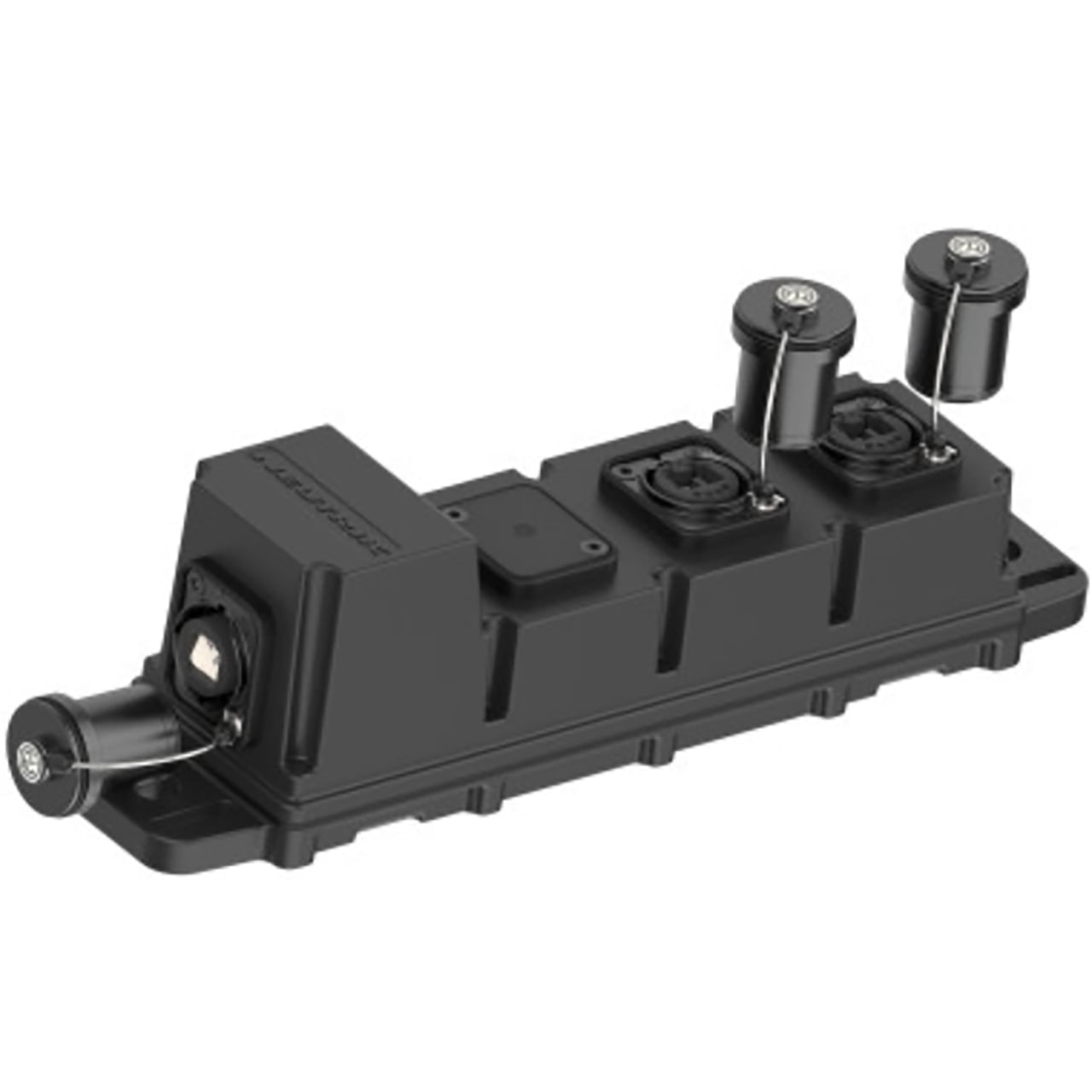

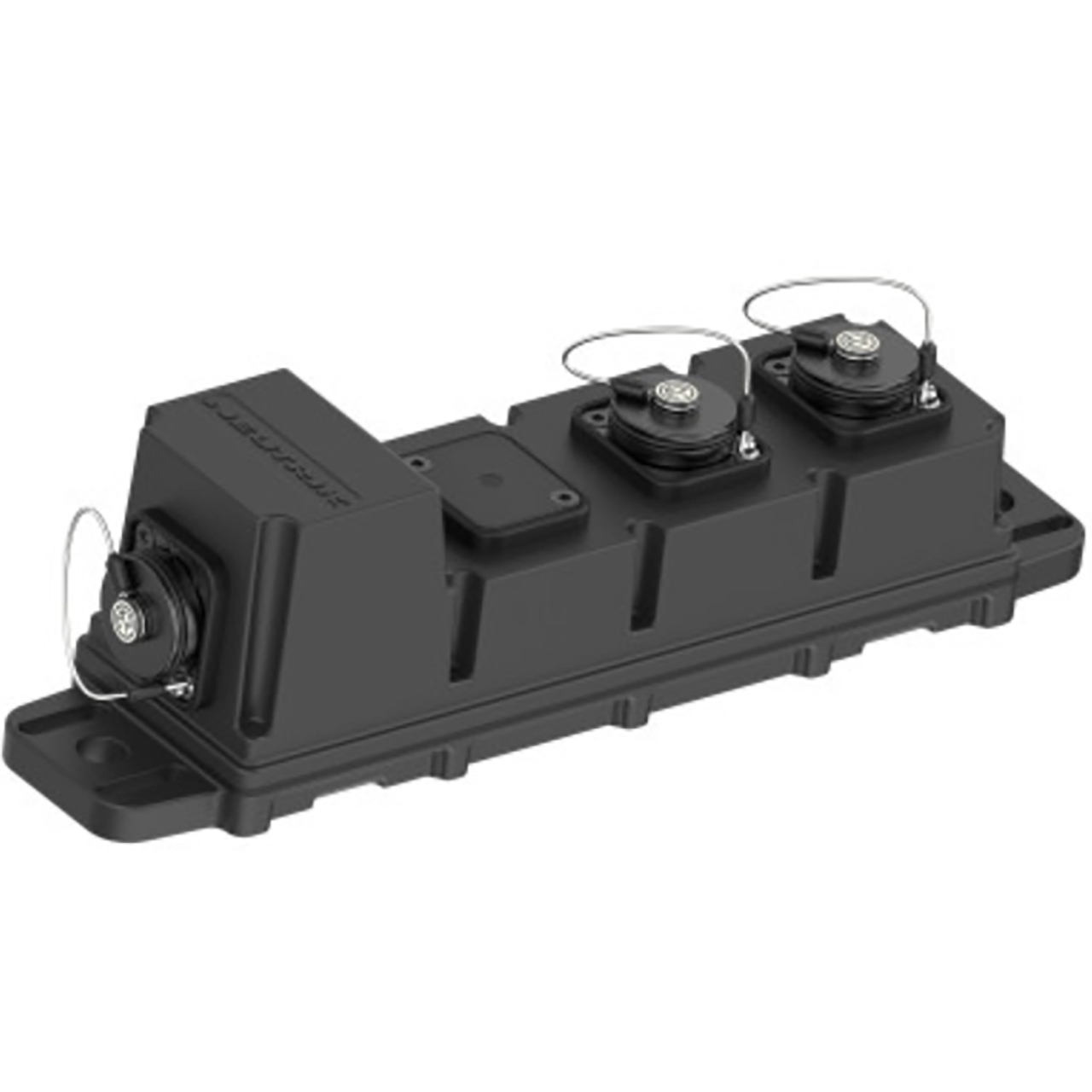

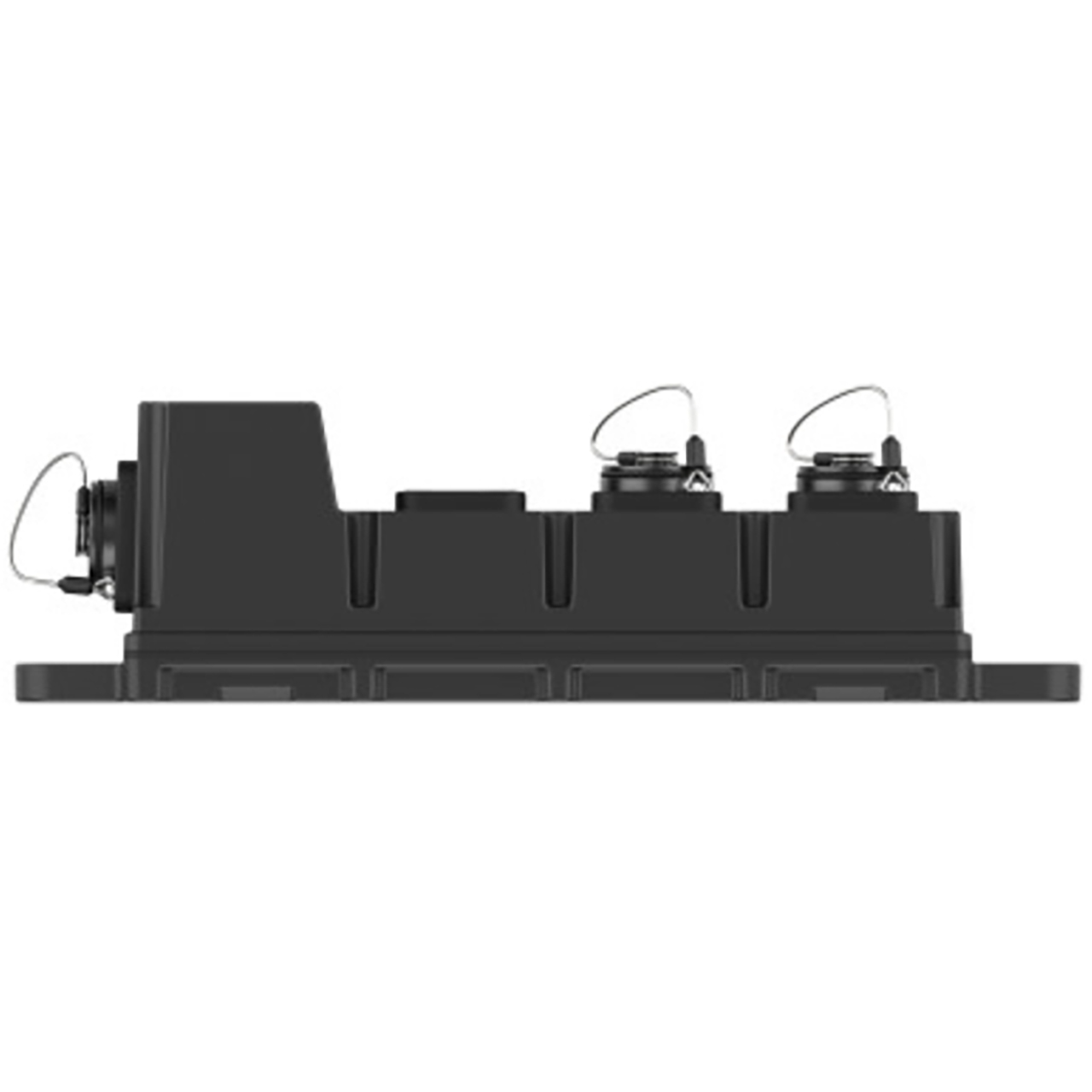

NEUTRIK NO4M-OCB2NO2-A opticalBAR Fiber Breakout Solution - 1x opticalCON QUAD MM & 2x opticalCON DUO MM

NO4M-OCB2NO2-A - Overview

• Features:

  • Flexible Mounting Options:
    - Mounting holes for screws
    - Velcro straps and pegs;
    Outdoor Ready: IP65 rated in mated conditions
  • Full compatibility with our opticalCON® ADVANCED products


• Specifications:

  • Connection Type: Breakout Adapter
  • Gender: Female

    Mechanical
  • Insertion Force: < 45 N
  • Withdrawal Force: < 45 N
  • Lifetime (typ.): 1000 mating cycles
  • Locking Device: Push-Pull

    Environmental
  • Temperature Range: -13°F - 158°F (-25°C - 70°C)
  • Protection Class: IP65 (in mated condition)

    Optical
  • Insertion Loss: LC < 0.4dB per connection
  • MTP® < 0.9dB per connection
  • Optical Connector: LC or MTP®
