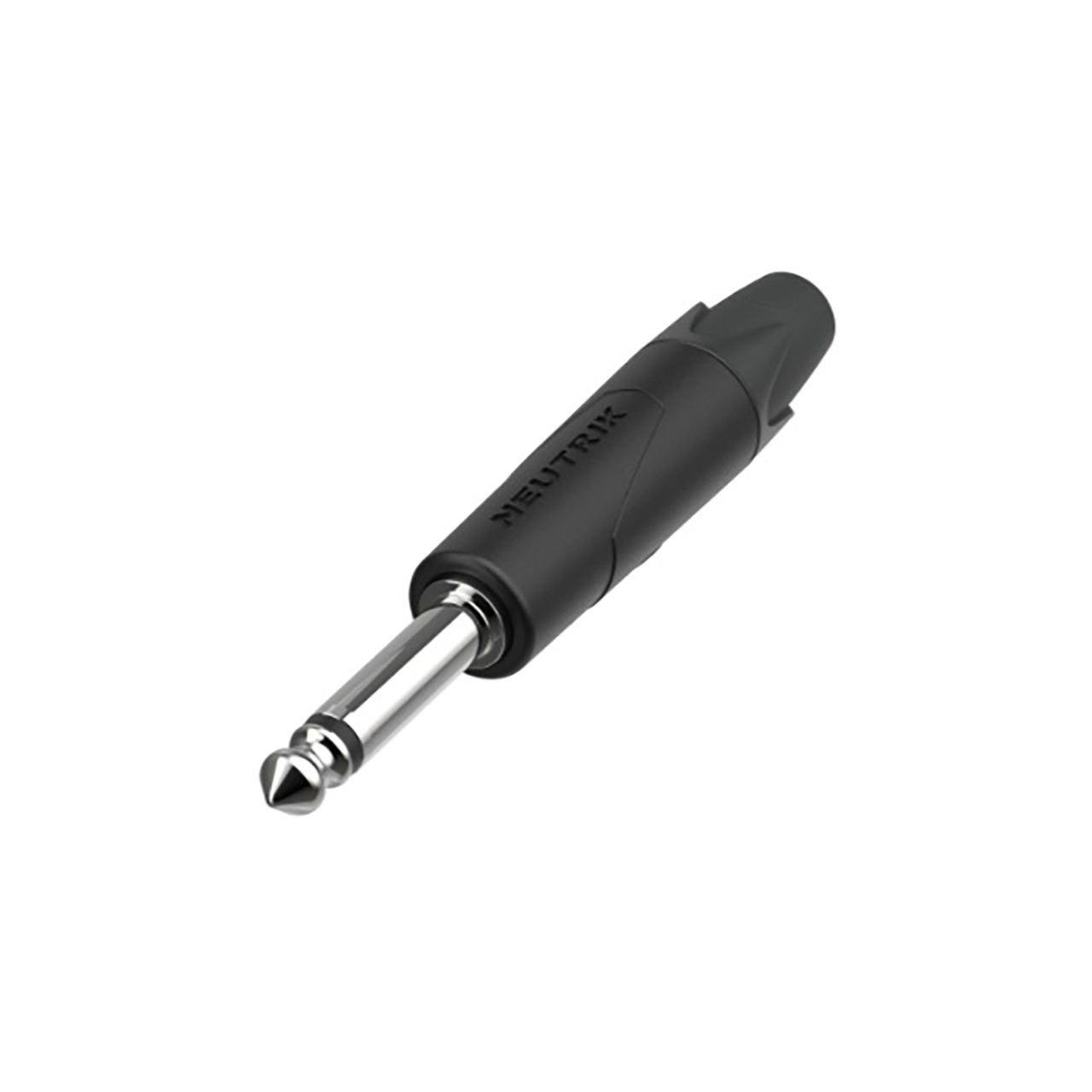

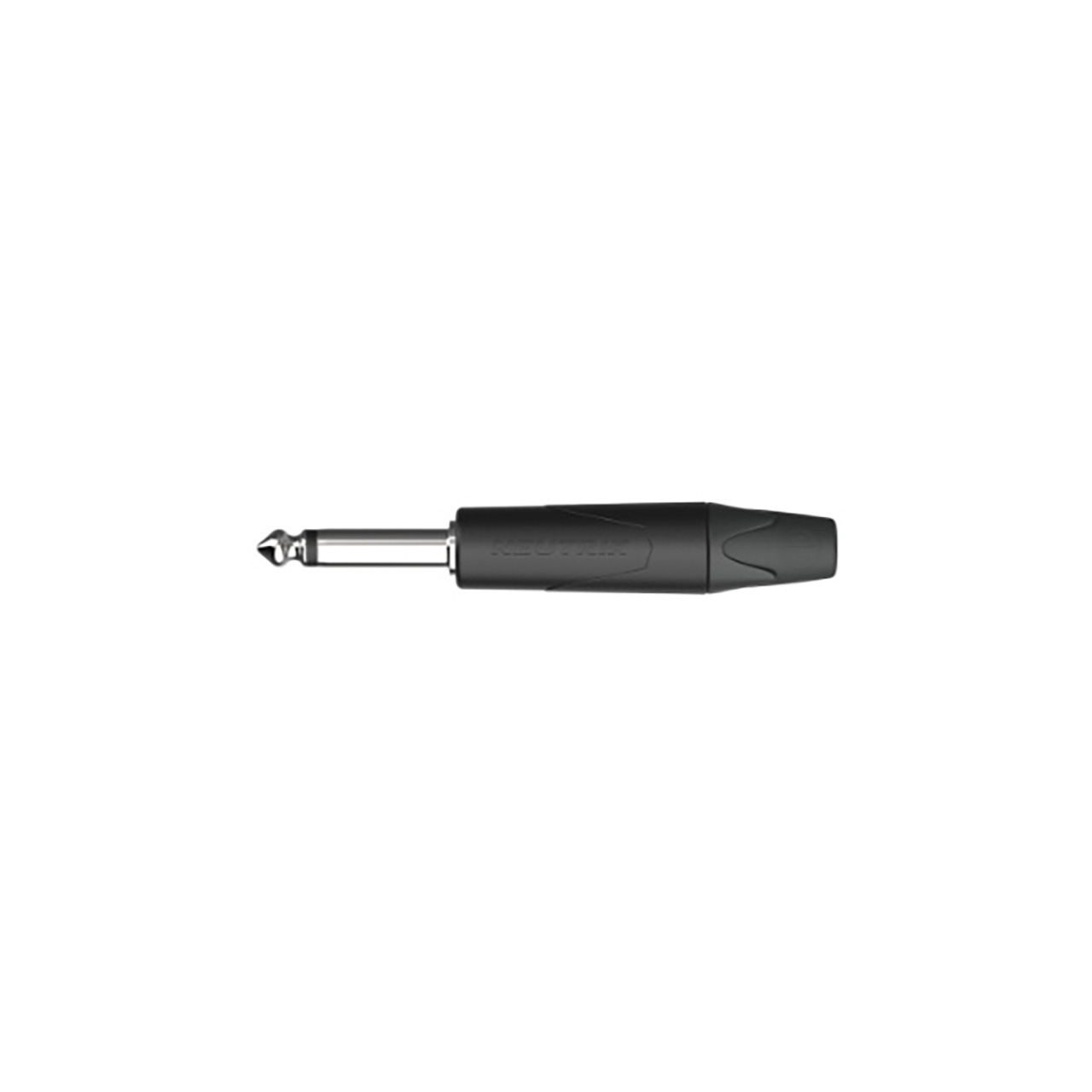

NEUTRIK NP2XX-NI-0 XX Series 2-Pole 1/4-Inch Plug

NP2XX-NI-0 - Overview

• Features:

  • Extra slim ¼" plug for highest packing Density
  • Reduced CO2 footprint compared to traditional metal housing
  • Proven chuck type strain relief for reliable cable retention
  • Precision machined one-piece contacts - avoid hook up of tip contact


• Specifications:

  • Connection Type: Plug
  • Gender: Male
  • Contact Resistance: Depends on mating connector mΩ
  • Dielectric Strength: 1kVdc
  • Insulation Resistance: >2 (initial) GO = 1 GO (after damp heat test)
  • Rated Current per Contact: depends on mating connector A
  • Rated Voltage: <50V
  • Cable O.D.: 4mm - 7mm
  • Lifetime: > 1000 mating cycles
  • Wiresize: 1mm²
  • Wiresize: 18 AWG
  • Wiring: Solder contacts
  • Bushing: Polyacetal (POM) + PU
  • Contact Plating: 2µm Ni (Su)
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6)
  • Shell: Polyamide (PA 66)
  • Strain Relief: Polyacetal (POM)
  • Standard Compliance: IEC 60603-11/EIA RS-453
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -4°F - 149°F (-20°C - 65°C)
