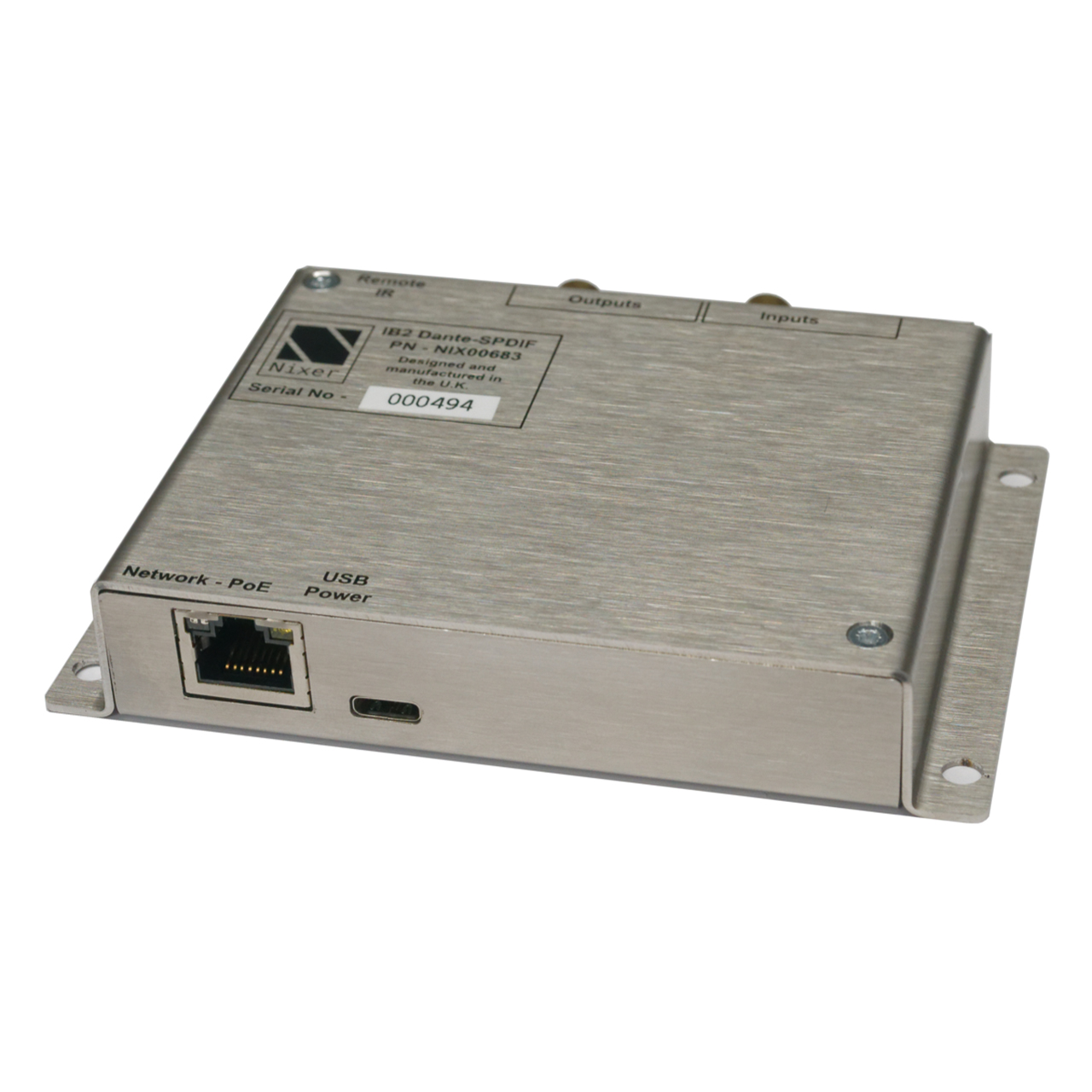

Nixer IB2 SPIDF-Dante 2x2 Compact SPDIF to Dante Convertor with PoE

IB2 SPIDF-DANTE - Overview

• Features:

  • Fixing holes for mounting
  • 2ch x 2 ch
  • Selectable SPDIF in - Coax or Optical
  • SPDIF out on Coax and Optical
  • Route 2 channels to and from the Dante network
  • PoE
  • Web based control interface


• Specifications:

  • Sample Rates Supported:
    - 48kHz
    - 96kHz
  • Bit Depth Supported:
    - 16bit
    - 24bit
    - 32bit
  • AolP Inputs:
    - 1x 1Gbps RJ45
    - 1Gbps or 100Mbps operation
    - Network configuration information available via Dante Controller

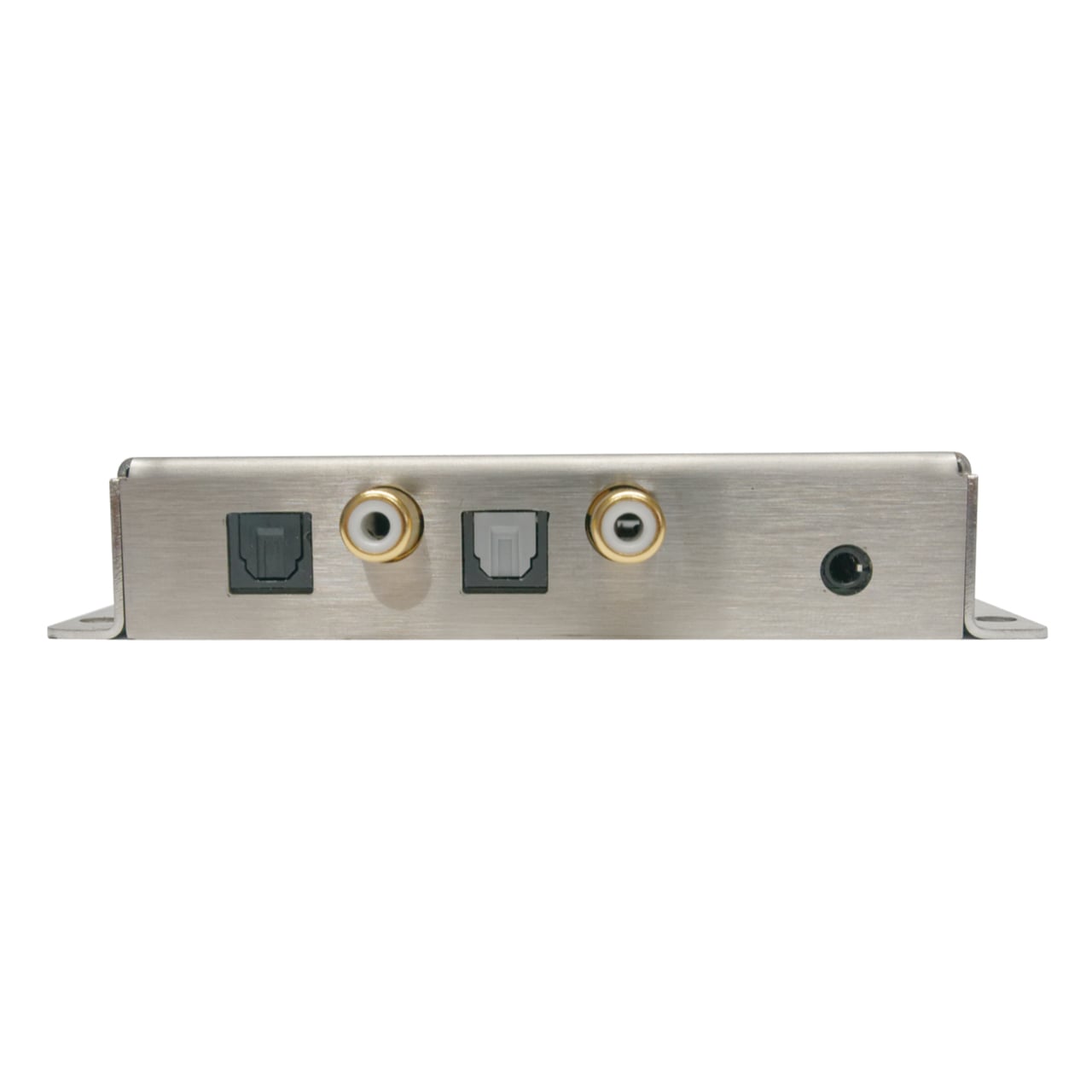

  • SPDIF Inputs:
    - 1x Toslink optical
    - 1x RCA
    - Active input selectable via Web interface, retains state after a power cycle
  • SPDIF Outputs:
    - 1x Toslink optical
    - 1x RCA
    - Both outputs are active at the same time

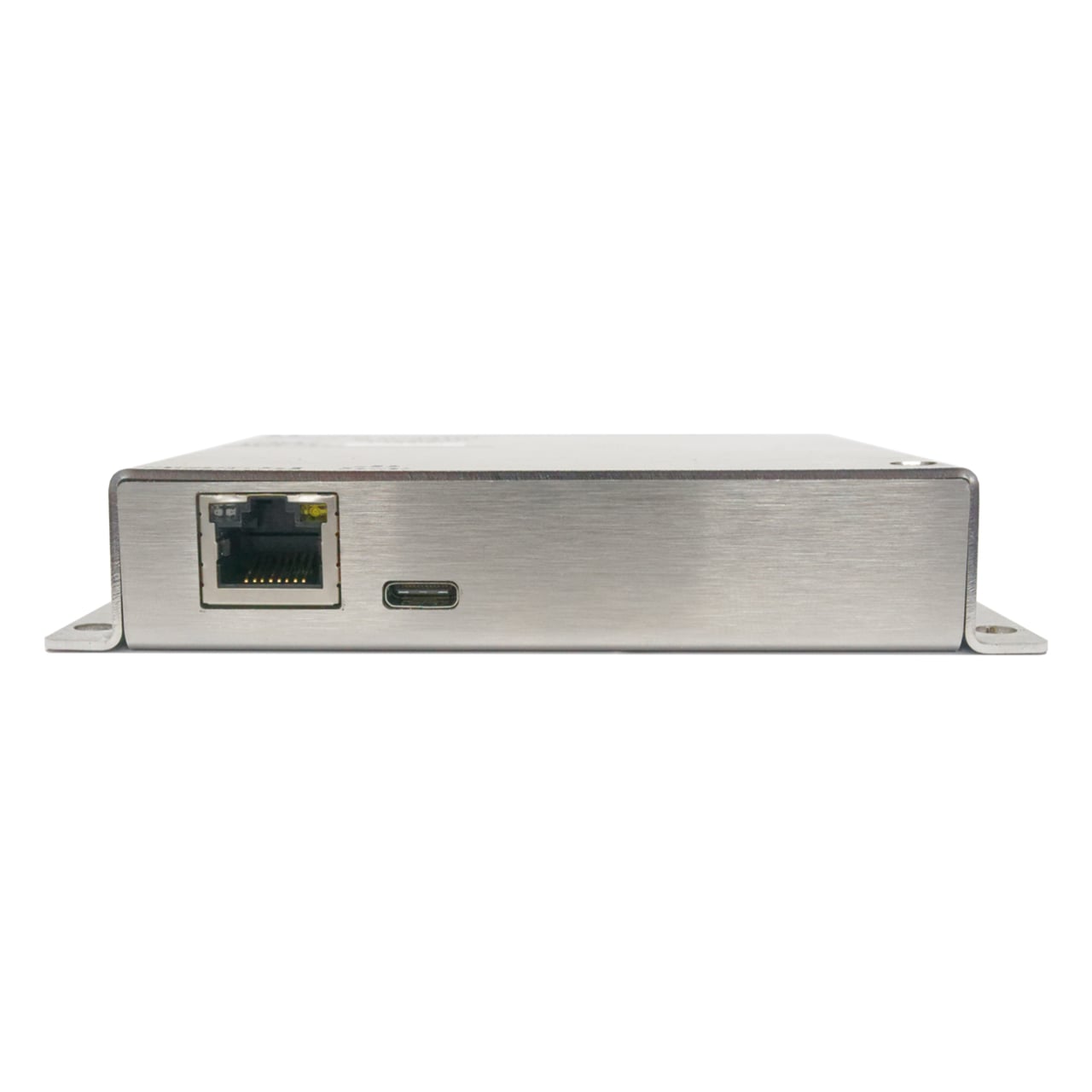

  • Other Ports: USB-C port is used as an alternative or additional power input
  • Power Input: PoE via RJ45 input and/or USB-C port
  • Dimensions (LxWxH): 4.76" x 3.62" x 0.91"
  • Shipping Weight: 1lb


• Item Includes:

  • 1x IB2 SPIDF-Dante
