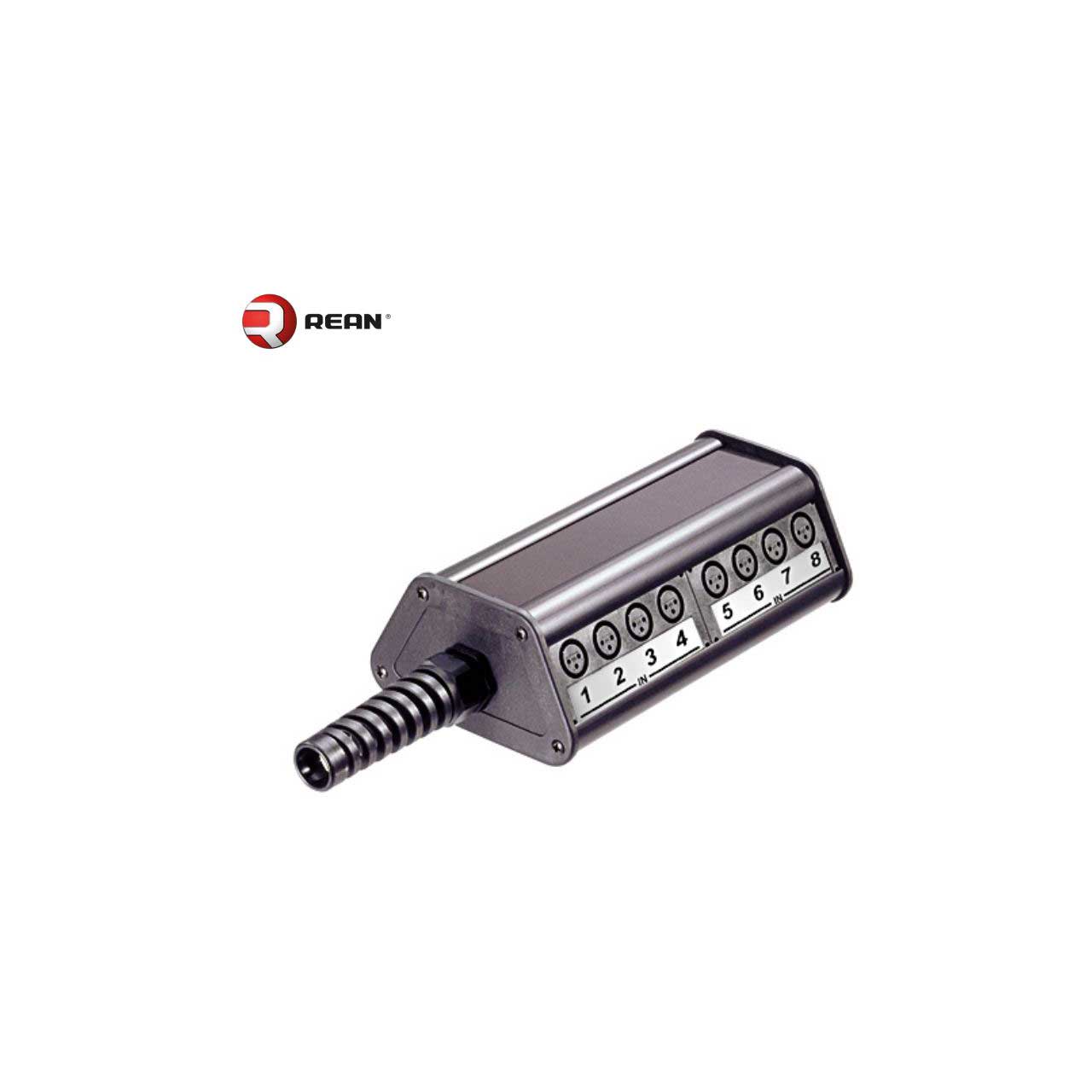

REAN NSB2A-12/4 Stage Box with 12 Inputs and 4 Outputs Style A

ITEM #: NSB2A-12-4 MFG #: NSB2A-12/4

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Rean
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$128.77

Quantity Pricing

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NSB2A-12/4 - Overview

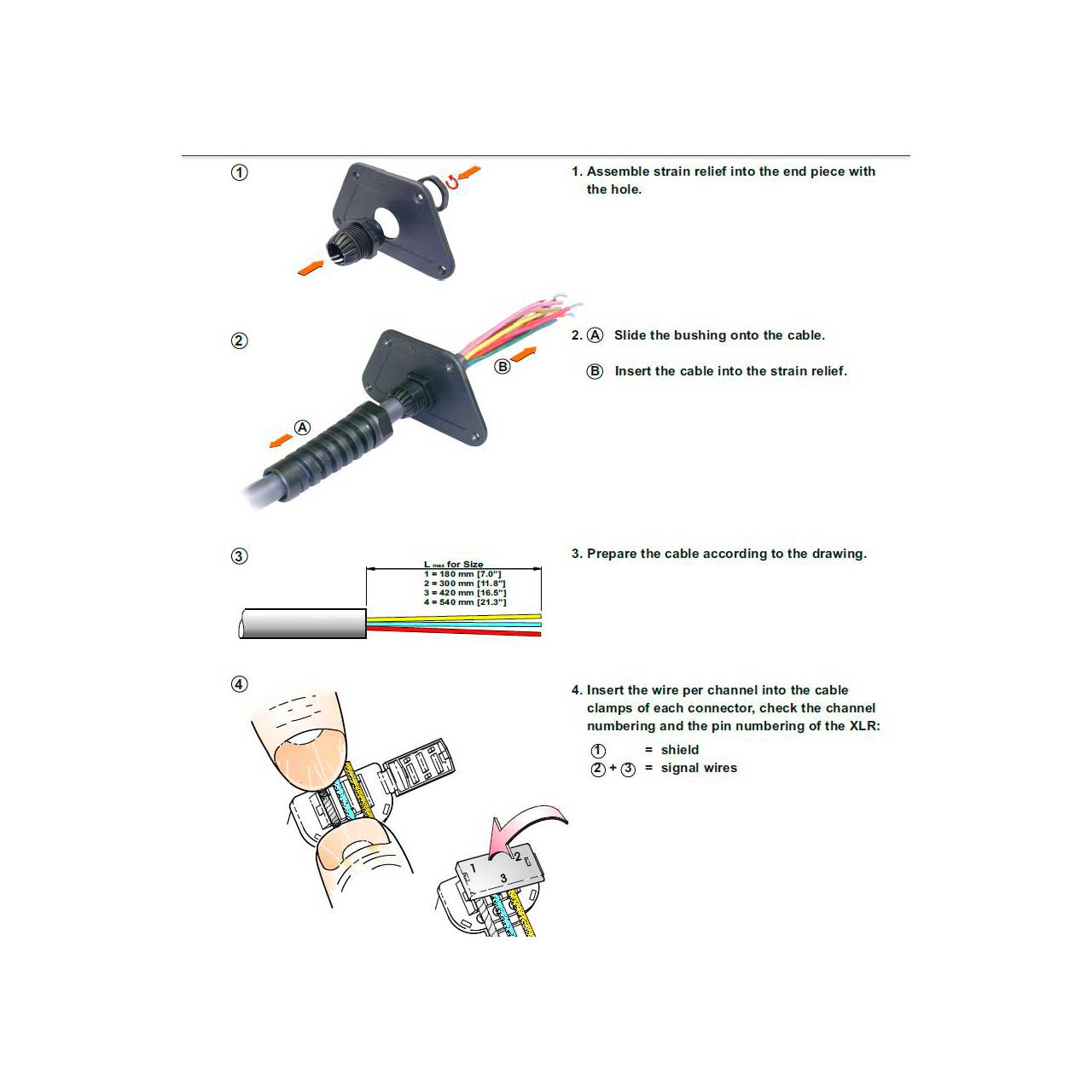

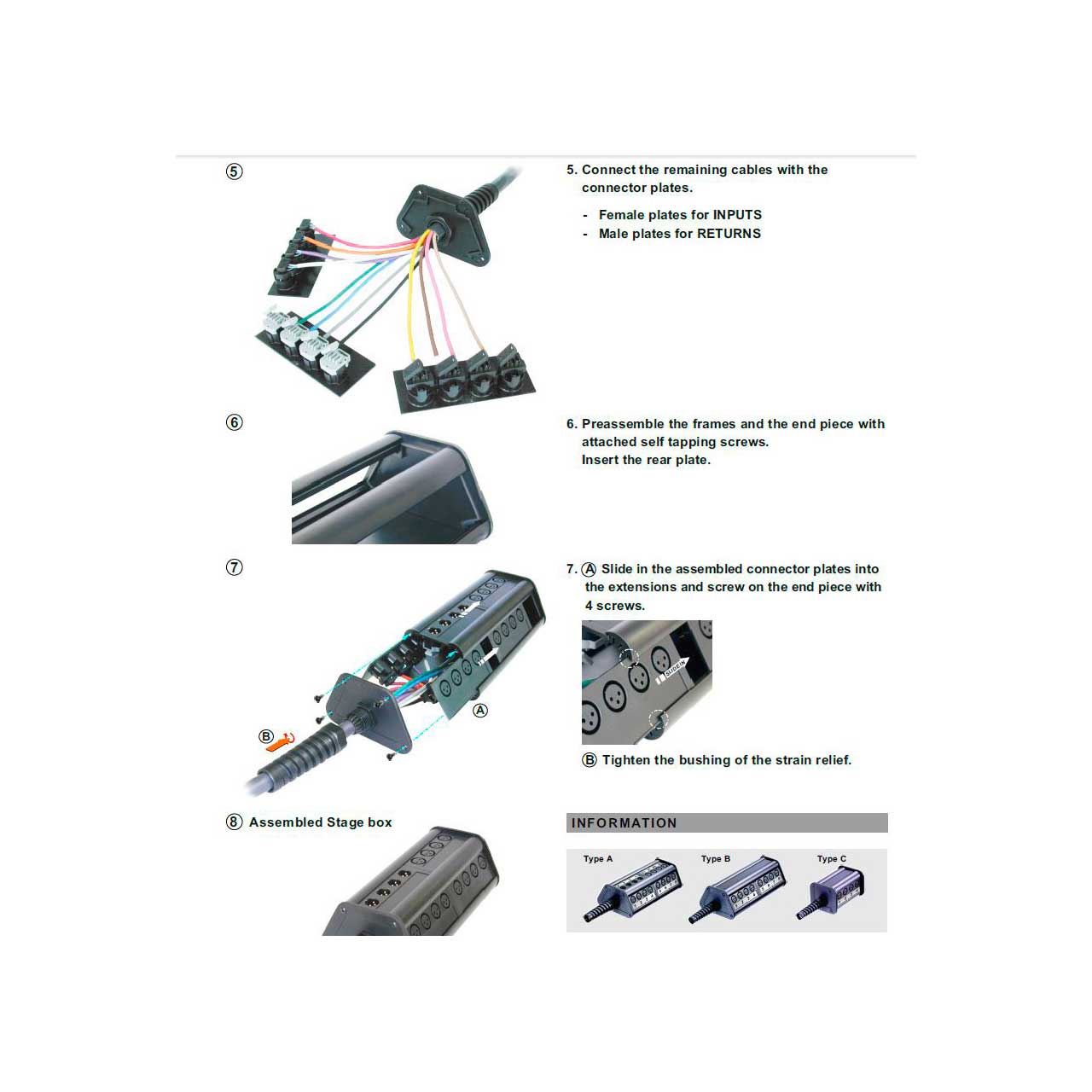

REAN NSB2A-12/4 is a Stage Box with 12 Inputs and 4 Outputs Style A. This is supplied as disassembled set comprising of all hardware parts including plates, profiles, strain relief, end pieces and screws. Labels for channel numbering not included.

  • Features:

    • Type A, length 2, 12 IN (female/send) and 4 OUT (male/return)
    • Width: 134 mm, height: 79 mm, length: 252 mm


  • Specifications:

    • Contact resistance: < 5 mΩ
    • Dielectric strength: 0.5 kVdc
    • Insulation resistance: ≥ 1 GΩ
    • Rated current per contact: 2 A
    • Cable O.D.: 13 - 18 mm multicore
    • Insertion force: ≤10 N
    • Withdrawal force: ≥ 10 N
    • Lifetime: > 1000 mating cycles
    • Wiresize: 0.22 and 0.14 mm²
    • Wiresize: 24 and 26 AWG
    • Shell: Aluminium
    • Quad plates: POM
    • End Pieces: Thermoplastic
    • Temperature range: -25 °C to +70 °C
