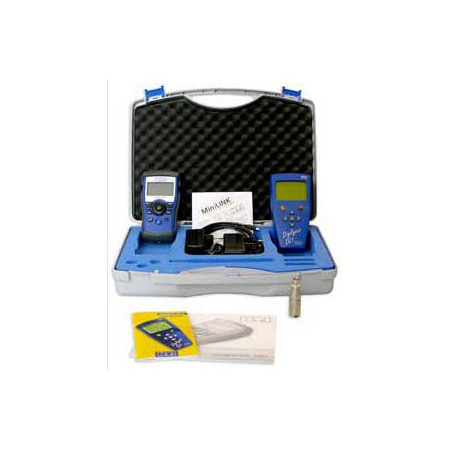

NTi Audio 600 000 272 Digital Audio Set

600-000-272 - Overview

• Features:

  • Digilyzer DL1 Functions

  • Digital Audio Analyzer
  • Testing, monitoring and troubleshooting of digital audio interfaces is fast and straight forward using the compact DL1.
  • Event Logger
  • Intermittent faults are usually hard to find. The event logger tracks every change of the input signal (carrier, channel status or audio related) and allows long term checking and highlighting of possible problems.
  • Audio Monitoring
  • The built in speaker allows to listen into analog and digital audio lines featuring an automatic gain control.

    Digirator DR2 Functions
    Occupation of Transmission Lines
  • The signal generator DR2 generates digital voice sequences to occupy broadcast lines until they are required for data transmission. The Minirator MR-PRO serves analog audio systems.
  • Digital Delay
  • The propagation delay between any DR2 digital audio output and the XLR sync input (which accepts AES3 signals) may be measured and displayed in seconds or video frames.
  • Transparency of Dolby Signals
  • The DR2 tests whether a transmission channel is transparent for non linear PCM signals and indicates if Dolby E, Dolby Digital and/or DTS bit streams can pass.
  • Synchronization
  • The DR2 accepts AES3, DARS, Word Clock and Video Black Burst (PAL and NTSC) synchronization signals. The input impedance of the sync input may be switched between 75 Ohm, 110 Ohm and High Z.
