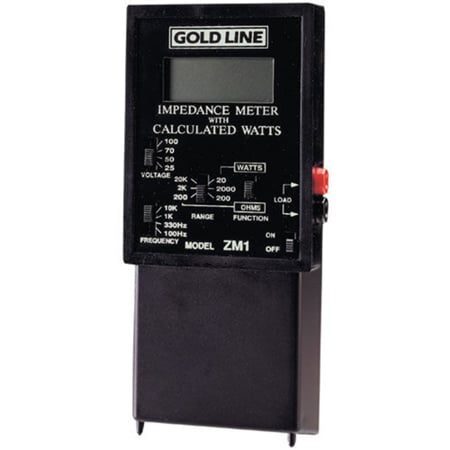

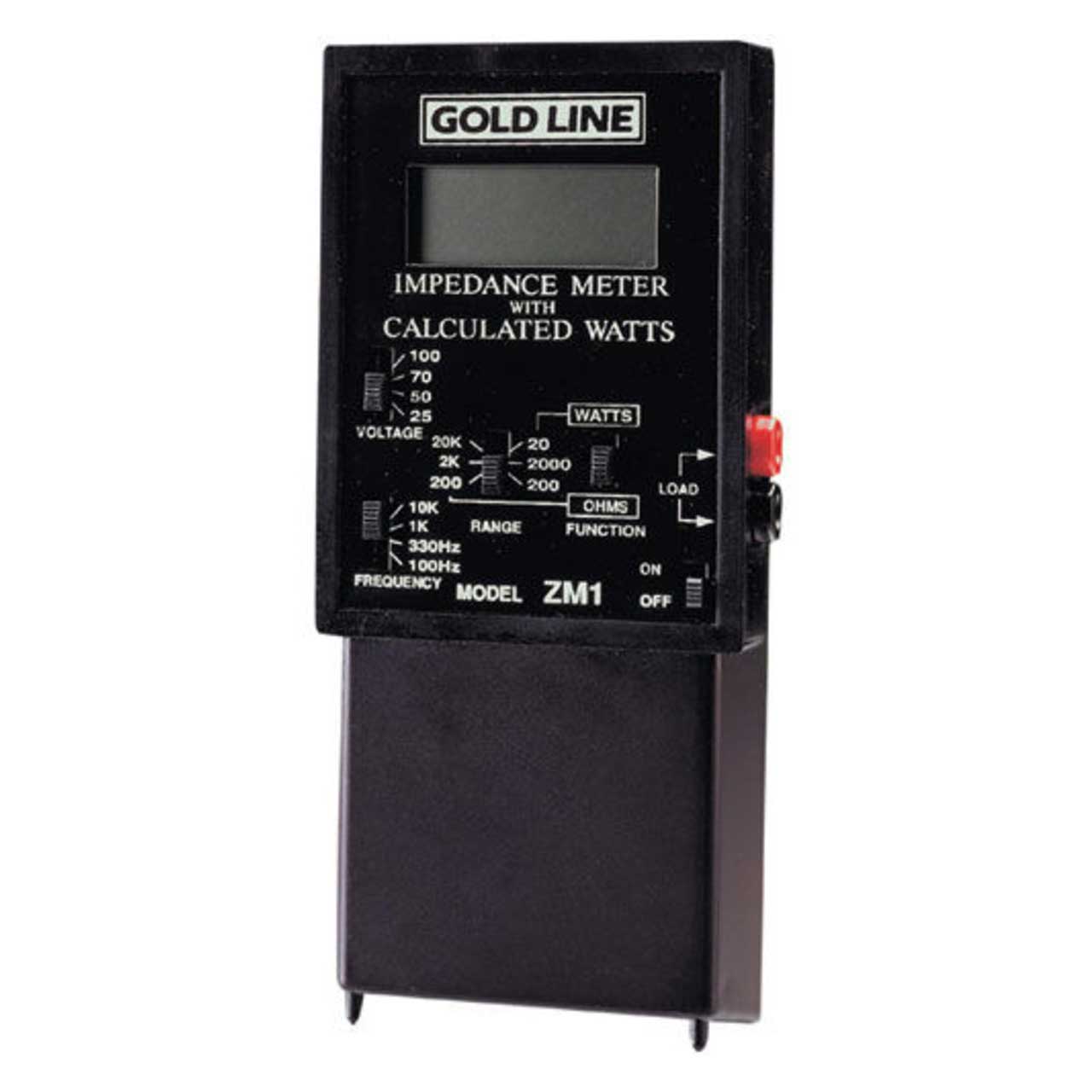

Gold Line ZM1 Portable Battery Operated Impedence Meter for 25/50/70/100 Volt Line Systems

ITEM #: GLDL-ZM-1 MFG #: ZM-1

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$529.00

Our Price:

$519.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ZM-1 - Overview

    Useful to sound contractors and installers, Goldline's ZM1 measures the impedance of loudspeakers and entire distributed loudspeaker systems as well as individual components (resistors, capacitors, inductors). It will also calculate the wattage that will be produced on an installed loudspeaker system. This hand-held battery powered instrument features special circuitry to prolong battery life and comes complete with high-quality test lead.

    • Specifications:

      • Test Frequencies: 100Hz, 330Hz, 1kHz, 10kHz
      • Voltage Ranges:
        25Vac - Some USA public schools and institutions
        50Vac - International
        70Vac - USA Industrial Standard
        100Vac - International
      • Impedance Measurement Ranges:
        0 - 199.9 ohms
        0 - 1999 ohms
        0 - 19.99k ohms
      • Wattage Measurement Ranges:
        0 - 19.99 watts
        0 - 199.9 watts
        0 - 1999 watts
      • Accuracy (typical): Impedance ± 3% / Wattage ± 2%
      • Connectors: Load/Output - Banana Jacks
      • Display: 3-1/2 Digit LCD with Battery Low Indicator
      • Power Requirements: 8 ""AA"" Alkaline Batteries
      • Expected Battery Life:
        Impedance Mode - 35 hours continuous
        Calculated Watts Mode - 23 hours continuous
      • Approvals: CE
      • Emissions: - EN 55022 B - FCC Class B
      • Immunity: - EN 55024 B
      • Size: 3-1/4"" W x 8"" H x 2-1/4"" D
      • Weight: 12 oz.
      • Case Material: High Impact ABS

    • Item Includes:

      • 1x ZM1 Impedance Meter
      • 1x Test Leads with Alligator Clips

    • Warranty:

      • 1 Year Warranty

    • GTIN:

      0697506028036
