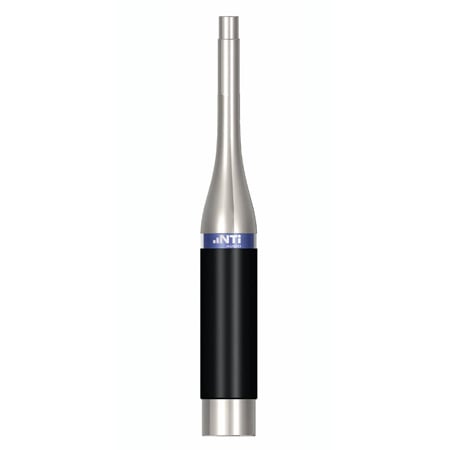

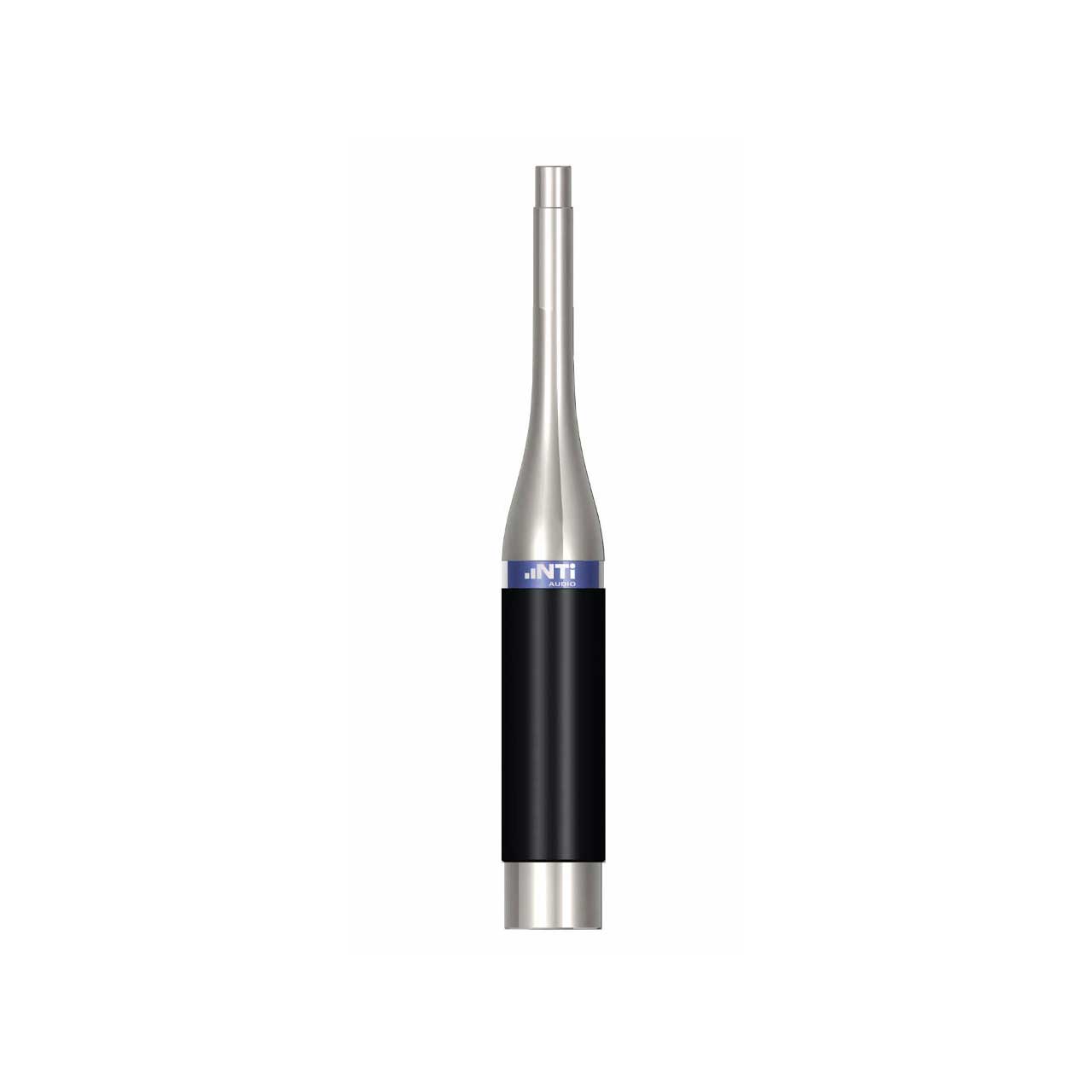

NTI M4261 Measurement Microphone for XL2 - Class 2

ITEM #: NTI-M4261 MFG #: 600 040 070

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the NTI-M4261

600 040 070 - Overview

The M4261 is a calibrated, omni-directional class 2 measurement microphone running from 48V Phantom power. It shows excellent linearity over a wide dynamic range from 27 dB SPL up to 144 dB SPL.

The microphones are 48V phantom powered and include an electronic data sheet. The Automated Sensor Detection (ASD) of the XL2 Analyzer automatically reads this data, i.e. the microphone model and calibration data. This promotes faster setup and ensures accurate measurements.

The microphone bodies contain the preamplifier. They combine high dynamic range and wide frequency range with low noise. The M4261 microphones connect via the ASD Cable to the XL2 Audio and Acoustic Analyzer, e.g. for measurements at remote locations or to reduce acoustic reflections.

  • Features:

    • Omni-directional, free-field microphone
    • Phantom power 48 VDC
    • Electronic data sheet installed
    • Frequency range 5 Hz - 20 kHz
    • Individual frequency response available as Excel-data
    • Optional calibration certificate

  • Specifications:

    • Microphone Type: Omnidirectional, pre-polarized condenser, free field microphone
    • Classification: Class 2
    • Capsule/Transducer: 1/4" permanently installed
    • Flatness Tolerance Bands:
      - +1/-4.5 dB @ 5 Hz - 20 Hz
      - ±1.5 dB @ >20 Hz - 4 kHz
      - ±3 dB @ >4 kHz - 10 kHz
      - ±4.5 dB @ >10 kHz - 16 kHz
      - ±5 dB @ >16 kHz - 20 kHz
    • Frequency Range: 5 Hz - 20 kHz
    • Residual Noise Floor: 27 dB(A)
    • Maximum SPL: 142 dBSPL
    • Sensitivity: 36 dBV/Pa ±3 dB (16 mV/Pa)
    • Temperature Coefficient: < ±0.02 dB / °C
    • Temperature Range: 32°F to 104°F
    • Pressure Coefficient: -0.04 dB / kPa
    • Influence of Humidity (Non-Condensing): <±0.4 dB
    • Humidity: 5% to 90% RH, non-condensing
    • Output Impedance: 100 Ohm balanced
    • Power Supply: 48 VDC phantom power, 3 mA typical
    • Connector: Balanced 3-pole XLR
    • Dimensions (DxL): 0.8" x 5.9"
    • Weight: 2.39 oz
    • Environmental Protection: IP51
