OBSBOT Talent 2 7-Inch All-In-One Multi-Cam Live Streaming & Production Studio - HDMI & USB - NDI / SRT - 5G & Wi-Fi 6

TALENT 2 - Overview

An all-in-one multi-camera live streaming and production studio that features upgraded connectivity including Wi-Fi 6, 5G capabilities, and network bonding!

• Features:

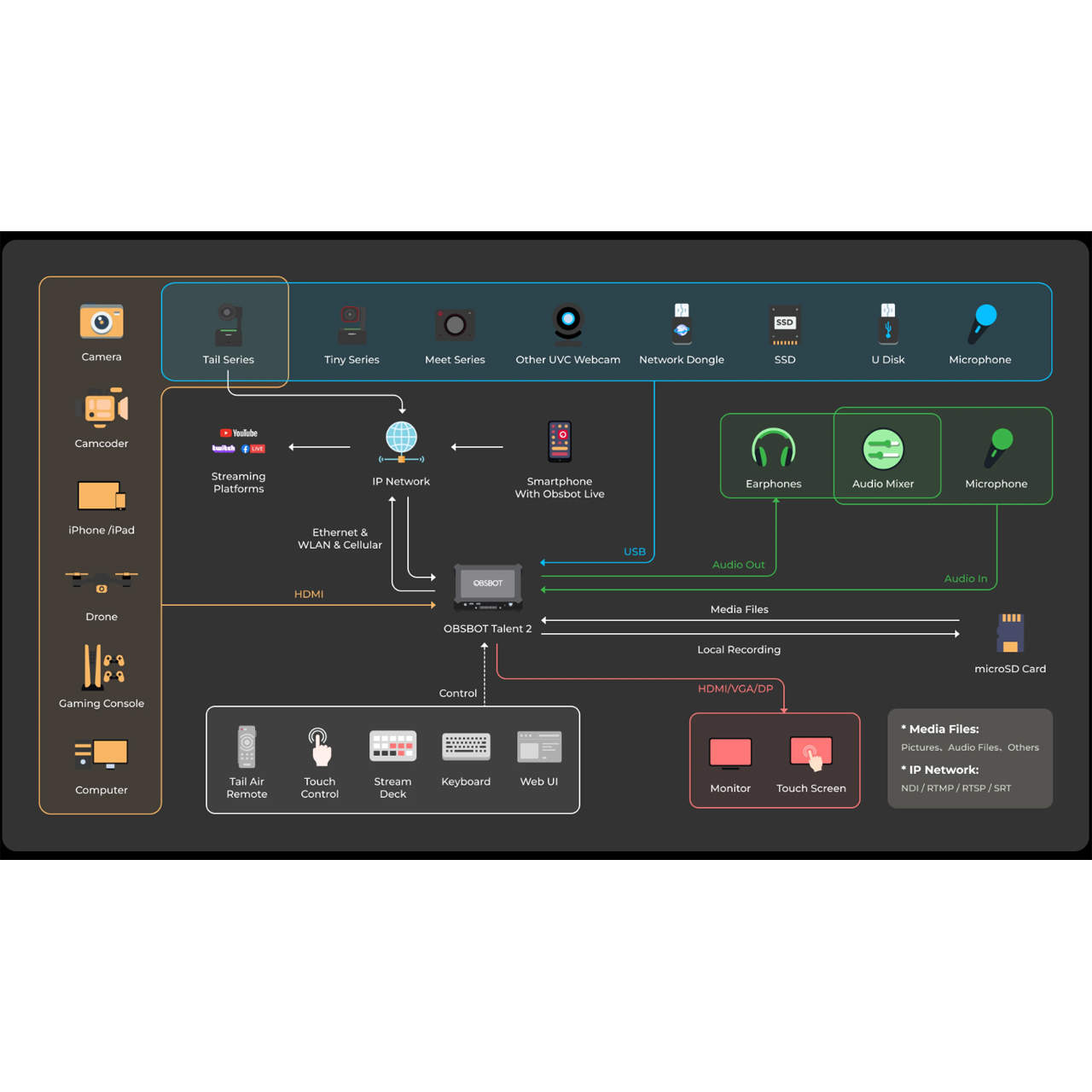

  • Supports multiple input sources, including 2x 4K HDMI input, 2x 2K HDMI input, 2x USB 3.0 input, Phone Camera, SRT stream, RTMP stream, RTSP stream, NDI stream, webpages, documents, third-party apps, video clips, and pictures
  • Produces shows consisting of scenes with compositions of various sources, which can be edited with diverse powerful tools, such as keyer, flip and crop
  • Natively supports streaming to YouTube, Twitch and Facebook Live, supports streaming to Restream, supports streaming via SRT, RTMP and RTSP, and supports four NDI HX3 outputs
  • Supports streaming to four destinations simultaneously, up to 2160p60 120Mbps
  • Supports sending live comments as overlay when streaming to social media platforms
  • Supports installing third-party apps which can be used as sources. Meanwhile, the program image can serve as a virtual camera for third-party apps.
  • GFX function with rich templates, supports real-time control of scoreboard, timer and stopwatch, and supports using different sources as GFXs such as webpage, video, and NDI stream
  • Supports the ability to switch scenes directly, or preview first and then program
  • Supports Replay to capture and record highlights
  • Supports Video-Follow-Audio (VFA) to synchronize video and audio for a more immersive experience
  • More interactive functions such as background music, annotation and FTB
  • Supports PTZ control for HDMI, WEBCAM (UVC Camera), SRT, RTMP, RTSP and NDI PTZ cameras


• Specifications:

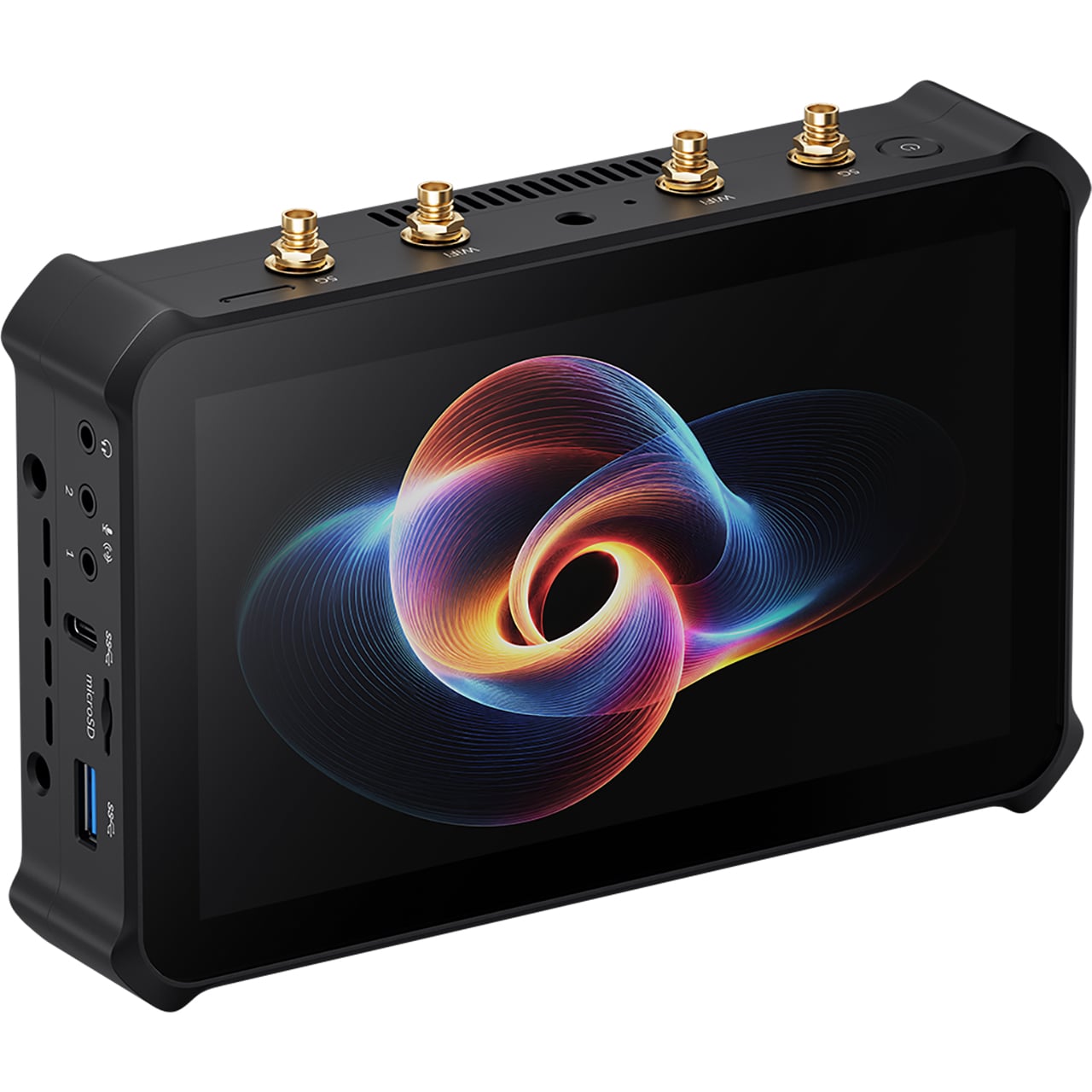

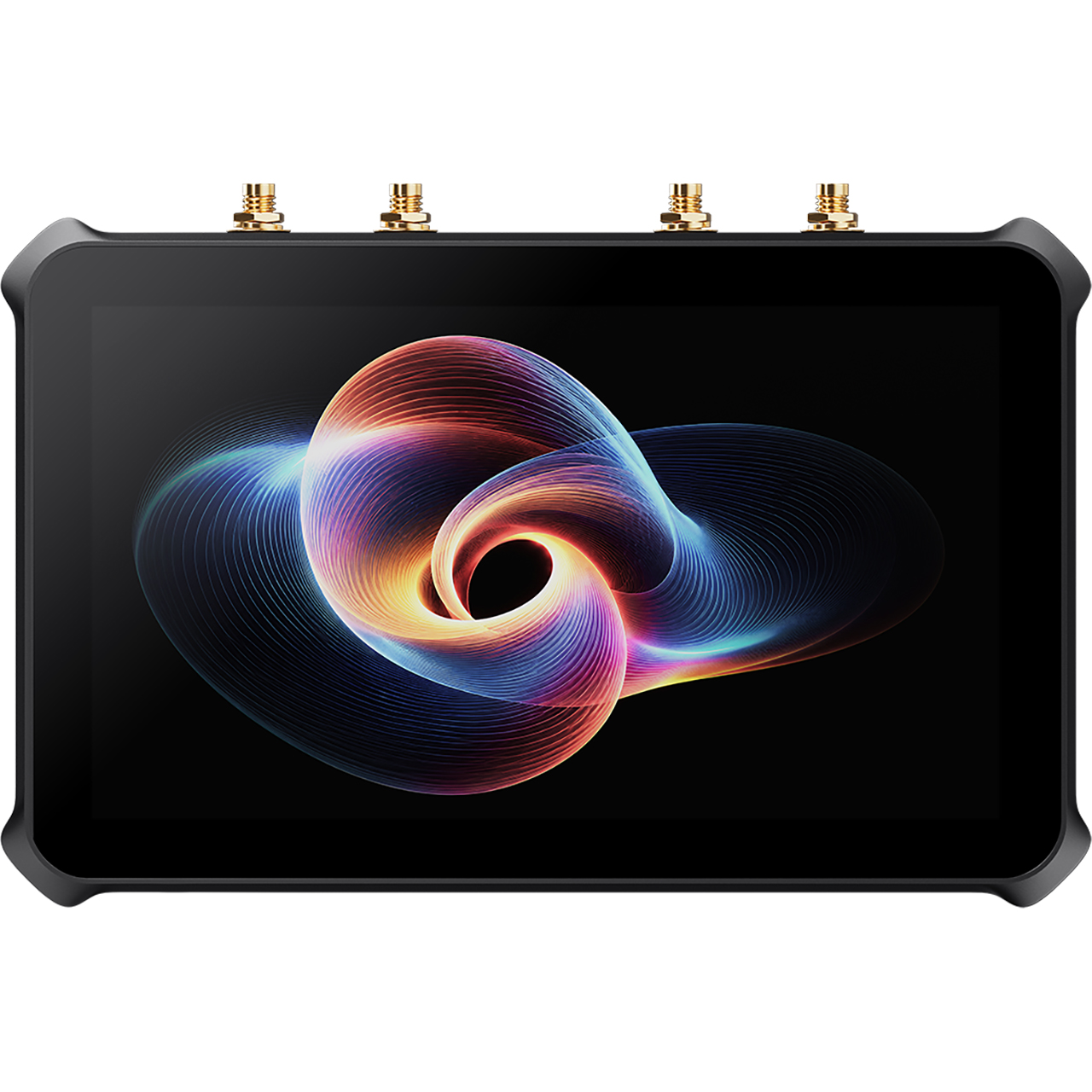

  Screen
  • Size: 7"
  • Type: AMOLED
  • Aspect Ratio: 16:9
  • Resolution (dot): 1920 (W) x 1080 (H)
  • Brightness: 800nit
  • Contrast Ratio: 100000:1
  • Color Gamut: 100% NTSC
  • sRGB: 145%
  • DCI-P3: 105%
  • Color Depth: 10-bit
  • PPI: 315
  • Refresh Rate: 60Hz, 50Hz
  • Touchscreen: Capacitive
  • Viewing Direction: All
  • Screen Coating: Anti-fingerprint coating

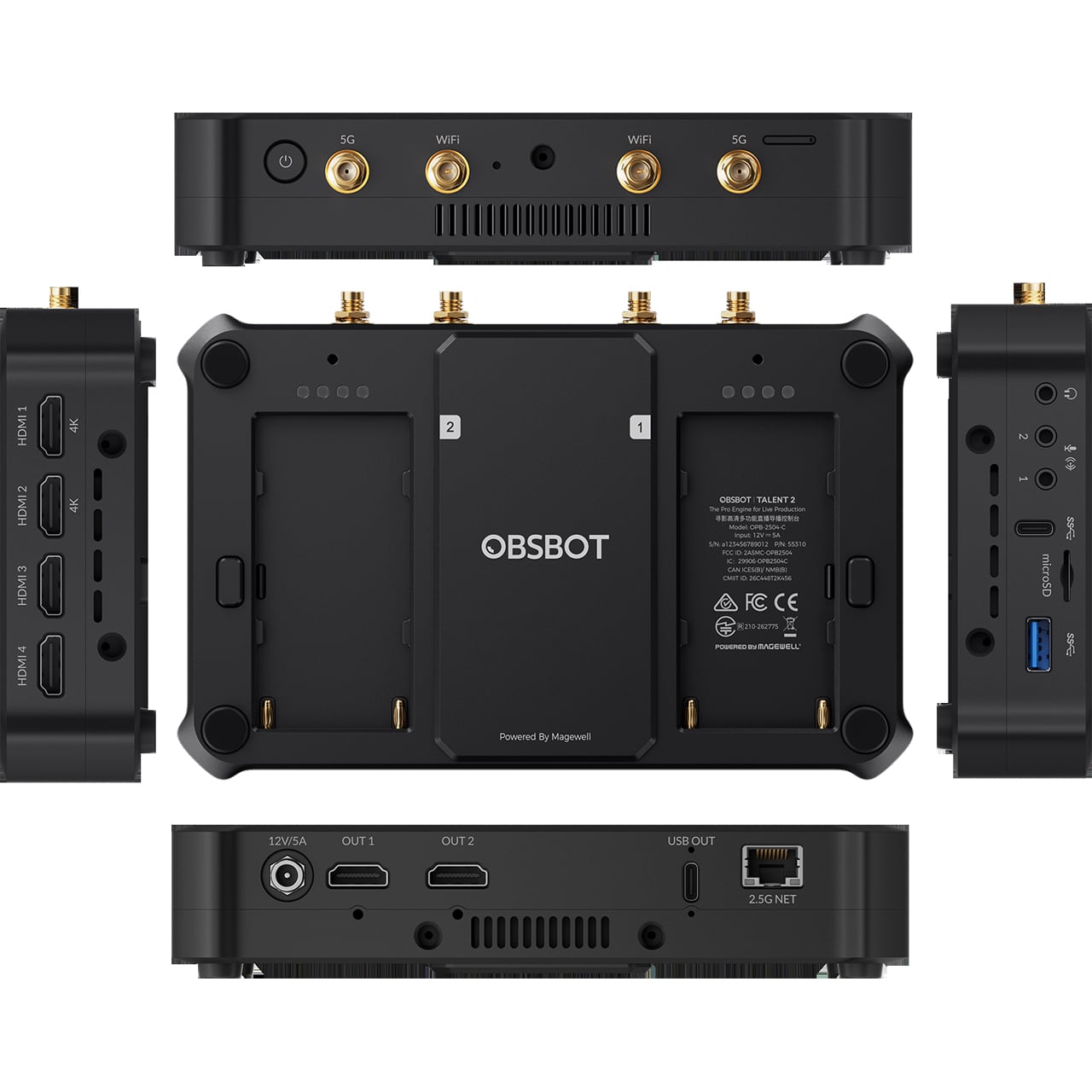

    Video Inputs
  • HDMI:
    - Port: 4x HDMI 2.0 Type-A port
    - Typical Resolution/Frame Rate: 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60 (Only available for HDMI 1 and HDMI 2), 1920x1080p 23.98/24/25/29.97/30/50/59.94/60, 1920x1080i 25/29.97/30, 1280x720p 23.98/24/25/29.97/30/50/59.94/60, 720x576p 50/100, 720x576i 25/50, 720x480p 59.94/60, 720x480i 29.97/30
  • Color Depth: 8/10/12-bit
  • Color Sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
  • USB:
    - Port: 1x USB 3.0 Type-A port, 2x USB 3.0 Type-C port
    - Format: YUYV, MJPG, NV12, UYUV, RGB24, H.264
    - Resolution/Frame Rate: Up to 4K, 60fps
  • SRT Caller/Listener:
    - Codec: H.264, H.265
    - Resolution/Frame Rate: Up to 4K, 60fps
  • RTMP Pull/Push:
    - Codec: H.264
    - Resolution/Frame Rate: Up to 4K, 60fps
  • RTSP Stream:
    - Codec: H.264, H.265
    - Resolution/Frame Rate: Up to 4K, 60fps
  • NDI® Stream:
    - NDI HX2, NDI HX3, NDI High Bandwidth
    - Codec: H.264, H.265, SpeedHQ
    - Resolution/Frame Rate: Up to 4K, 60fps
  • Video:
    - Resolution: Up to 4K60
    - Codec: H.264, H.265
    - Format: MOV/MP4/WebM
  • Picture: Format: JPEG/PNG/BMP
  • Webpage: Supports adding up to 3 webpages as scenes and 7 webpages as GFXs

    Audio Input
  • Mic/Line in: 2x 3.5mm jack, 2-ch, 48kHz, 16-bit
  • Audio Input from HDMI Port: Up to 8-ch, 192kHz, 24-bit
  • Audio Input from USB Port: Up to 8-ch, 192kHz, 24-bit
  • Audio Input from Bluetooth Device: 2-ch, 48kHz, 16-bit
  • Audio From: SRT stream, RTMP stream, RTSP stream, NDI stream, embedded in video files, a webpage
  • Background Music (BGM): MP3, M4A, WAV files
  • Audio from GFXs: Webpage, NDI and Video
  • Audio from an App

    Video Output (Streaming & Recording)
  • Codec: H.264, H.265
  • Resolution: 2160p, 1440p, 1080p, 720p, 540p, 360p* * 360p is only available for NDI
  • Frame Rate: 60/59.94/50/30/29.97/25/24/23.98/15fps
  • Bitrate:
    - NDI HX3: Up to 110Mbps, down to 3Mbps
    - Others: Up to 120Mbps, down to 256kpbs
    - Key Frame Interval: Customizable
  • Profile:
    - H.264: High profile, Main profile, Baseline profile
    - H.265: Main profile
  • Level:
    - H.264: 5.2, 5.1, 5.0, 4.2, 4.1, 4.0, 3.2, 3.1, 3.0
    - H.265: 6.1, 6.0, 5.2, 5.1, 5.0, 4.1, 4.0, 3.1, 3.0
  • Bitrate Mode: VBR, CBR
  • Color Space: BT.709
  • USB-C OUT:
    - Port: 1x USB 3.0 Type-C port
    - Output Mode: UVC 1.1/UAC 1.0, DP-OUT
    - Resolution: 3840x2160, 2560x1440, 1920x1080, 1280x720, 2160x3840, 1440x2560, 1080x1920, 720x1280
    - Frame Rate: 60/59.94/50/30/29.97/25/24/23.98 fps
    - Sampling Format: RGB24, YUYV, NV12, MJPEG
  • HDMI OUT:
    - Port: 2x HDMI 2.0 Type-A port
    - Resolution: 3840x2160, 2560x1440, 1920x1080, 1280x720
    - Frame Rate: 60/59.94/50/30/29.97/25/24/23.98fps
    - Sampling Format: RGB 4:4:4, NV12

    Audio Output
  • Streaming and Recording: 2-ch, 16-bit, 48kHz, aac, 64kbps/96kbps/128kbps
  • Headphone Output: 1x 3.5mm jack, 2-ch, 48kHz, 16-bit
  • Audio Output via Bluetooth Device: 2-ch, 48kHz, 16-bit
  • Audio Output via USB-C Port: 2-ch, 48kHz, 16-bit
  • Audio Output via USB-A Port: 2-ch, 48kHz, 16-bit/24-bit/32-bit
  • Audio Output via HDMI OUT Port: 2-ch, 48kHz, 16-bit

    Physical
  • Size: 7.29" x 4.61" x 1.29"
  • Weight:
    - With Stand: 2.28lbs
    - Without Stand: 1.91lbs
  • Operating Temperature: 14°F - 122°F (AC power)
  • Storage Temperature: -4°F - 158°F
  • Relative Humidity: 5% - 90% non-condensing


• Item Includes:

  • 1x OBSBOT Talent 2 All-In-One Multi-Cam Live Streaming & Production Studio - HDMI & USB - NDI / SRT - 5G & Wi-Fi 6


• GTIN:

  0768213117310
