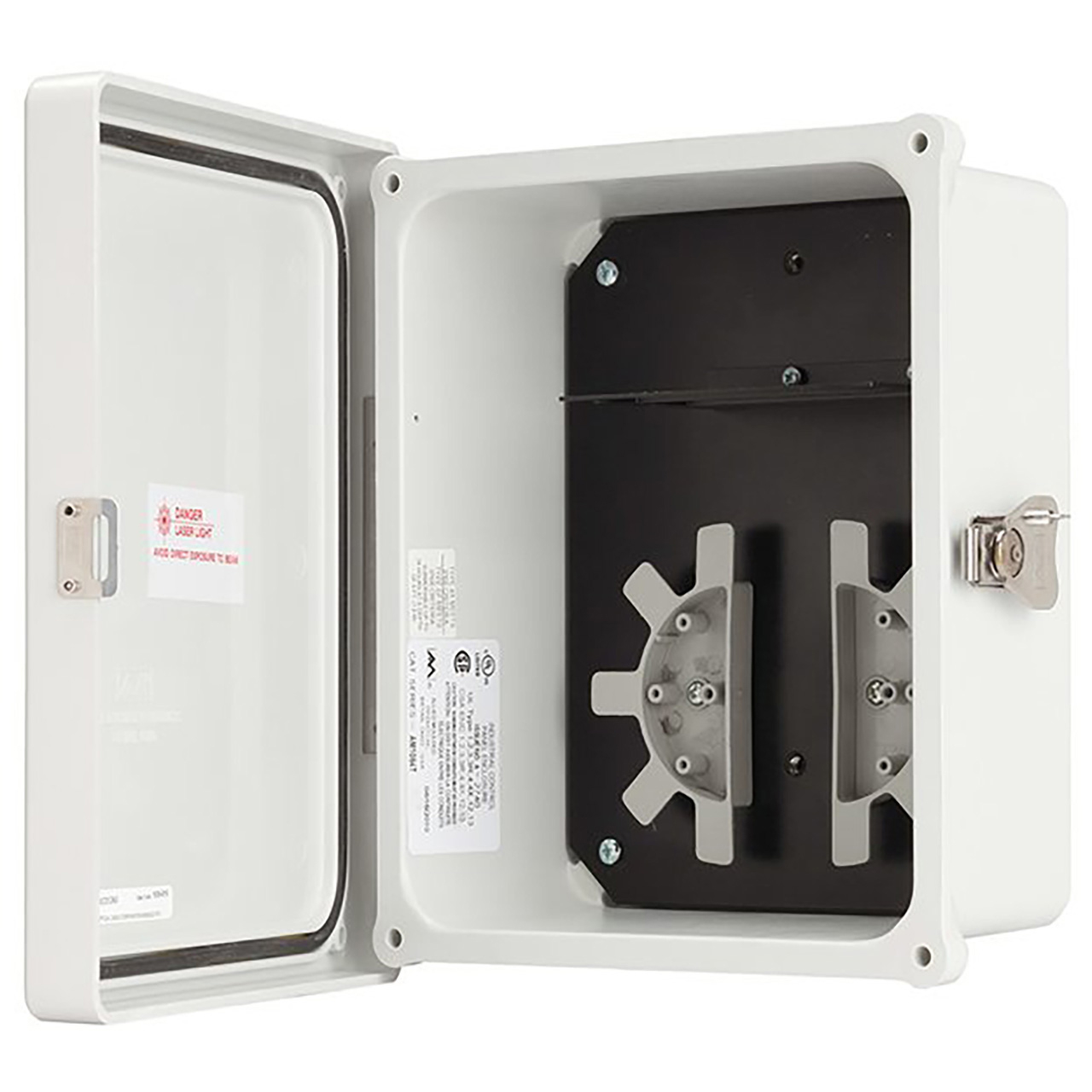

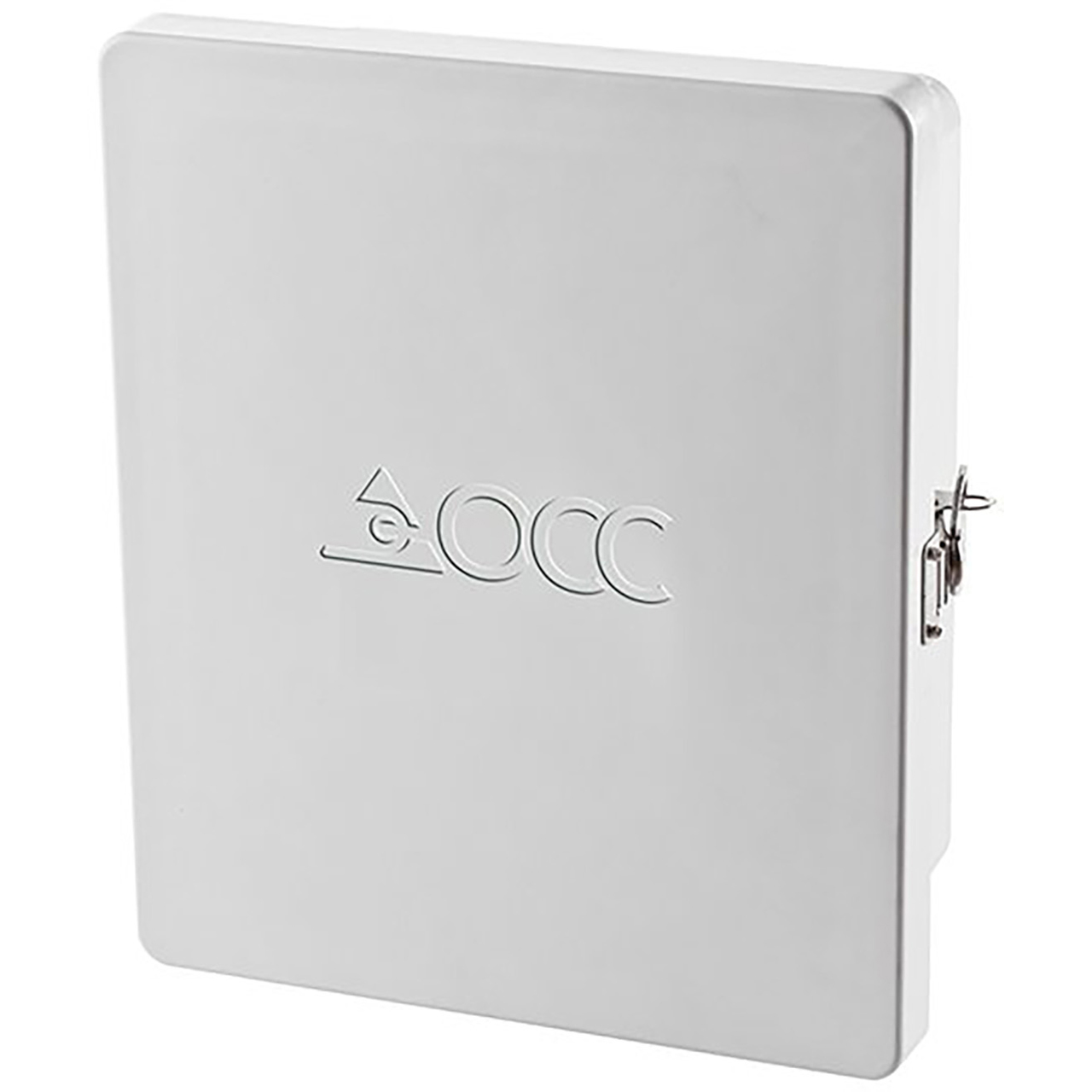

OCC OCO12NX NEMA4X 12-Port Fiber Enclosure - Indoor/Outdoor Use

ITEM #: OC12NX MFG #: OCO12NX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Optical Cable Corp

We are an authorized dealer for this series; however, applicable tariffs and final pricing must be confirmed before order acceptance. Please contact a sales engineer at 1-800-522-2025 for further assistance.

Availability: Sold Out
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

OCO12NX - Overview

For indoor or outdoor applications where protection of components from dirt, dust, oil, or water are mandatory, OCC offers the NEMA4X Fiber Optic Enclosures. These enclosures are designed to protect fiber optic networking components against environments where corrosive materials, caustic cleaners, and hazardous materials are used. Available in four sizes, the OCC OCO12NX is and indoor/outdoor rated cabinet for patching and/or splicing 12 ports. Constructed of molded fiberglass-reinforced polyester material, these enclosures are well suited for high and low temperature environments as well.

  • Features:

    • Adheres to the rigorous NEMA 4X standard for indoor or outdoor use, including extreme environments
    • Protects against windblown dust, rain, sleet, snow, splashing water, and hose-directed water
    • Corrosion-resistant
    • Constructed of strong molded fiberglass-reinforced polyester material with matching flat cover
    • Gasket made of closed cell neoprene cord encased in a continuous channel
    • Continuous stainless steel hinge Splice only and patch/splice boxes include splice block or splice tray(s)
    • Accepts any standard OCC fiber adapter plate
    • Includes tie wraps and Kurl Locks for cable management and security
    • Pole mounting options are available with a quick assembly and release feature
    • Temperature range of -40°F - 266°F


  • Item Includes:

    • 1x OCC OCO12NX NEMA4X 12-Port Fiber Enclosure - Indoor/Outdoor Use
