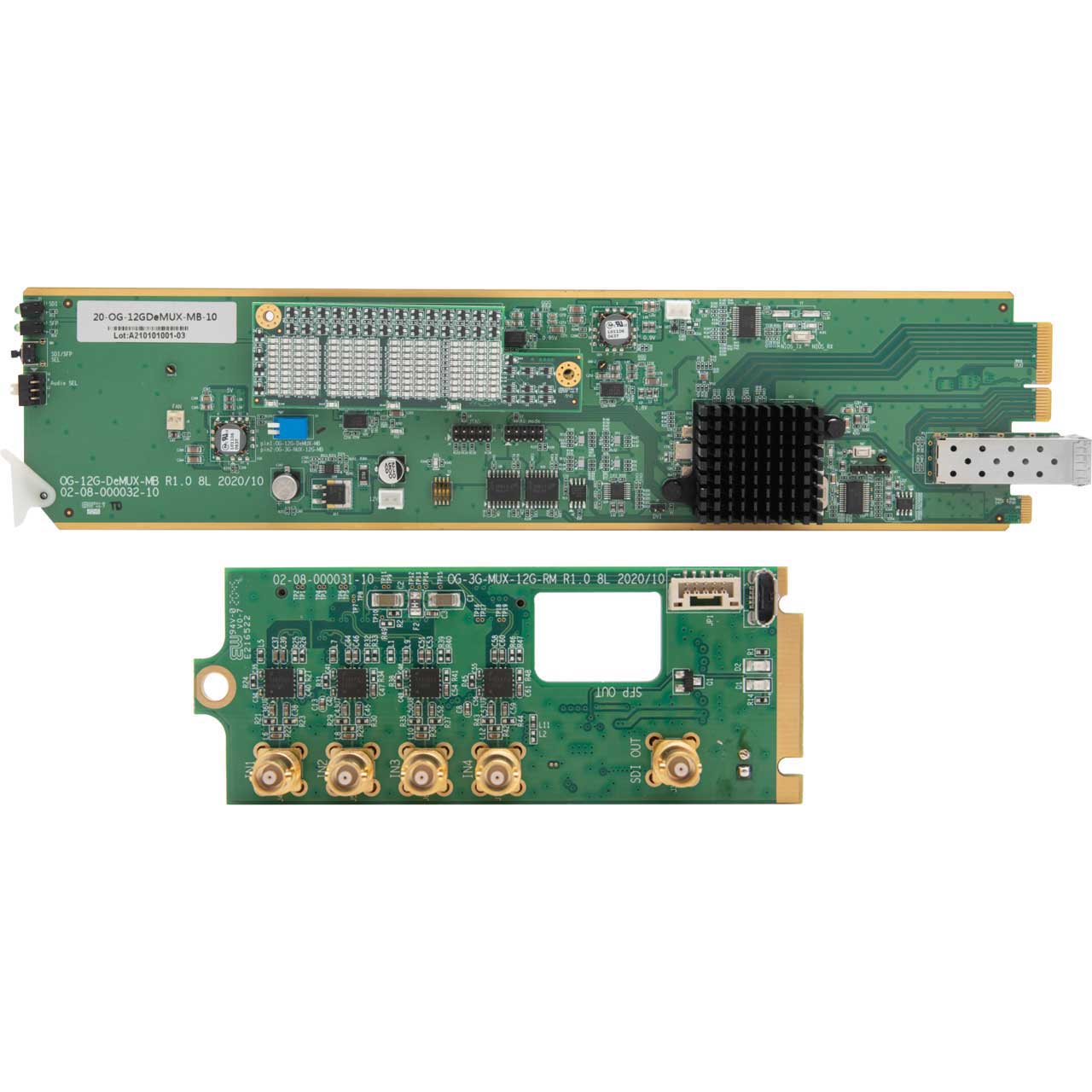

Apantac OG-12G-Demux-3G-SET-1 openGear Card Set with OG-12G-Demux-3G-RM Rear Module

OG-12G-DEMUX-3G-SET-1 - Overview

• Features:

  • OGX/3.0 card-based form factor
  • Dashboard control enabled
  • Supports one 12G SDI video input
  • Supports 4 x 3G output (quad link) in 2SI or Square Division
  • Analog audio output
  • Passes HDR from input to output
  • Optional 12G SDI fiber input via SFP
  • Low power consumption - less than 15W


• Specifications:

  • Description: 12G SDI to quad 3G SDI demux with down converted 3G SDI output
  • Inputs: 1 x 12G SDI input, optional fiber input
  • Outputs: Quad link 3G SDI output with a down converted 3G SDI output
  • Audio: Stereo Analog audio output
  • Control: Dashboard

    Rear Module (2 slots)
  • 1x 12G SDI input
  • 4 x 3G output (quad link)
  • 1 x 3G output (down converted)
  • 1x multi-pin audio output
  • Optional Fiber


• Item Includes:

  • 1x OG-12G-DeMux-3G-MB +
  • 1x OG-12G-DeMux-3G-RM


• Warranty:

  • 5 year limited
