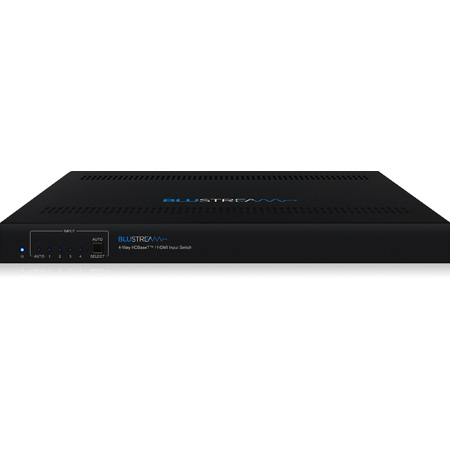

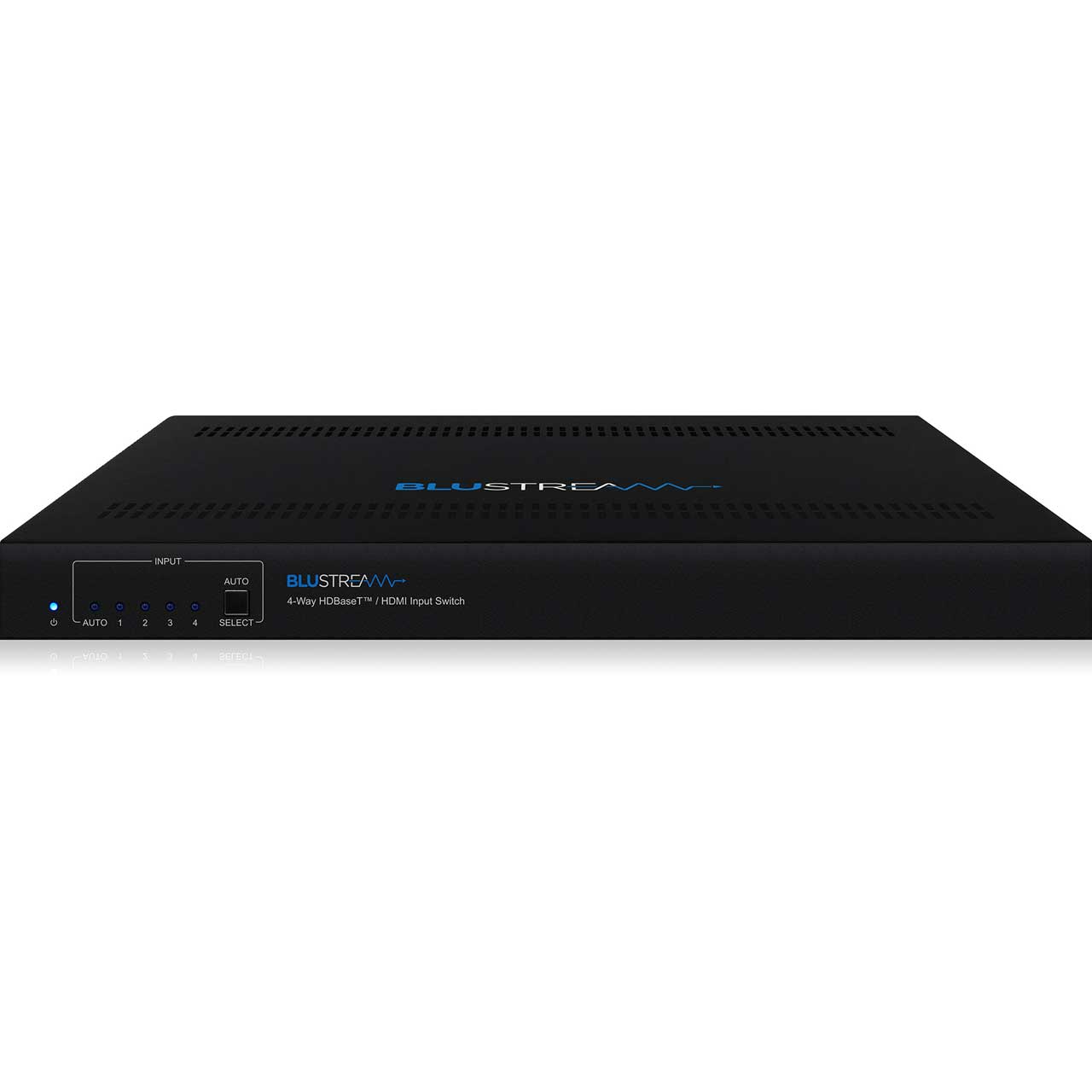

Blustream SW41HDBT 4x1 HDMI/HDBaseT 18G Switcher

SW41HDBT - Overview

• Features:

  • Features 2 x HDMI 2.0 and 2 x HDBaseT™ inputs which can be switched to simultaneous HDBaseT™ and HDMI outputs
  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 4K 30Hz 4:4:4/4K 60Hz 4:2:0 or 1080p on HDBaseT™
  • HDBaseT™ input supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0), HDBaseT™ output supports 4K UHD video up to 40m (3840 x 2160 @60Hz 4:4:4) with compatible CSC receiver*
  • Extends HDMI 1080p up to a distance of 70m from Transmitter to SW41HDBT, and up to 70m from SW41HDBT to Receiver
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Supports PoC when used with compatible 12V HDBaseT™ transmitters and receivers*
  • Compatible with all Blustream HDBaseT™ transmitters and receivers*
  • Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently
  • Web interface module for configuration and control of switch
  • Manual or auto source selection with control via front panel, IR, RS-232 and TCP/IP
  • Auto source selection supported by compatible Blustream HDBaseT™ transmitters only*
  • HDCP 2.2 compliant with advanced EDID management
  • * Technical performance is subject to the features supported on the connected HDBaseT™ transmitter / receiver


• Specifications:

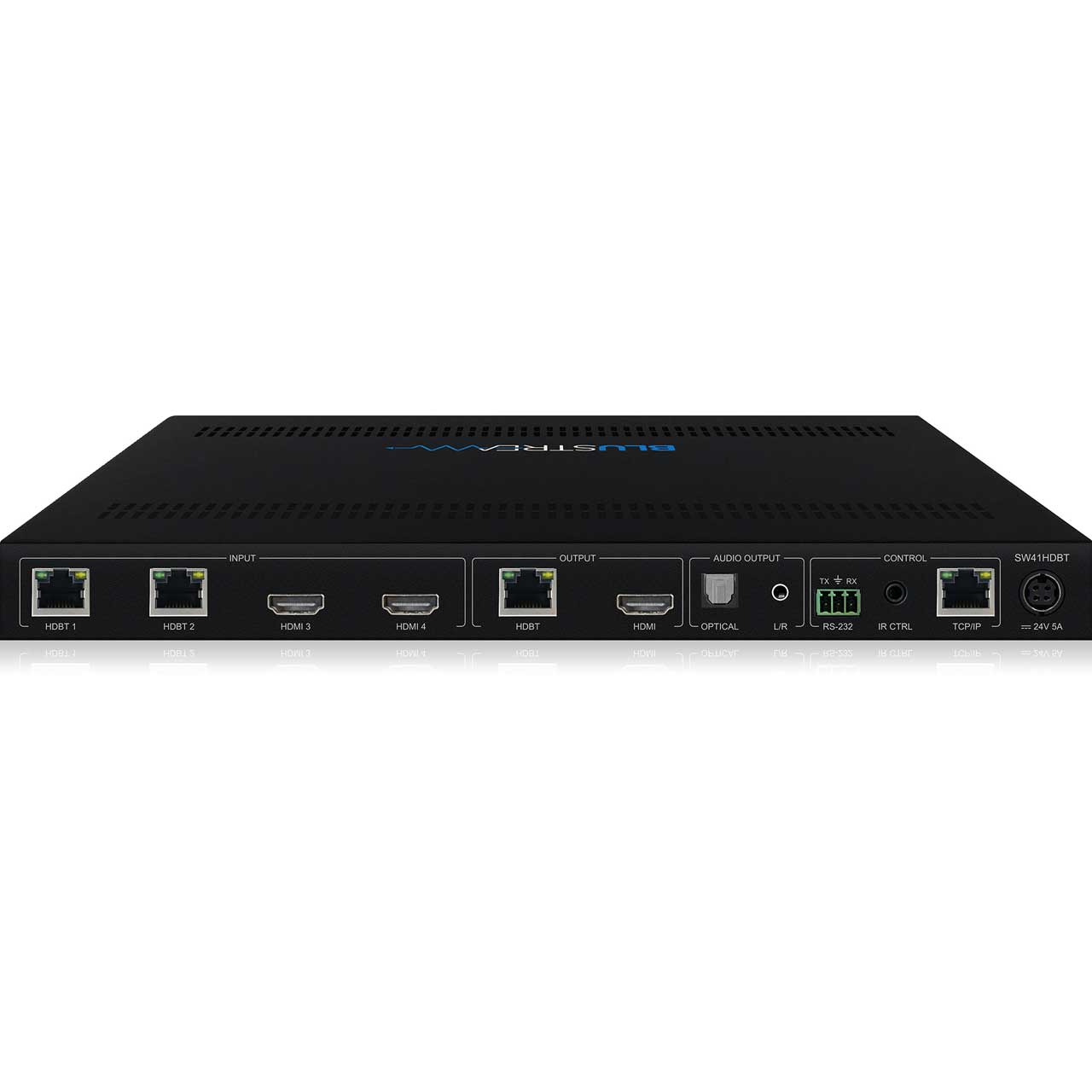

  • Video Input Connectors: 2 x HDMI Type A, 19-pin, female, 2 x HDBaseT™ RJ45 connector
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio
  • RS-232 Serial Port: 1 x 3-Pin Phoenix connector
  • TCP/IP Control: 1 x RJ45, female
  • IR Input Ports: 2 x 3.5mm stereo jack
  • Casing Dimensions (W x H x D): 305mm x 28mm x 220mm
  • Shipping Weight: 1.5kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 24V/5A DC


• Item Includes:

  • 1x SW41HDBT
  • 1x 24V/5A DC Power Supply
  • 1x IR Receiver
  • 1x IR Control Cable - 3.5mm - 3.5mm
  • 1x RS-232 Control Cable
  • 1x Mounting Kit
  • 1x Quick Reference Guide


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242003140
