Ocean Matrix OMX-HDMI2-AEE 4K HDMI 2.0 Audio Extractor and Embedder
  • Ocean Matrix OMX-HDMI2-AEE 4K HDMI 2.0 Audio Extractor and Embedder
  • Ocean Matrix OMX-HDMI2-AEE 4K HDMI 2.0 Audio Extractor and Embedder
  • Ocean Matrix OMX-HDMI2-AEE 4K HDMI 2.0 Audio Extractor and Embedder
  • Ocean Matrix OMX-HDMI2-AEE 4K HDMI 2.0 Audio Extractor and Embedder
  • Ocean Matrix OMX-HDMI2-AEE 4K HDMI 2.0 Audio Extractor and Embedder

Questions? Ask a Markertek Expert:
800-522-2025 Email

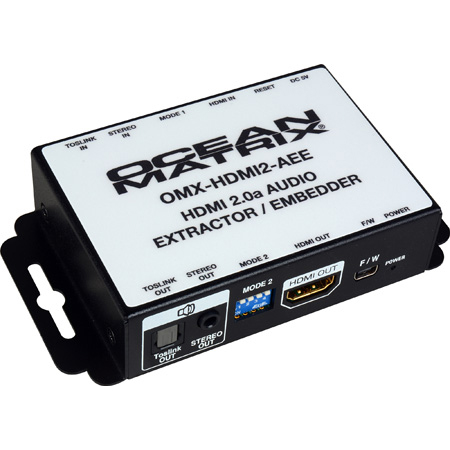

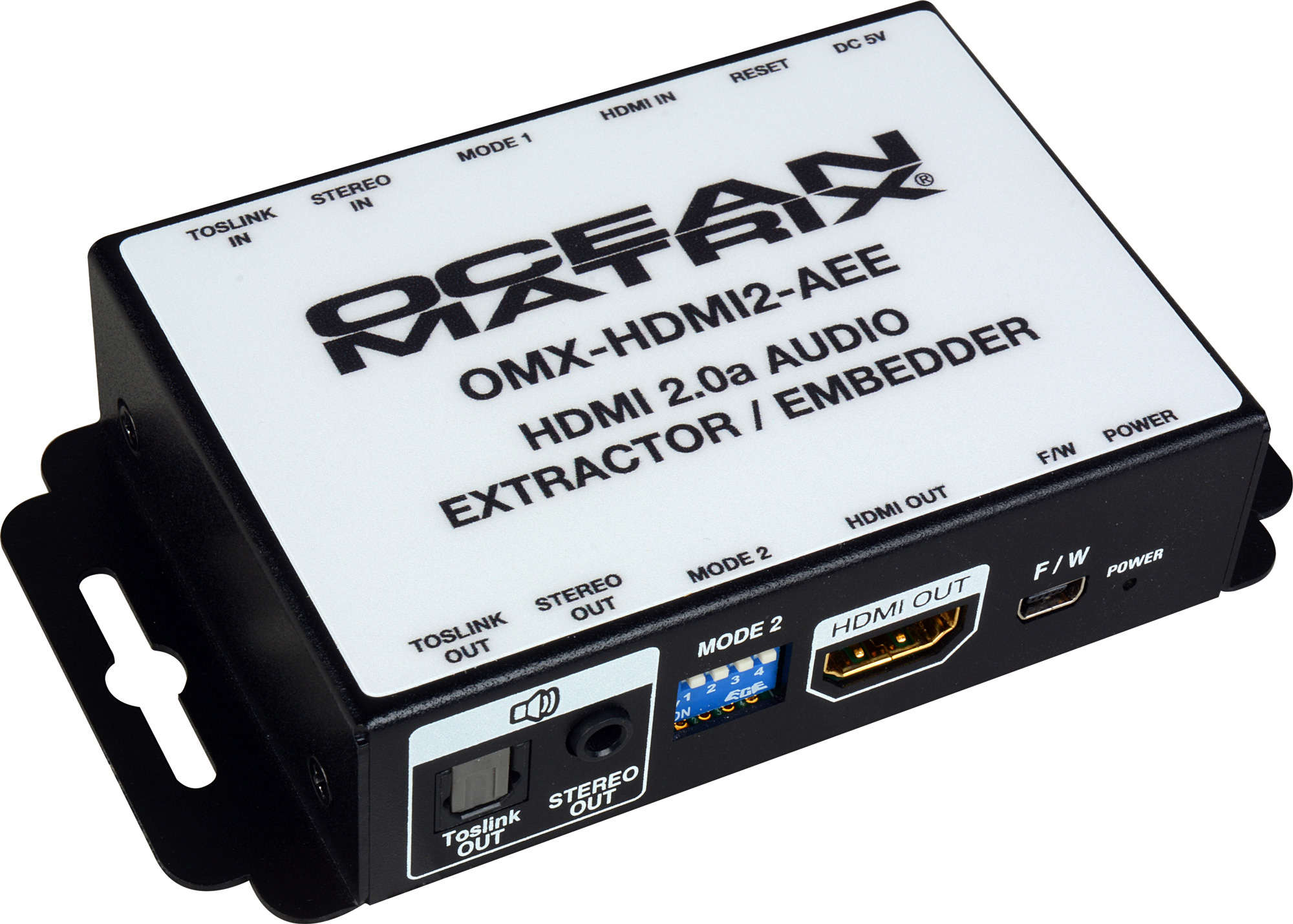

Ocean Matrix OMX-HDMI2-AEE 4K HDMI 2.0 Audio Extractor and Embedder

Manufacturer: Ocean Matrix

Item #: OMX-HDMI2-AEE   •   MFG #: OMX-HDMI2-AEE



List Price:$235.00
Our Price:$221.00

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!





    The next generation of HDMI Audio Extractors/Embedders from Ocean Matrix, the HDMI2-AEE delivers 18G bandwidth to support the HDMI 2.0 specification.

    What separates the HDMI2-AEE from the many one-way devices on the market is its dual functionality as both an audio extractor/de-embedder and an audio embedder/inserter. Audio can be extracted to both L/R analog stereo audio (3.5mm) and S/PDIF digital audio (Toslink). These same outputs are offered on the input side for embedding audio into the HDMI stream making it ideal for presenters.

    Video support includes HDR [email protected] in addition to audio support for PCM2/5, Dolby 5.1/7.1 and DTS 5.1/7.1.


    • Features

      • Extracts Audio Signals from an HDMI Source
      • Embeds Audio into an HDMI Signal from Analog or Digital Audio Source
      • Supports 4K2K and HDR
      • Supports ARC Audio Extraction and CEC Bypass

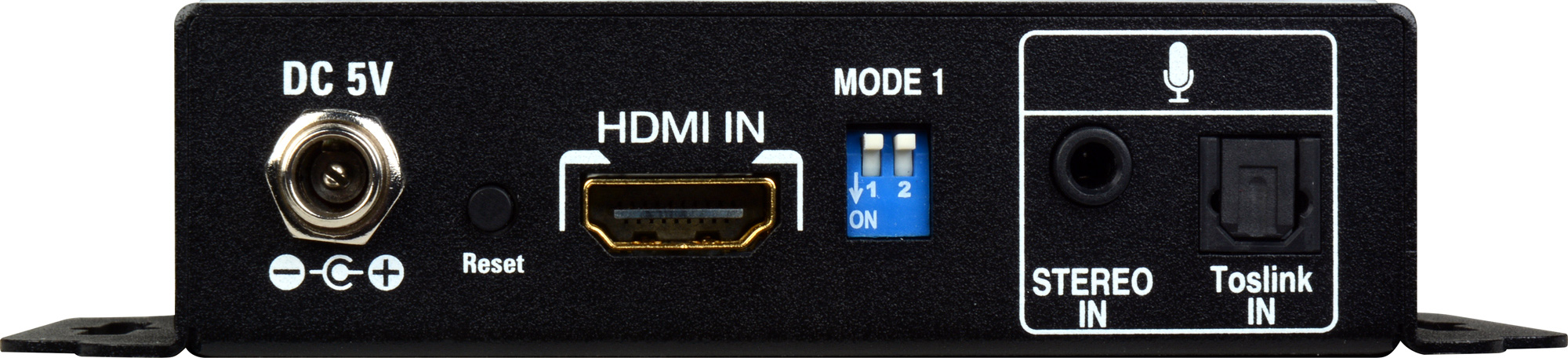

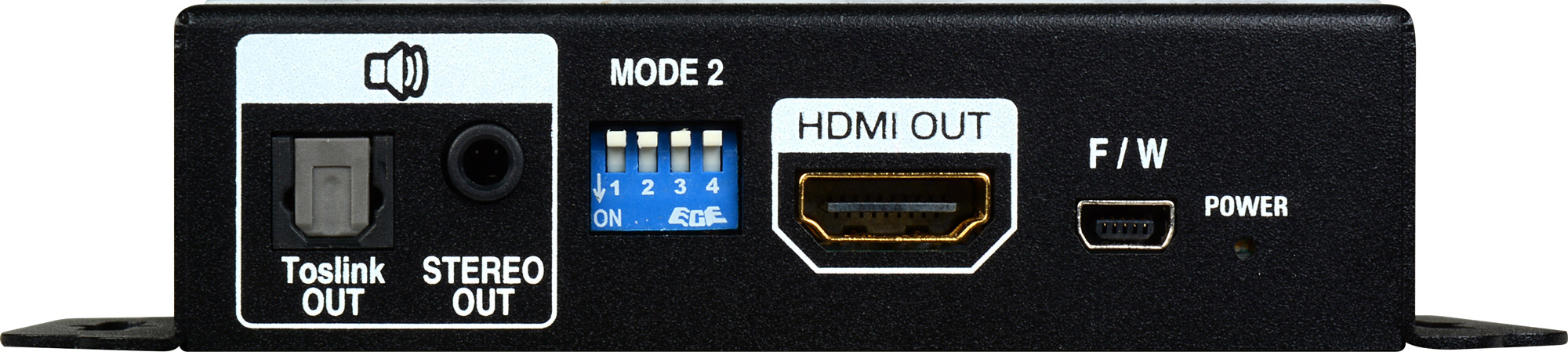

      • Toslink S/PDIF and 3.5mm Stereo Inputs and Outputs
      • External Dipswitches Control Embedder & Extractor Functions

    • Specifications

      • HDMI 2.0a and HDCP 2.2 Compliant
      • Supports: [email protected] 4:4:4 8bits, HDR [email protected] 4:2:0 10bits
      • Video Bandwidth: Single Link 594MHz (18Gbps)
      • HDMI Audio Format: PCM2/5.1/7.1, Dolby 5.1/7.1, DTS 5.1/7.1
      • Optical Audio Format: PCM2, Dolby 5.1
      • Dimensions: 5x2.6x1 in/127x67x27mm
      • Weight: 6.3 oz/178g

    • Item Includes

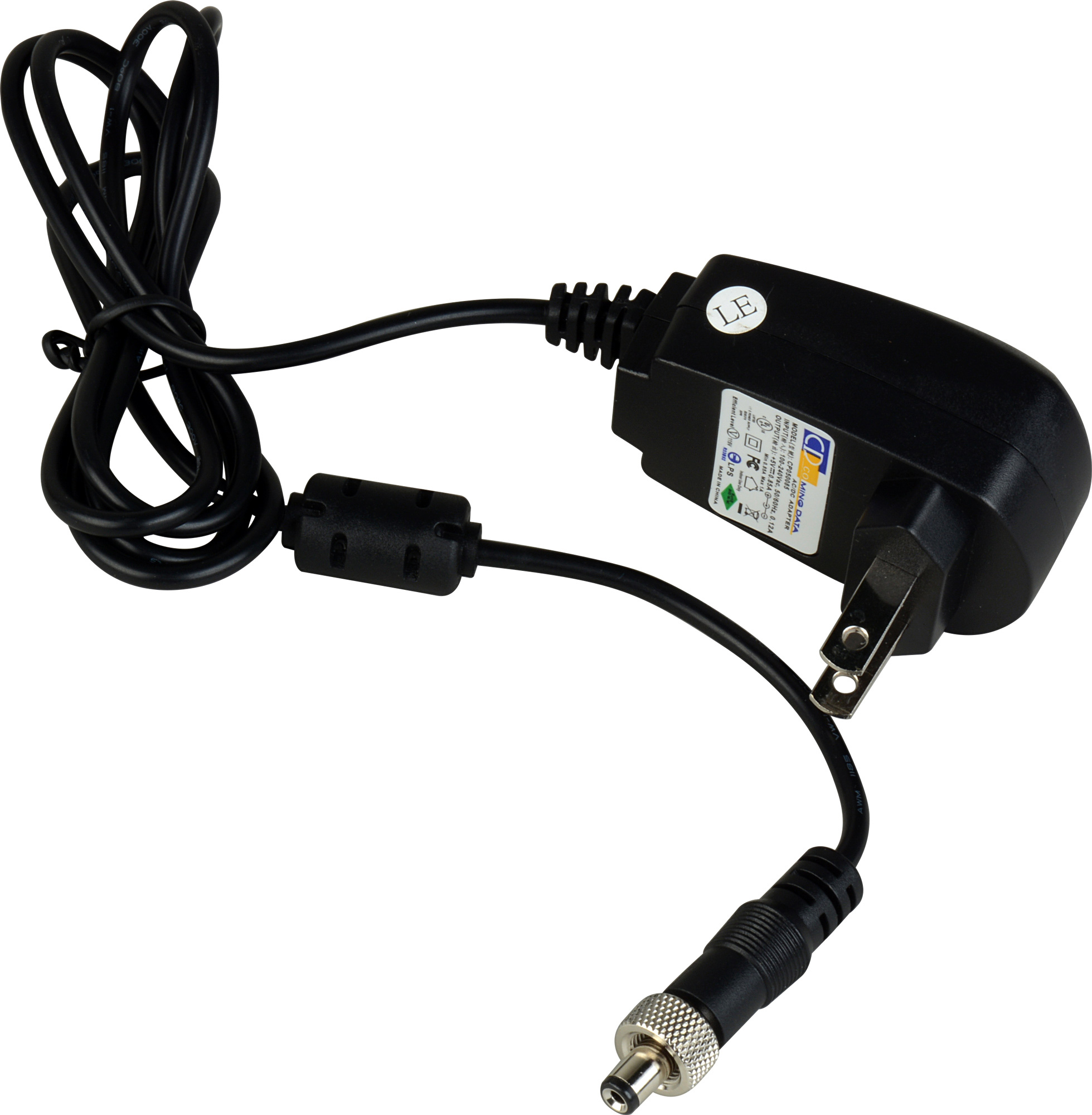

      • 5VDC/0.85A Power Adapter

    • Warranty

      • 1 Year
