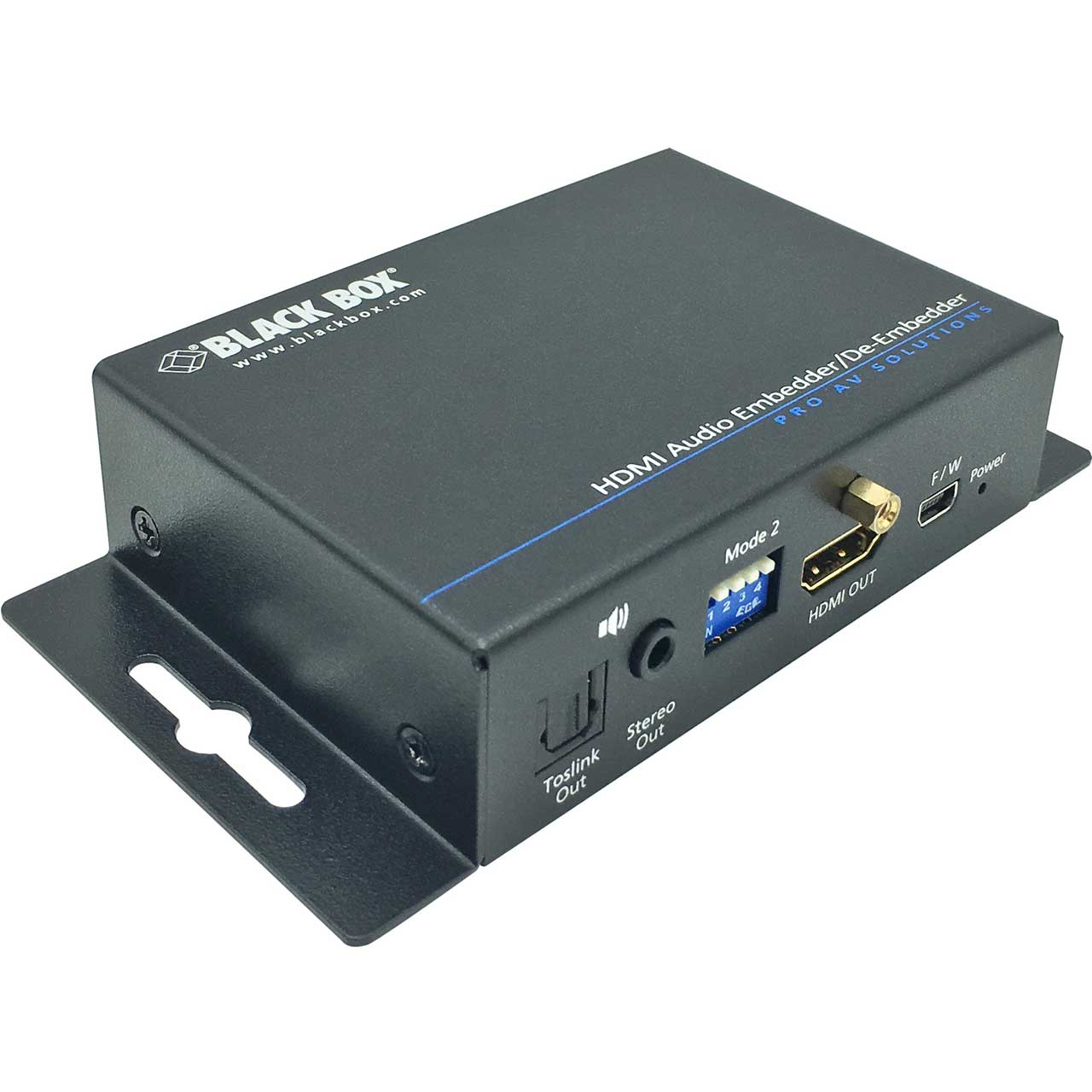

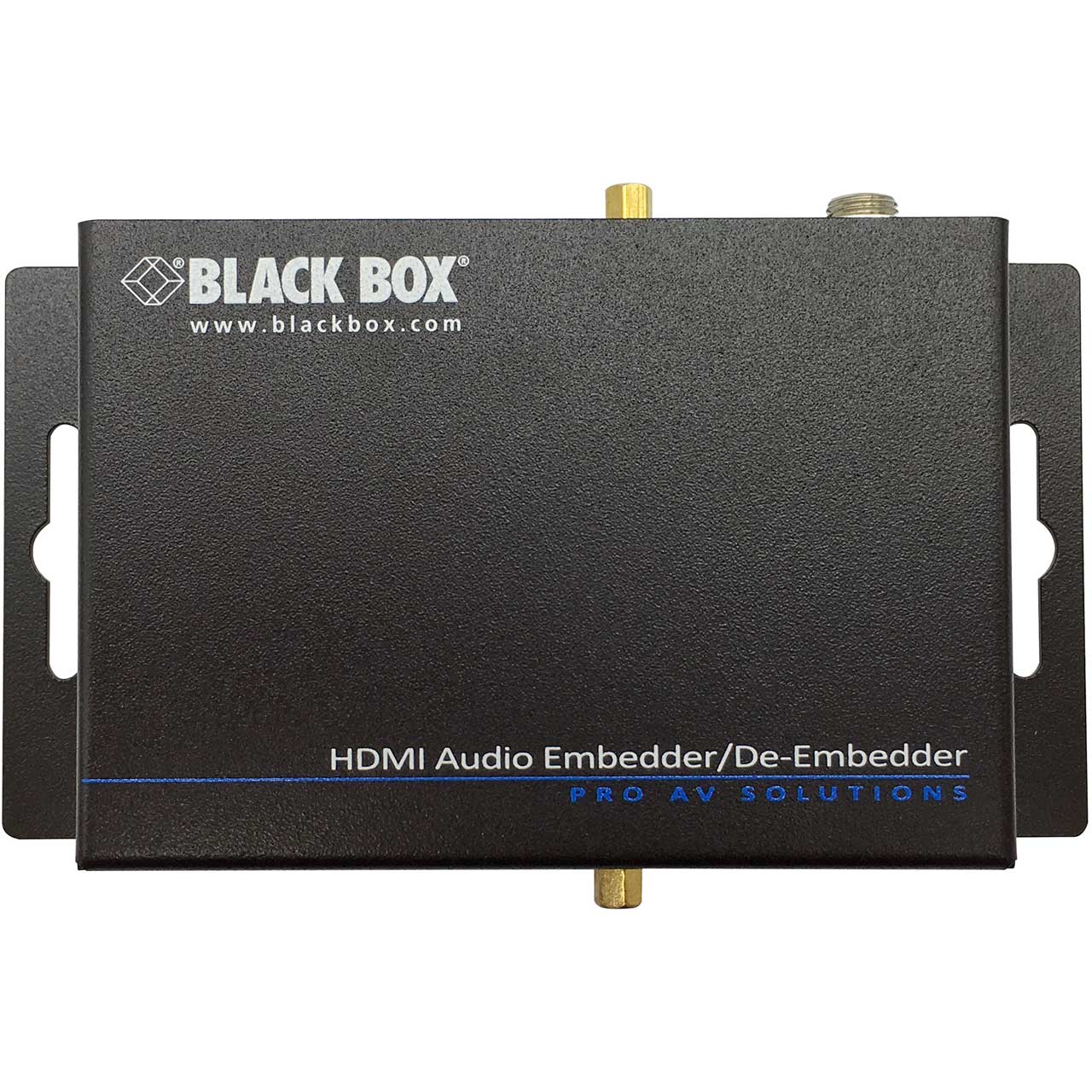

Black Box AEMEX-HDMI-R2 HDMI Audio Embedder/De-embedder


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    AEMEX-HDMI-R2 - Overview

    The AEMEX-HDMI-R2 is an Audio Embedder/De-embedder with HDMI 2.0 capability. You can create audio channels where there was not an existing one, de-embed audio from an HDMI signal and output it to 3.5-mm analog or digital optical sound system and can also de-embed audio without being connected to an HDMI display. This also supports embedding and de-embedding at the same time.

    • Features:

      • Supports HDMI, 3.5-mm analog audio, and TOSLINK optical audio inputs and outputs
      • Supports resolutions of up to 4K at 60 Hz in 4:4:4 color
      • Embeds audio from either a 3.5-mm or optical source to an HDMI or DVI-D signal
      • Controlled through simple DIP switch configuration
    • Specifications:

      • Compliance: FCC
      • Altitude: 10,000ft. (3125m), maximum
      • Approvals: CE, FCC, RoHS2, WEEE, UL
      • Audio Support: Supports HDMI, 3.5mm analog audio, TOSLINK optical audio inputs and outputs; Embeds audio from either 3.5mm or optical source to an HDMI or DVI-D signal
      • CECC Channel: Bypass
      • Connectors: Input: (1) screw lock barrel power connector, (1) USB mini for power and firmware upgrades, (1) HDMI, (1) 3.5mm analog audio, (1) TOSlinkdigital optical audio; Output: (1) HDMI, (1) 3.5mm analog audio, (1) digital optical audio
      • Dimensions: 1.03"H x 3.74"W x 2.61"D (2.61cm x 9.49cm x 6.62cm)
      • ESD Protection: Human body model: ±19kV (air-gap discharge) and 12kV (contact discharge); Core chipset: ±2kV
      • Humidity: 20% to 90%, non-condensing
      • Material: Enclosure: Metal
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • PCB Stackup: 4-layer board (impedance controldifferential 100Ω, single 50Ω)
      • Power: Wallwart style; Input: 100-240VAC, 50-60Hz, 0.58Amp; Output: 5-VDC, 4-Amp locking barrel plug
      • Resolution: 4K at 60Hz 4:4:4
      • Storage Temperature: -4° to 104°F (-20° to 60°C);
      • User Controls: (1) 2-position DIP switch, (1) 4-position DIP switch
      • Video Bandwidth: Single-link 594MHz (18Gbps)
      • Video Support: Up to 4K @ 60Hz in 4:4:4 color
      • Weight: 0.57lb (0.26kg)
      • NOTE(s): When de-embedding audio without using an HDMI output, the unit must be powered up without the HDMI out connected. If you power the unit with HDMI connected and then disconnect it, audio will drop.
    • Item Includes:

      • (1) Audio embedder/de-embedder
      • (1) 5-Volt, 4-Amp power supply with adapter clips
      • (2) Mounting screws
      • User Manual
    • Warranty:

      • 3 year
