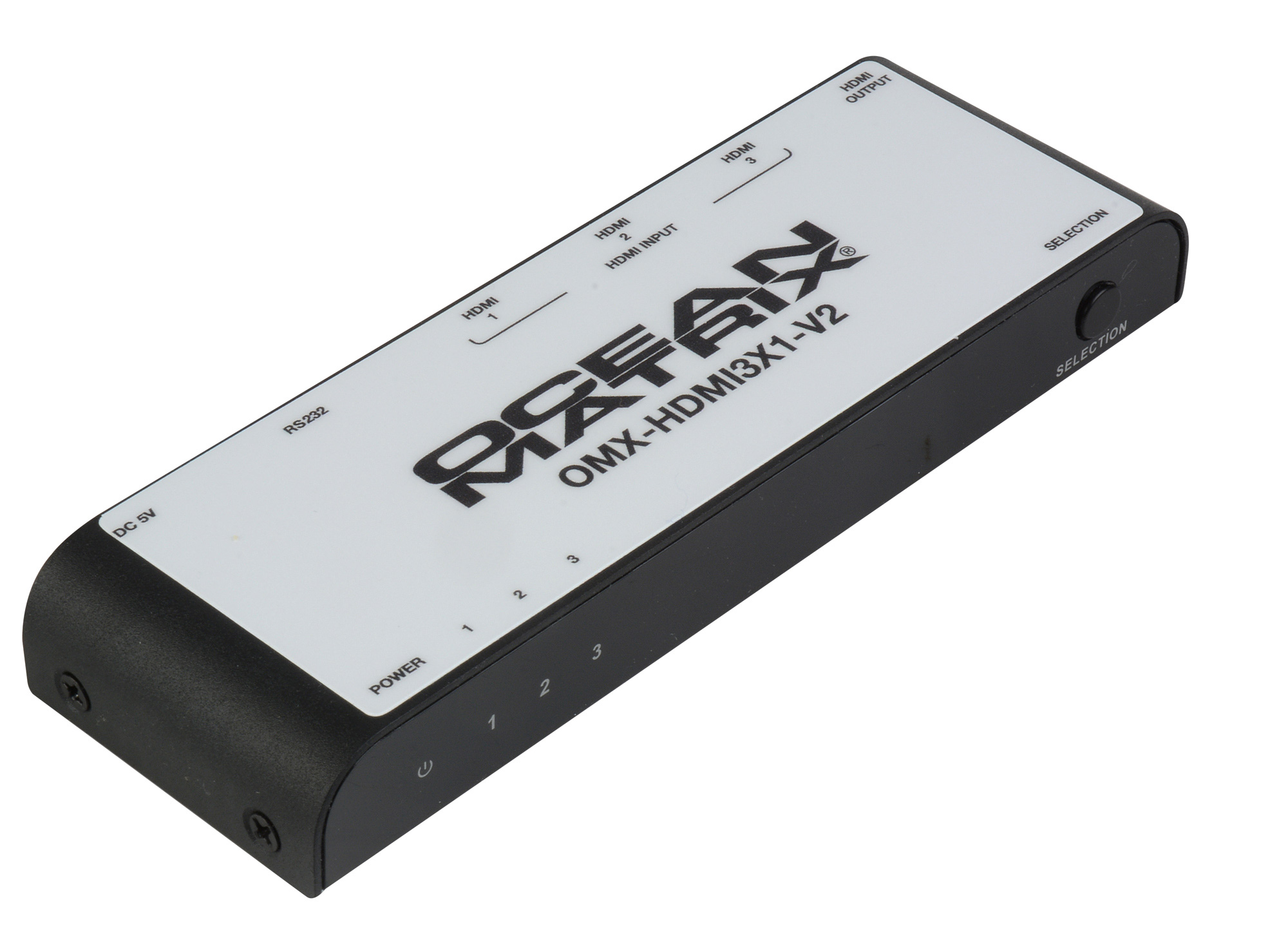

Ocean Matrix OMX-HDMI3X1-V2 4K/UHD 3x1 HDMI 2.0 Switcher with Remote Control


Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the OMX-HDMI3X1-V2

OMX-HDMI3X1-V2 - Overview

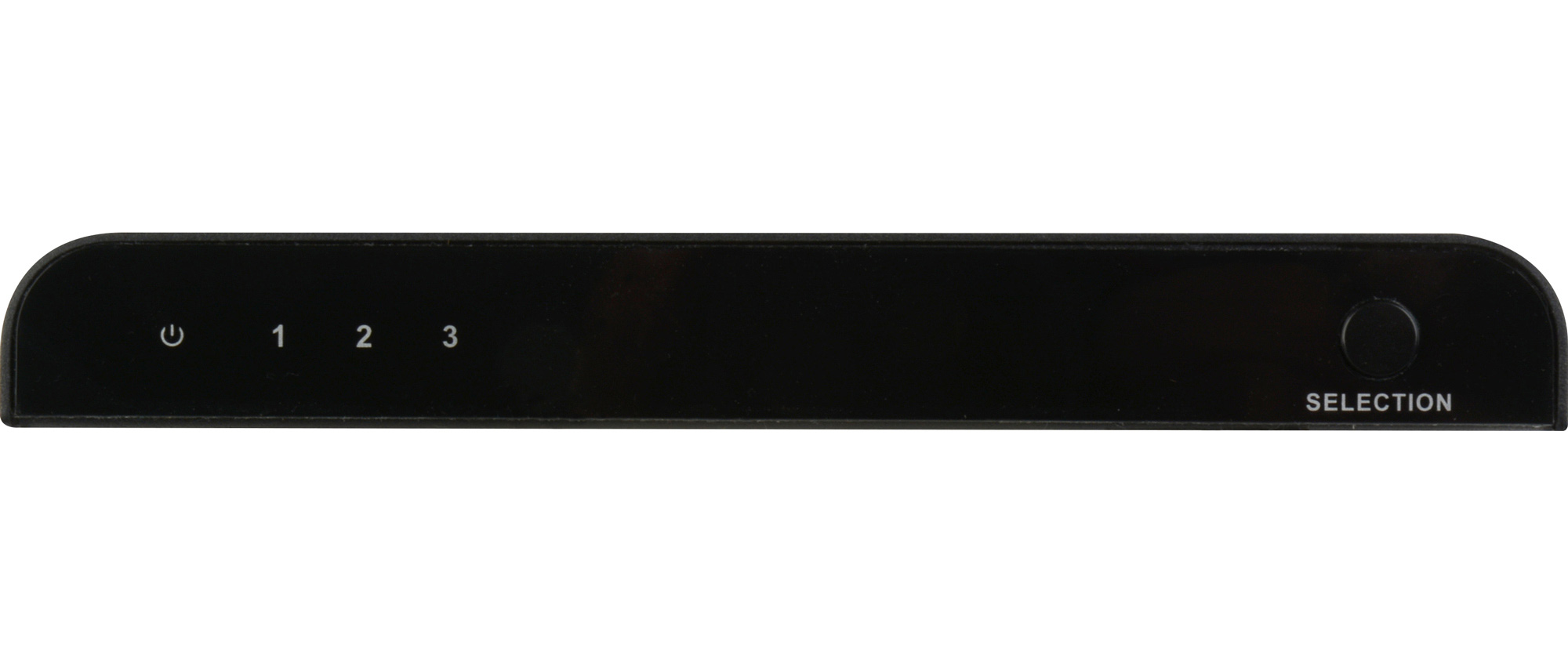

The simple solution for switching between three different 4K UHD HDMI sources is the Ocean Matrix OMX-HDMI3X1-V2. Front panel, handheld remote or RS232 control or allow you to select between three sources and route 4K signal to a single display, projection system, digital signage system or HDMI extender. The unit supports resolutions up to 4Kx2K (4096 x 2160) from cameras, digital signage players, gaming consoles, set top boxes, Blu-Ray players and more.

HDMI source selection can be controlled by the included remote or by the RS232 serial port on the switcher. The OMX-HDMI-3X1-V2 accommodates bandwidth up to 18Gbps, has a baud rate of 9600bps and handles standard audio, Direct Stream Digital and HD(HBR). It also supports HDMI 2.0 standards as well as HDCP 2.2.

  • Features:

    • Supports HDMI resolution up to 4K x 2K@60HZ and HDMI 3D

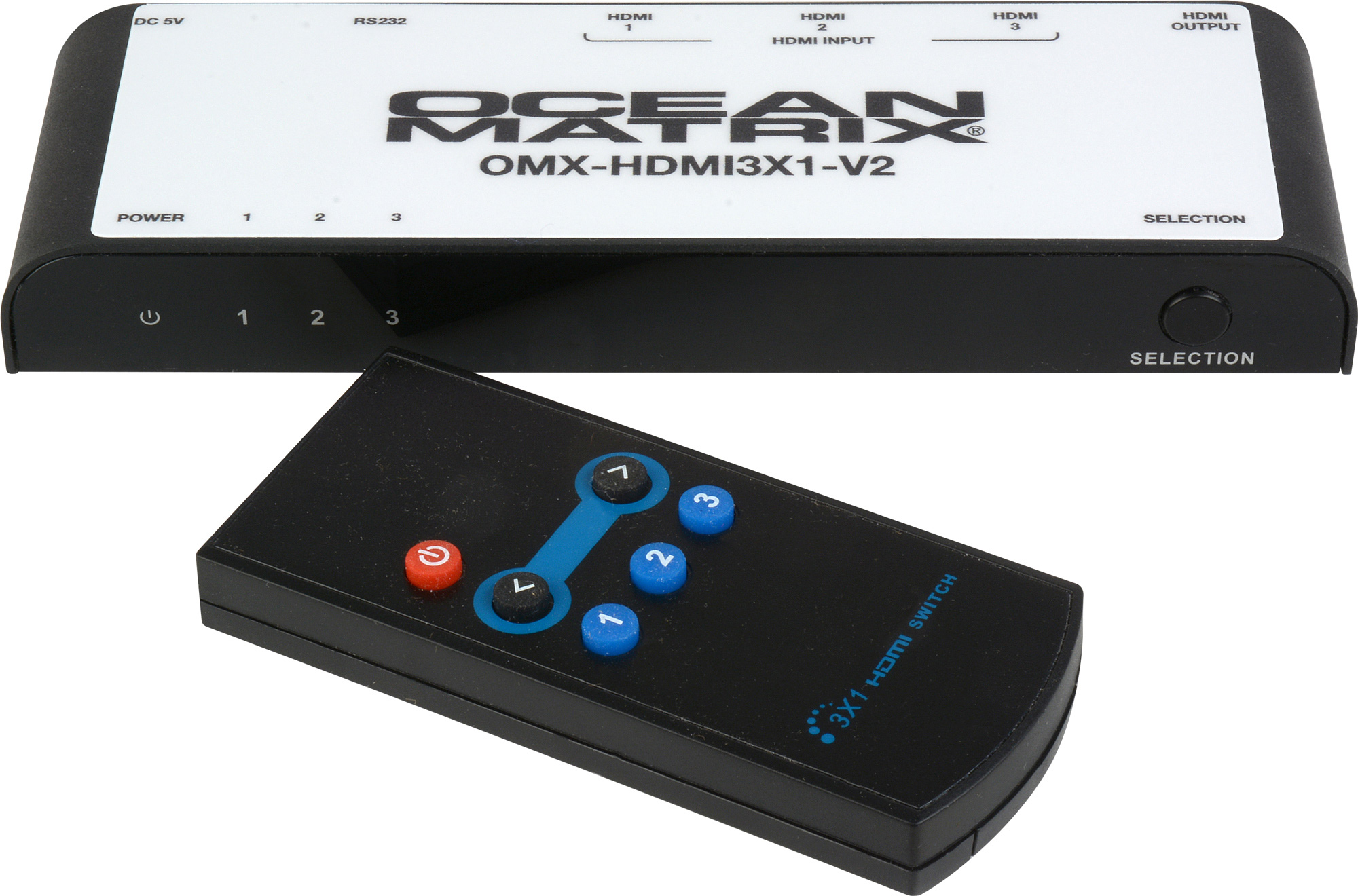

    • Input signal can be switched by remote control
    • Supports bandwidth up to 18Gpbs
    • RS232 serial port, baud rate 9600bps
    • Audio: standard, Direct Stream Digital, and HD(HBR)
  • Specifications:

    • Support 12 bit full HD video, 3D video and 4Kx2K@30/60Hz ultra HD video
    • HDMI Resolutions: 480i/480p/756i/756p/720p/1080i/1080p/4Kx2K@24/25/30/60Hz
    • Compatible with DVI1.0, HDMI1.4, HDMI2.0/ HDCP1.4, HDCP2.2

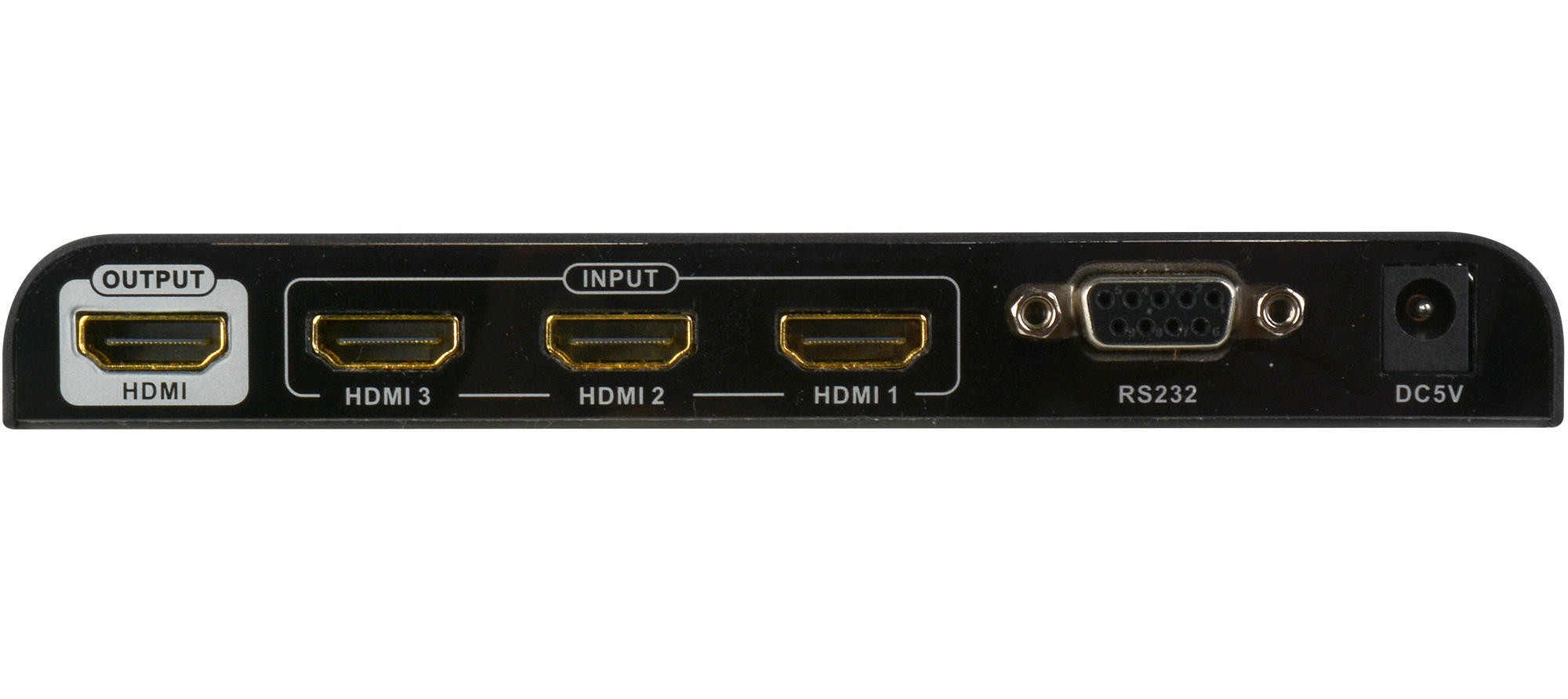

    • Input port: 3- HDMI / Output ports: 1 - HDMI
    • TMDS Signal: 0.5-1.5Vp-p(TMDS)
    • DDC Signal: 5Vp-p(TTL)
    • Power Consumption: 5W
    • Dimensions (WxDxH): 6.3x2.0x0.79in/160x51.5x20mm
    • Weight: 8 oz/230 g
  • Item Includes:

    • Remote Control
    • 5VDC/1A Power Supply
  • Warranty:

    • 1 Year
