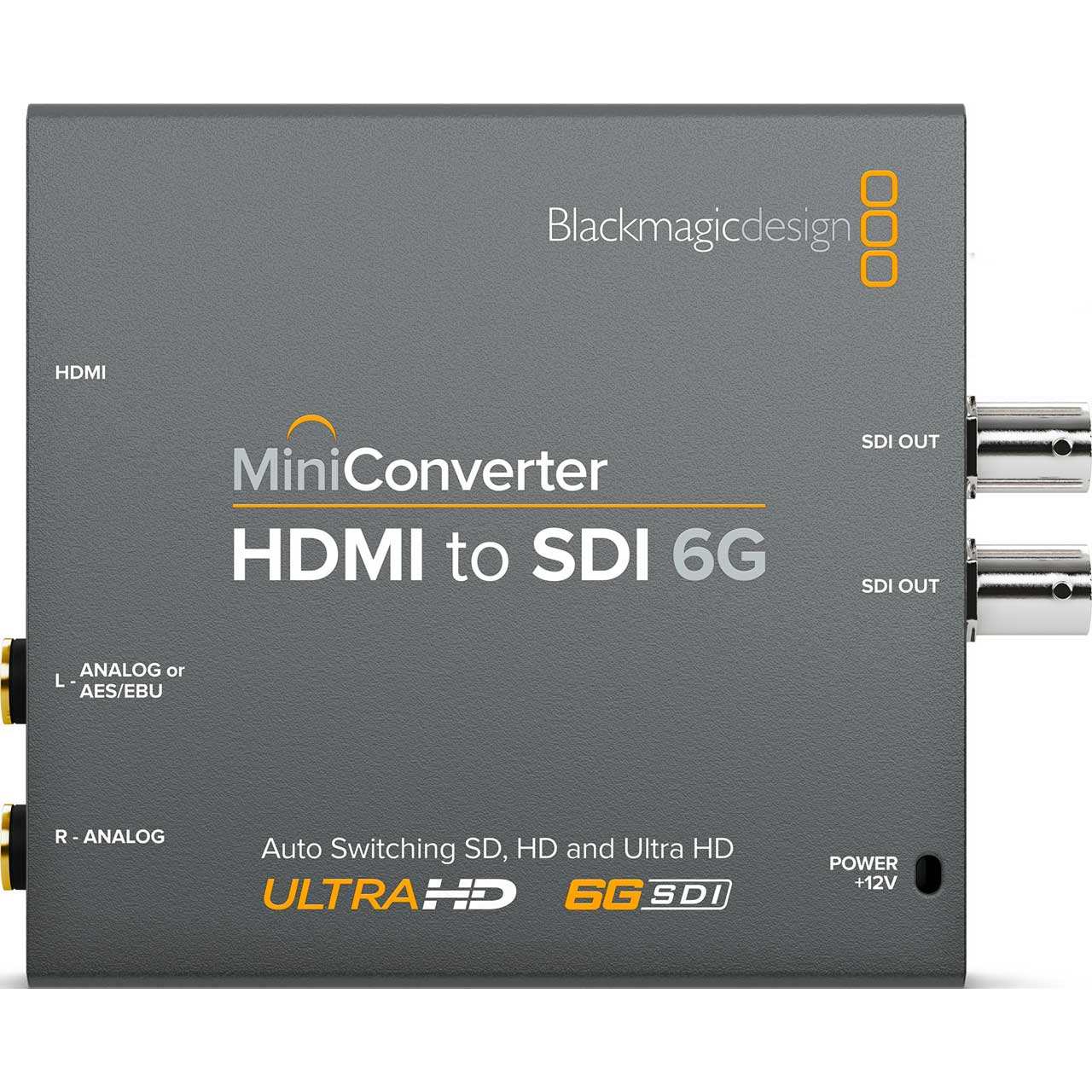

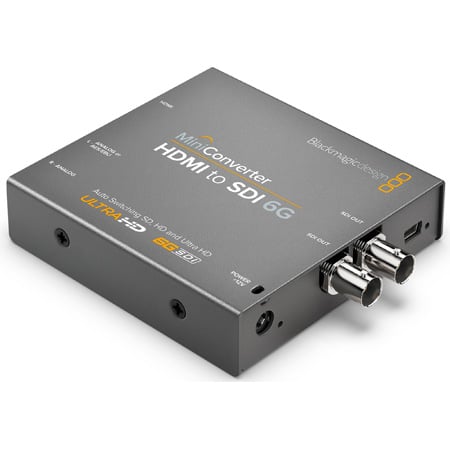

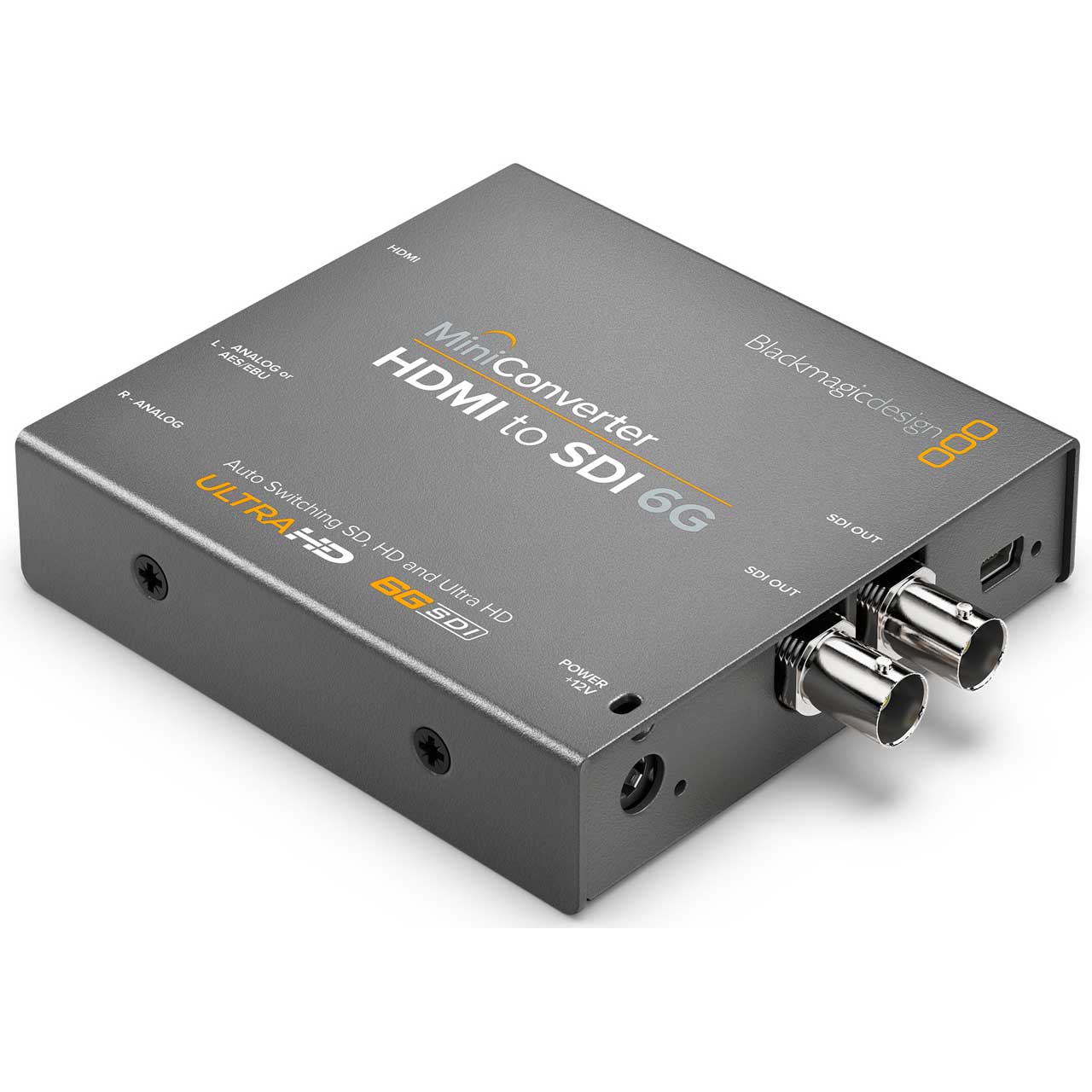

Blackmagic Design CONVMBHS24K6G Mini Converter - HDMI to SDI 6G

ITEM #: BMD-CONVMBHS24K6 MFG #: CONVMBHS24K6G

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$155.00

Availability: In Stock
iAvailability Description Popup


    CONVMBHS24K6G - Overview

    Blackmagic Mini Converters are designed to be used anywhere! The Mini Converter HDMI to SDI 6G is everything you need to convert from HDMI devices to SDI video in SD, HD and Ultra HD video formats. With independent audio connections you can also embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Mini Converter HDMI to SDI 6G is the perfect solution to convert HDMI consumer cameras or computers to broadcast quality SDI!

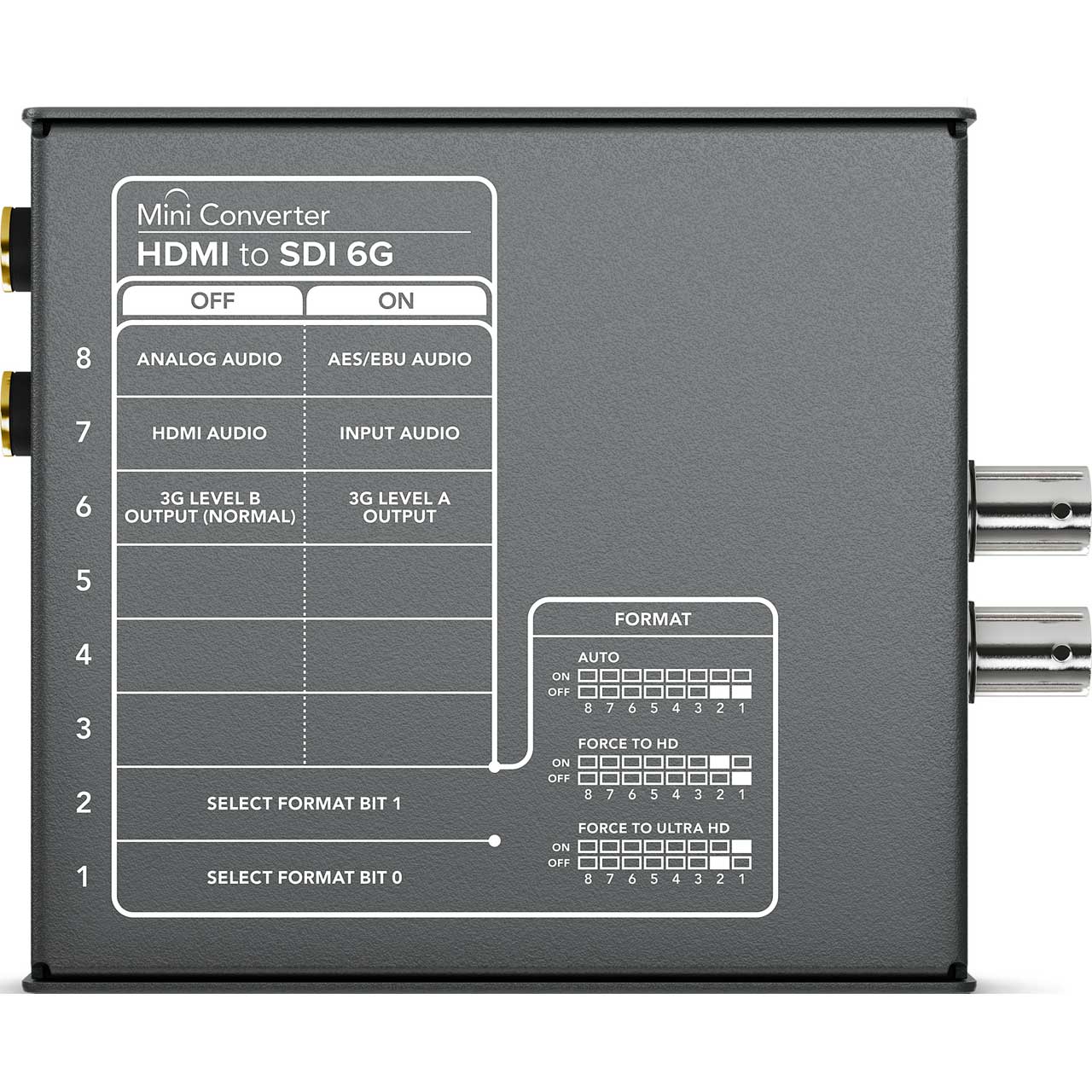

    Put them in equipment racks in the studio, on news trucks, in Fly Kits, use them outside for live events, no matter where your need them Mini Converters have a straightforward, compact design that makes them easy to use and super reliable for 24/7 operation. The built in connections are easy to access and use standard cables, plus all models feature built in mini switches to quickly change settings. There's even a diagram with switch settings printed on the back so you never have to look for the manual!

    • Specifications:

      • Connections:
      • SDI Video Output: s2 x SDI Video Outputs. Automatically matches the SD, HD and 6G-SDI HDMI video input.
      • HDMI Video Inputs: HDMI type A in
      • Analog Audio Inputs: 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
      • Digital Audio Inputs: 4 channels of AES/EBU digital audio.
      • Multi Rate Support: Auto detection of SD, HD or 6G-SDI.
      • Updates and Configuration: USB
      • Reclocking: Yes

        Standards
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards: 720p50, 720p59.94, 720p60
      • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
      • 1080i50, 1080i59.94, 1080i60
      • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
      • 4K Video Standards: 4K DCI p24
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601.
      • SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
      • SDI Video Sampling: 4:2:2
      • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
      • SDI Color Precision: 4:2:2
      • SDI Color Space: YUV
      • SDI Auto Switching: Automatically detects SD, HD or 6G-SDI.
      • HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,1080i50, 1080i59.94, 1080i60
      • HDMI Color Space: YUV and RGB
      • HDMI Color Precision: 4:2:2 and 4:4:4
      • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
      • Format Conversion: HD down conversion

        Software
      • Software Control: Mac OS X ™ and Windows ™ software upgrade via USB.
      • Internal Software Upgrade: Via included updater application.
      • Operating Systems: macOS 10.12 Sierra, macOS 10.13 High Sierra or later, Windows 8.1 or Windows 10.
      • Settings Control: Mini Switches or USB software.


      • Power Requirements
      • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
      • Power Consumption: 4.44 Watts
      • Operational Voltage Range: 12 - 31V DC

    • Item Includes:

      • Mini Converter HDMI to SDI 6G
      • 12V universal power supply with international socket adapters

    • Warranty:

      • 3 Year Limited Manufacturer's Warranty.

    • GTIN:

      9338716005165
