Ophit 19RM-001 2RU 19 Inch Rackmount for up to 8 FTDS/FTHS 4K Optical Extenders

ITEM #: OPHI-19RM-001 MFG #: 19RM-001

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$2,340.00

Our Price:

$1,560.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    19RM-001 - Overview

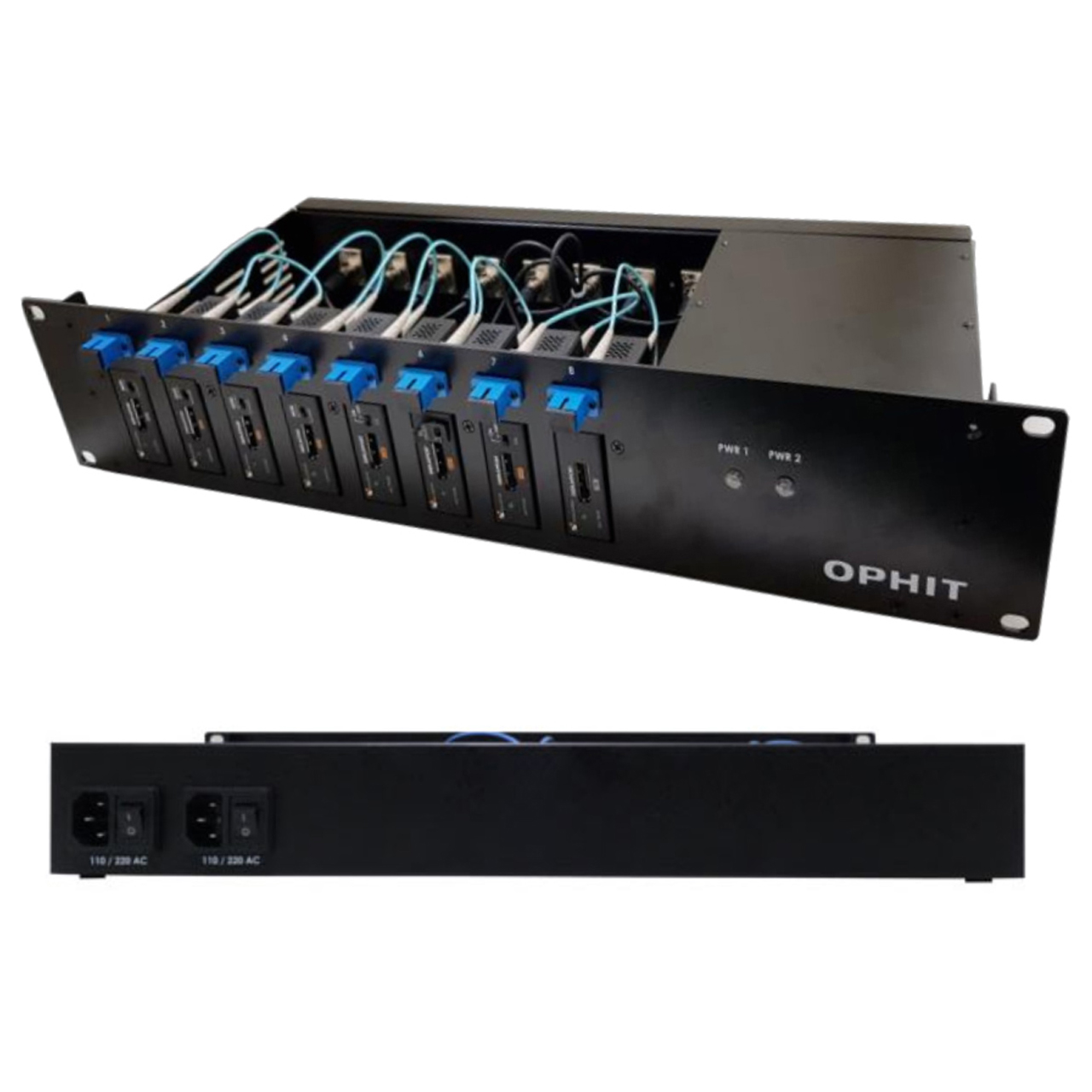

    The Ophit 19RM-001 is a 19-inch rack mounting structure that offers the flexibility to mount up to eight(8) 4K Optical Extenders (sold separately) installed at the same time. 4K Optical Extenders mounted on the 19RM-001 can be simultaneously powered.

    With two built-in AC/DC power supplies, it can reliably supply DC power to 4K Optical Extenders, even if one fails. Up to 8 OPHIT 4K Optical Extenders (FTDS or FTHS) can be installed, and it is possible to mix and match the transmitter/receiver according to the user use. The 19RM-001 can be easily mounted and fixed to a commonly used 19-inch rack using the screw hole on the front part.

    • Features:

      • 19 inches 2RU size (Four screw holes on the front, can be mounted on commercial 19-inch rack)
      • Dual AC/DC power supply (power sharing)
      • Up to 8 OPHIT's 4K Optical Extender (FTDS, FTHS) can be installed.
      • 8 SC-type optical connectors on the front. (OM3, Up to 200m)
      • Power state indicates LED x 2 ( Each per AC/DC power supply)
      • Eight DC cables that can be removed/installed are installed inside.
      • Eight OM3 cables (22cm) that can be removed/installed are installed inside.

    • Specifications:

      • Power Input:
        - Voltage Range: 90V - 264V AC
        - Frequency Range: 47Hz - 63Hz
      • Leakage Current (max): Earth < 130uA/264VAC
      • Power Output:
        - DC Voltage: 5V (10A)
        - Current Range: 0A - 11A
        - Rated Power: 50W. Total Power consumption (in case, eight 4K Extender installed).
        - Power: 5V DC, Max. 2.2A
      • Inside Installed Optical Cable: OM3, 22cm, 8EA, Can be detached inside installed electric cables. Circular type, 15cm, 8EA can be detached.
      • Construction Features:
        - Front: 8x SC Type Jack, 2x LED, 4x Screw hole
        - Back: 2x AC Jack
        - Inside: 8x DC Jack, 8x SC Type Jack
      • Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
      • Storage Temperature Range: 14°F - 158°F (-10°C - 70°C)

    • Item Includes:

      • 1x Ophit 19RM-001 2RU 19 Inch Rackmount for up to FTDS/FTHS 4K Optical Extenders
