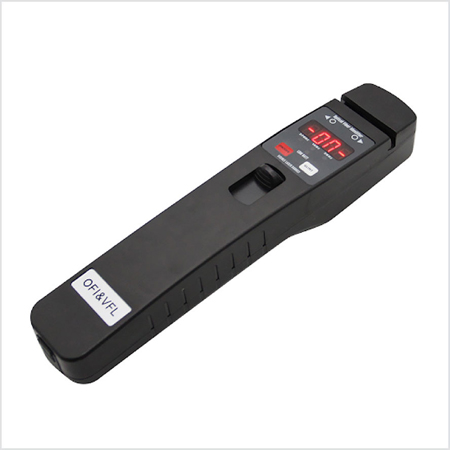

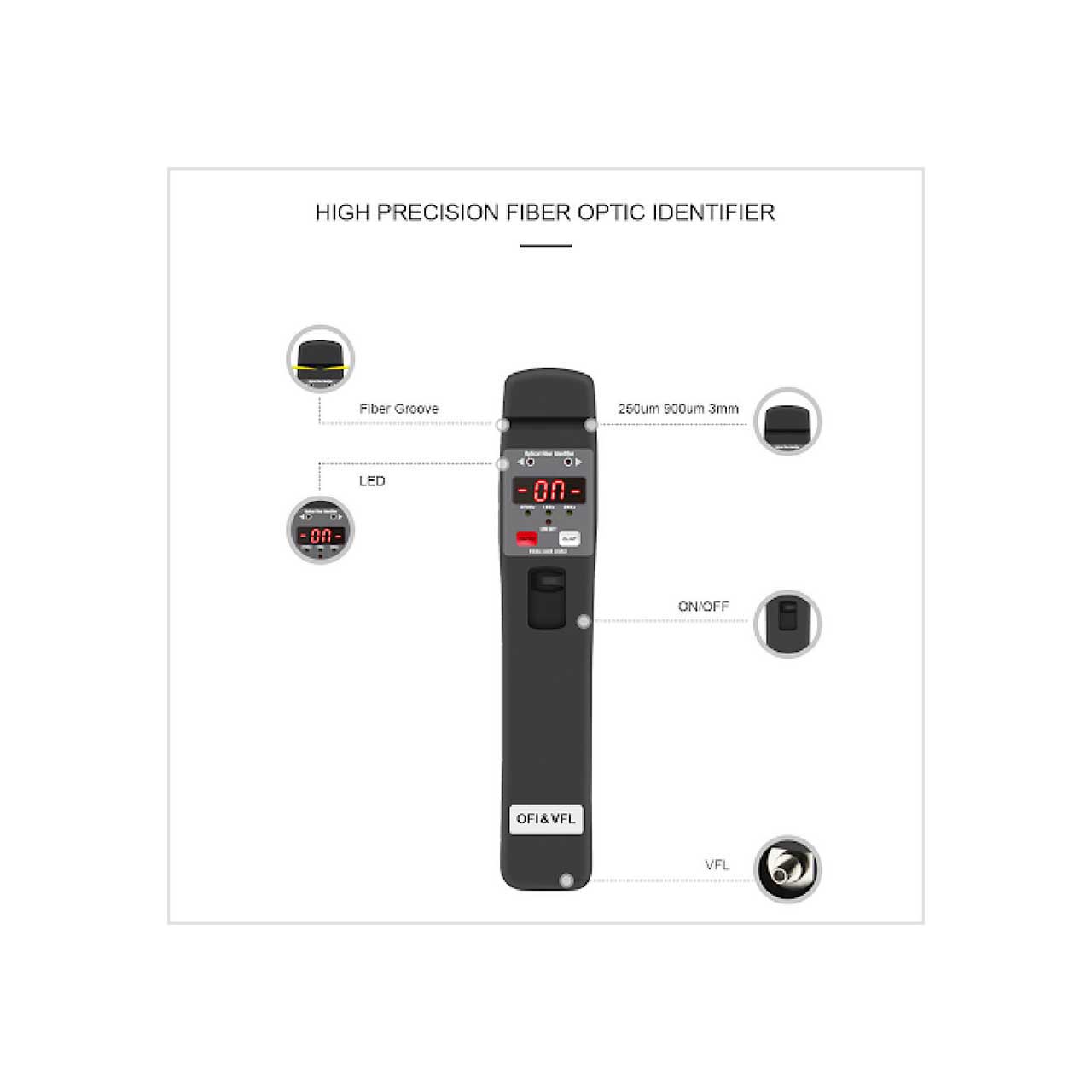

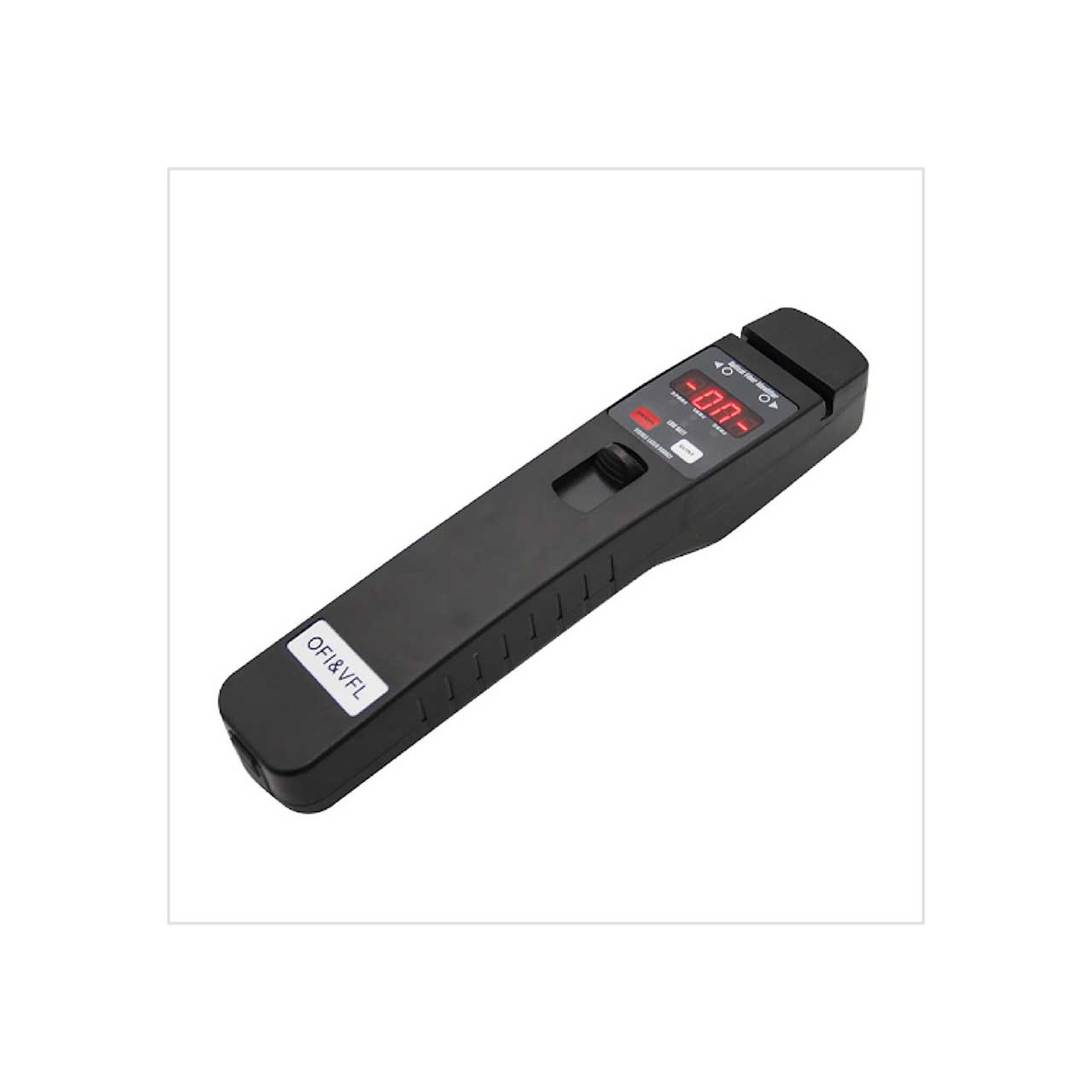

Optix OFI Optical Fiber Identifier

OFI - Overview

• Features:

  • Suitable for 250um, 900um, 2mm, and 3mm fiber using the universal adaptor
  • No need to replace the block clamp.

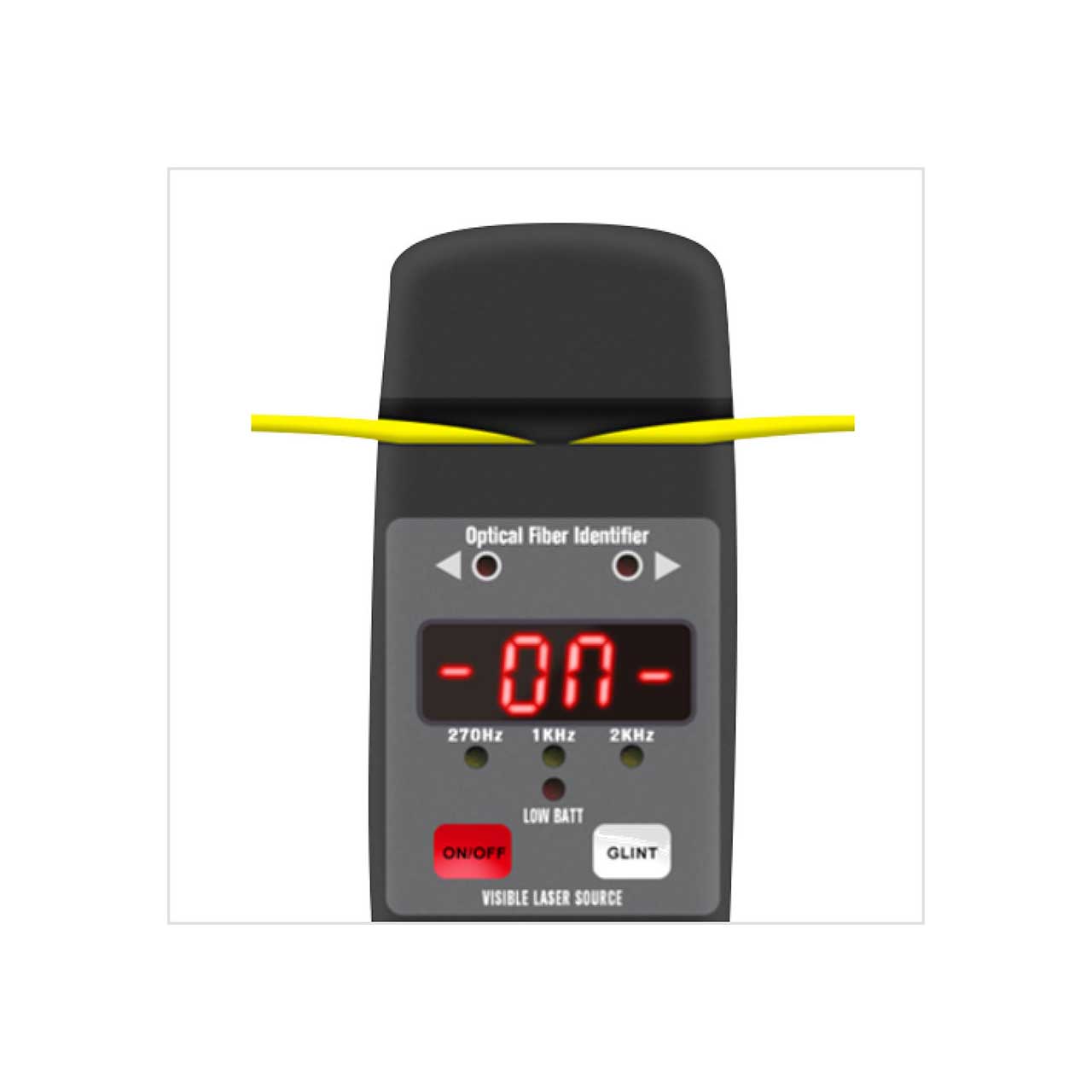

  • Detects attenuation associated with macrobending measurement, the attenuation associated with the bending of optical fiber that causes light to "leak out" of the fiber. The light leakage is detected by the fiber identifier in direction and intensity. The fiber cable is not damaged and signal communication is not interrupted.
  • Detects Tone Identification by detecting optical signals in the tone signal at a fixed frequency of 270Hz, 1KHz and 2KHz.
  • Built-in VFL Function with output power of 10 mW.
  • Low Battery Monitoring Function signals when to change the batteries
  • User's manual, calibration certificate, soft case, and batteries included in packaging


• Specifications:

  • Fiber Identifier Function (Basic)
  • Wave Respond: 800nm~1700nm
  • Pass Through Insertion Loss: 250um fiber 1.0dB / 900um fiber 1.0dB / 3mm fiber 2.0dB
  • Application Fiber: 250um/900um/2mm/3mm optical fiber
  • Identified Signal Type: 270Hz/1KHz/2KHz
  • Identification of Modulated Signals: Yes
  • Power Measurement: Yes
  • Display: LED segment
  • Tone: Yes
  • Low Power Monitoring: Yes
  • Detector Type: 1mm InGaAs

    Minimum Detection Power
  • Test Conditions: 1550nm
    250umOptical fiber: -35dBm
    900umOptical fiber: -35dBm
    3mmOptical fiber: -30dBm
  • Test Conditions: 1310nm
    250umOptical fiber: -30dBm
    900umOptical fiber: -30dBm
    3mmOptical fiber: -25dBm

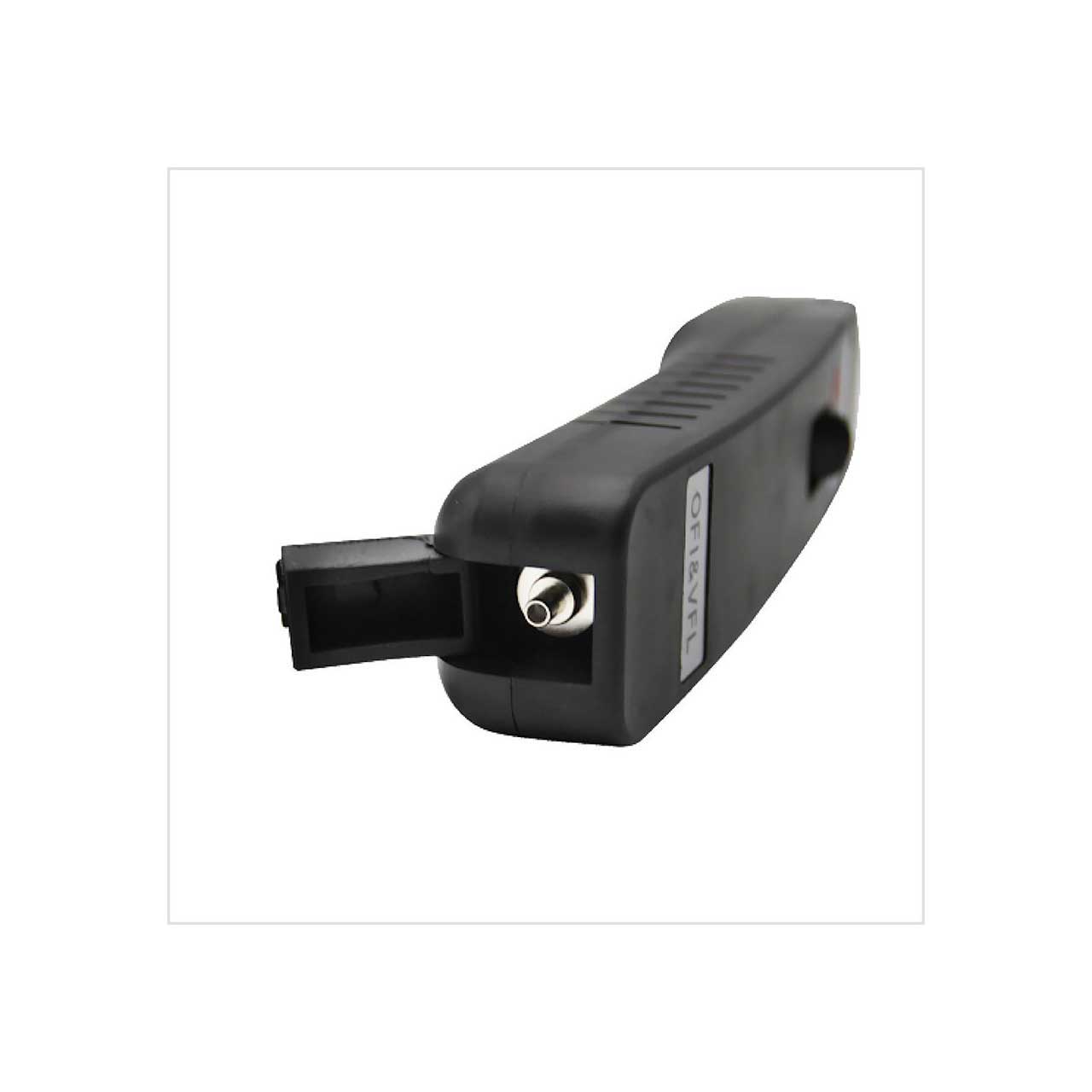

    VFL Function (Standard)
  • Wavelength: 650nm-10nm
  • VFL Output Power: 10mw
  • Mode: CW, 1Hz, 2Hz
  • Fiber Type: SM/MM
  • Adapter: 2.5MM Universal (1.25MM adaptor included)

    General Parameters
  • Power Supply: 2*AA 1.5V Alkaline Battery
  • Battery Working Time: ≥ 5000 times of measurements
  • Working Temperature: -10°C ~ +50°C
  • Storage Temperature: -20°C ~ +70°C
  • Dimensions: 230mm x 43mm x 36mm
  • Weight: 200g


• Item Includes:

  • 1x Soft case
  • 2x AA batteries
