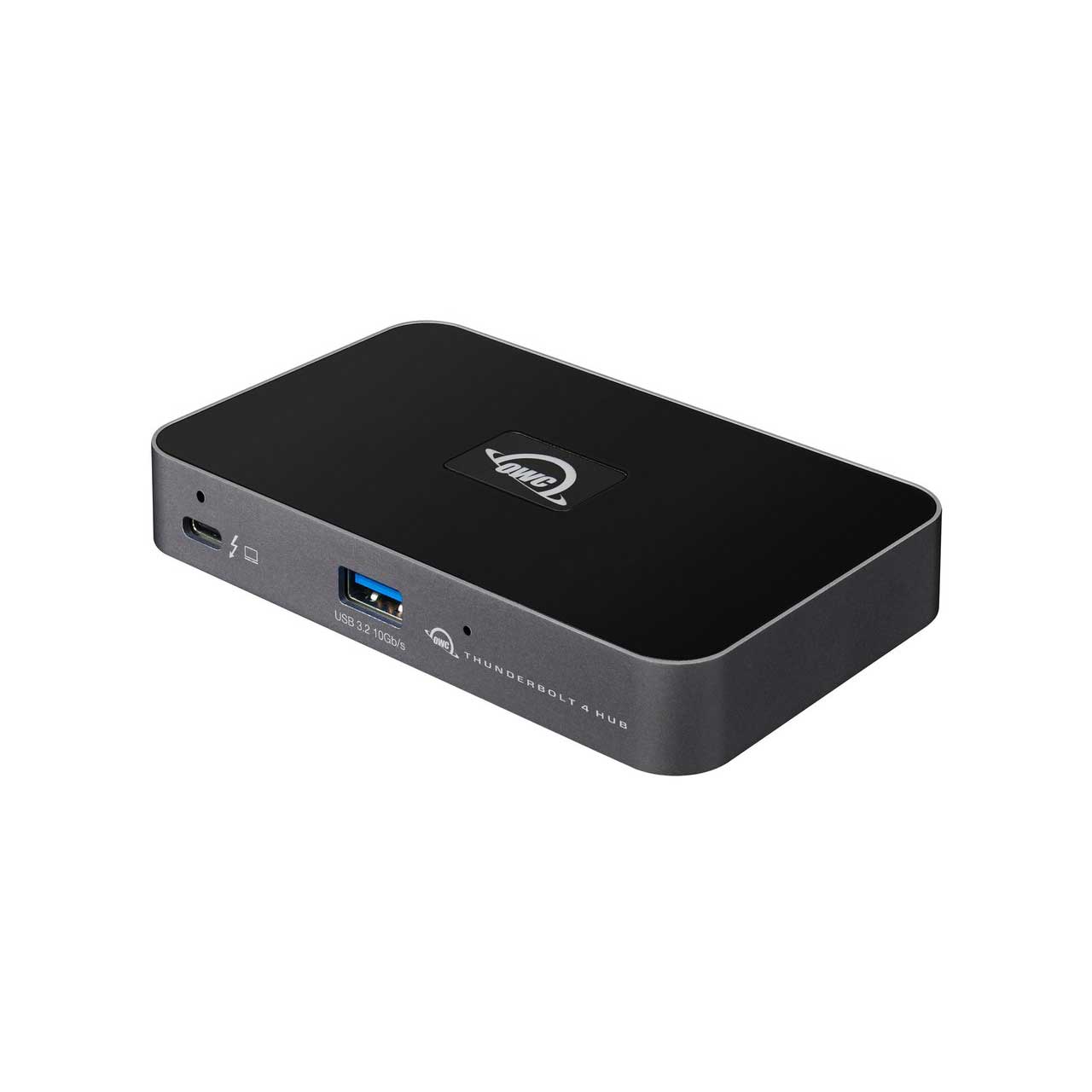

OWC TB4HUB5P Thunderbolt Hub with 1x Input / 3x Output (4k - 5k - 6k - 8k Resolution)

ITEM #: OWC-TB4HUB5P MFG #: TB4HUB5P

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$149.99

Our Price:

$129.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    TB4HUB5P - Overview

    More Ports For A World Of Possibilities
    For the first time ever, the OWC ThunderboltT Hub lets you consolidate and simplify the connectivity between all your devices with all the Thunderbolt ports you've always wanted. The OWC Thunderbolt Hub's four Thunderbolt (USB-C) ports and one USB port massively expand the connection possibilities of your Apple M1 Mac, any Apple `Intel' Mac with Thunderbolt 3, or any Thunderbolt 4 PC so you can do more and do it all easier. You can also use the OWC Thunderbolt Hub with non-Thunderbolt USB-C machines like Chromebooks and iPads too.

    One Hub To Connect Them All

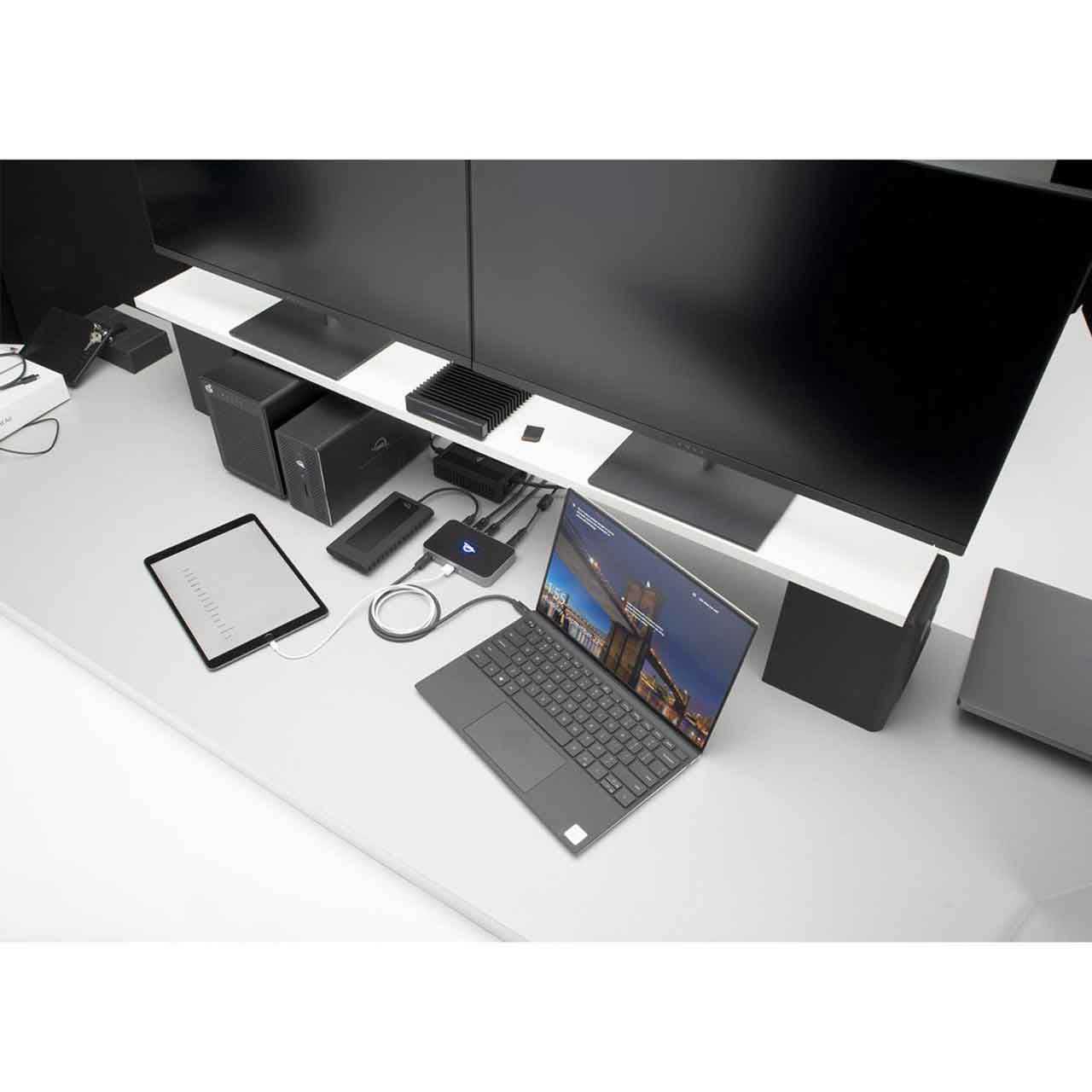

    Through a single Thunderbolt port on your Mac or PC, you can literally connect and charge anything via this compact hub: dual 4K displays or one 5K/6K/8K display, high-performance storage including NVMe solutions, A/V mixers, phone or tablet, even desktop accessories like a keyboard or mouse. Accessories with past, present or future USB or Thunderbolt interfaces.they all connect to the OWC Thunderbolt Hub.

    Connectivity Reimagined
    Removing any device other than the last one in a daisy chain will break your chain and disconnect devices until the chain connection is re-established. The OWC Thunderbolt Hub lets you create three separate "tree branch" chains so you can remove devices from one chain without affecting or disconnecting the other chains. You can even and connect multiple Thunderbolt, USB4, and USB-C bus-powered devices.

    Multi Connectivity Solution
    When the latest Thunderbolt appeared on Macs and PCs, it used a USB-C connector to transfer data, output video, and charge devices through the same cable. The OWC Thunderbolt Hub's Thunderbolt 4 ports use that same USB-C connector, creating a multi-connectivity solution that works on 100's of millions of existing and future Thunderbolt-based computers and devices. And, the ports are fully USB4 future compatible.

    Ipads And Chromebooks
    The OWC Thunderbolt Hub also functions as a USB-C hub for expanding the device connectivity of USB-C equipped machines like iPads and Chromebooks. Now you can add USB devices like a keyboard, mouse, drive, and even a bigger display with a USB-C adapter (sold separately).

    Multi-Drive
    In the past, daisy chaining external storage required you to place it as close to the front of the chain for the fastest and most reliable performance. That wasn't possible with bus-powered drives as they had to be placed last in the Thunderbolt chain.and the chain was limited to just one bus-powered device! Now you can connect multiple portable SSDs directly to the OWC Thunderbolt Hub and experience the fastest speed your storage device can deliver.

    • Features:

      • All the Thunderbolt you've always wanted: For the first time ever, add more full speed, fully functional Thunderbolt ports to your computer.
      • Plug it all in: Your devices will deliver the same compatibility as when they're plugged directly into your computer.
      • More devices: Connect more storage, two 4K displays or one 5K/6K/8K display, accessories... you name it, you can use it.
      • Reinvents the Daisy Chain: Create multiple independent "tree branches." Plus, connect multiple bus-powered devices.
      • Powerful: Thunderbolt port provides power delivery + charging.
      • Adjustable LED: customize your illumination for your work setting.
      • Securable: Kensington Nano slot for anti-theft cabling.
      • Thunderbolt Certified: Built-in OWC reliability and dependability for Mac and Windows.
      • 2 Year OWC Limited Warranty

    • Specifications:

      • DISPLAY SUPPORT:
        Up to one 8K display @ 60Hz,
        or one 5K display @ 60Hz,
        or one 4K display @ 120Hz,
        or one 4K display @ 60Hz,
        or one 4K display @ 30Hz
      • DISPLAY SUPPORT BY PORT: Thunderbolt 4: Up to 8K @ 60Hz or 4K @ 120Hz via a native Thunderbolt 4 display or other
        display that supports USB-C connections and DisplayPort 1.4
      • ROHS COMPLIANT: Yes
      • CERTIFICATIONS: BSMI, CE, FCC, ICES, RCM, VCCI
      • DATA RATE: Thunderbolt 4: Up to 40Gb/s
      • REACH CERTIFICATION: Yes
      • MAC OS COMPATIBILITY: macOS 12.x Monterey, macOS 11.x Big Sur
      • PC OS COMPATIBILITY: Windows 10 64-bit Edition
      • OTHER OS COMPATIBILITY: Chrome OS, Android 11 or later, iPadOS 14.1 or later, & Linux
      • HOST PORT REQUIREMENTS: Works with any Apple silicon Mac or iPad with Thunderbolt (USB-C), Apple `Intel' Mac with
        Thunderbolt 3, or any Thunderbolt 4 PC. Works as a USB hub with any USB-equipped Mac, PC, iPadOS, Android, or Chrome OS device (USB-A
        devices require a USB-C to USB-A adapter, sold separately).
      • POWER SUPPLY: External UL-listed universal auto-switching power supply
      • AC INPUT: 100-240V, 50/60Hz, 1.5A
      • DC OUTPUT: +20V, 5.5A
      • WATTAGE: 110W Watts
      • EXTERNAL POWER ADAPTER: Yes
      • POWER DELIVERY: Provides up to 60W Power Delivery via host port.

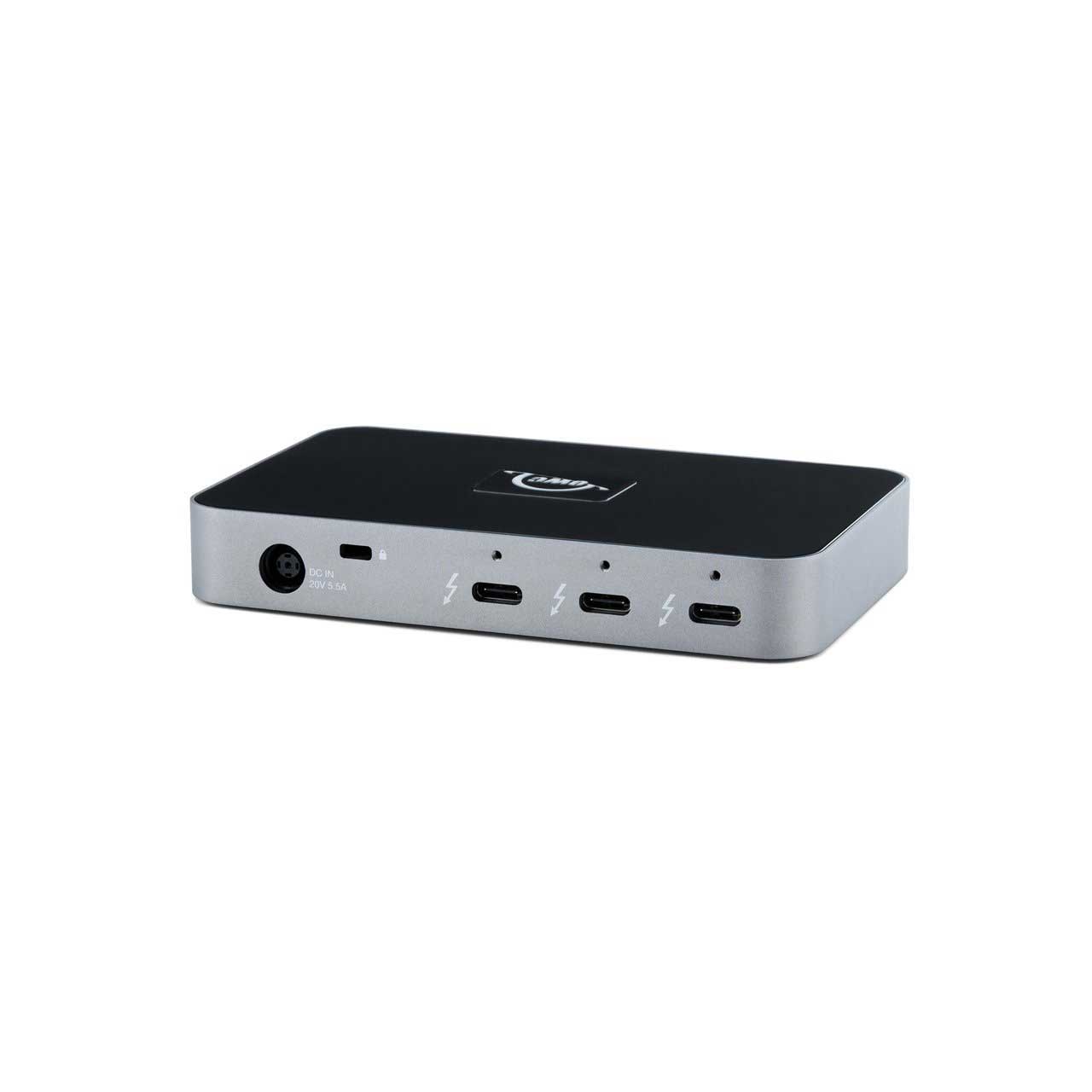

      • DEVICE PORTS: (4) Thunderbolt 4 (USB-C) Ports, (1) USB 3.2 Gen 2 Type-A Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0
        backwards compatible
      • SECURITY SLOT: Yes
      • HOUSING COLOR: Chassis: Space Gray, Covers: Polycarbonate
      • HOUSING MATERIAL: Chassis: Aluminum, Covers: Polycarbonate
      • DIMENSIONS:
        Height: 1.7 cm (0.7 in)
        Length: 11.8 cm (4.6 in)
        Width: 7.3 cm (2.9 in)
      • WEIGHT: 209.0 g (0.46 lbs)
      • AMBIENT TEMPERATURE: Operating: 32°F to 86°F (0°C to 30°C), Non-Operating: -4°F to 140°F (-20°C to 60°C)
      • ALTITUDE: Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft), Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to
        40,000 ft)
      • HUMIDITY: Operating: 5% to 95% non-condensing, Non-Operating: 5% to 95% non-condensing

    • Item Includes:

      • 1x OWC Thunderbolt Hub
      • 1x Thunderbolt cable
      • 1x Power supply
      • 1x Quick start guide

    • Warranty:

      • 2 Year Warranty
