The Instant Workstation

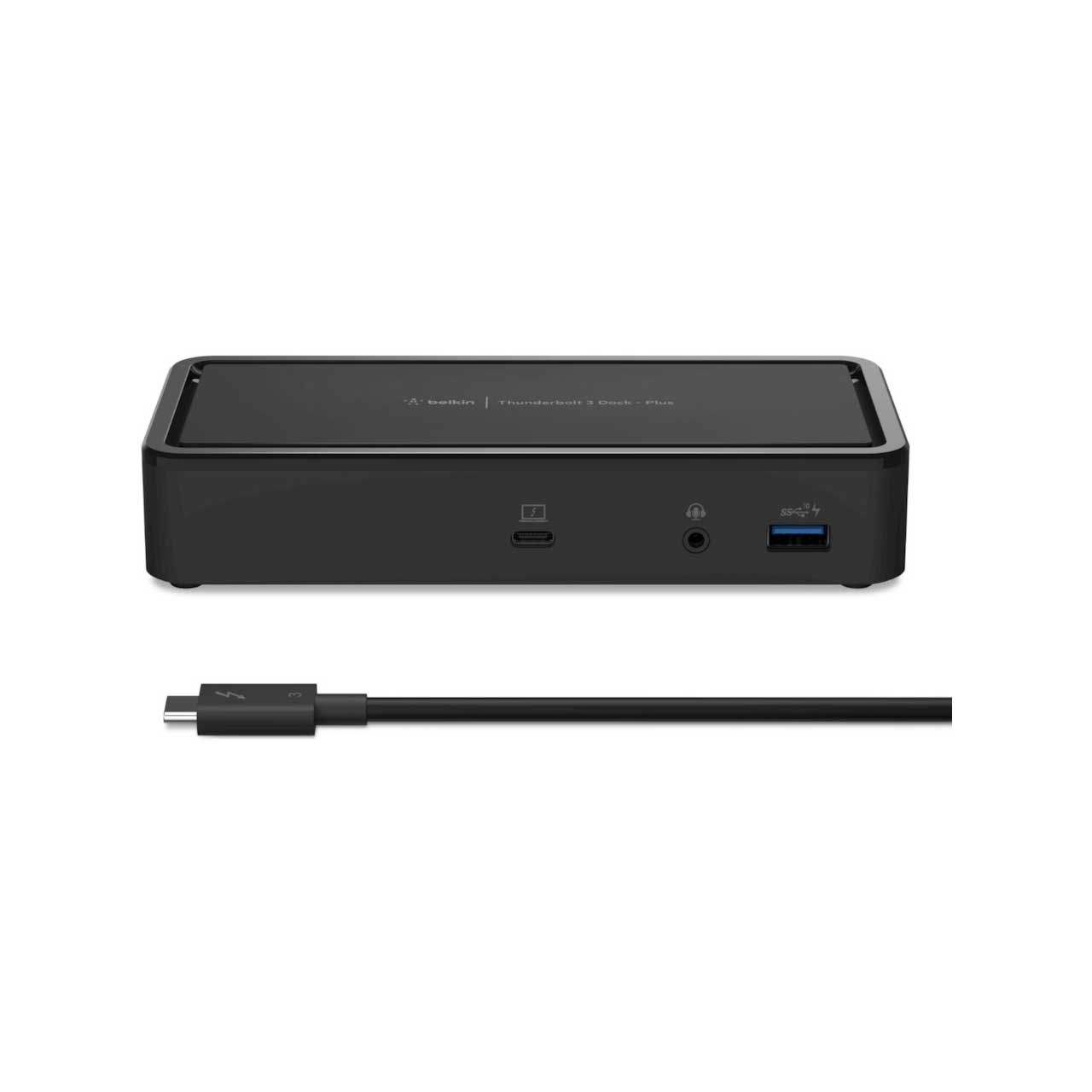

Fast, ultra-high definition, powerful, and now even more versatile, meet the new wave of Thunderbolt 3 Docks. The Belkin F4U109TT Thunderbolt 3 Dock Plus offers universal compatibility, bringing all the benefits and convenience of Thunderbolt 3 technology to both Mac and Windows laptops. With 40Gbps transfer rates,* 60W power to charge your connected laptop, dual 4K 60Hz monitor support and multiple ports for peripherals, simply connect the dock to your Mac or Windows laptop - with the included Thunderbolt 3 cable - to create a high-performing, instant workstation.
The Belkin Difference:Pioneer in innovation and technology for over 35 yearsDesigned with professional and at-home users in mindBuilding on the success of their CES 2018 Best of Innovation Awards Honoree, the Thunderbolt 3 Express Dock HDInsertion testing guarantees quality for lasting performance and durabilityTested under fluctuating environmental conditions to ensure safety of materials

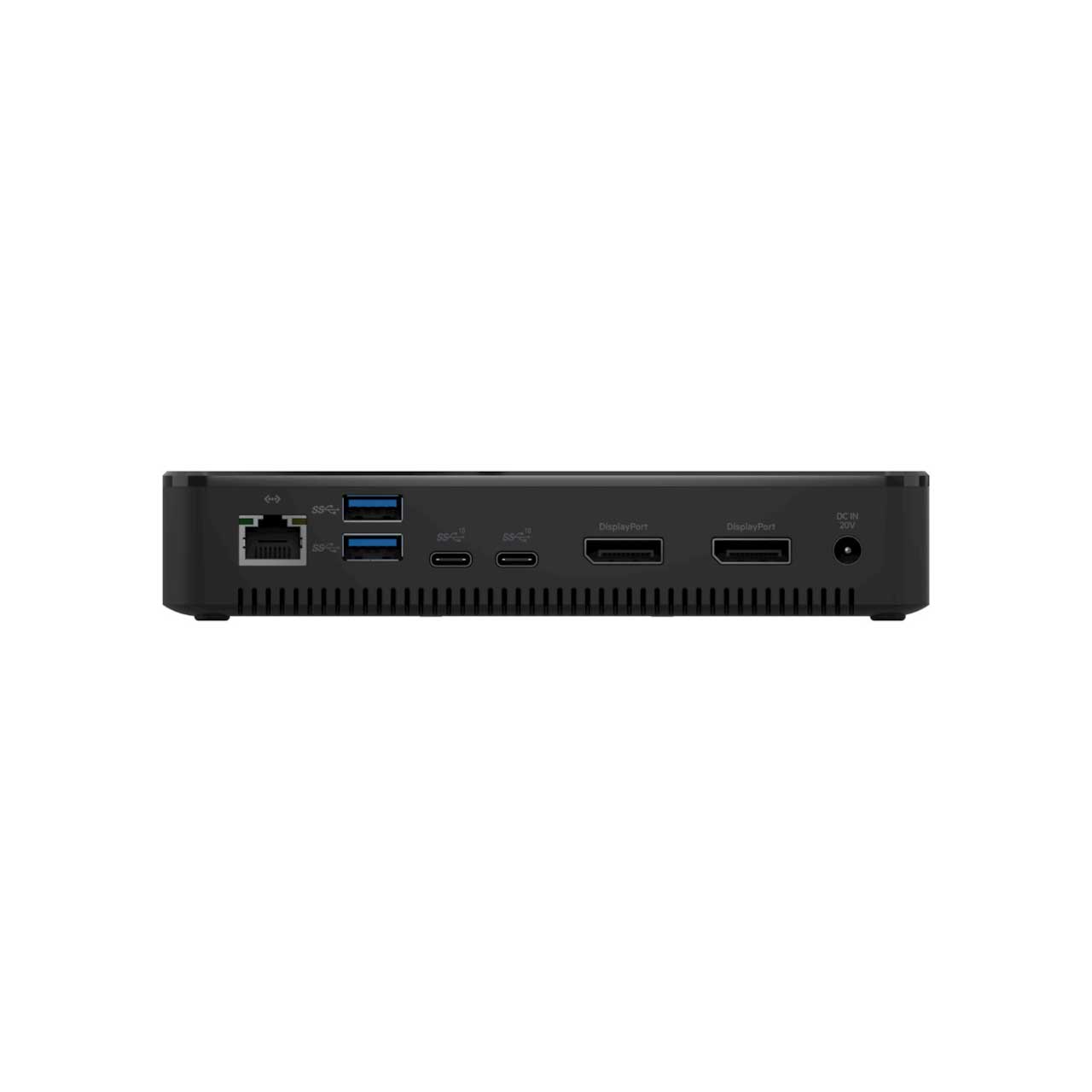

More Ports For More Devices
Connect all your peripheral devices - monitors, mice, keyboards, speakers, hard drives and more - to your laptop via a single cable.
Thunderbolt 3 Type-C port with PD 3.0 delivers charging (up to 60W) to laptop with the included Thunderbolt 3 Gen 2 cable
Audio in/out for mic and speaker support
1 x USB-A 3.1 Gen 2 port for USB-A peripherals
Gigabit Ethernet connection
2 x USB-A 3.1 Gen 1 ports for devices that connect via USB-A such as a mouse, keyboard or printer
2 x USB-C 3.1 Gen 2 ports for USB-C peripherals
2 x DisplayPort™ 1.4 connect to high-resolution monitors/displays (for resolutions, see table below)
125W PSU (Power Supply Unit) powers the dock, and also charges the connected laptop up to 60W, to keep your laptop charged as you work
Thunderbolt 3 And USB-C Compatible
Thanks to the inclusion of a smart chipset/controller from Intel, this dock supports both Thunderbolt 3 and USB-C, and is also fully compatible with both MacBooks running Mac OS, and laptops running Windows. Such broad compatibility makes it the ideal choice for temporary workstations or shared work environments, which are visited by different users, who may have different laptop types but still need an easily accessible and high-performing workstation. The Thunderbolt 3 Dock Plus is also a convenient, economical, single dock solution for businesses supporting both Mac and Windows laptops within their organization.
Dual High-Definition Monitor Support
With so many ports available, the Thunderbolt 3 Dock Plus easily connects two high-definition displays, without compromising access to your other peripherals. Please see the table below for specific resolution capabilities for all monitor combinations.
Single Monitor Support:
Laptop running High Bit Rate 3: 8K (7680 x 4320) @ 30Hz
Laptop running High Bit Rate 2: 4K (3840 x 2160) @ 60Hz
Laptop running High Bit Rate 3: 5K (5120 x 3200) @ 30Hz
Laptop running High Bit Rate 2: 4K (3840 x 2160) @ 30Hz
*USB-C host performance will be limited. Note that not all USB-C ports support the full functionality of the USB Type-C standard. USB-C hosts may not support extended display to external monitors.
Power To Share
With its power supply unit drawing 125W from the mains, the Thunderbolt 3 Dock Plus is able to provide up to 60W of power for a connected laptop. Also known as "upstream charging," this keeps your laptop charged while in use, without the need for a separate power cable.
