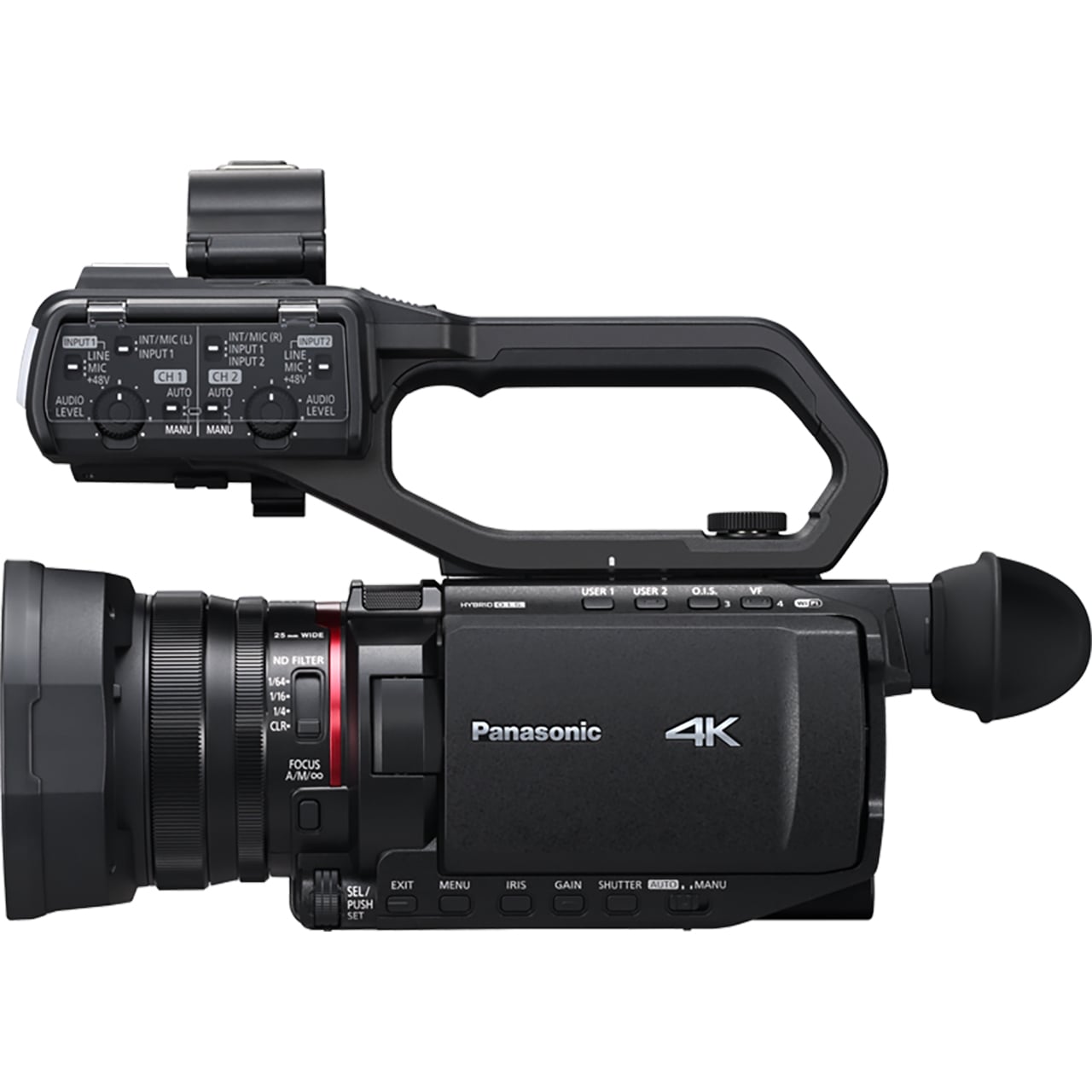

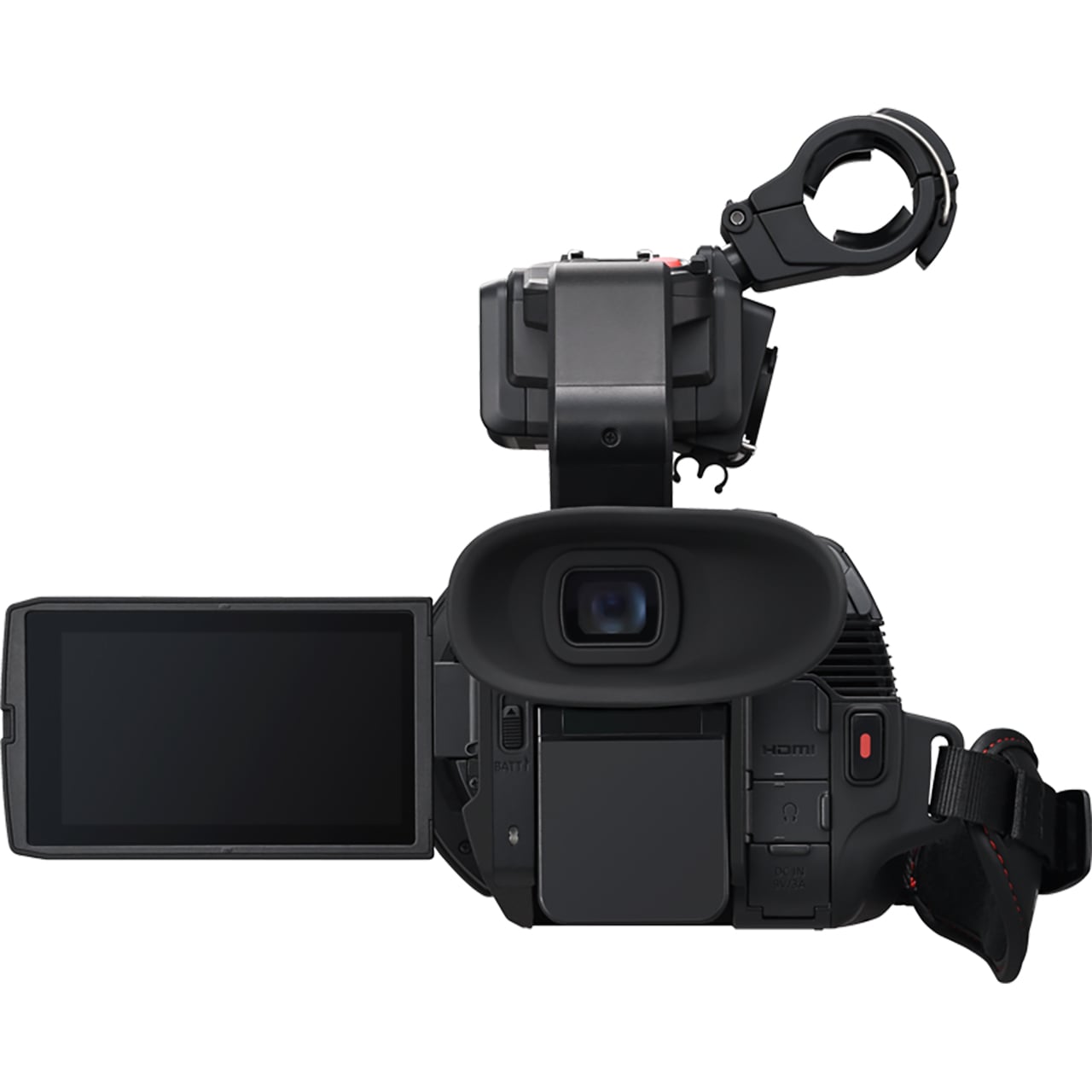

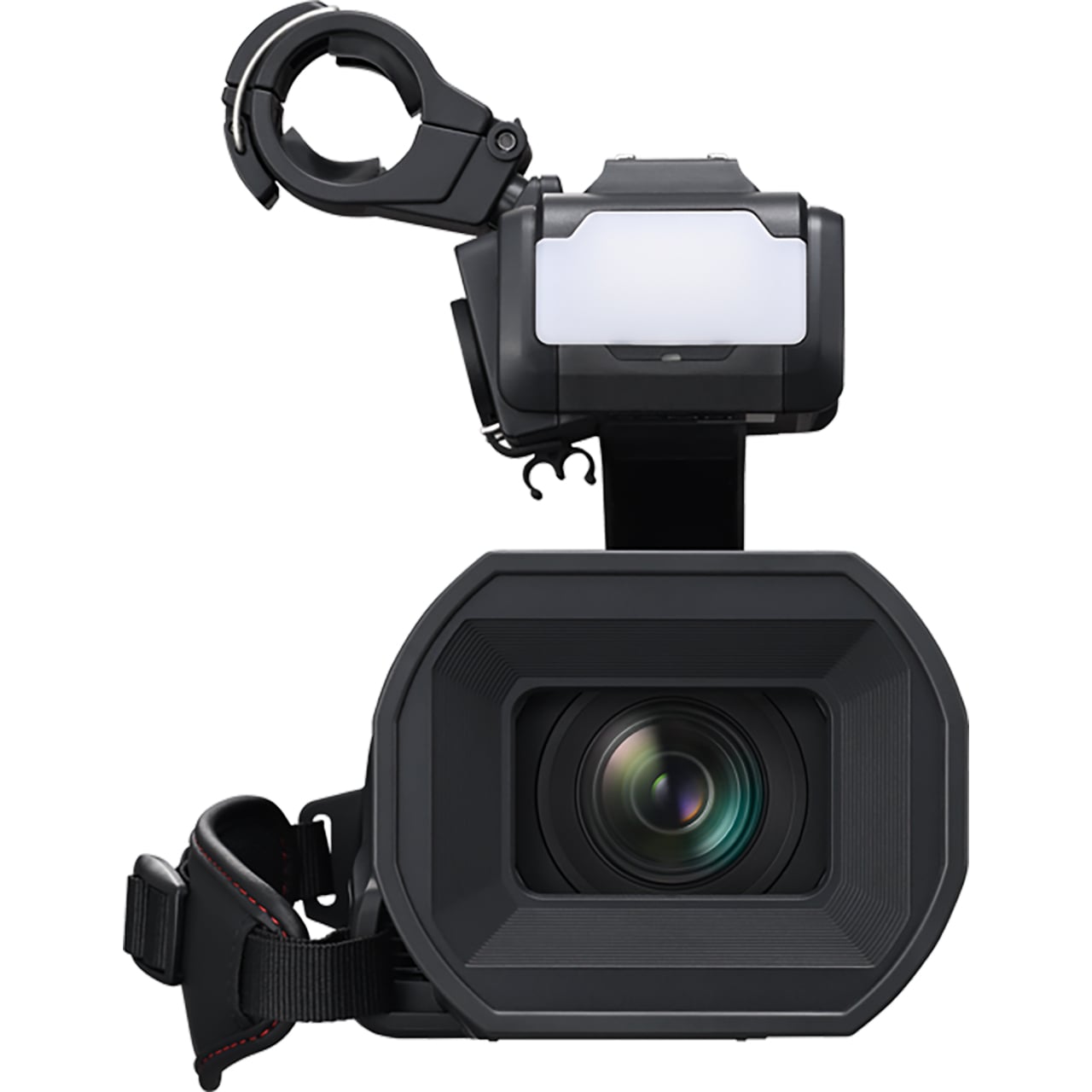

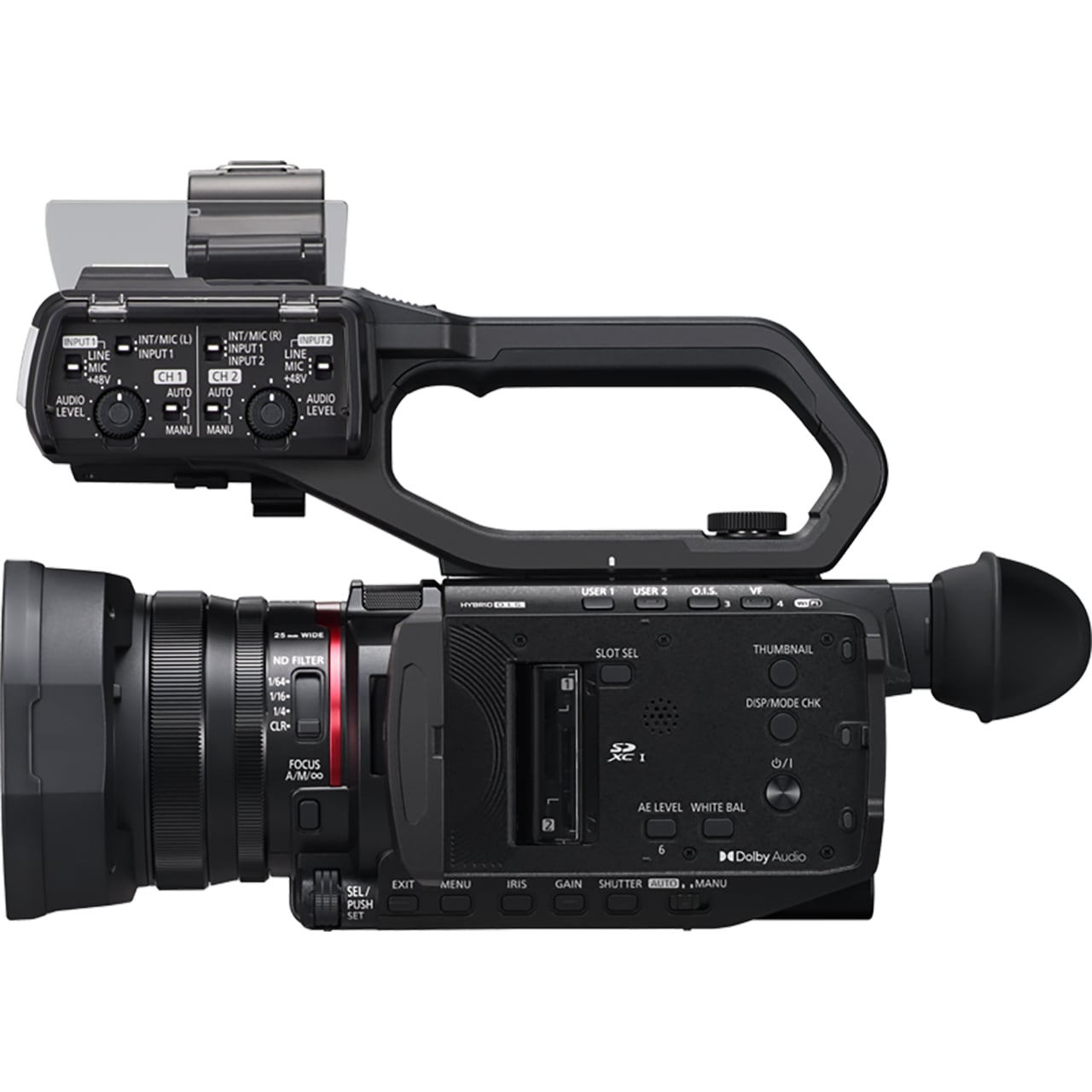

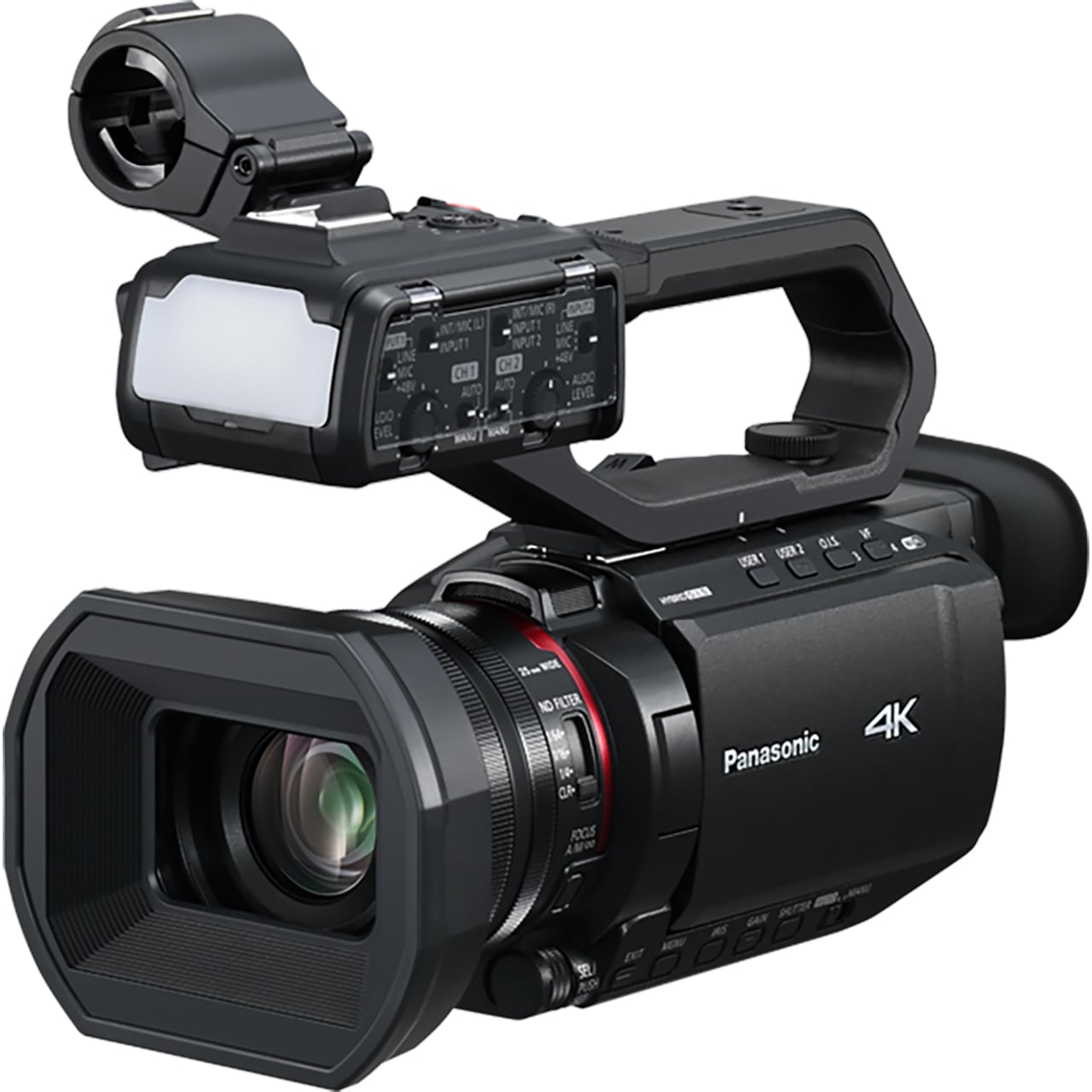

Panasonic AG-CX20PJ5 Professional 4K Compact Memory Card Camcorder with XLR Inputs / IP Connectivity

AG-CX20PJ5 - Overview

Full HD Streaming and Recording with NDI HX2 Support!

• Features:

  • High-sensitivity 1/2.5-type MOS sensor
  • Wide-angle 25mm lens with 24x optical zoom
  • 4K High-precision Autofocus
  • Face Detection and Tracking AE/AF
  • 5-axis Hybrid Stabilization
  • Ball O.I.S
  • Built-in ND Filter
  • Efficient Heat Dissipation
  • Venus Engine
  • HEVC 4:2:0 10-bit Recording
  • Multi-format Support
  • Proxy Recording Support
  • 4:2:2 10-bit Internal Recording/HDMI Output
  • Advanced File Management with MOV File System
  • Super Slow-motion Shooting
  • Infrared (IR) Shooting
  • 16-axis Color Correction
  • Enhanced Skin Tones
  • Edge Enhancement
  • Flexible Gamma
  • Customizable Scenes
  • Save and Share Camera Settings
  • Additional Shooting Assistance
  • High-definition LCD and OLED EVF
  • Selfie Mode
  • Dual Manual Rings
  • Dual SD Card Slots
  • Additional Recording Features
  • Built-In LED Light
  • 24-bit Linear PCM Audio Recording
  • Detachable Handle
  • Customizable User Buttons
  • USB Power Delivery (PD) Support
  • Built-in Wi-Fi
  • Wireless Control via Mobile Devices
  • Wired Remote Support
  • 3G-SDI Output
  • Ethernet Support
  • Key Components and Controls


• Specifications:

  General
  • Power:
    - DC 7.28V (when the battery is used)
    - DC 9.0 V (when the AC adaptor is used)
  • Power Consumption: 19.8W (recording), 15.5W (charging)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Operating Humidity: 10% - 80% (no condensation)
  • Weight:
    - 1.88lbs (0.85kg)(main unit only, excluding handle unit, lens hood, battery and eye cup)
    - 3.31lbs (1.5kg)(including handle unit, lens hood, battery and eye cup)
  • Dimensions (WxHxL): 5.08" x 6.26" x 10.1" (129mm x 159mm x 267mm)(including handle unit, lens hood, battery and eye cup. excluding microphone holder)

    Memory Card Recorder
  • Recording Media:
    - SDHC memory card (4GB - 32GB)
    - SDXC memory card (over 32GB - 512GB)
    - microP2 card (A series, B series)
  • Recording Slot: 2 slots
  • Recording Pixels:
    - 3840 x 2160: 59.94p, 50.00p, 29.97p, 25.00p, 23.98p
    - 1920 x 1080: 59.94p, 50.00p, 29.97p, 25.00p, 23.98p, 59.94i, 50.00i
    - 1280 x 720: 59.94p, 50.00p
  • System Frequency: 59.94Hz/50.00Hz
  • Recording File Format: P2, MOV, MP4, AVCHD
  • 2 Slot Functions: Relay Rec, Simultaneous Rec, Background Rec
  • Still Image Recording: JPEG (DCF/Exif2.2)

    Digital Video
  • Quantization:
    - P2: 4:2:2 10bit (AVC-Intra100/AVC-LongG50/AVC-LongG25), 4:2:0 10bit (AVC-Intra50), 4:2:0 8bit (AVC-LongG12/AVC-LongG6 (proxy))
    - MOV: 4:2:2 10 bit/4:2:0 10 bit (HEVC)/4:2:0 8 bit
    - MP4 4:2:0 10 bit (HEVC)/4:2:0 8 bit
    - AVCHD 4:2:0 8 bit
  • Video Compression Format:
    - P2: AVC-Intra100/AVC-Intra50: MPEG-4 AVC/H.264 Intra Profile
    - P2: AVC-LongG50/AVC-LongG25/AVC-LongG12/AVC-LongG6 (Proxy): H.264/MPEG-4 AVC High Profile
    - MOV/MP4: H.264/MPEG-4 AVC High Profile, H.265/MPEG-4 HEVC Main10 Profile
    - AVCHD: MPEG-4 AVC/H.264 High Profile

    Live Streaming
  • Video Compression Format: H.264/MPEG-4 AVC Main Profile, H.264/MPEG-4 AVC High Profile
  • Video Resolution: 1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180
  • Streaming Method: Unicast, Multicast
  • Frame Rate:
    - System Frequency = 59.94Hz: 60fps, 30fps, 24fps
    - System Frequency = 50.00Hz: 50fps, 25fps
  • Bit Rate: 24Mbps, 20Mbps, 16Mbps, 14Mbps, 8Mbps, 6Mbps, 4Mbps, 3Mbps, 2Mbps, 1.5Mbps, 1Mbps, 0.7Mbps, 0.5Mbps
  • Audio Compression Format: AAC-LC, 48 kHz/16 bit, 2 ch
  • Network Protocol: RTSP/RTP/RTMP/RTMPS

    Video Output
  • SDI OUT: 1x BNC, SDI REC REMOTE supported, Timecode output, 0.8V [p-p], 75Ω, HD-SDI
  • Output Format (4:2:2 10 bit):
    - 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 29.97Psf, 25p, 25Psf, 23.98p, 23.98PsF
    - 1280 x 720: 59.94p, 50p
  • HDMI OUT: 1x HDMI, Type A, HDMI REC REMOTE supported, VIERA Link not supported
  • Output Format (4:2:2 10 bit):
    - 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p
    - 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
    - 1280 x 720: 59.94p, 50p
    - 720 x 480: 59.94p
    - 720 x 576: 50p

    Audio Input/Output
  • Built-In Microphone: Stereo microphone
  • MIC Terminal: 1x 3.5mm diameter stereo mini jack, plug-in power support
  • Input 1/2 (when using the handle unit):
    - 2x XLR (3-pin)(INPUT1, INPUT2)
    - Input high impedance, LINE/MIC/MIC+48V (switchable SW)
    - LINE: +4dBu/0dBu (switchable menu)
    - MIC: -40dBu/-50dBu/-60dBu (switchable menu)
  • SDI OUT: Linear PCM 2 ch
  • HDMI OUT: Linear PCM 2 ch
  • Headphone: 1x 3.5mm diameter stereo mini jack
  • Speaker: 1x 15mm diameter, round

    Other Input/Output
  • Remote: 1x 2.5mm diameter super mini jack (for serial communication)
  • USB 2.0:
    - 1x USB Type-C, High-Speed USB (USB2.0) Host/Device (switched with menu)
    - Device: Mass strage function (readout only)
    - Host: Bus power support (5V, 0.5A), USB tethering connection function, USB ethernet adapter support
  • DC IN 12V: 9V/3A, 1x USB Type-C, USB-PD compatible


• Item Includes:

  • 1x AG-CX20PJ5 Professional Compact 4K Camcorder with XLR Inputs & IP Connectivity
  • 1x Panasonic AG-VBR59 7.28V 43Wh Lithium-Ion Battery (5900mAh)
  • 1x Top Handle Unit
  • 1x Lens Hood
  • 1x Eye Cup
  • 1x Microphone Holder
  • 1x Microphone Holder Screw Set
  • 1x Top Handle Unit
