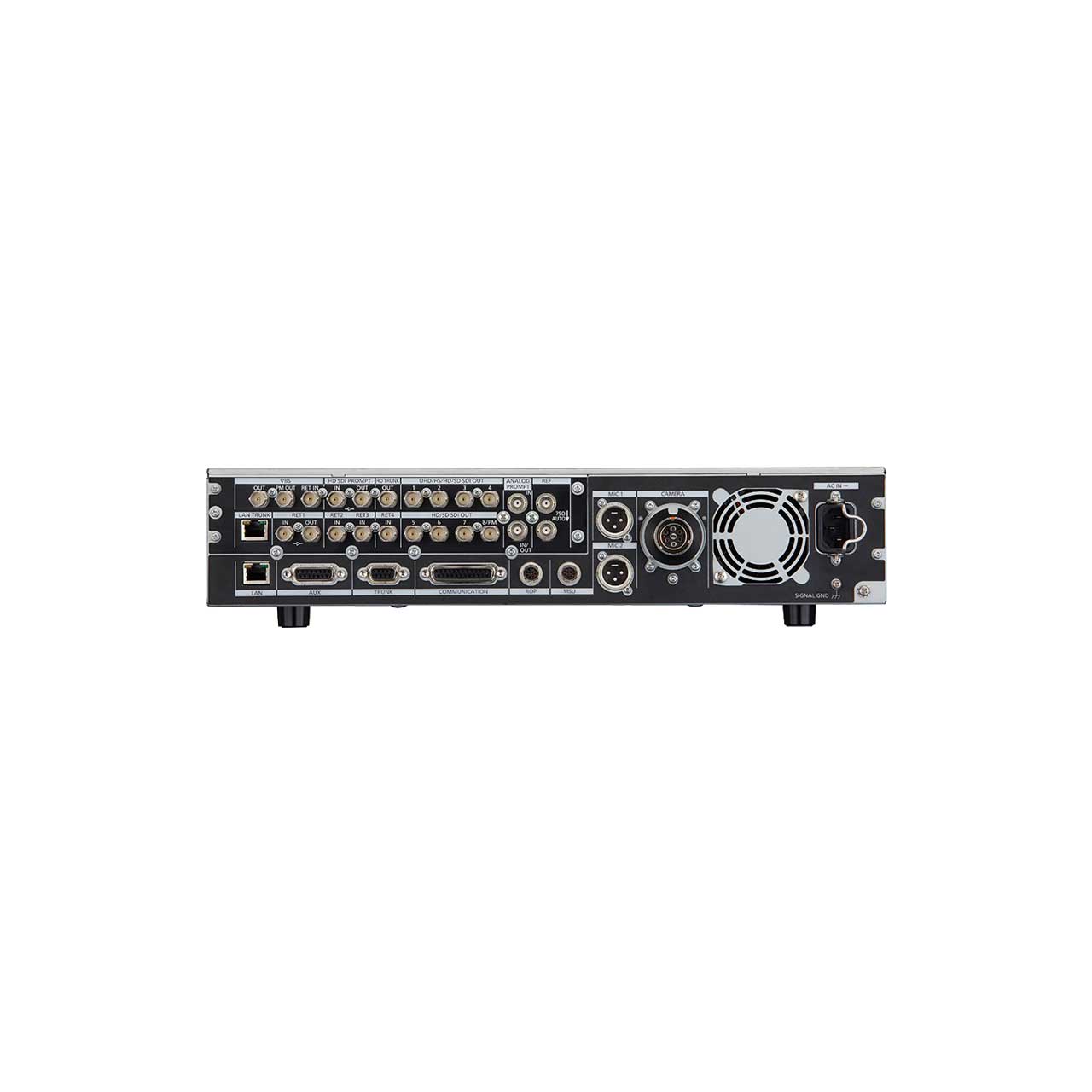

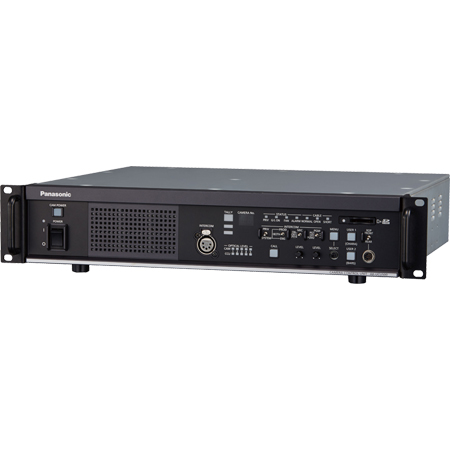

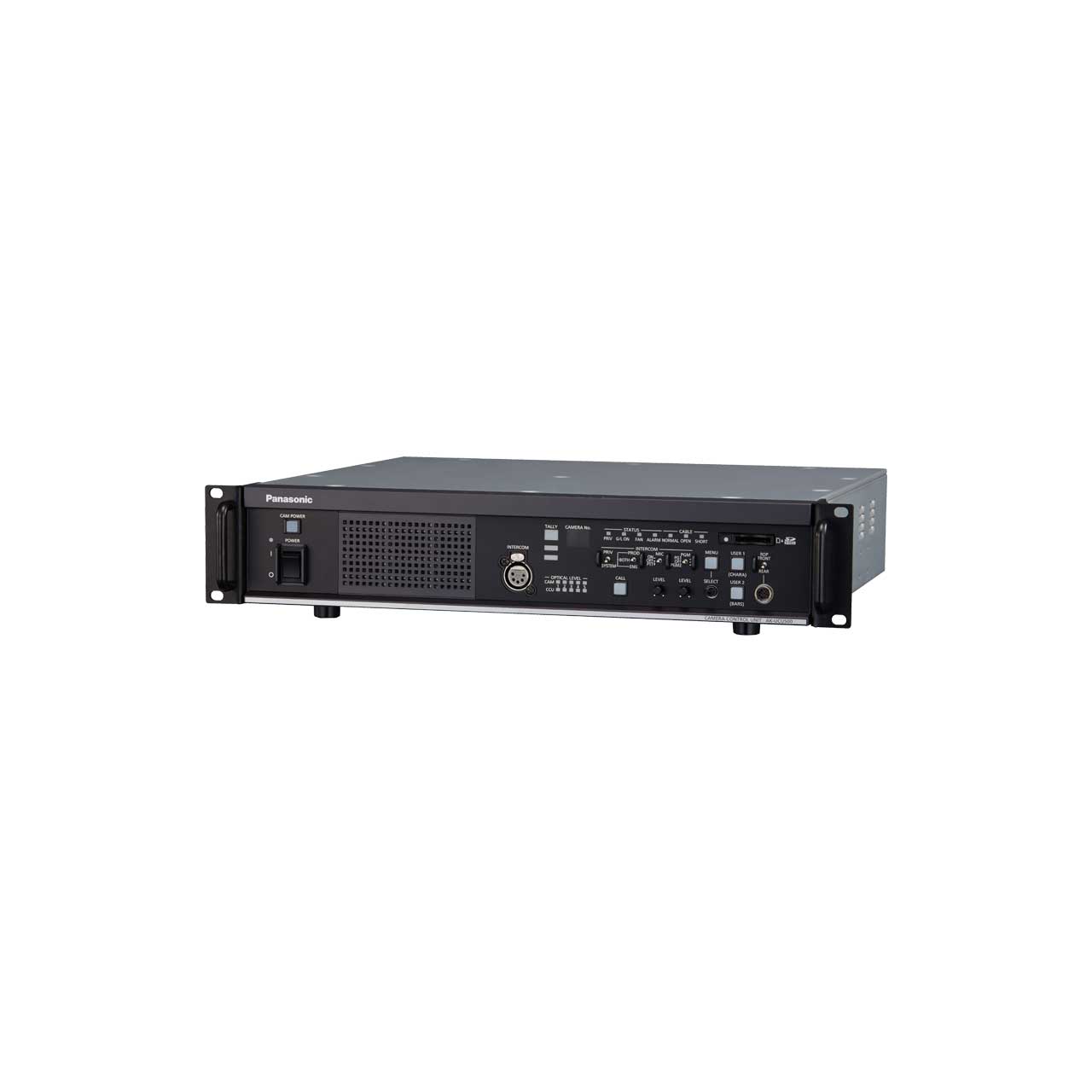

Panasonic AK-UCU500PSJ Camera Control Unit for AK-HC5000 / AK-UC3000 Studio Camera - LEMO Connector Model

AK-UCU500PSJ - Overview

• Features:

  • Optical fiber transmission of uncompressed video signals over a distance of approx. 2,000 m between camera and CCU(When power is supplied from CCU).
  • The compact, lightweight unit measures 2U in height and is rack-mountable.
  • Supports IP streaming (100 Base-T).
  • An SD memory card can be used for saving user files and updating firmware versions.


• Specifications:

  • Power Supply
    - AK-UCU500P/AK-UCU500PS: 100 V - 120 V AC, 50 Hz/60 Hz
    - AK-UCU500E/AK-UCU500ES: 100 V - 240 V AC, 50 Hz/60 Hz
  • Power Consumption: 500 W (Without camera connected: 70 W)
  • Capacity for Supplying Power to a Camera: 240 V AC (tolerance: 5%), 1.46 A , 50 Hz/60 Hz
  • Operating Temperature: 32 °F to 104 °F
  • Humidity: 10 % to 90 % (no condensation)
  • Weight: Approx. 19.4 lb
  • Dimensions (W x H x D): 16-5/8 inches x 3-7/16 inches x 15-13/16 inches (excluding protrusions)
  • Video Output
    - 3G/HD/SD-SDI: 7 lines (embedded audio is supported only for HD signals)
    - HD/SD-SDI: 1 line (shared with picture monitor output; embedded audio is supported only for HD signals)
    - Analog composite: 2 lines (1 line shared with picture monitor output)
  • HD TRUNK Output: HD-SDI: 1 line (cannot be used in UHD/HS mode)
  • Return Input:
    - 3G-HD/HD/SD-SDI: 4 lines (RET1 input has active-through output)
    - Analog composite: 1 lines
  • Prompter Input:
    - HD-SDI: 1 line (with active-through output)
    - Analog composite: 2 lines (through output of 1 and input of 2 share the connector) It is not terminated when the unit is turned OFF. No through output
  • Reference Input: BB (black burst) / tri-level: 1 line (automatic termination, connect to upper connector; BB signal and tri-level signal automatically recognized, with loop-through output)
  • Microphone Output: 0 dBm/600 ω, 2 lines (XLR, 3-pin, male)
  • Communication:
    - Intercom input/output: (ENG / PROD, 0 dBm, 600 ω (4 W) / 1 V [p-p], 200 ω (RTS), 4 W / RTS / CLRCOM): 2 lines
    - PGM input: (0 dBm/600 ω) : 2 lines
    - Tally input (red, green, yellow) : 1 input each
  • AUX:
    - WFM control 6-bit (open collector output, terminal shared with camera microphone gain setting)
    - Camera microphone gain setting input 5-bit (photo-coupler input, terminal shared with WFM control)
    - Down-conversion system setting input 2-bit (photo-coupler input)
  • TRUNK: RS-422 / RS-232 2 lines
  • FRONT ROP:
    - RS-422
    - 1 line, 16 V DC output (only one of this and REAR ROP can be selected at one time via the menu or the [ROP FRONT/REAR] selection switch on the front panel)
  • REAR ROP:
    - RS-422
    - 1 line, 16 V DC output (only one of this and FRONT ROP can be selected at one time via the menu or the [ROP FRONT/REAR] selection switch on the front panel)
  • MSU:
    - RS-422
    - 1 line, GPI for control
  • LAN TRUNK:
    - LAN connection with camera side via an optical cable
    - 1 line, 100BASE-T, 1000BASE-T
  • LAN:
    - Personal computer connection for distribution via the Web
    - 1 line, 10BASE-T, 100BASE-TX (use a crossover cable when connecting directly with a personal computer)
