Panasonic PT-REZ12LBU7 12000-Lumen WUXGA 1920 x 1200 Res - DLP Projector - Filter-Free - Black - No Lens

PT-REZ12LBU7 - Overview

• Features:

  • Seamless, High-Contrast Visuals Deepen Engagement: New scene-recognition circuitry and a higher 25,000:1 contrast ratio improve Dynamic Contrast dramatically, and colors are vibrant yet accurate thanks to Rich Color Enhancer technology. Black-level adjustment evolves to enable seamless blending on curved screens, while Gradation Smoother easily corrects color banding via remote control.
  • Flexibility and Expandability for a Timesaving Workflow: To adapt projection to any situation, REZ12 Series works with new optional lenses and features an Intel SDM-ready slot to integrate optional function boards6 that expand and scale connectivity. You can import user test patterns, use NFC function8 to save prep time and streamline adjustment with preactivated Geo Pro9 upgrade kits.
  • New Compact Body Supports Maintenance-free Projection: REZ12 Series features an optical engine and laser light source module compliant with the IP5X Dust Protected (IEC 60529) standard and a refined liquid cooling system that enable up to 20,000 hours of maintenance-free projection. Backup Input and Multi Laser Drive Engine further enhance reliability and add insurance against interruptions.


• Specifications:

  • Projector type: 1-Chip DLP Projector
  • Panel size: 0.8 in diagonal (16:10 aspect ratio)
  • Display method: DLP chip 1x, DLP projection system
  • Number of pixels: 2,304,000 (1920 x 1200 pixels)
  • Light source: Laser Diode
  • Light Output: 12,000 lm / 12,400 lm (Center)
  • Time until light output declines to 50 %: 20,000 hours (Normal/Quiet), 24,000 hours (ECO)
  • Resolution: WUXGA (1920 x 1200 pixels)
  • Contrast Ratio: 25,000:1 (Full On/Full Off, Dynamic Contrast [3])
  • Screen size (diagonal): 70-700 inches (with supplied lens)
  • Center-to-corner Zone Ratio: 90%
  • Vertical: +60 % (with ET-C1W400/W500/S600/T700), +50 % (with ET-C1W300/U100)
  • Horizontal: +29 % (with ET-C1W400/W500/S600/T700), +23 % (with ET-C1W300/U100)
  • Installation: Ceiling/floor, front/rear, free 360-degree installation

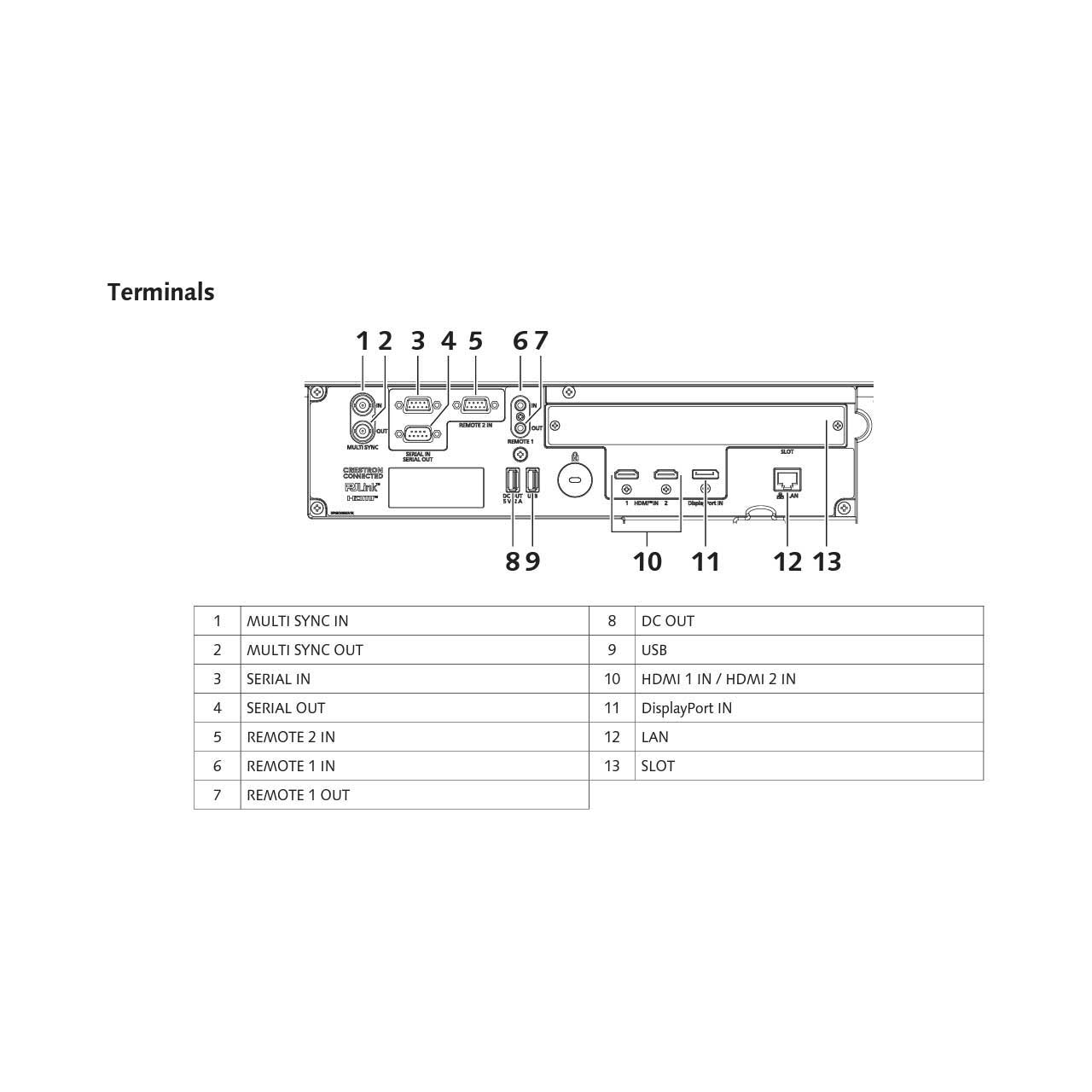

  • HDMI 1/2: HDMI 2x (Deep Color, compatible with HDCP 2.3, 4K/60p signal input)
  • DisplayPort: DisplayPort 1x (Deep Color, compatible with HDCP 2.3, 4K/60p signal input)
  • Multi Sync In: BNC 1x
  • Multi Sync Out: BNC 1x
  • Serial In: D-sub 9-pin (female) 1x for external control (RS-232C compliant)
  • Serial Out: D-sub 9-pin (male) 1x for link control (RS-232C compliant)
  • Remote 1 in: M3 stereo mini-jack 1x for wired remote control
  • Remote 1 Out: M3 stereo mini-jack 1x for link control (for wired remote control)
  • Remote 2 In: D-sub 9-pin (female) 1x for external control (parallel)
  • Lan RJ-45 1x for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
  • USB: USB connector (Type A) 1x for optional AJ-WM50 Series Wireless Module/USB memory
  • DC Out: USB Type A 1x (for power supply, DC 5 V, 2 A)
  • Expansion: Open slot for function boards, Intel SDM compatible
  • Protocol Versions: IPv4, IPv6
  • Power Supply: AC 100-240 V, 50/60 Hz
  • Maximum Power Consumption: 995 W (10.4-4.3 A) (1,005 VA) (Power consumption is 950 W at AC 200-240 V)
  • Operation Noise: 38 dB (NORMAL/ECO), 35 dB (QUIET)
  • Operating Environment: 32°C-113°F (0°C-45°C)
  • Applicable Software Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android
  • Control function via LAN: Crestron Connected V2, Crestron XiO Cloud, Art-Net DMX, AMX DD, and PJLink (Class 2)


• Item Includes:

  • 1x Panasonic PT-REZ12LBU7 DLP Projector - Lens not included
  • 1x Power Cord
  • 1x Wireless/Wired Remote Control Unit
  • 1x AAA Batteries for Remote
  • 1x SLOT Adaptor


• Warranty:

  • 3-Year Limited Warranty


• GTIN:

  0885170412934
