Pathway Connectivity PWPWR DIN TERM50W24VDC Power Supply - DIN-mount - Compression Fit Terminal - 50 Watts - 24 Volts DC

ITEM #: PCS-PWPWRDINTERM MFG #: PWPWR DIN TERM 50W 24VDC

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Pathway Connectivity Solutions
Free Shipping with $49 Minimum Order

Our Price:

$155.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    PWPWR DIN TERM 50W 24VDC - Overview

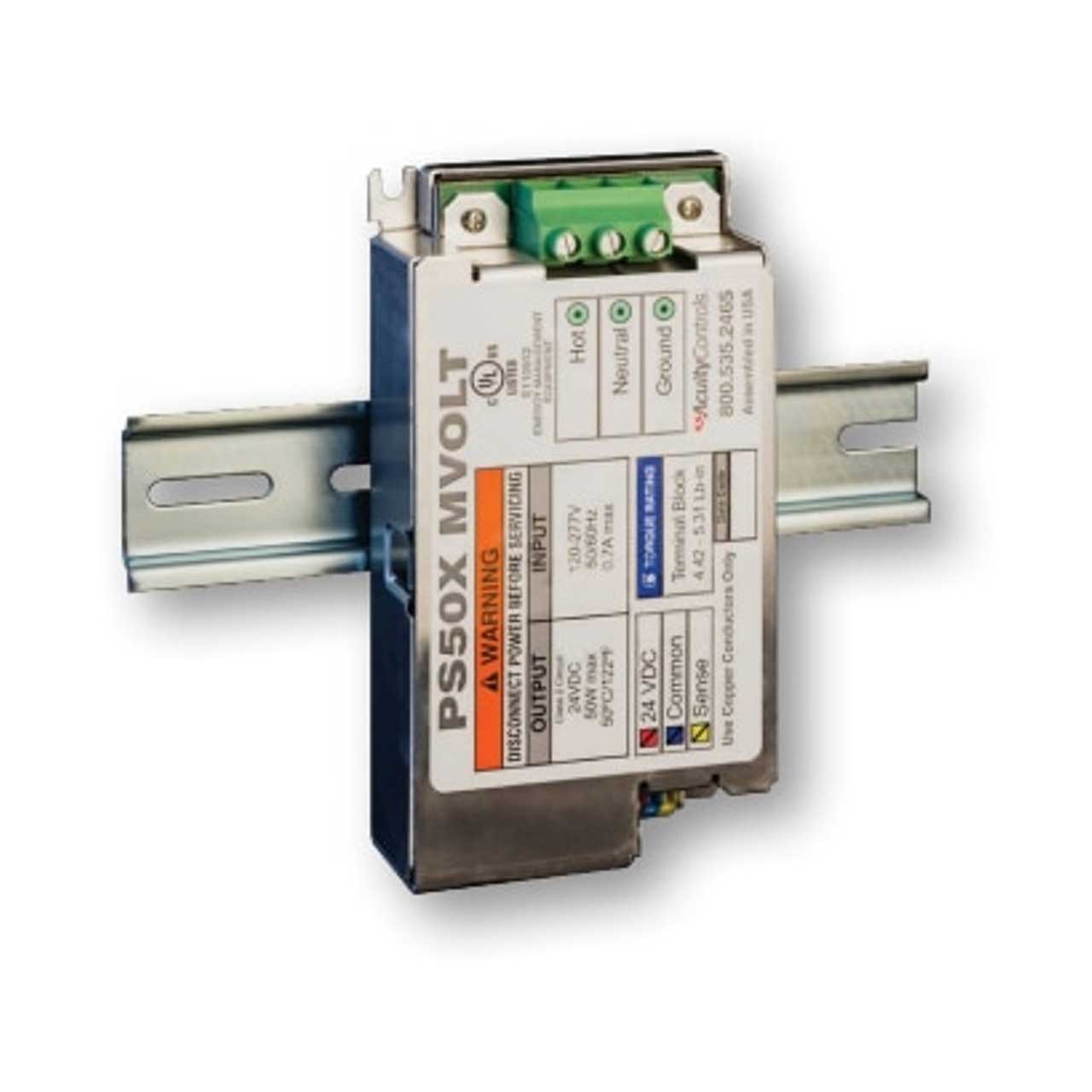

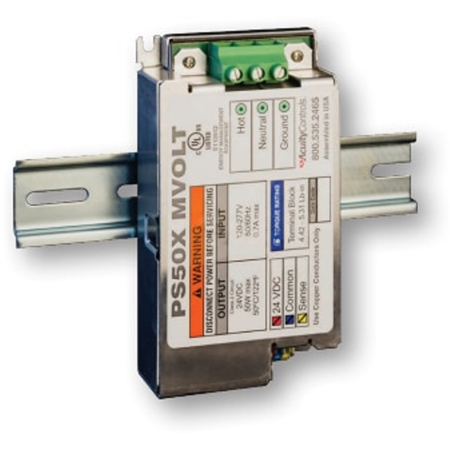

    Pathway Connectivity PWPWR DIN TERM50W24VDC is a Din Mountable, 50W 50/60Hz 24VDC Power Supply.

    Pathway DIN-mount power supplies are offered in several voltages and wattages for various permanent install applications using NEMA1 enclosures (PWENC).

    • Features:

      • 24VDC output, Class 2 circuit
      • 120-277V, 50/60Hz input
      • Supplies 50W
      • Consumes up to 0.7A max
      • UL Listed
      • Designed for installation in NEMA1 enclosures (PWENC)
      • Mounts to standard 35mm DIN rail
      • Designed for permanent interior installation


    • Specifications:

      • Series: PWRPWR Pathway Power Supply
      • Form Factor: DIN-mount
      • Output Connector Type: Compression-fit terminal
      • Wattage: 50W
      • Voltage: 24V
      • Operating Conditions: 32°-118°F (0° to 48°C); 10-90% relative humidity, non-condensing
      • Weight: 0.66 lbs (0.3 kg)
      • Dimensions: 1.6 x 5.4 x 3.0 (41 x 137 x 76mm)


    • Item Includes:

      • 1x Pathway Connectivity PWPWR DIN TERM 50W 24VDC 50 Watt, 24VDC Power Supply, DIN-Mountable


    • Warranty:

      • 3-year limited warranty
